Throttle Body

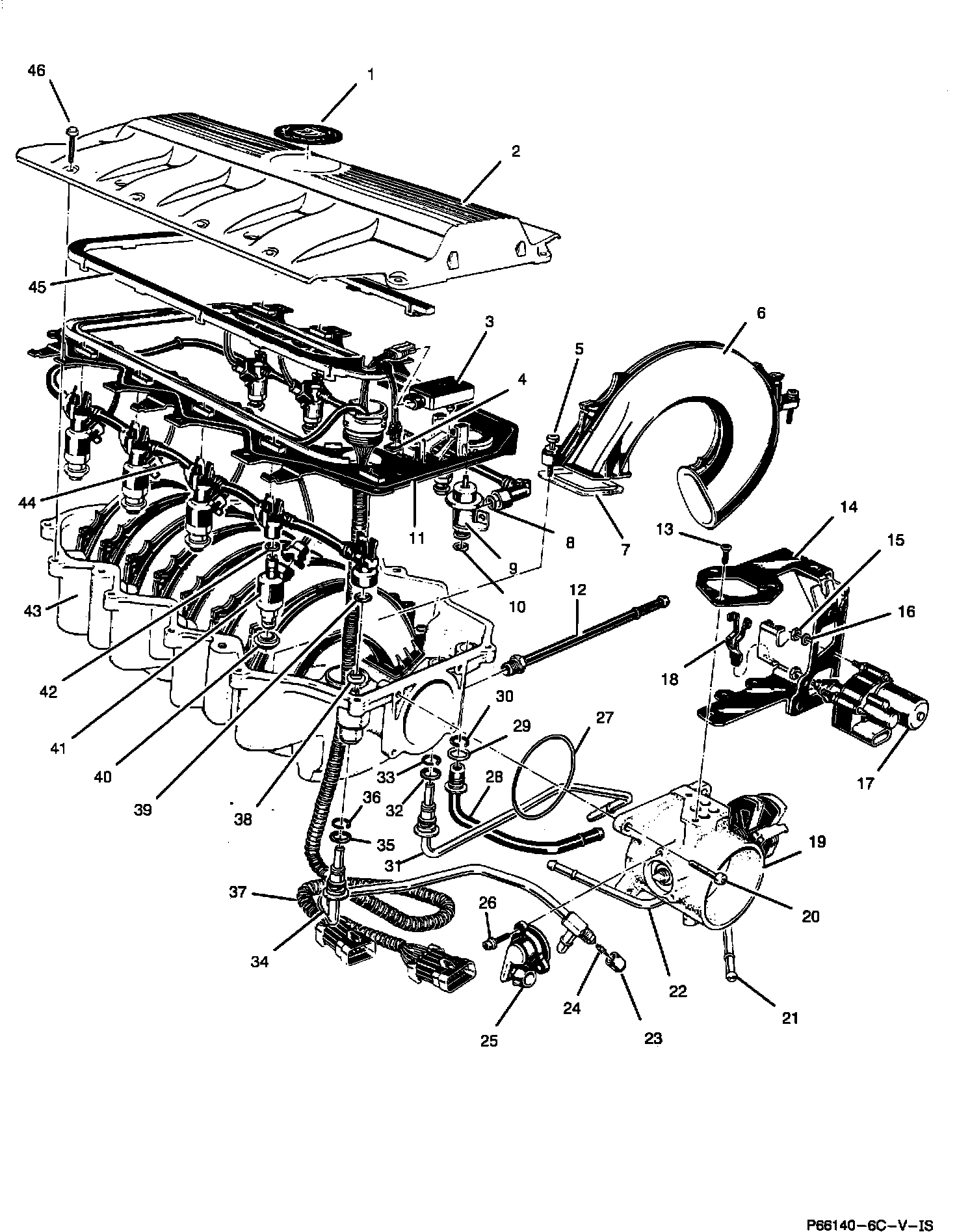

Throttle Body And Intake Cover Exploded View:

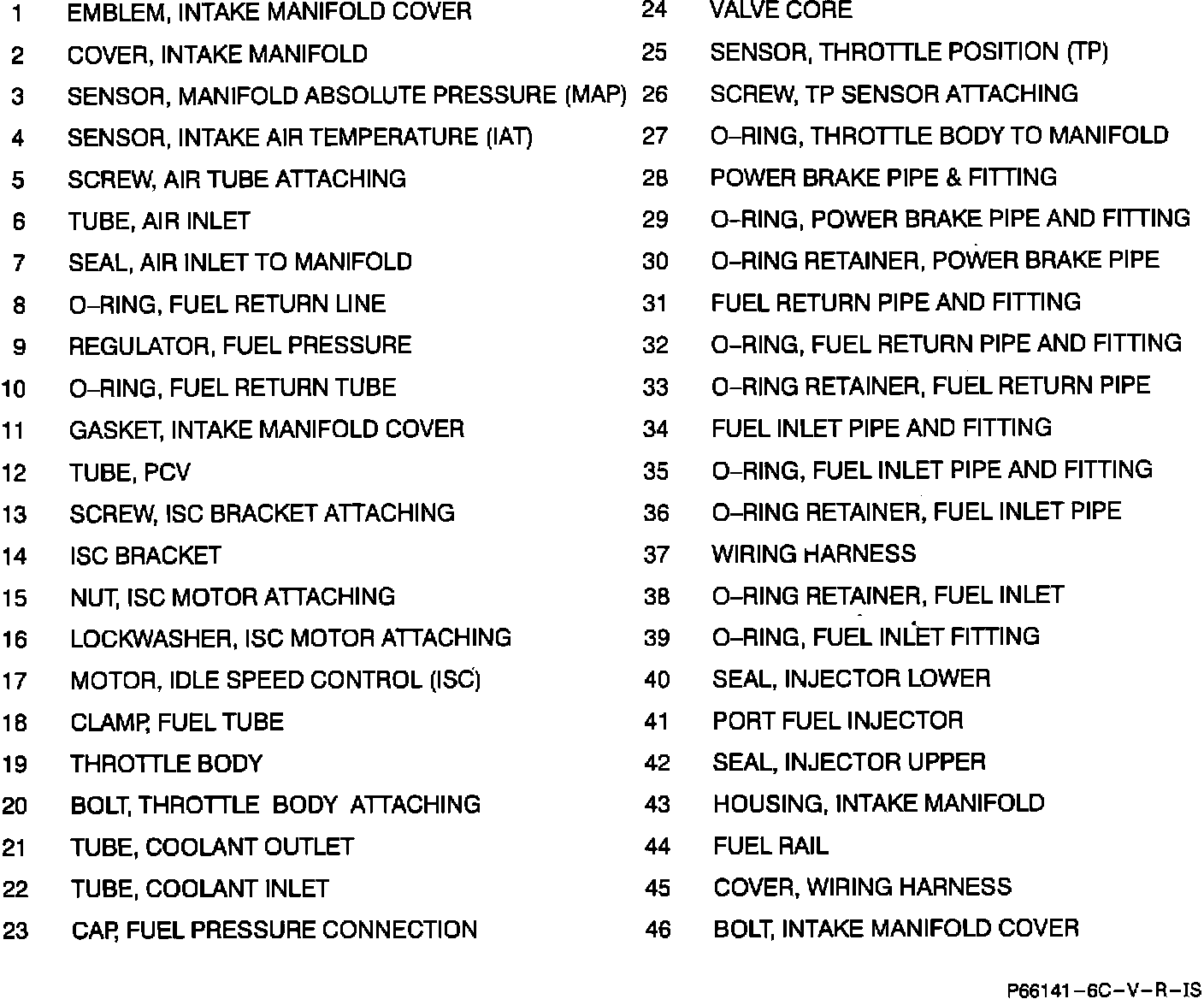

Legend To Throttle Body, Intake Cover And Fuel Rail:
