Crankshaft Position Sensor: Service and Repair

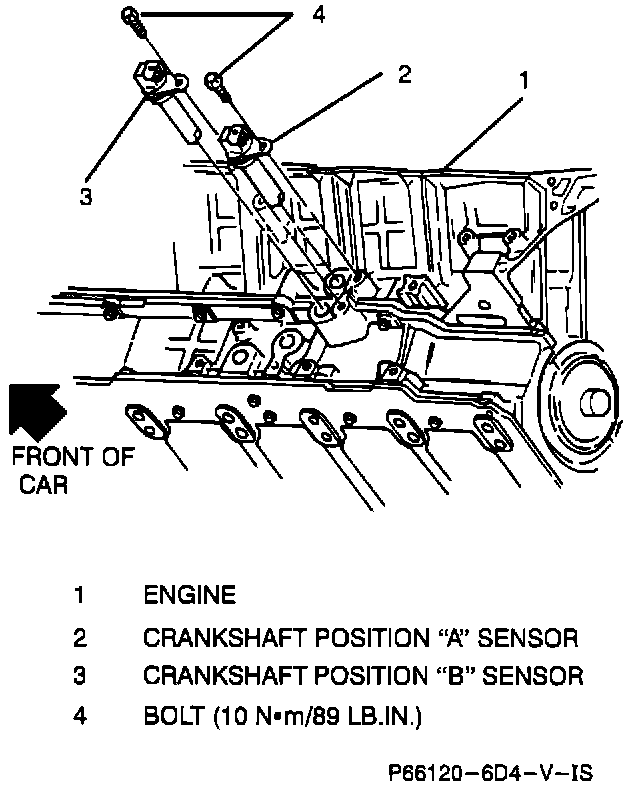

Crankshaft Position Sensor Replacement:

REMOVE OR DISCONNECT
- Raise vehicle and support.
- Electrical connector at sensor.
- Retaining bolt and sensor.



INSTALL OR CONNECT
- Sensor and retaining bolt.
- Torque bolt to 1O Nm (89 lb in).
- Electrical connector at sensor.
- Lower vehicle,
