Power Steering Pressure Switch: Locations

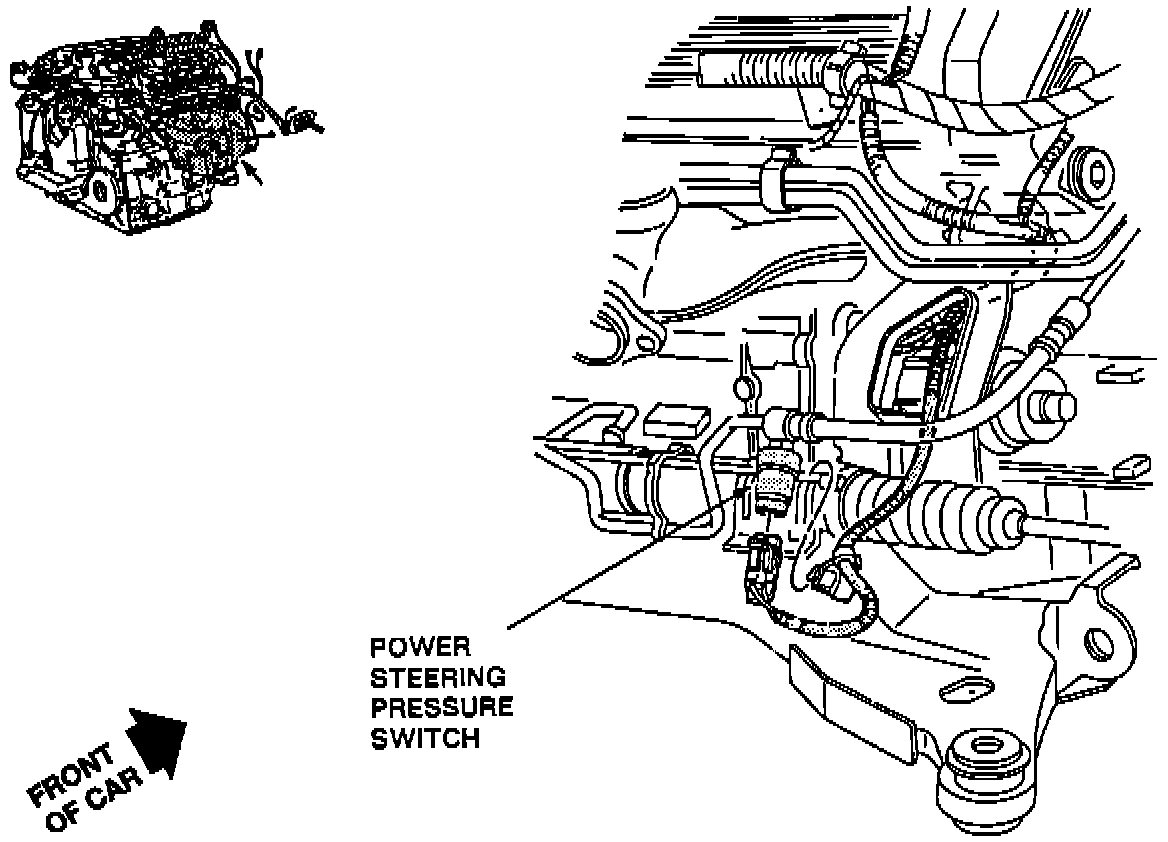

Pictorial View:






Lower RH rear of engine, mounted on power steering pressure hose. (early production only.)


Pictorial View:






Lower RH rear of engine, mounted on power steering pressure hose. (late production only.)
