Distributor Disassembly & Assembly

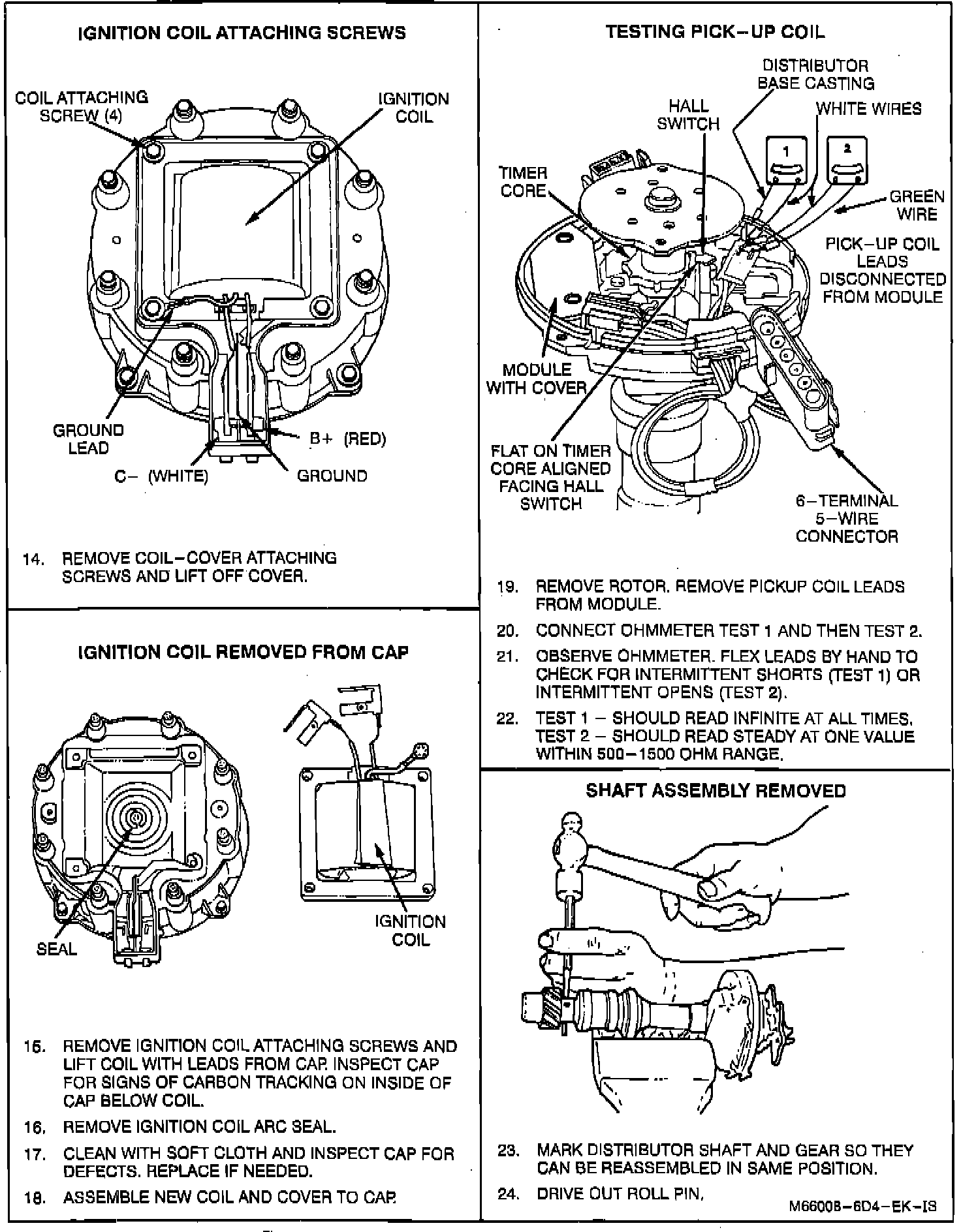

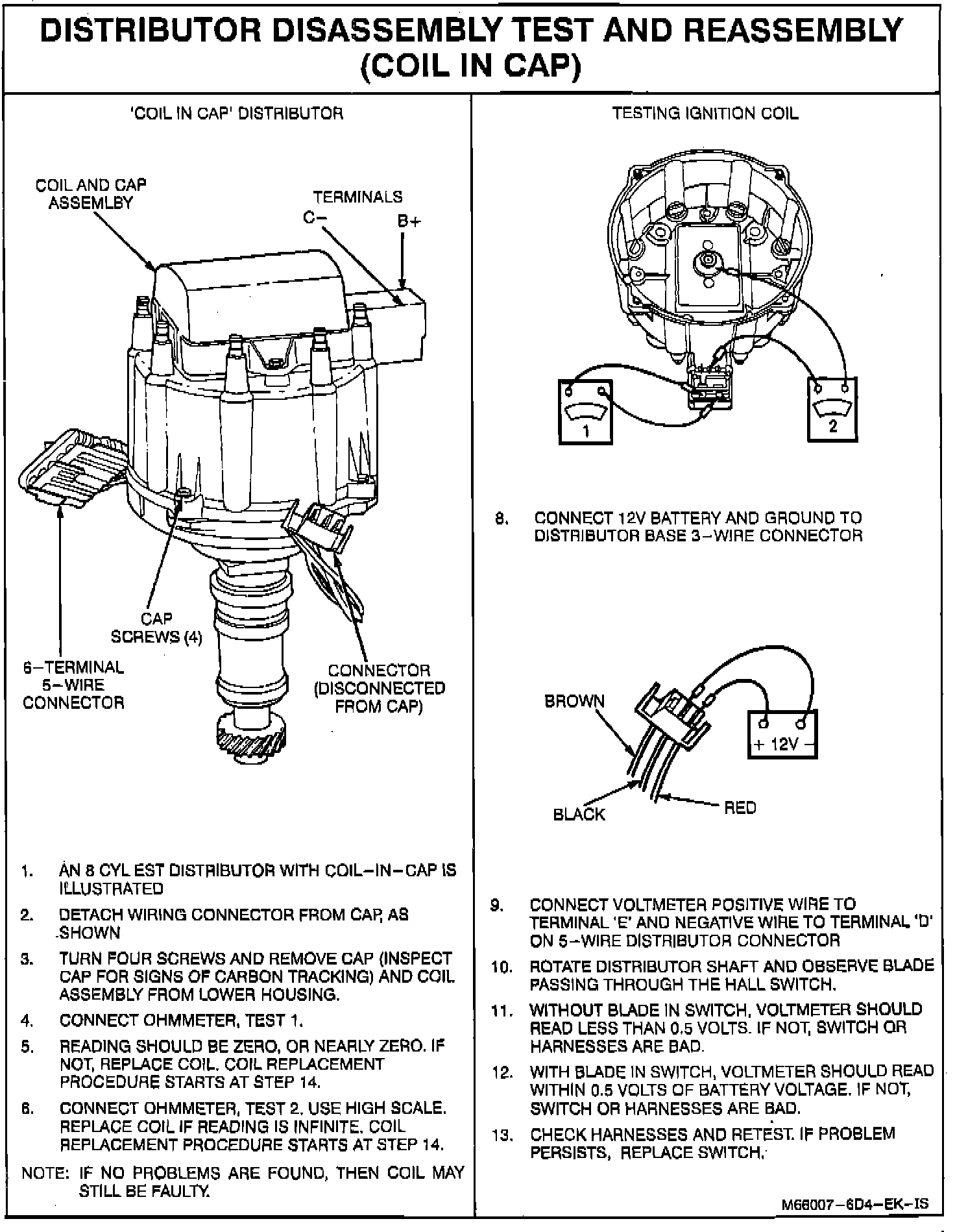

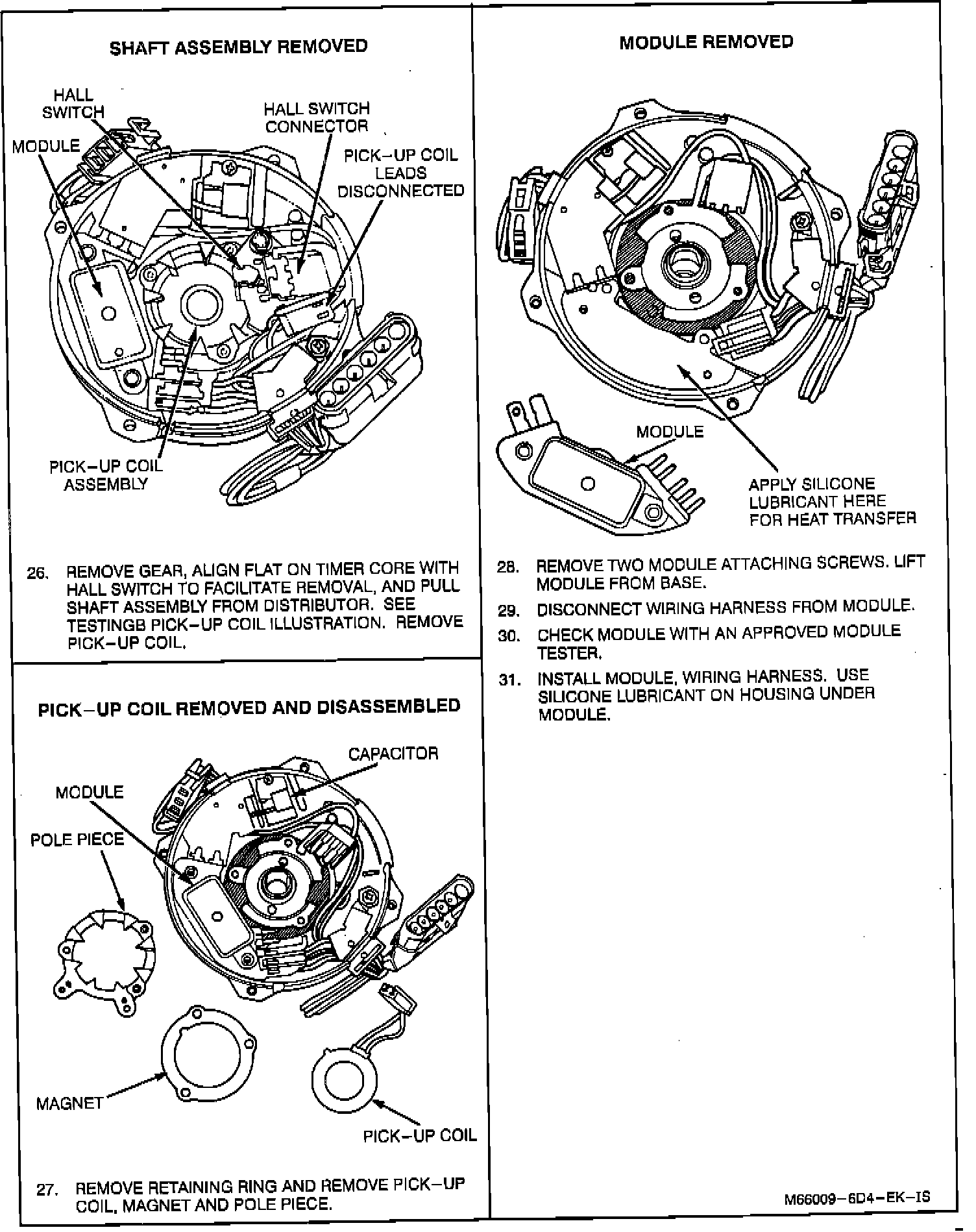

Distributor Disassembly, Test And Reassembly - Part 1 Of 3:



Distributor Disassembly, Test And Reassembly - Part 2 Of 3:



Distributor Disassembly, Test And Reassembly - Part 3 Of 3:
