Home >> Cadillac >> 1994 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Component Tests and General Diagnostics >> Test A Keyless Entry Module Connector Pinout Test

April 5, 2026: LEMON Manuals is launched! Read the announcement.

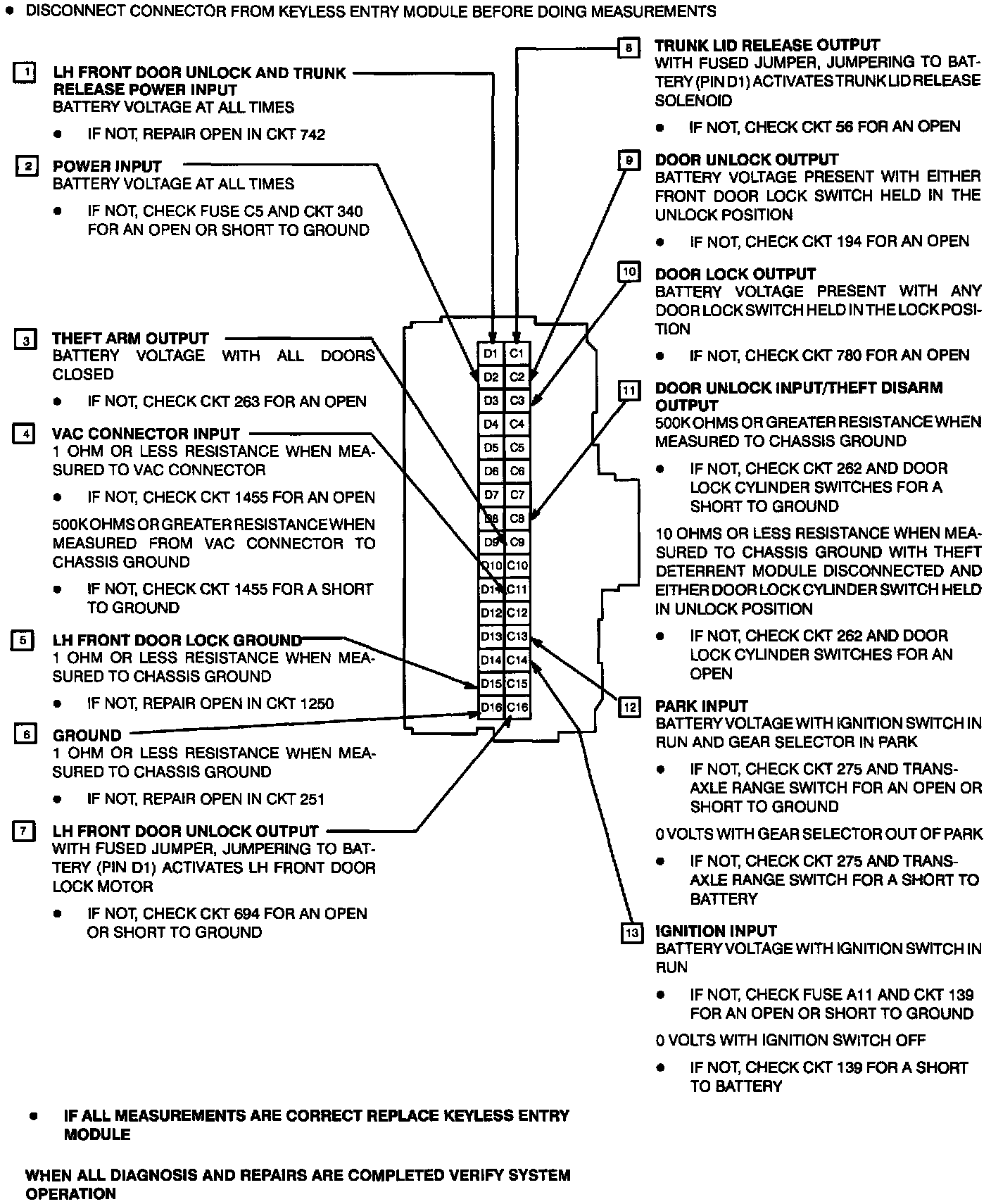

Test A Keyless Entry Module Connector Pinout Test
