July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Engine Control Module

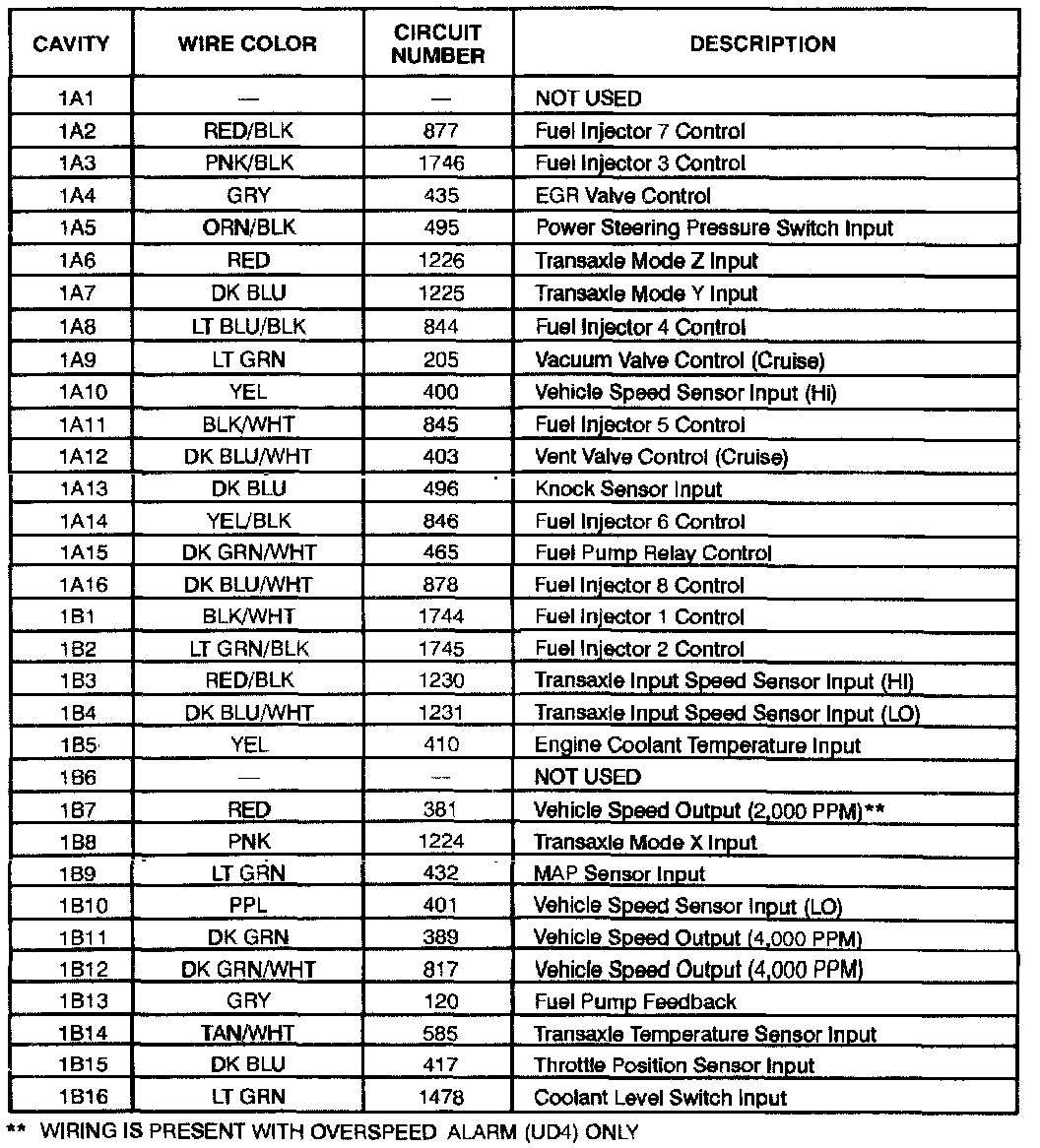

Powertrain Control Module (PCM) - 1A/1B:

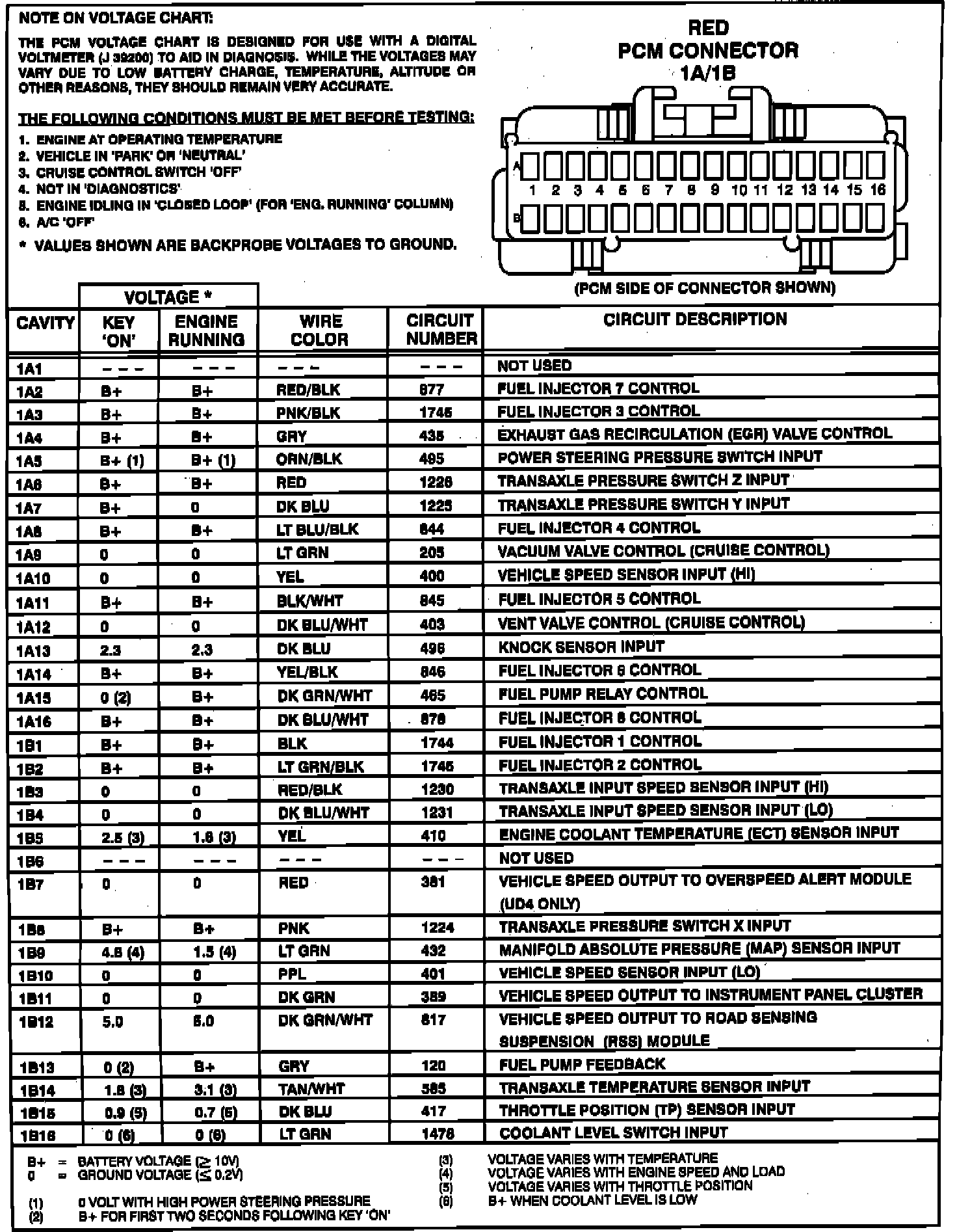

Powertrain Control Module (PCM) - 1A/1B:

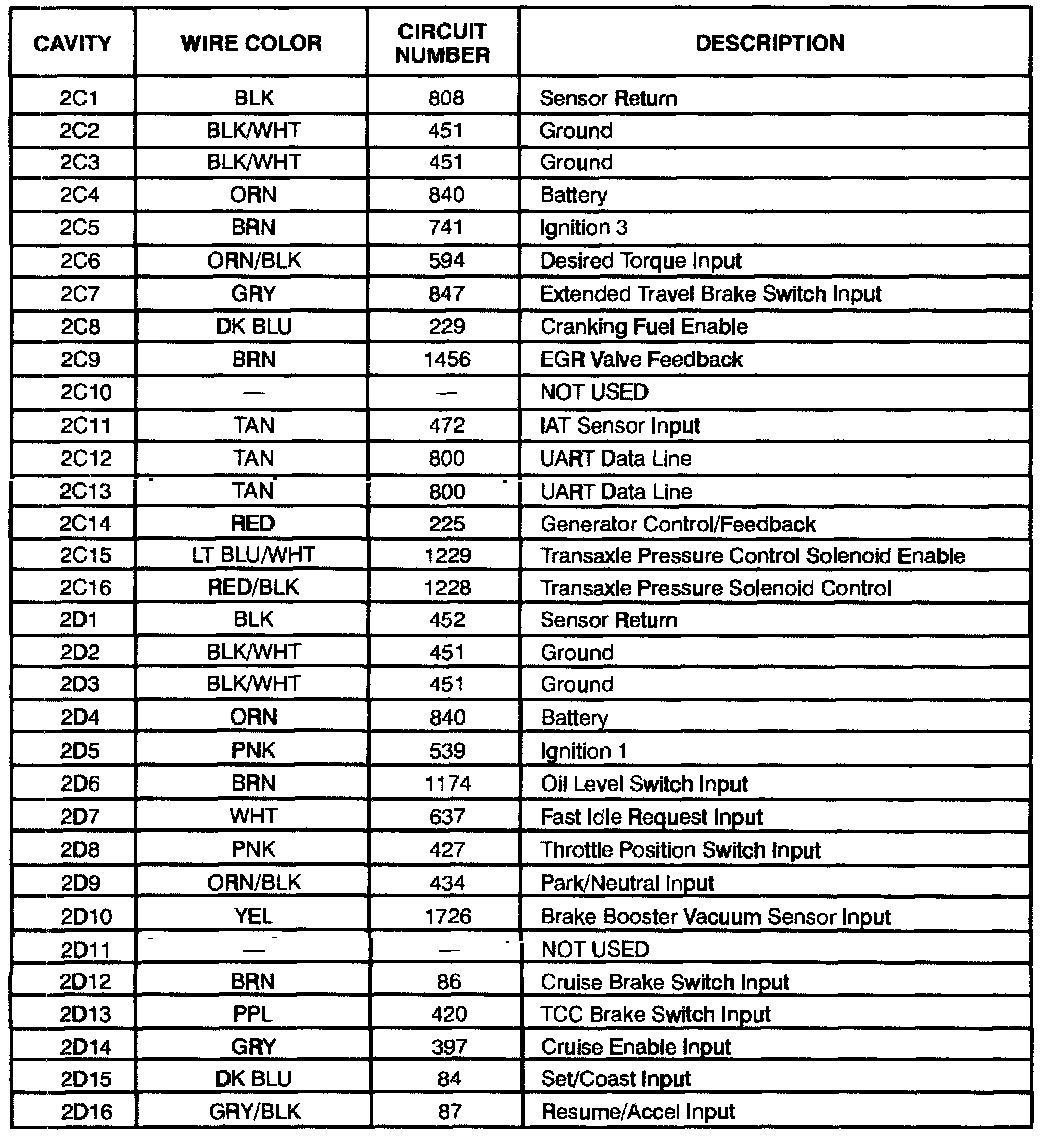

Powertrain Control Module (PCM) - 2C/2D:

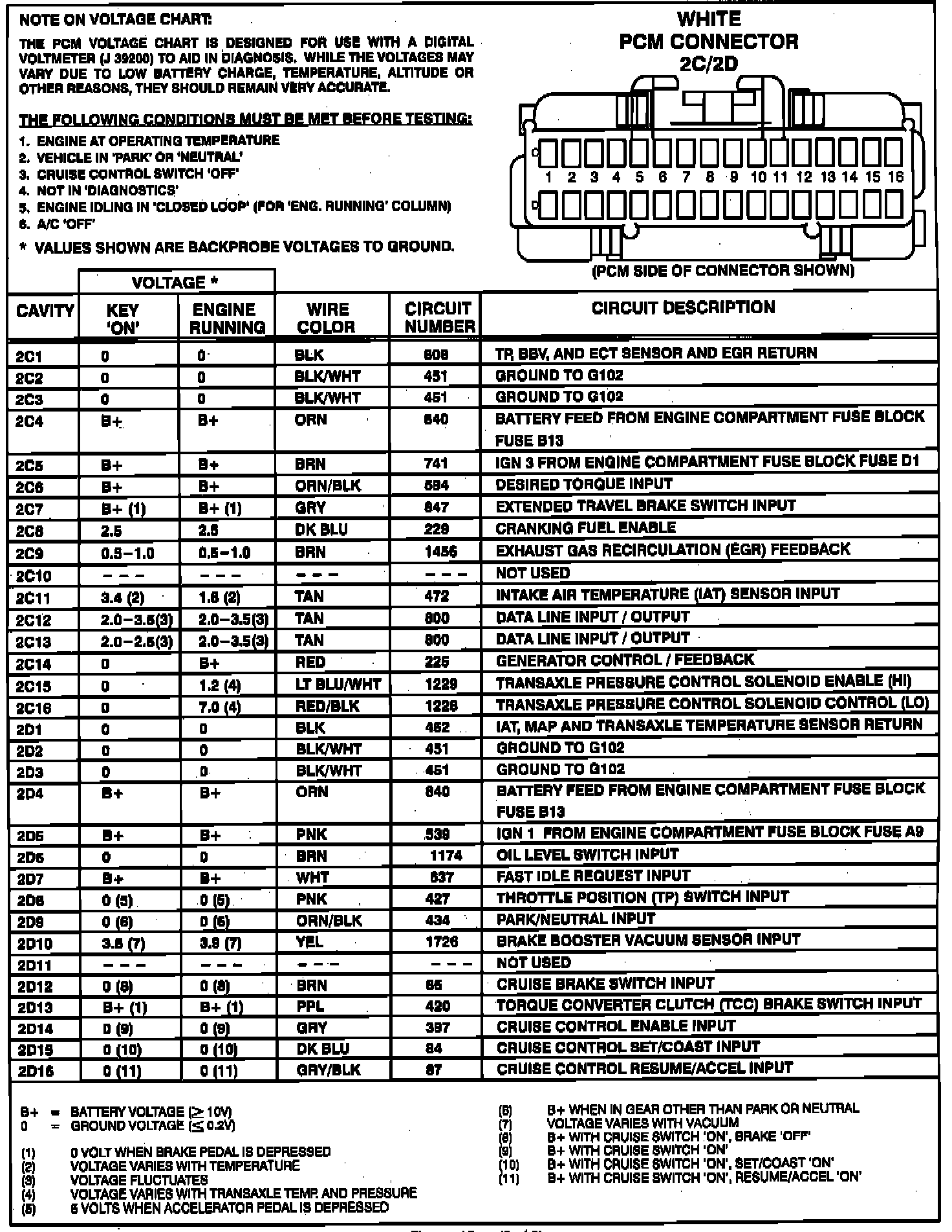

Powertrain Control Module (PCM) - 2C/2D:

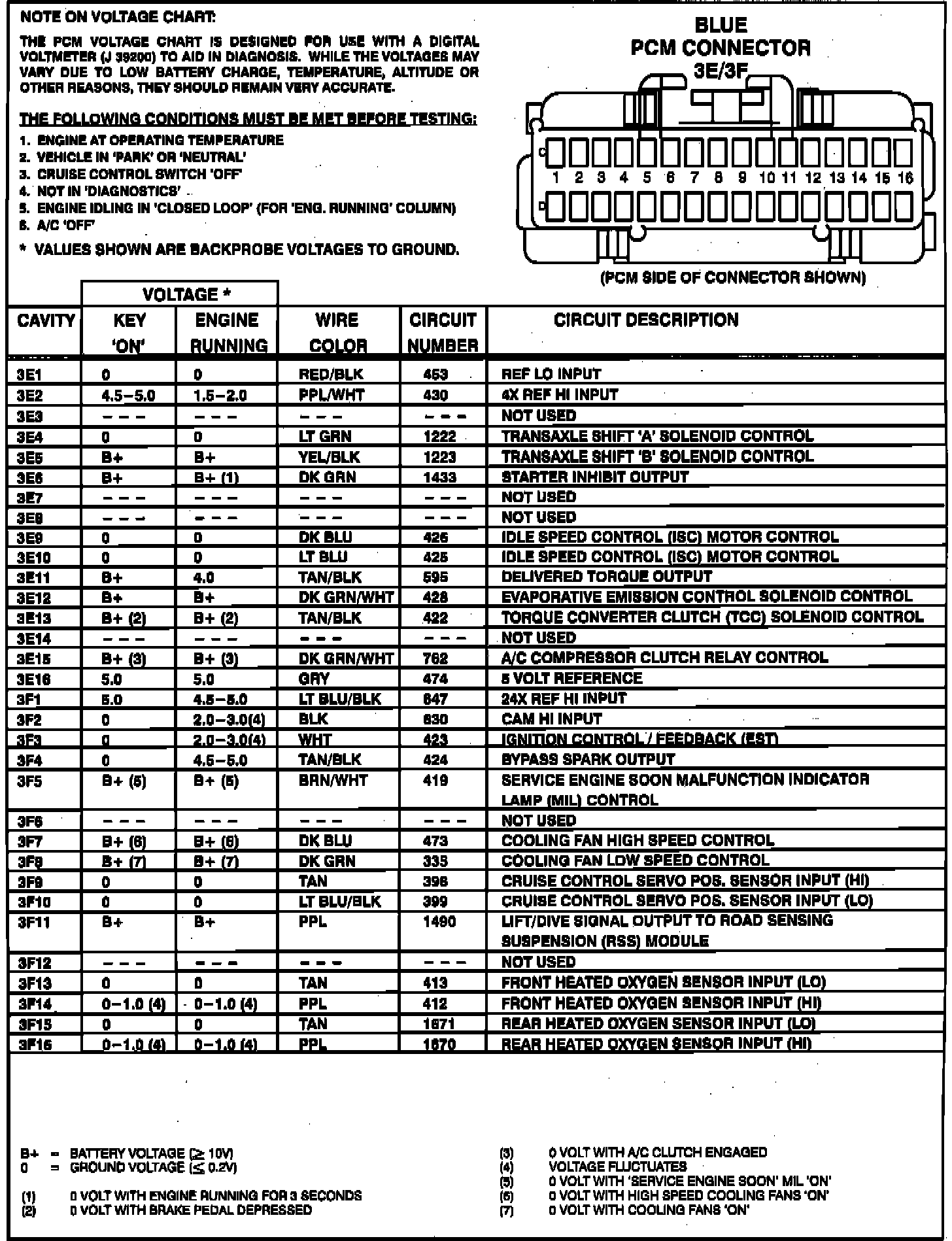

Powertrain Control Module (PCM) - 3E/3F:

Powertrain Control Module (PCM) - 3E/3F:

PCM Connectors - Part 1 Of 3:

PCM Connectors - Part 2 Of 3:

PCM Connectors - Part 3 Of 3:

PCM Connector Identification:

PCM Connector Identification:

PCM Connector Identification:
