Cadillac
>>
1994
>>
Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Entry Module
>>
Harness Connector
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

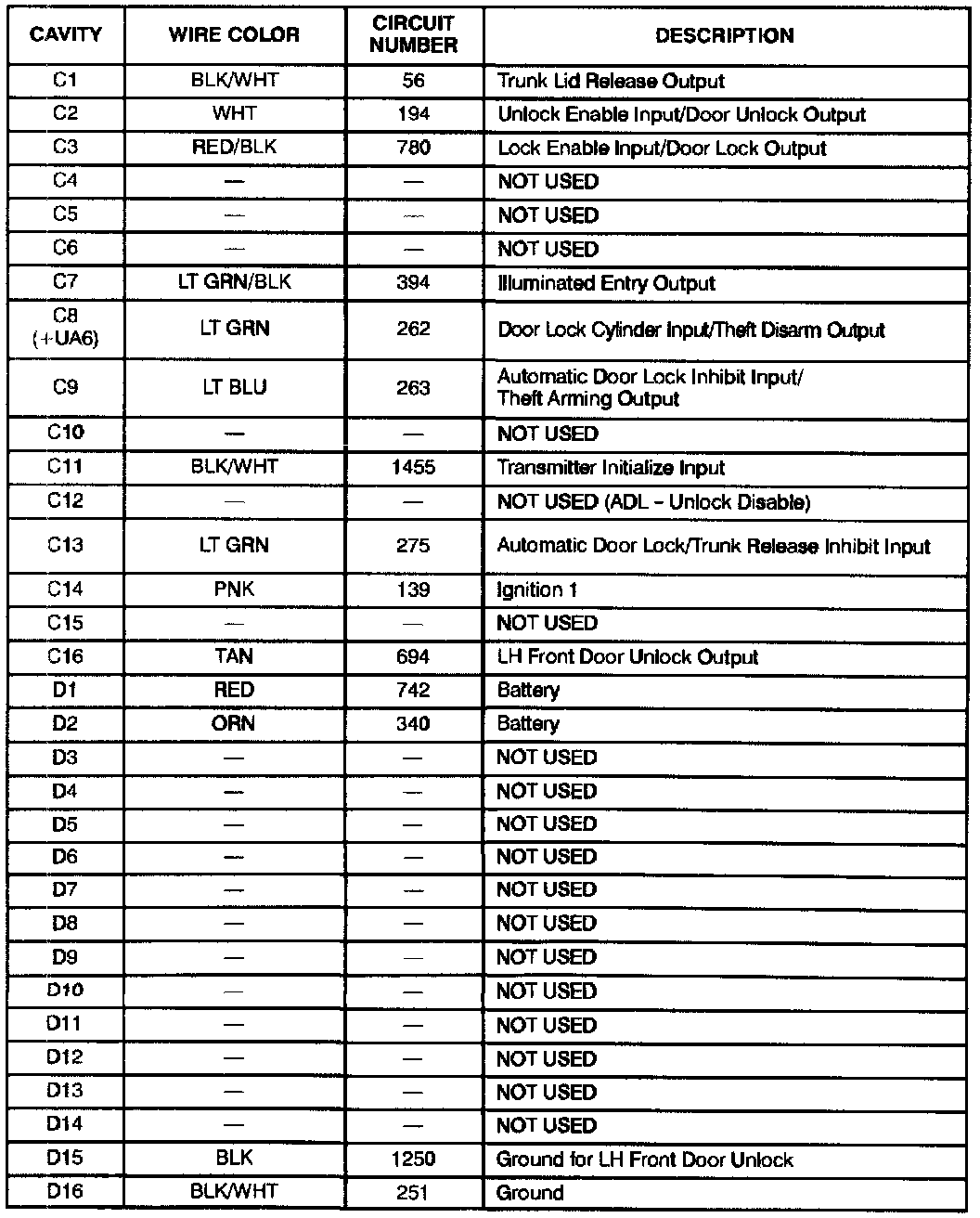

Harness Connector
Keyless Entry Module:
Keyless Entry Module:
