Transmission Control Systems



Automatic Transaxle

C1127

C127:




Harness Connector

C127:

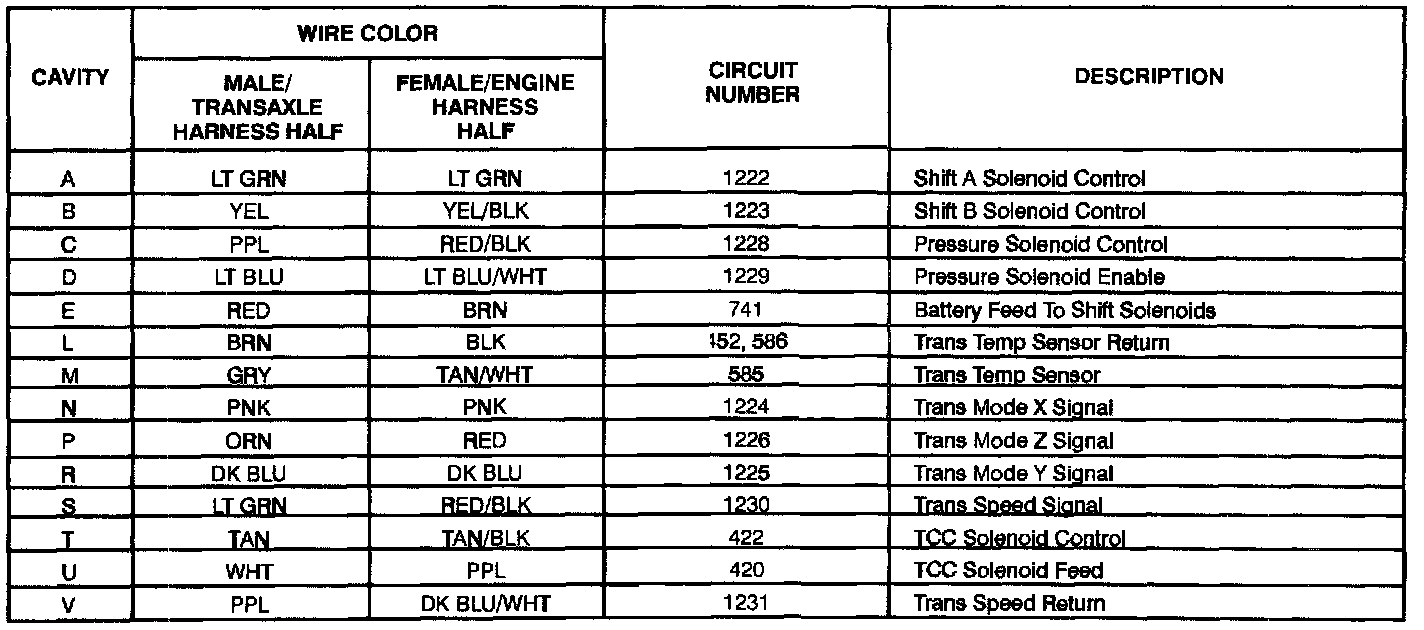

Pinout Description

C129

C129:




Harness Connector

C129:

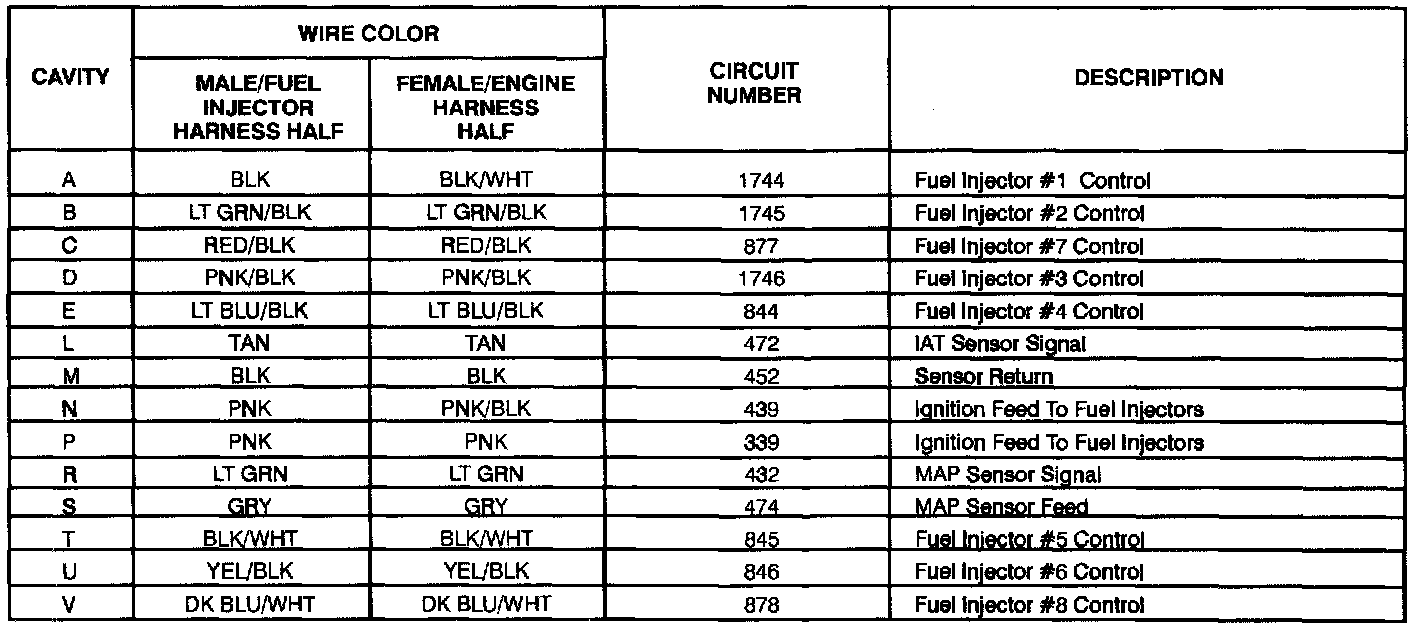

Pinout Description
