Removal & Installation

  1. Disconnect negative battery cable. Disconnect connectors at ignition control module. See Fig 1. Disconnect spark plug wires from coil pack. Remove coil pack/ignition control module assembly. For ignition control module location, see COMPONENT LOCATIONS in SYSTEM/COMPONENT TESTS article in this section. Separate ignition coil(s) from ignition control module (if possible).
  2. To install, reverse removal procedure. Tighten ignition control module mounting bolts/nuts. Tighten mounting bolts/nuts to specification. See TORQUE SPECIFICATIONS .

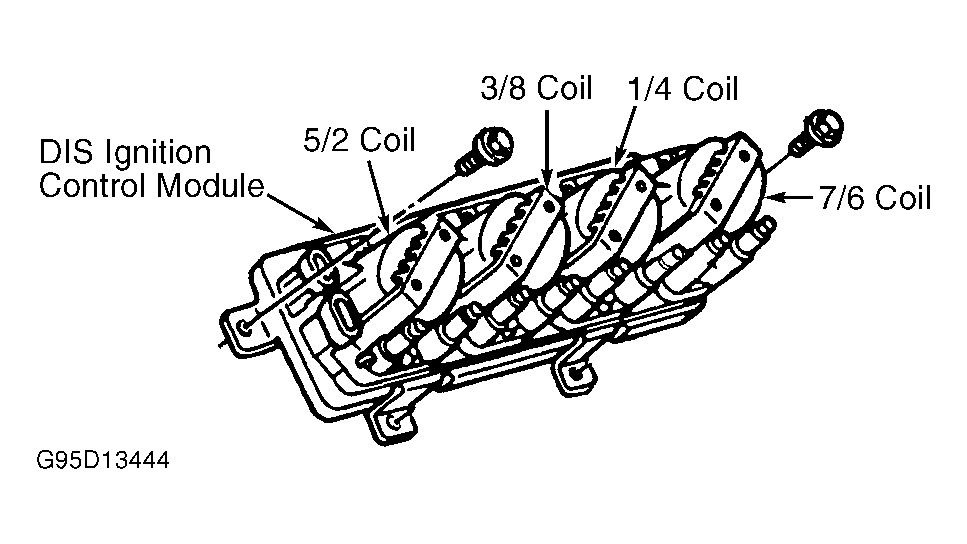

Fig 1: Distributorless Ignition Cntrl. Module Component (Eldorado)
G95D13444Courtesy of GENERAL MOTORS CORP.
