Test B - Memory Seat Switch Isolation

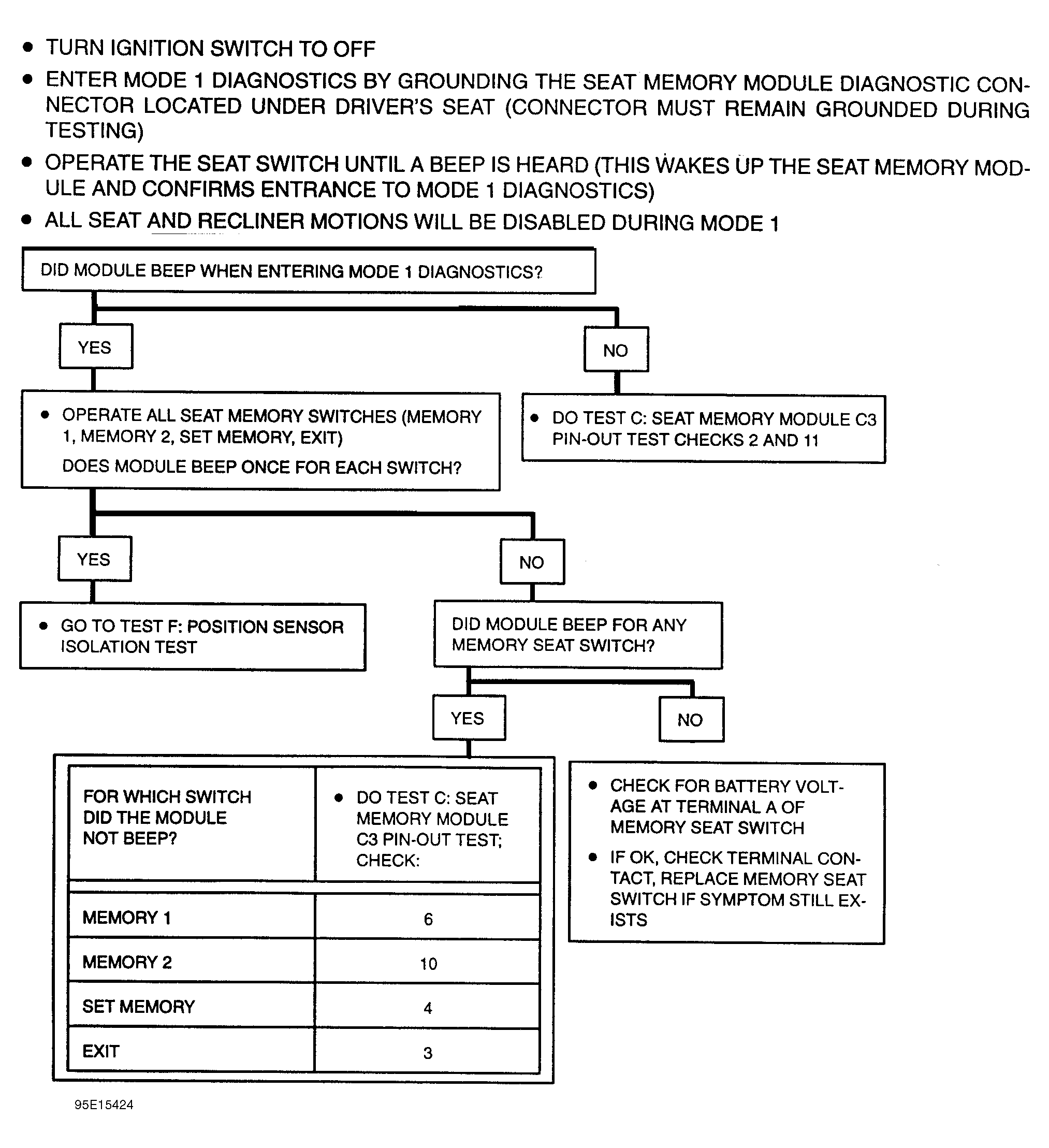

Fig 1: Test B - Memory Seat Switch Isolation
Courtesy of GENERAL MOTORS CORP.
