Test C - Memory Seat Module C3 PINOUT

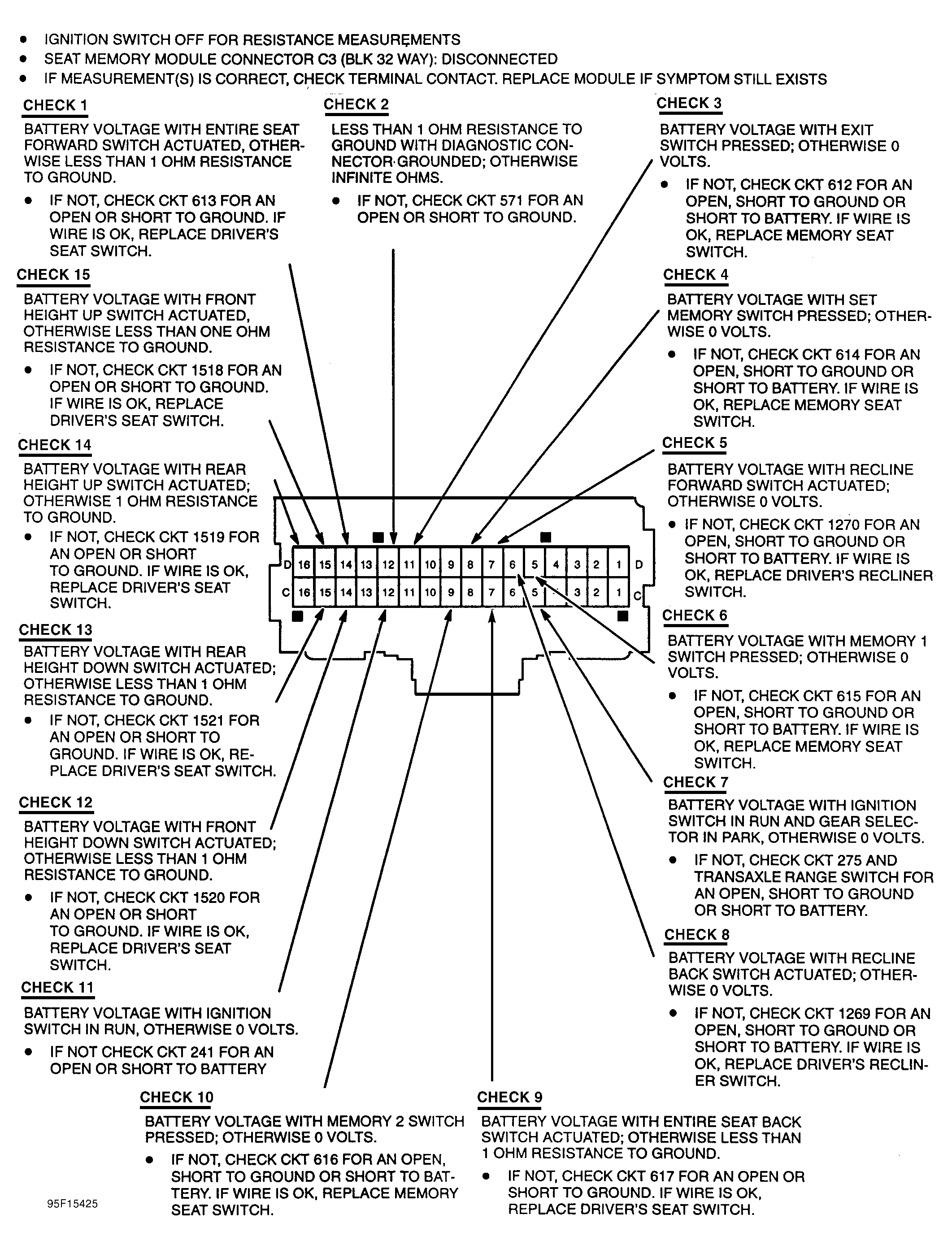

Fig 1: Test C - Memory Seat Module C3 Pinout
Courtesy of GENERAL MOTORS CORP.
