Test F - Position Sensor Isolation

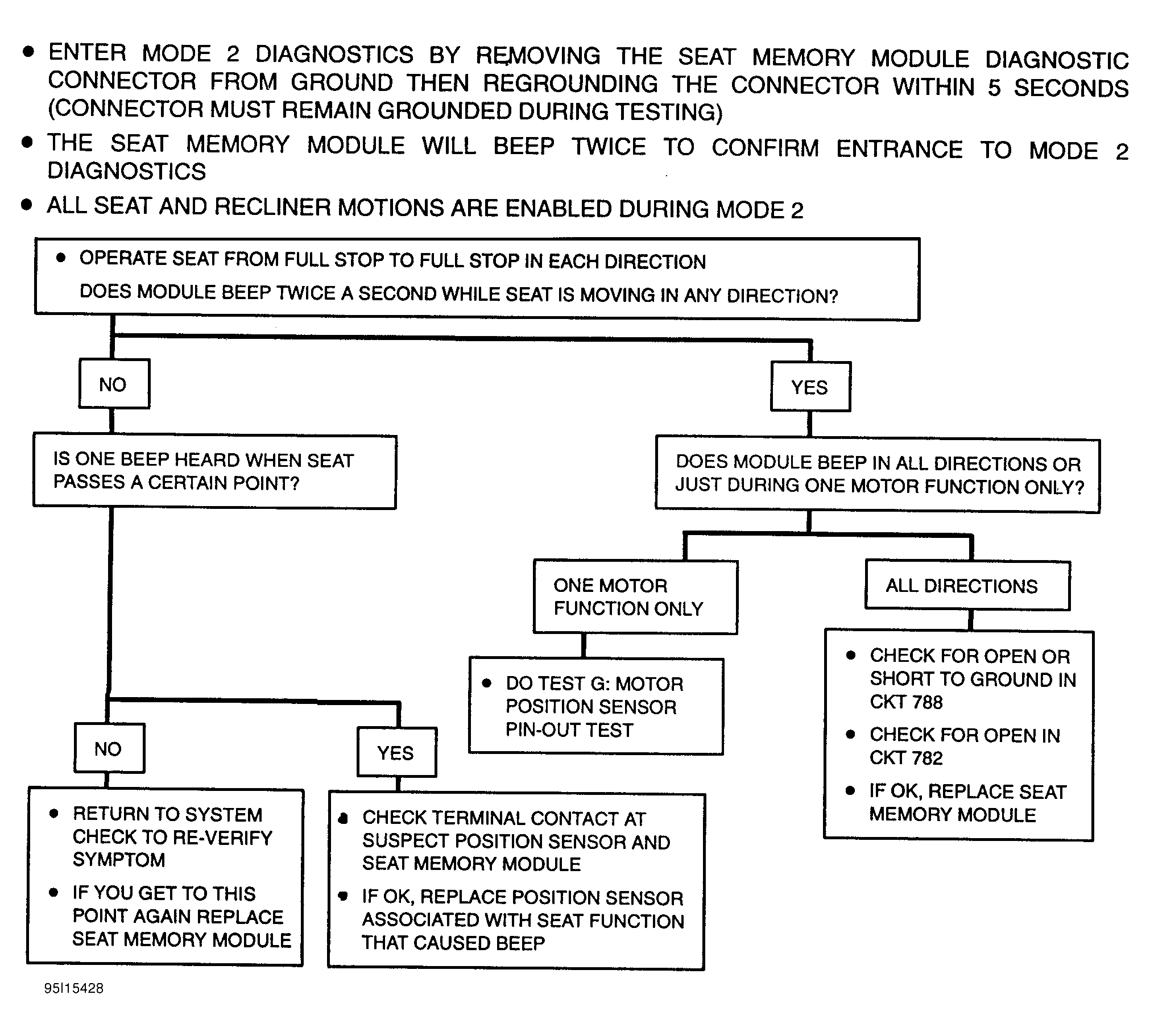

Fig 1: Test F - Position Sensor Isolation
Courtesy of GENERAL MOTORS CORP.
