Test G - Motor Position Sensor PINOUT

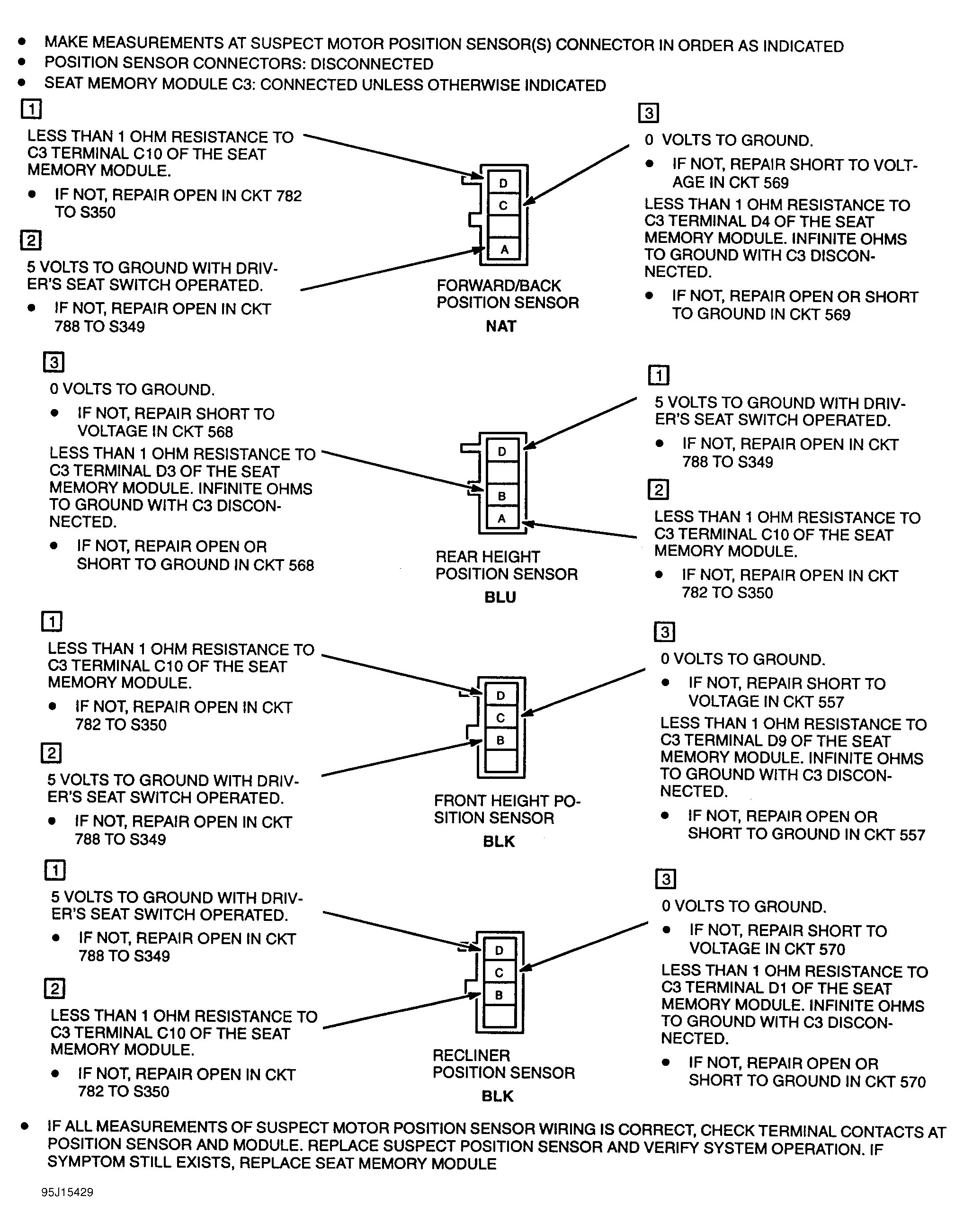

Fig 1: Test G - Motor Position Sensor Pinout
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
