Electronic Brake/Traction Control Module (EBTCM)

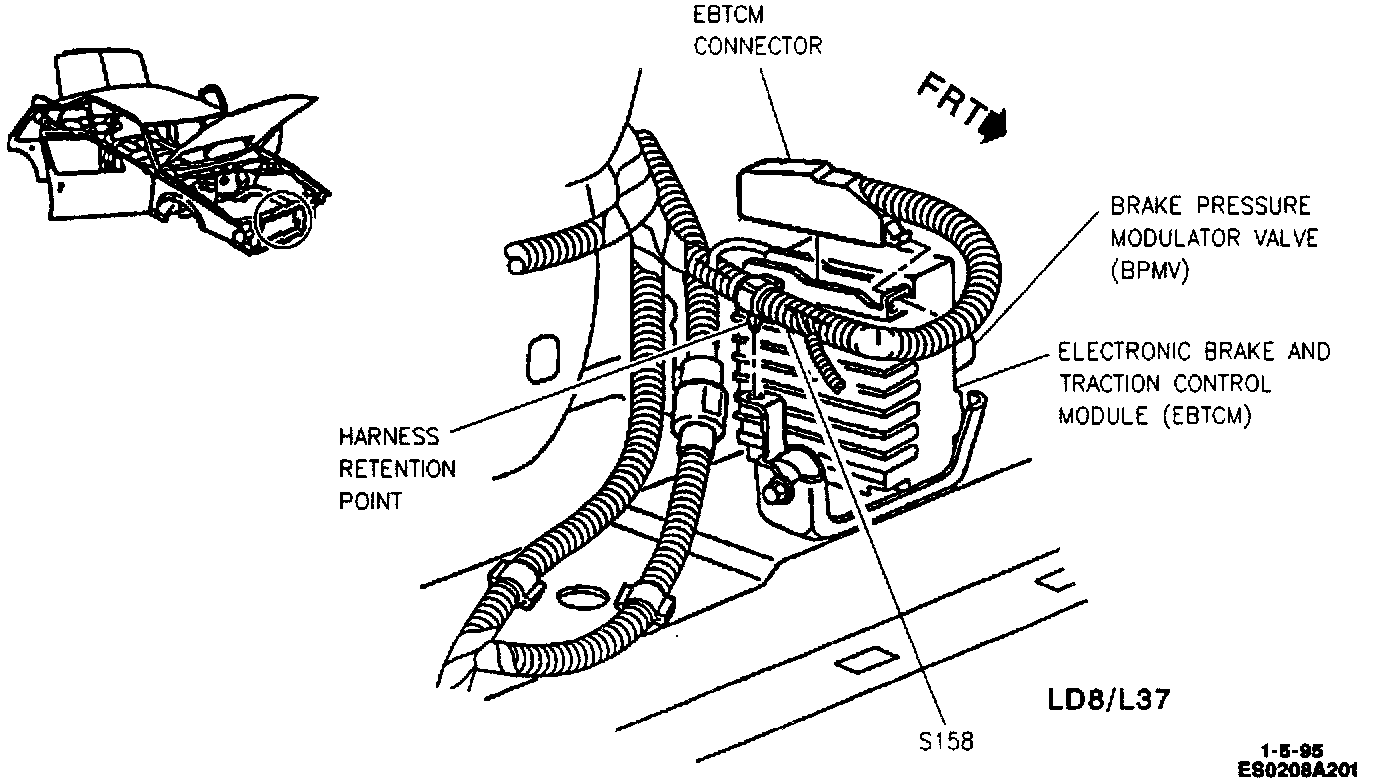

LH Front Of Engine Compartment:

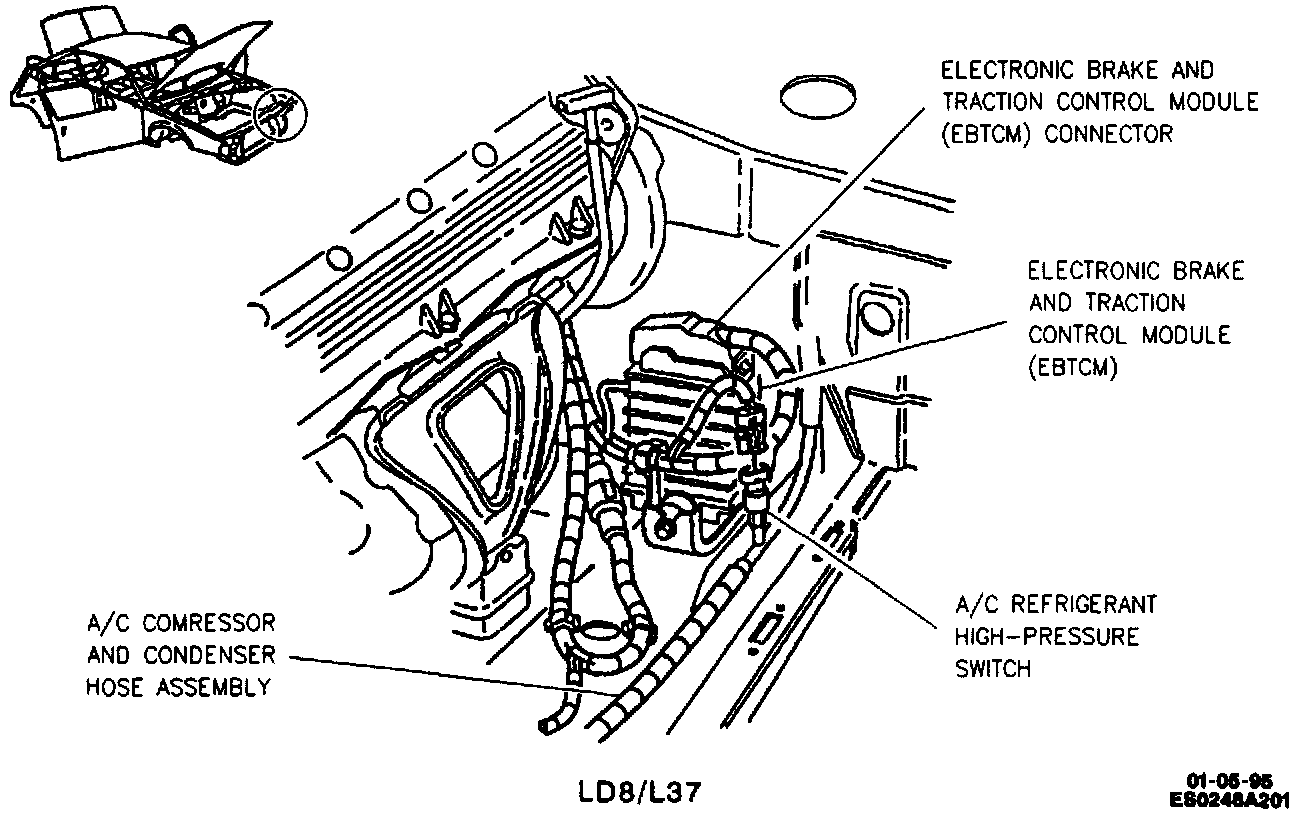

Lower LH Front Of Engine:
