Crankshaft Position Sensor: Service and Repair

Crankshaft Position Sensor Replacement:

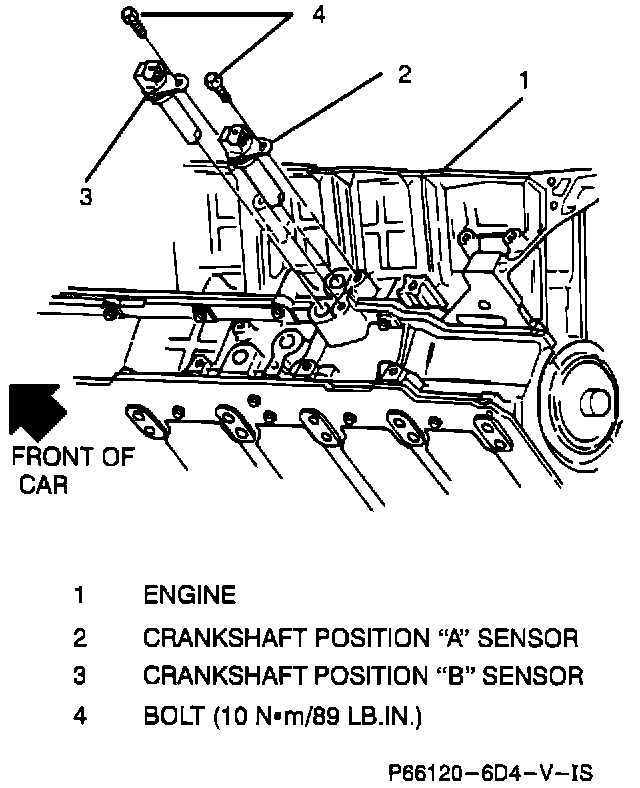

CRANKSHAFT POSITION SENSOR REPLACEMENT

REMOVE OR DISCONNECT
1. Raise vehicle and support.
2. Electrical connector from sensor.
3. Retaining bolt and sensor.

INSTALL OR CONNECT
1. Sensor and retaining bolt. Tighten Bolt to 10 Nm (89 lb in).
2. Electrical connector to sensor.
3. Lower vehicle.
