PCM Connector 3E/3F (Blue)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
PCM Connector 3E/3F (Blue)

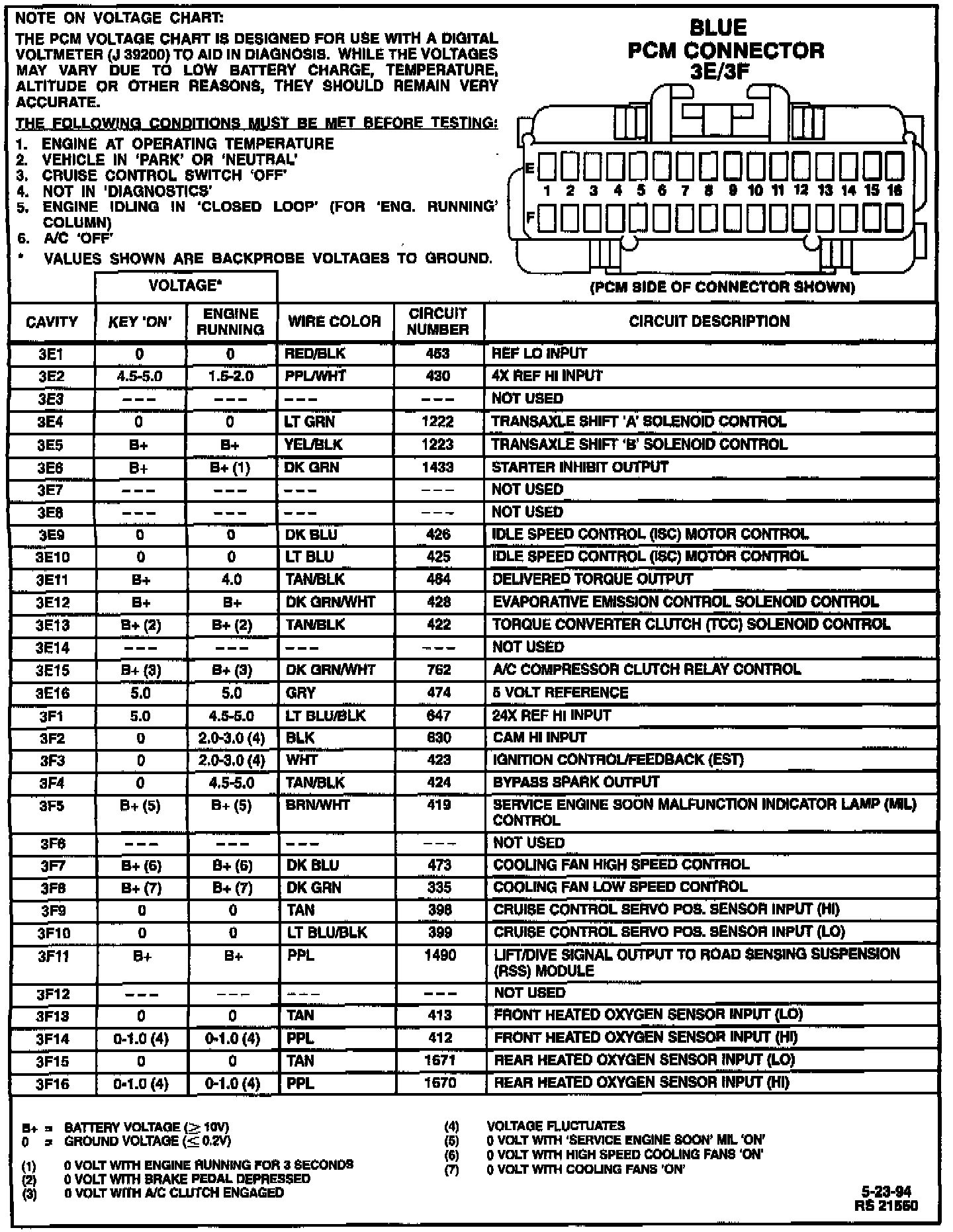

PCM Connector Terminal ID and Voltage Values: Part 3 Of 3:
