Remote Control Door Lock Receiver

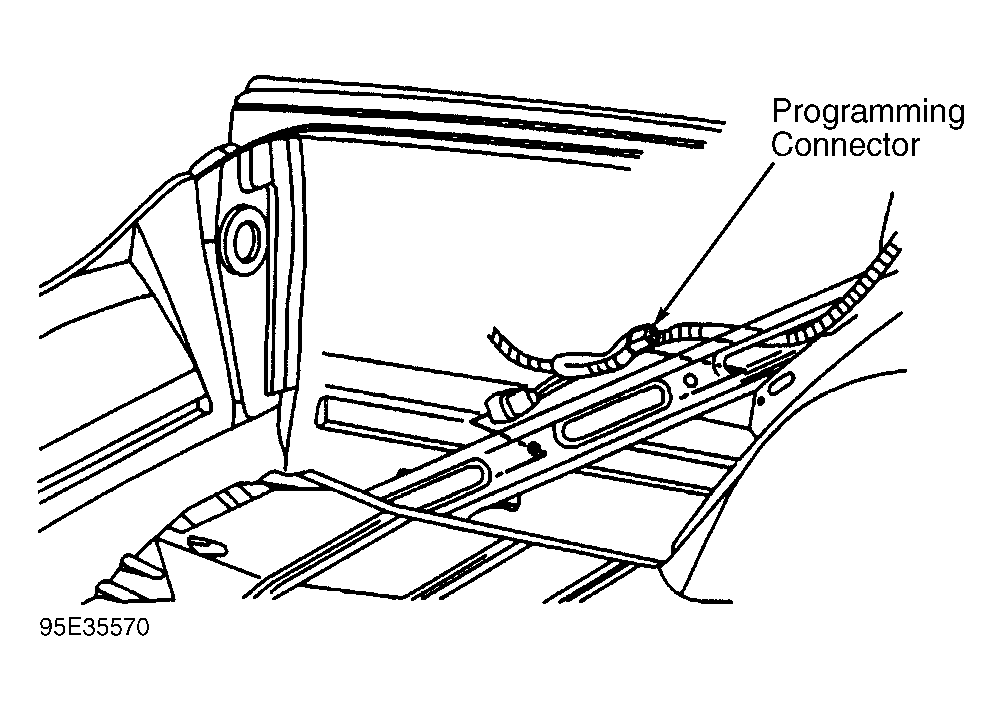

- Reposition rear compartment front trim to access programming connector located at left of rear compartment. Turn ignition on. Ground programming connector. See Fig 1 . Door lock and rear compartment lid lock will cycle indicating receiver is in program mode.
- Press any button (only once) on each transmitter. Door locks and rear compartment lid lock will cycle once confirming transmitter codes are programmed. Any transmitter codes that were previously programmed have been erased. Receiver is now programmed to transmitters.
- Disconnect programming connector from ground. Verify transmitter operation. Reinstall rear compartment front trim.
