Secondary Air Injection Pump Solenoid Valve

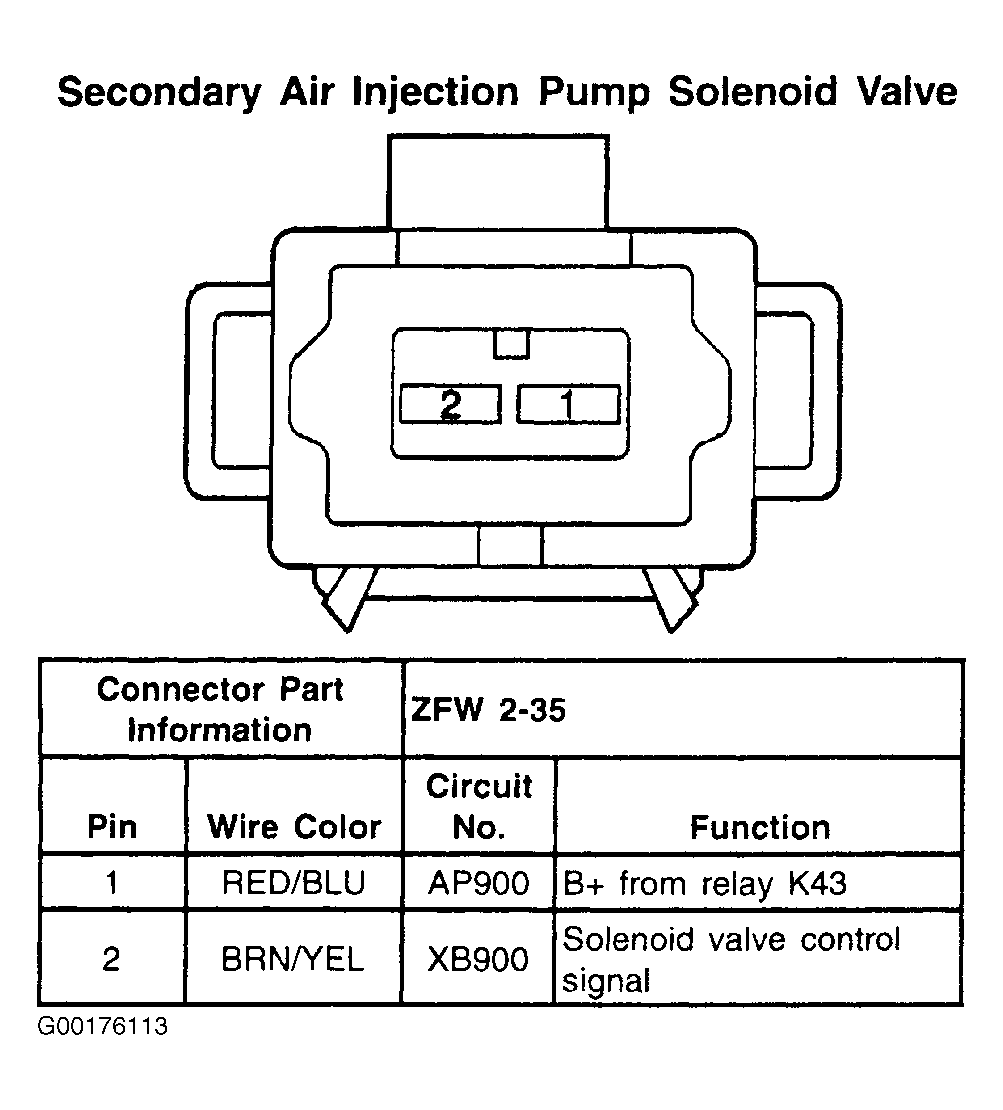

Fig 1: Secondary Air Injection Pump Solenoid Valve - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
