Fog Lamp (Right Hand)

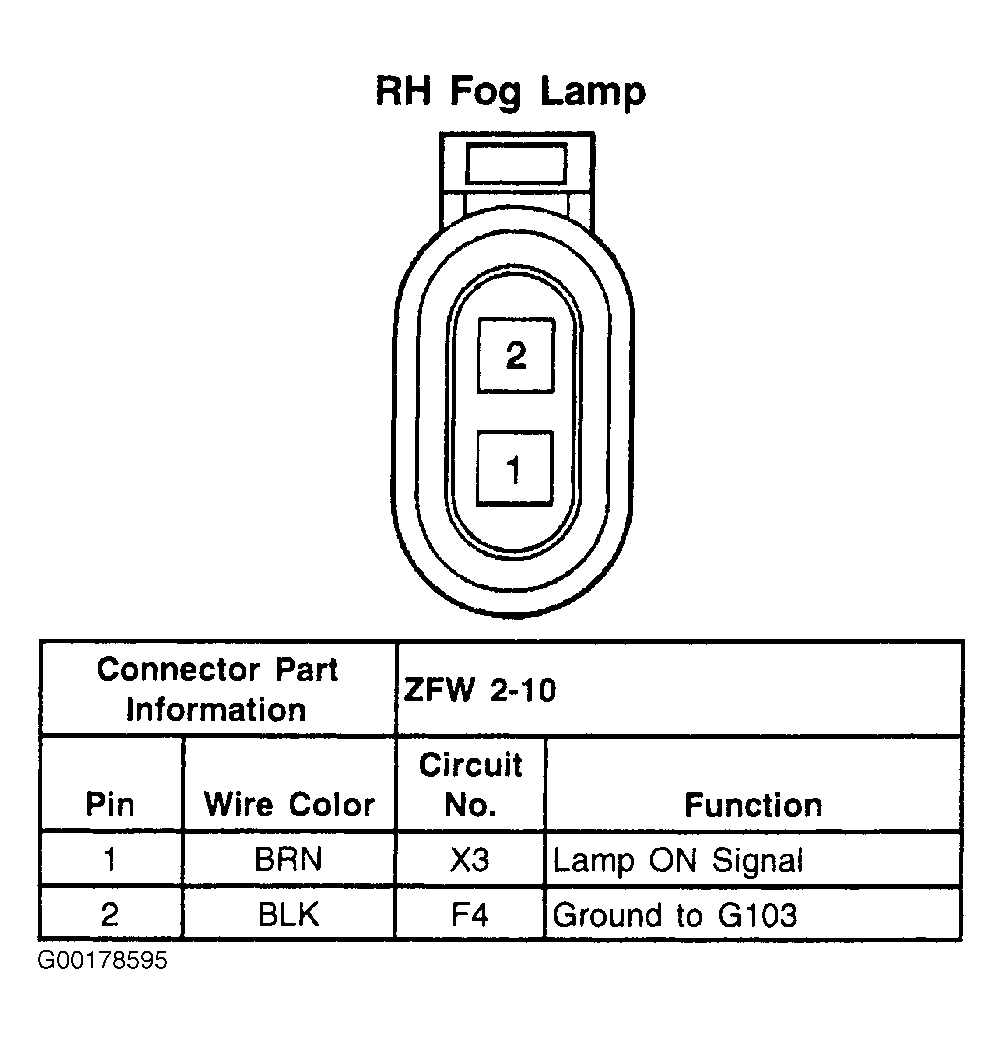

Fig 1: Fog Lamp (Right Hand) - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
