Park Lamp Relay K130

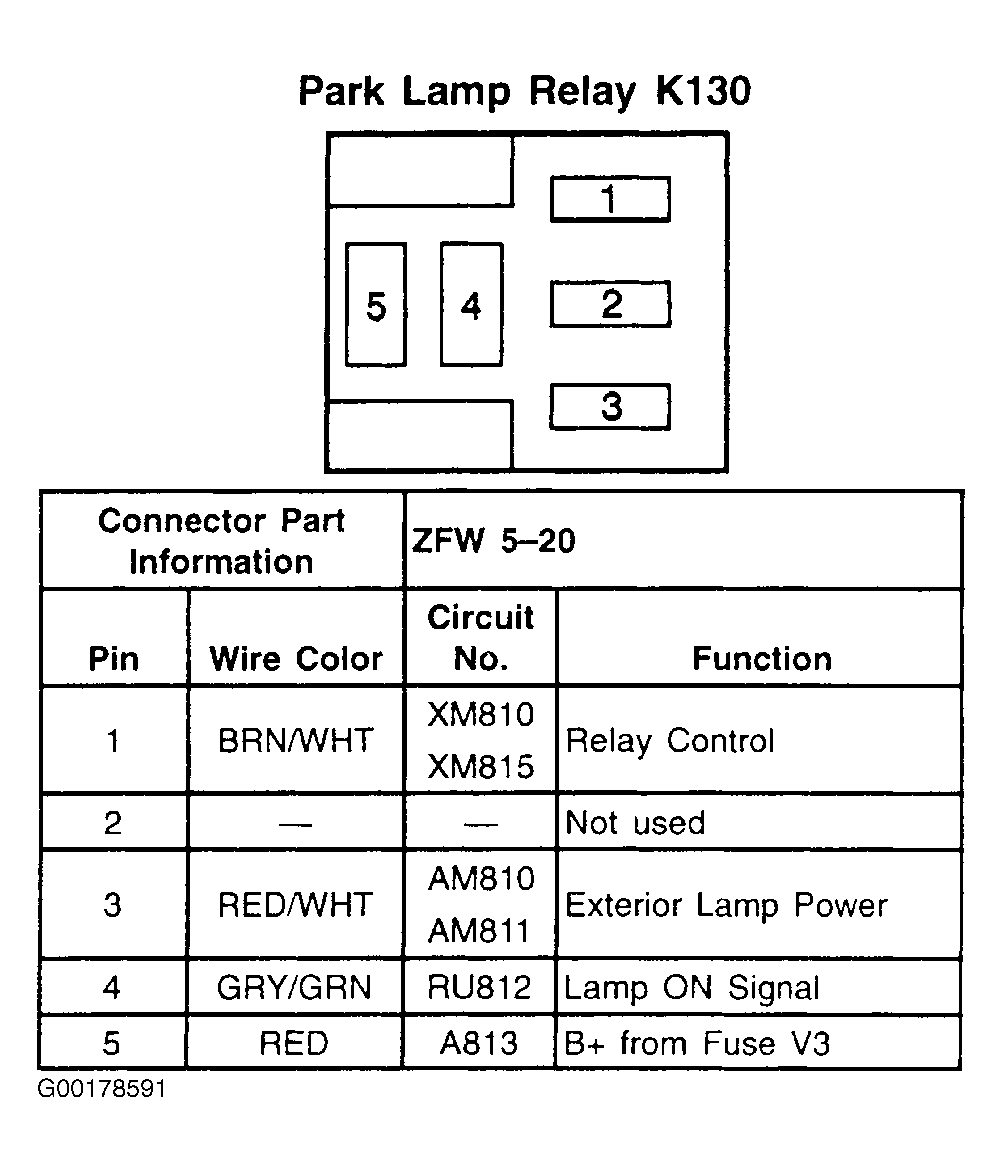

Fig 1: Park Lamp Relay K130 - 5-Pin Connector

G00178591

Courtesy of GENERAL MOTORS CORP.
