Removal & Installation

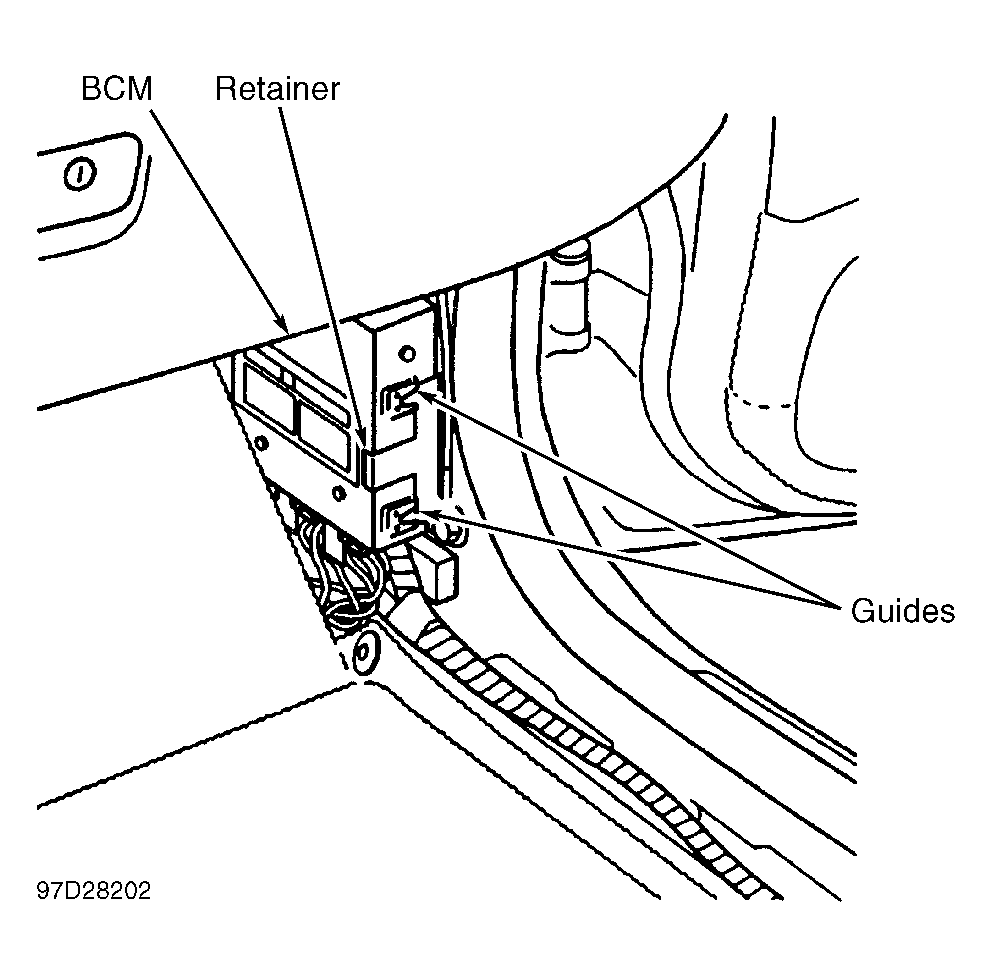

Turn ignition switch to OFF position. Disconnect negative battery cable. Remove right hinge pillar trim finish panel. Gently separate retainer from BCM, and slide end of BCM out of guides. See Fig 1 . Remove BCM. Disconnect electrical connectors. Installation
Reconnect harness connectors and reinstall BCM. BCM is fully installed when retainer clips over edge of BCM. Reinstall right hinge pillar trim finish panel. Reconnect negative battery cable. Reprogram BCM. See PROGRAMMING .
