Keyless Entry Schematics

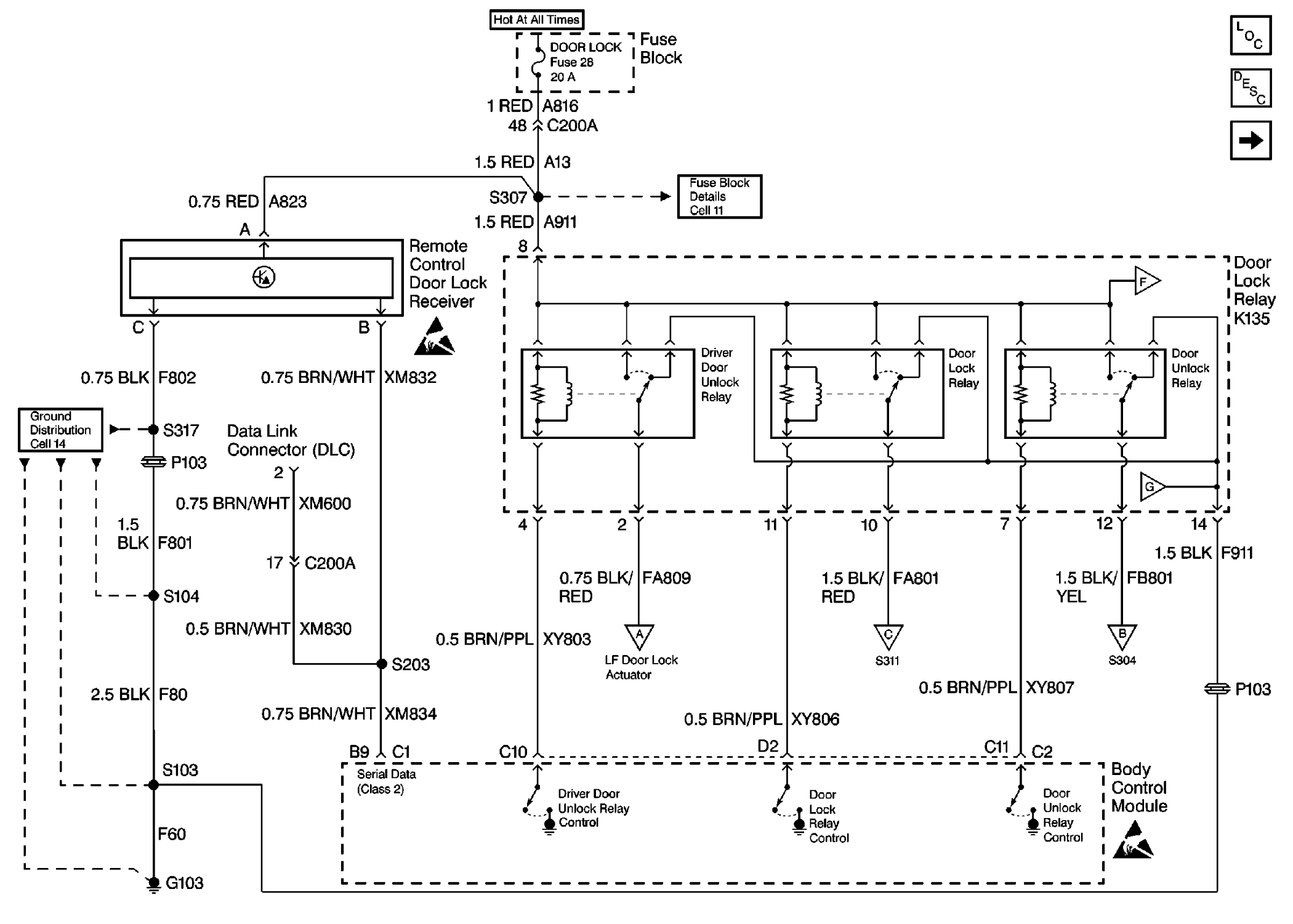

Fig 1: Power, Ground, RCDLR, Door Lock Relay and BCM Schematic

Courtesy of GENERAL MOTORS CORP.

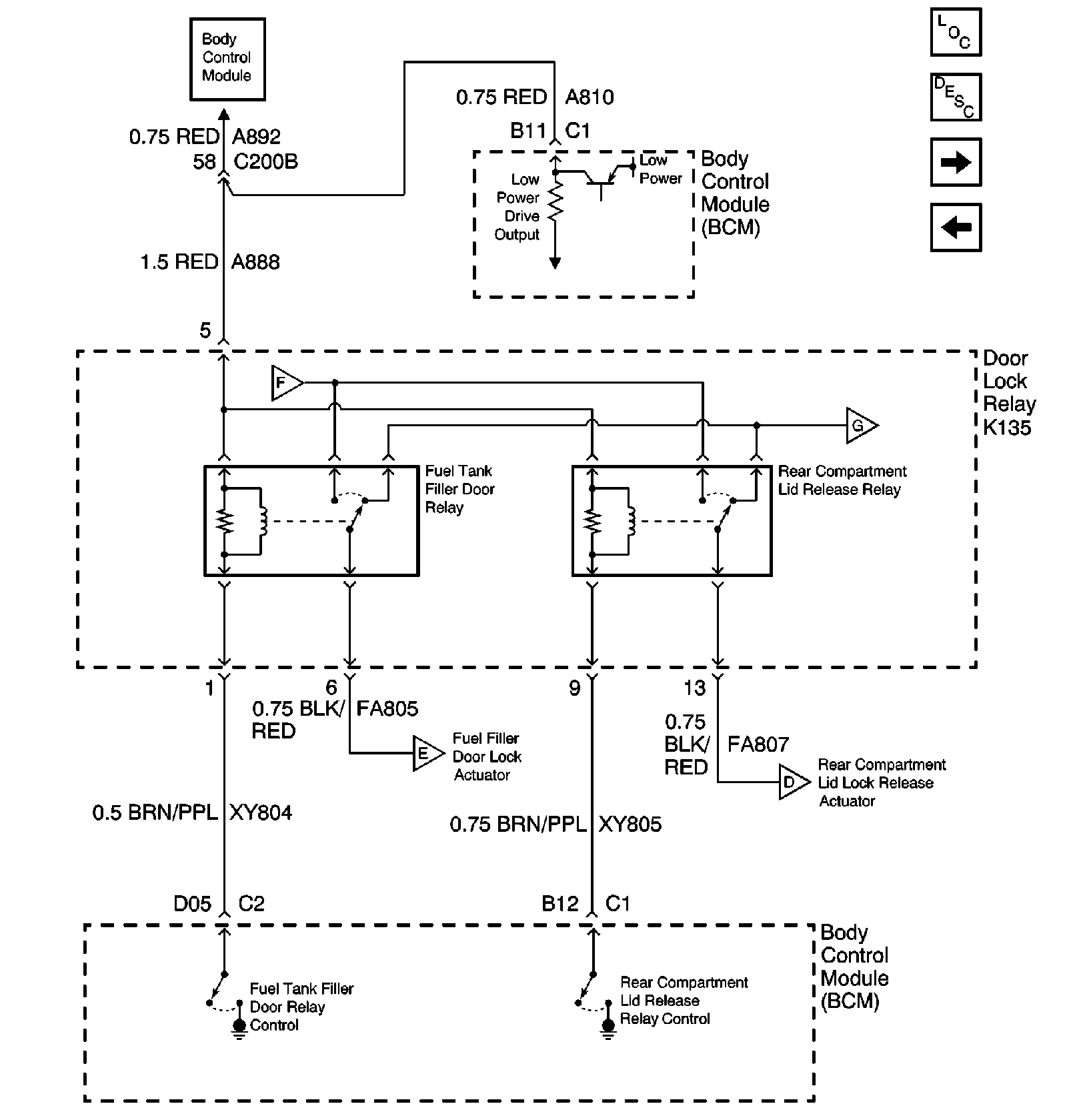

Fig 2: Fuel Door and Trunk Release Relays Schematic

Courtesy of GENERAL MOTORS CORP.

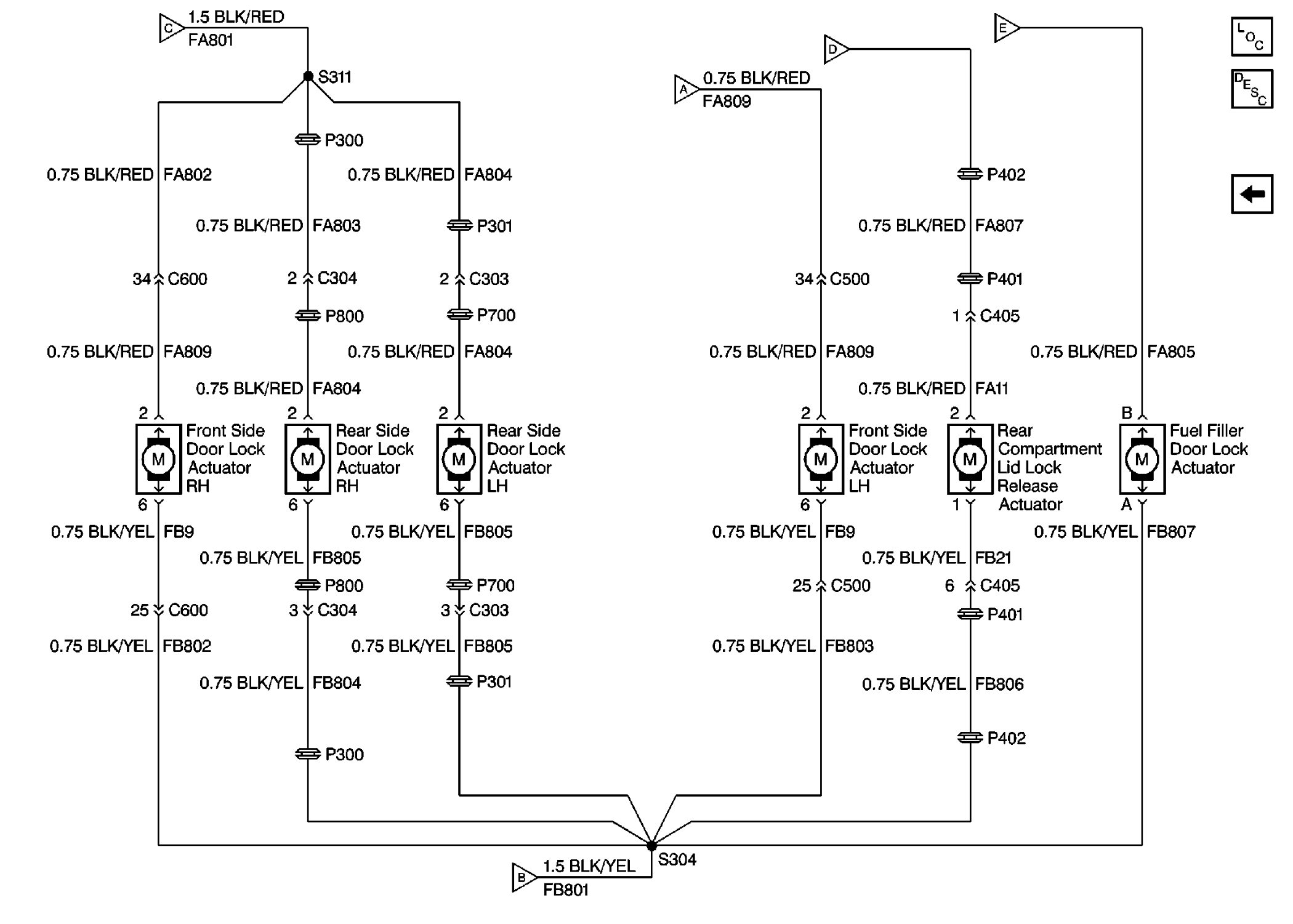

Fig 3: Door Lock, Trunk Lock and Fuel Door Release Actuators Schematic

Courtesy of GENERAL MOTORS CORP.
