DTC U2103 Fewer Controllers On Bus Than Programmed: Notes

WARNING: This page is about a different car, the 1999 Cadillac Catera. However, it is still accessible from the selected car via links, so may be relevant.

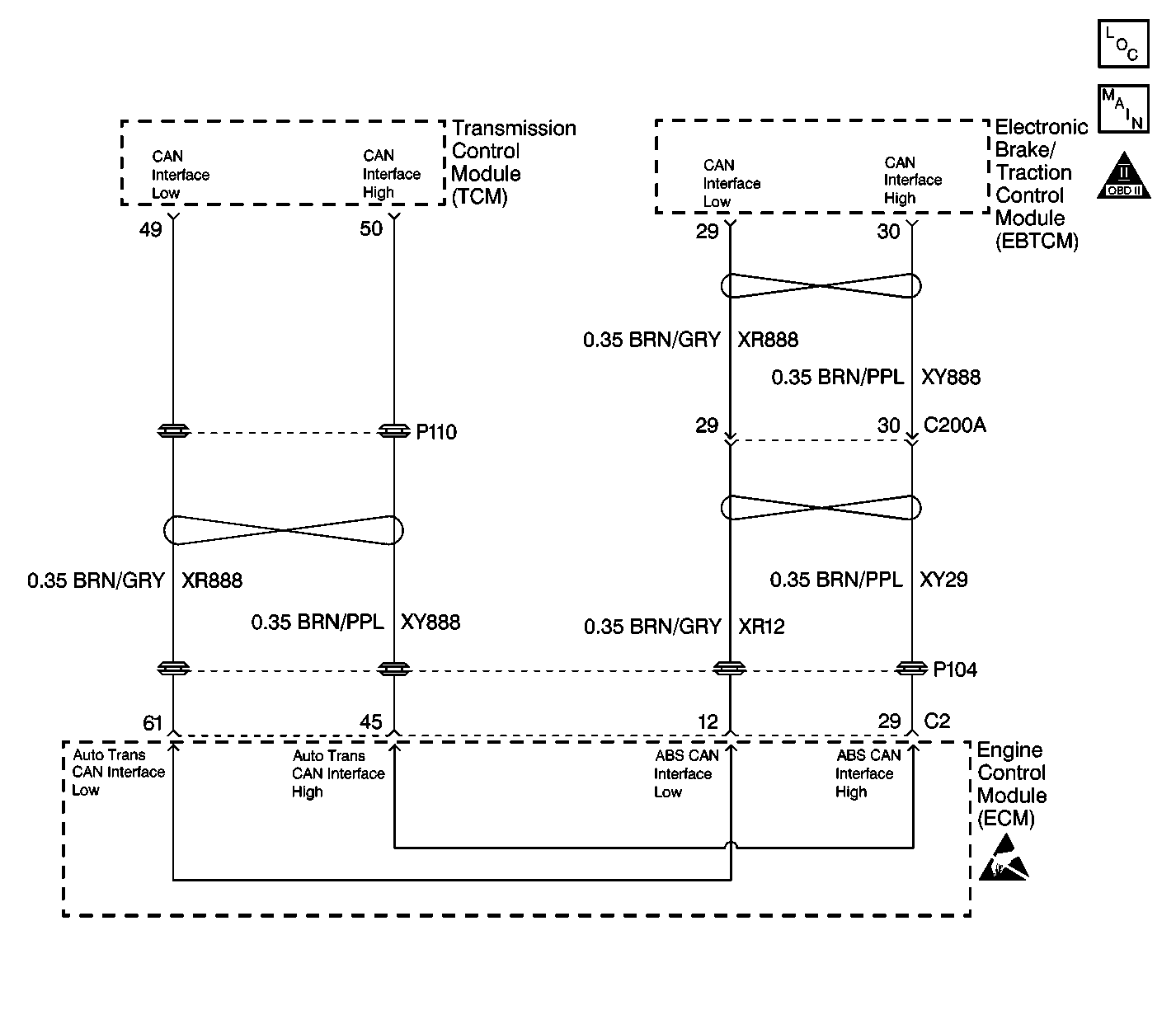

Fig 1: CAN Bus Communication Schematic
GM460755
