Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
Automatic Level Control Maxi Fuse Block Front of rear compartment, near electronics bay.

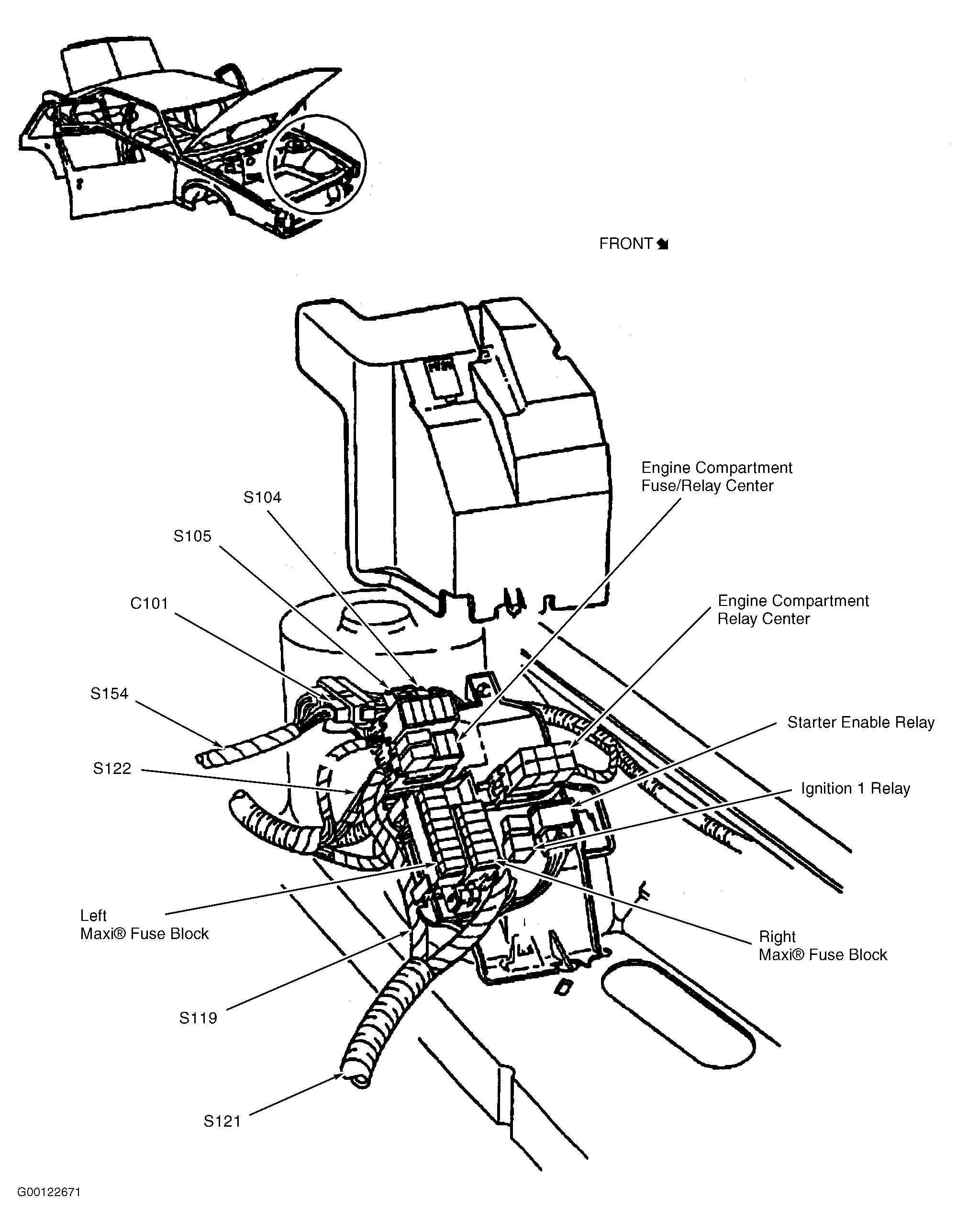

Engine Compartment Fuse/Relay Center Left side of engine compartment. See Figure .
Engine Compartment Relay Center Left side of engine compartment. See Figure .
Left Maxi Fuse Block Left side of engine compartment. See Figure .

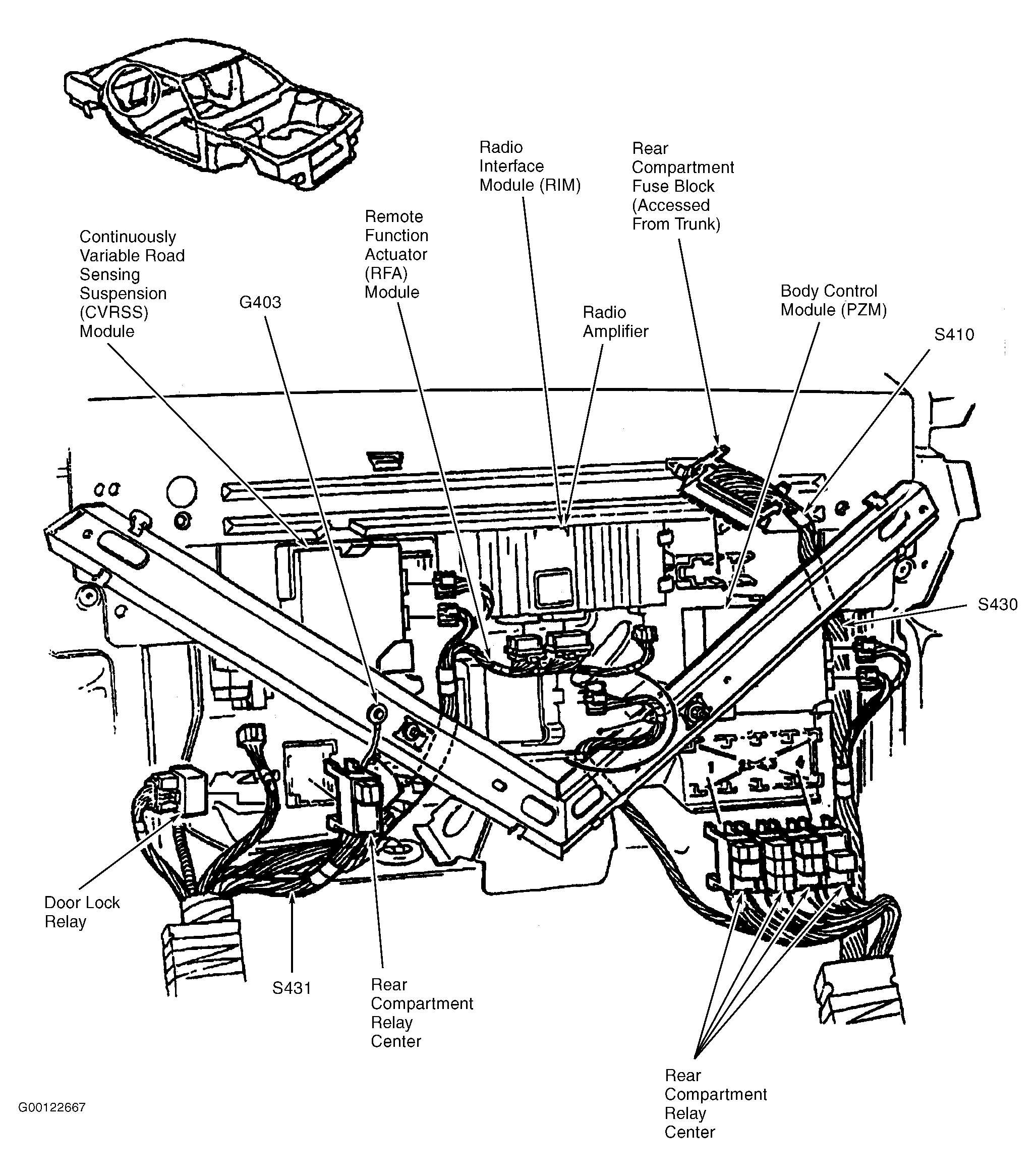

Rear Compartment Fuse Block Left front of rear compartment, on electronics bay. See Figure .
Rear Compartment Relay Centers (5) Behind rear seat back. See Figure .
Right Maxi Fuse Block Left side of engine compartment. See Figure .
Steering Column Fuse Holder Near base of steering column.
