Memory Mirror Module - C1

WARNING: This page is about a different car, the 1997 Cadillac Seville, 1997 Cadillac Eldorado, and 1997 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

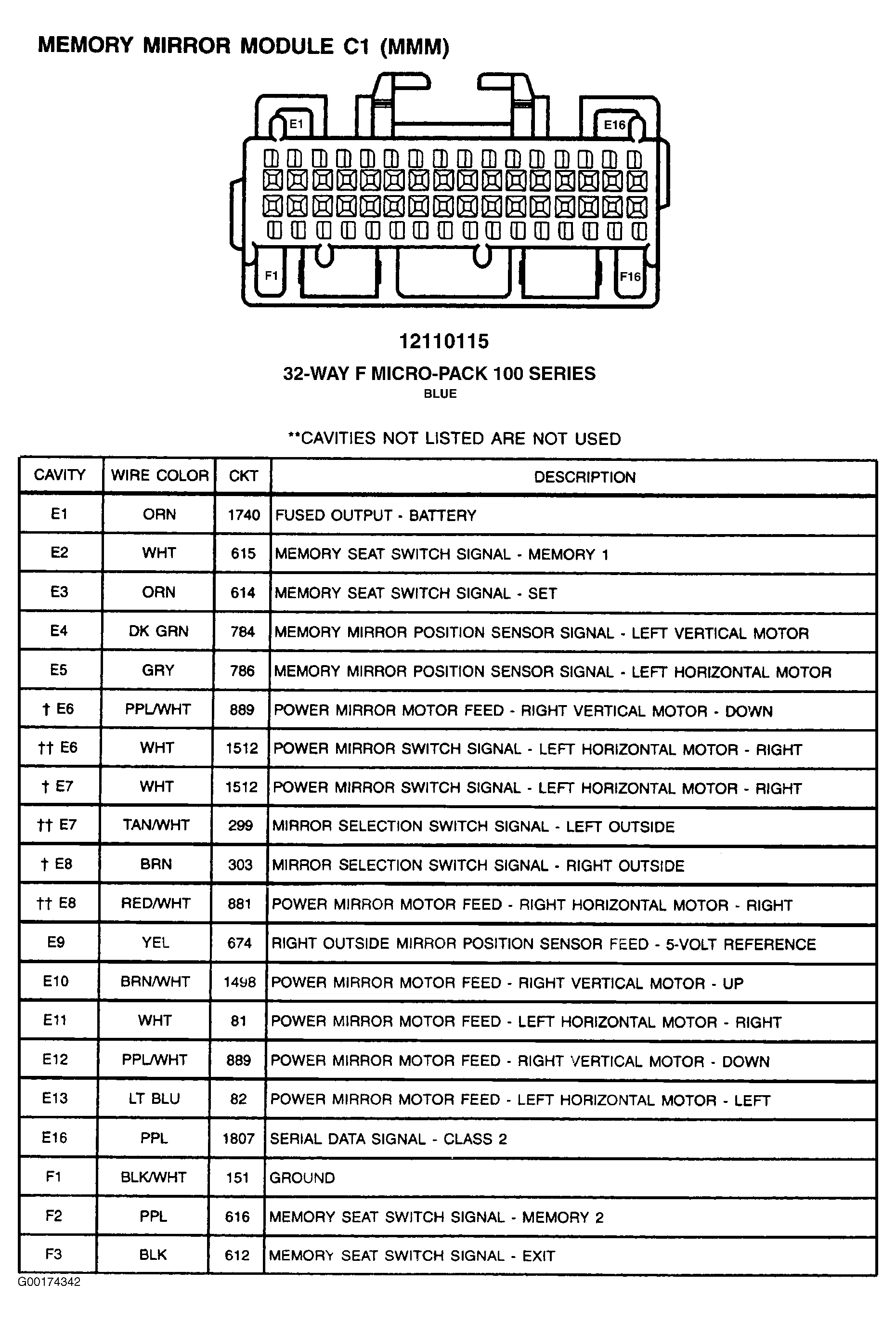

Fig 1: Memory Mirror Module C1 (MMM) - 32-Pin Connector (Blue) 1 Of 2

Courtesy of GENERAL MOTORS CORP.

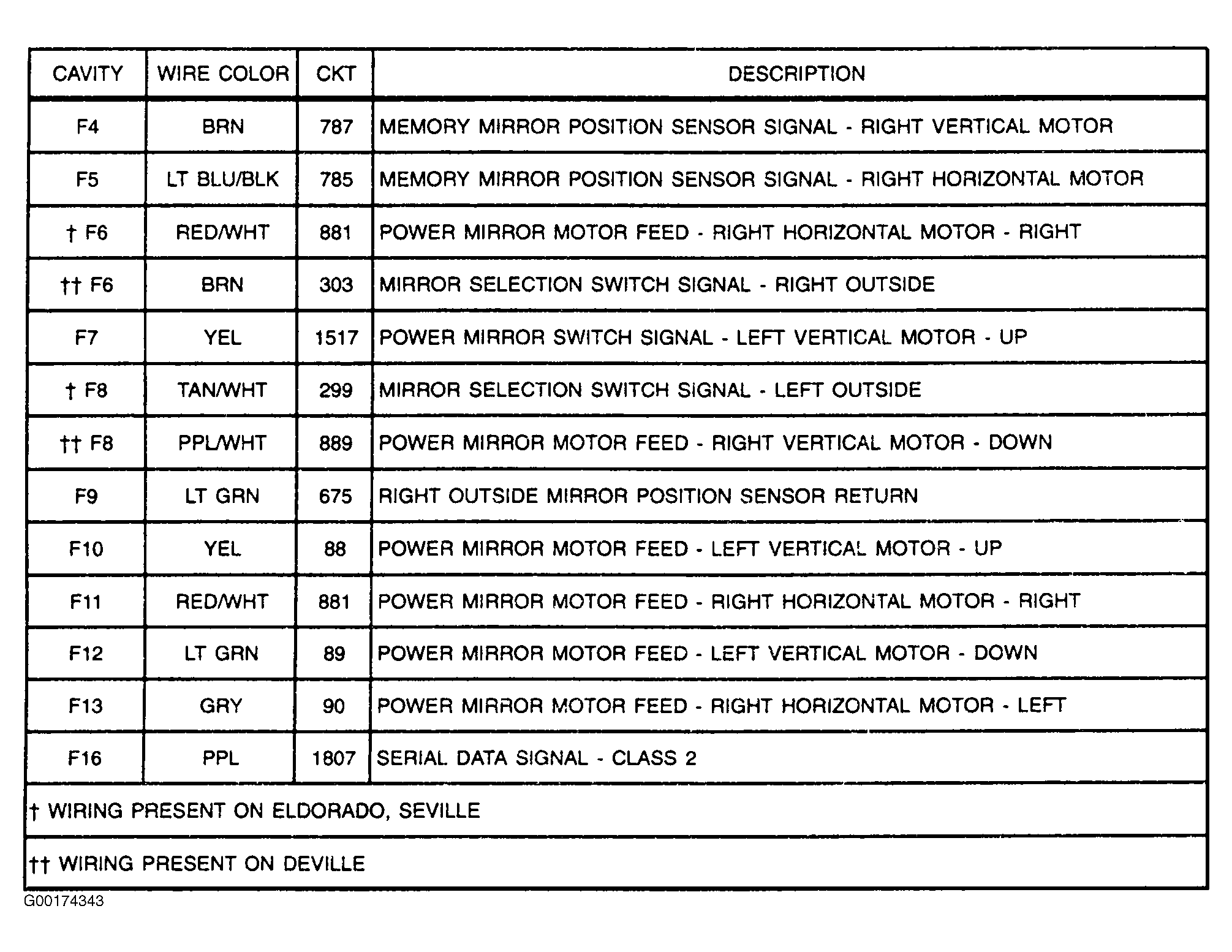

Fig 2: Memory Mirror Module C1 (MMM) - 32-Pin Connector (Blue) 2 Of 2

Courtesy of GENERAL MOTORS CORP.
