Engine Mechanical Specifications





SPARK PLUGS





OIL PRESSURE (MINIMUM)





CYLINDER BORE





PISTON





PISTON RINGS





PISTON PIN

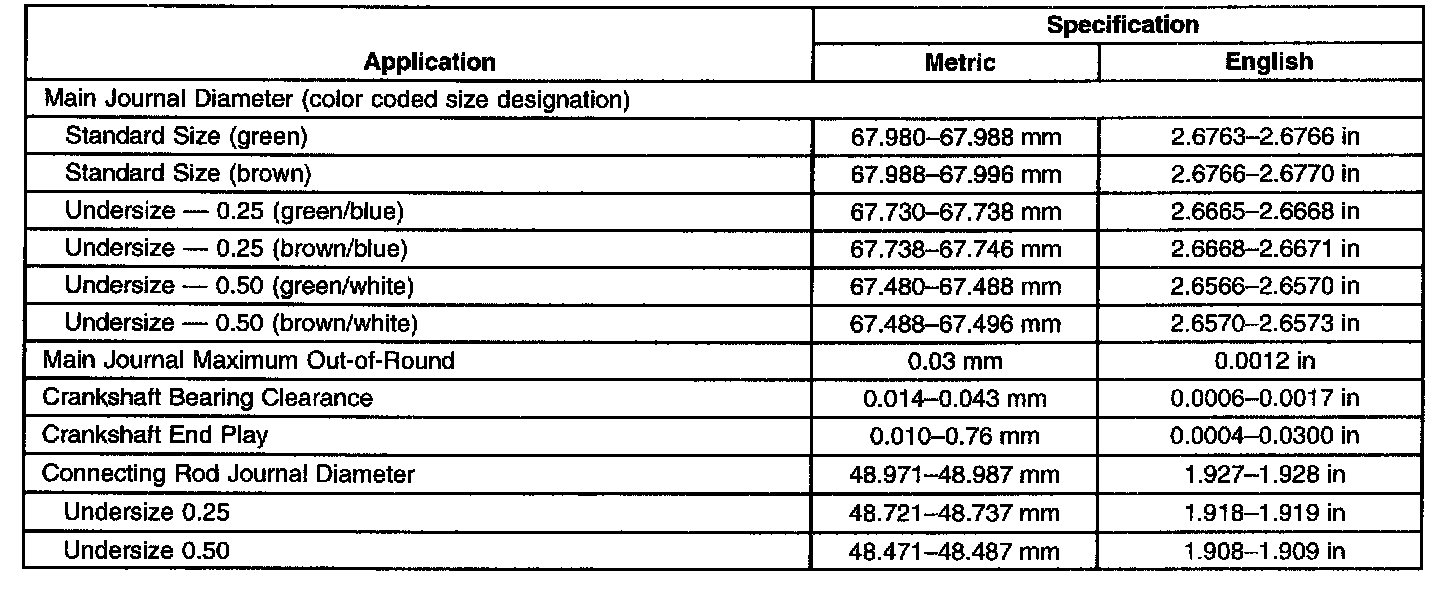

CRANKSHAFT





CONNECTING ROD





CAMSHAFT

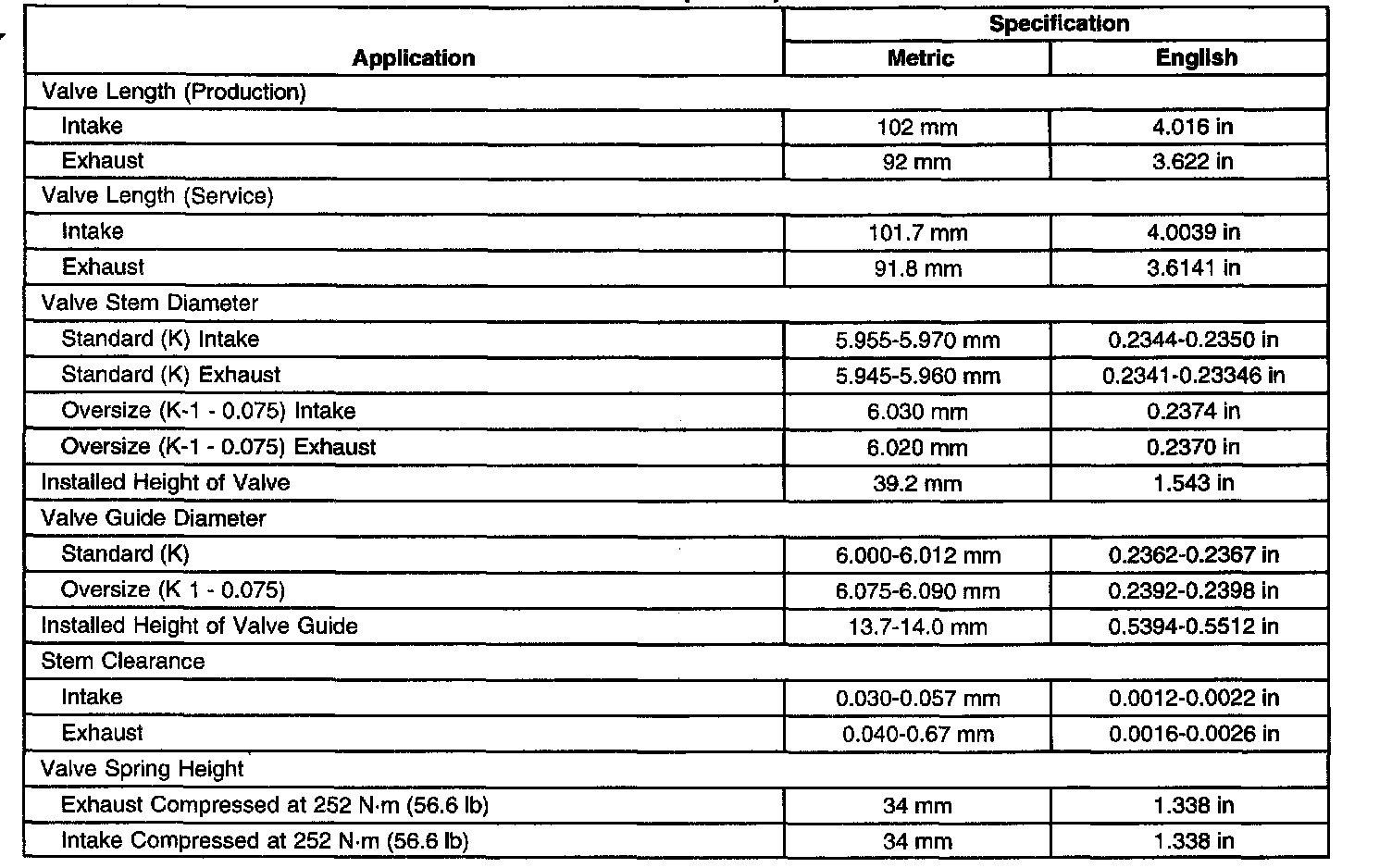

VALVES





Part 1 of 2





Part 2 of 2





CYLINDER HEAD
