Information Bus: Locations
Locations View:
Locations View:

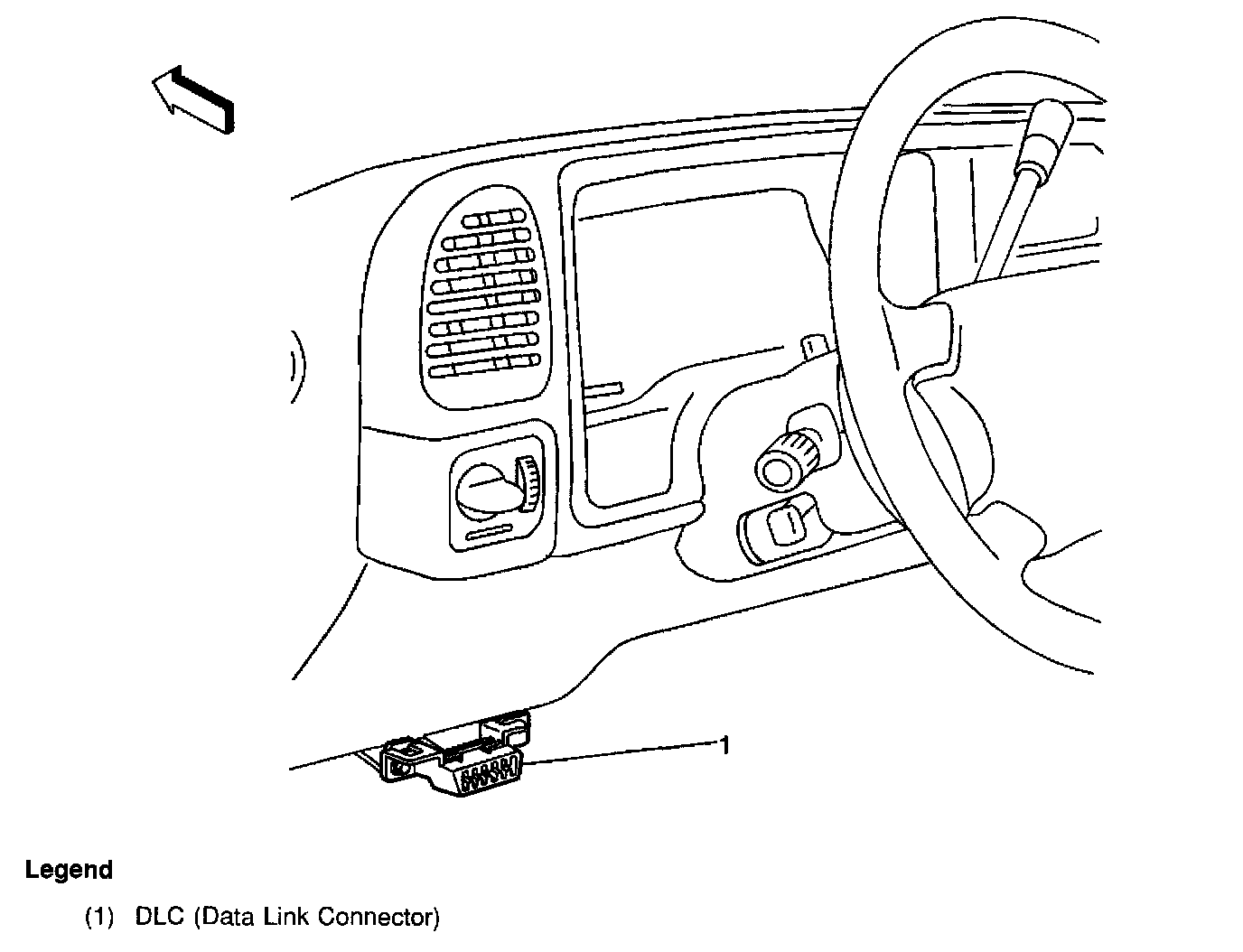

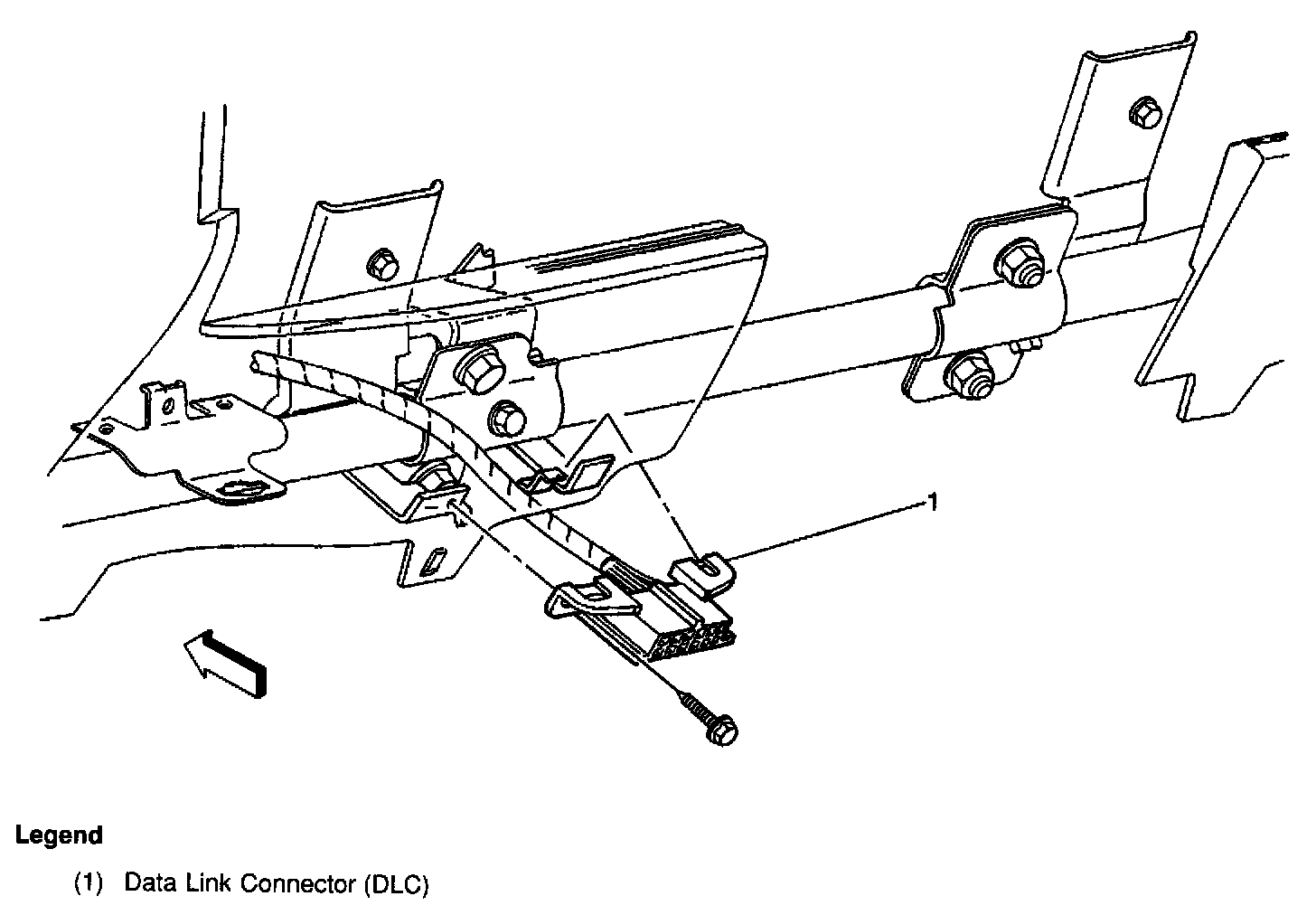

Under LH of IP, LH of Steering Column, mounted to bottom of Knee Bolster
