WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

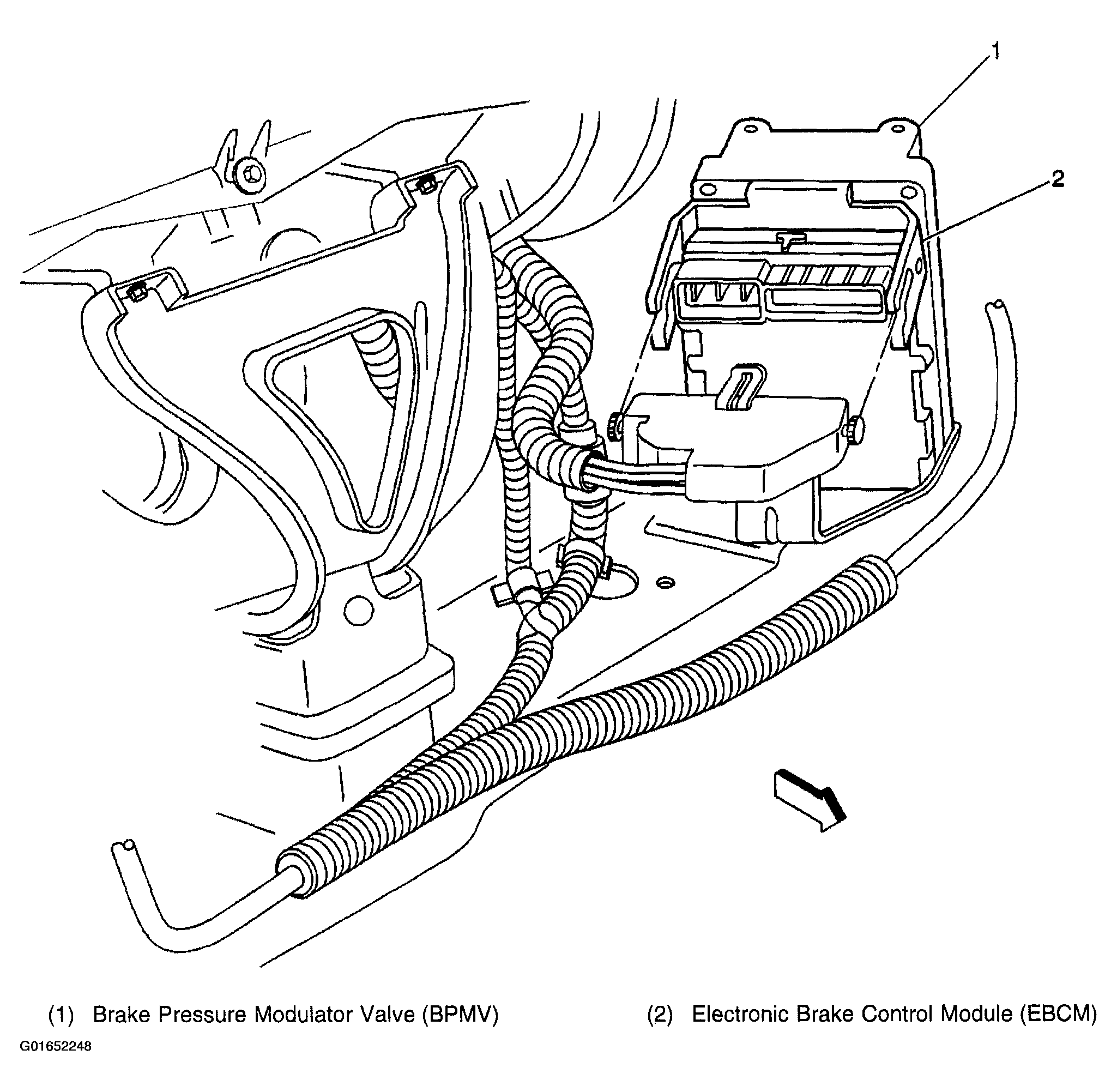

Fig 1: Engine Compartment, in the Lower Left Front Corner
Courtesy of GENERAL MOTORS CORP.

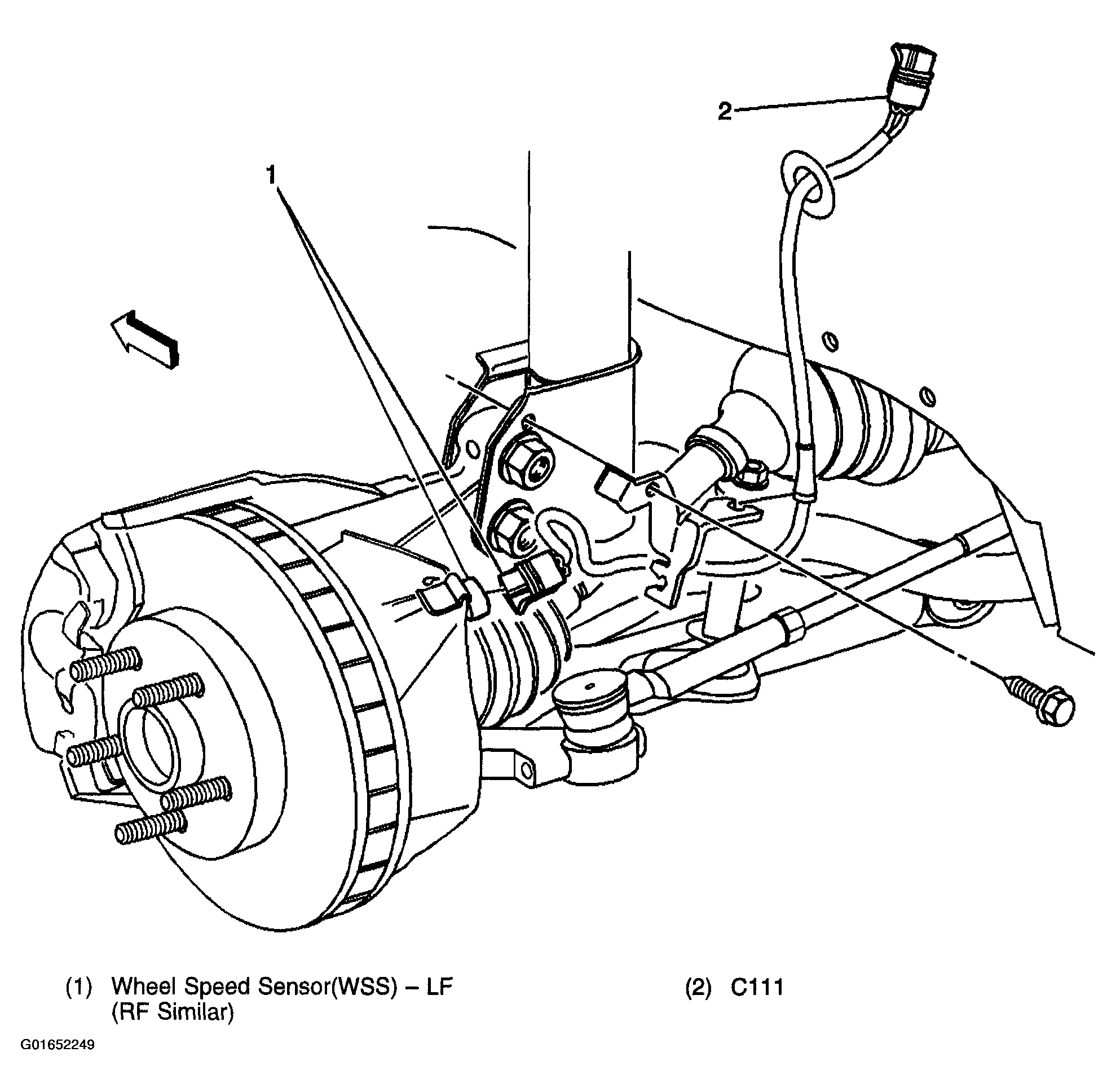

Fig 2: Wheel Speed Sensor (WSS) - Front, Under the Left Front of the Vehicle, Above the Front Axle
Courtesy of GENERAL MOTORS CORP.

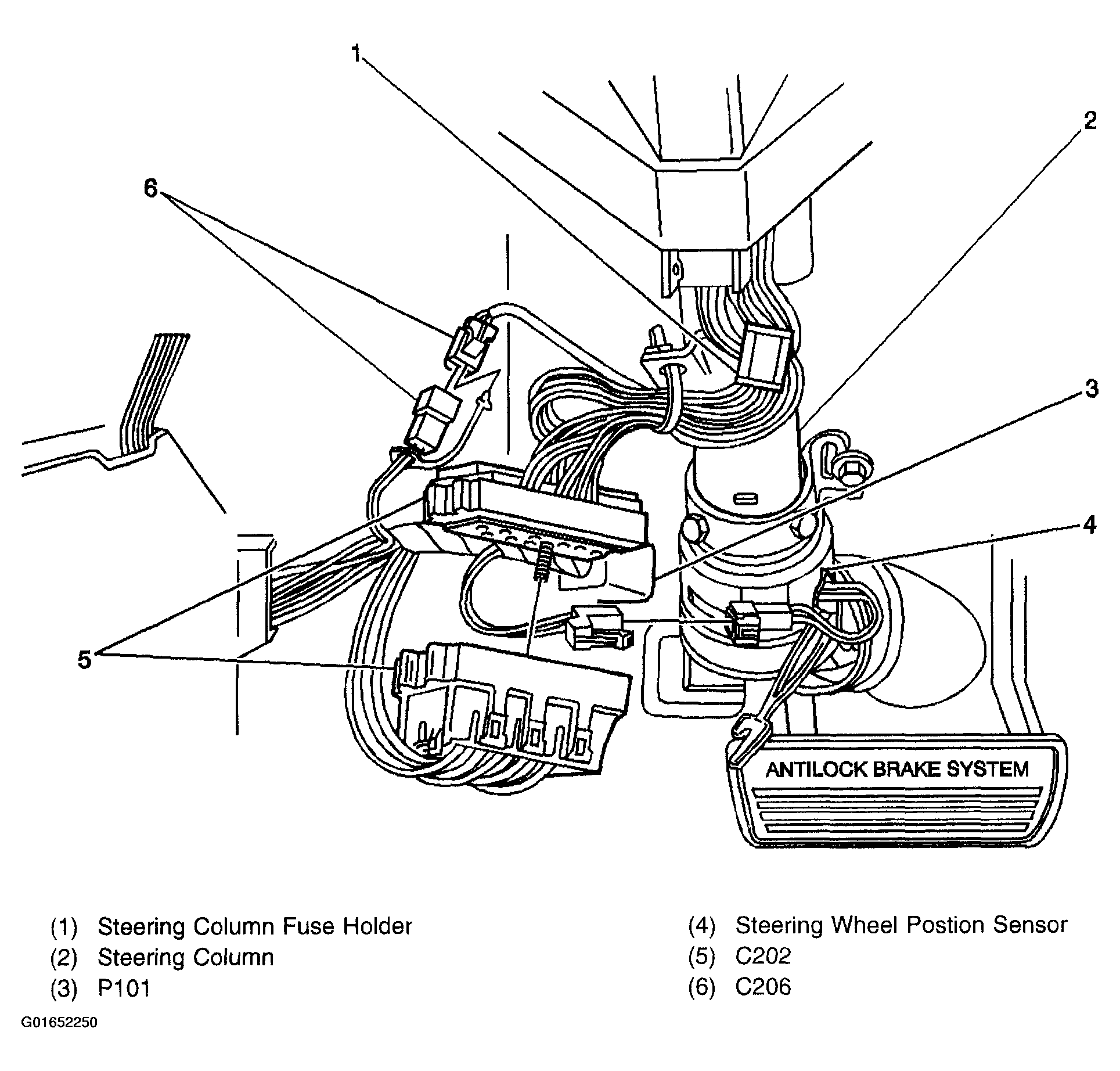

Fig 3: Instrument Panel Cluster (IPC), at the Base of the Steering Column
Courtesy of GENERAL MOTORS CORP.

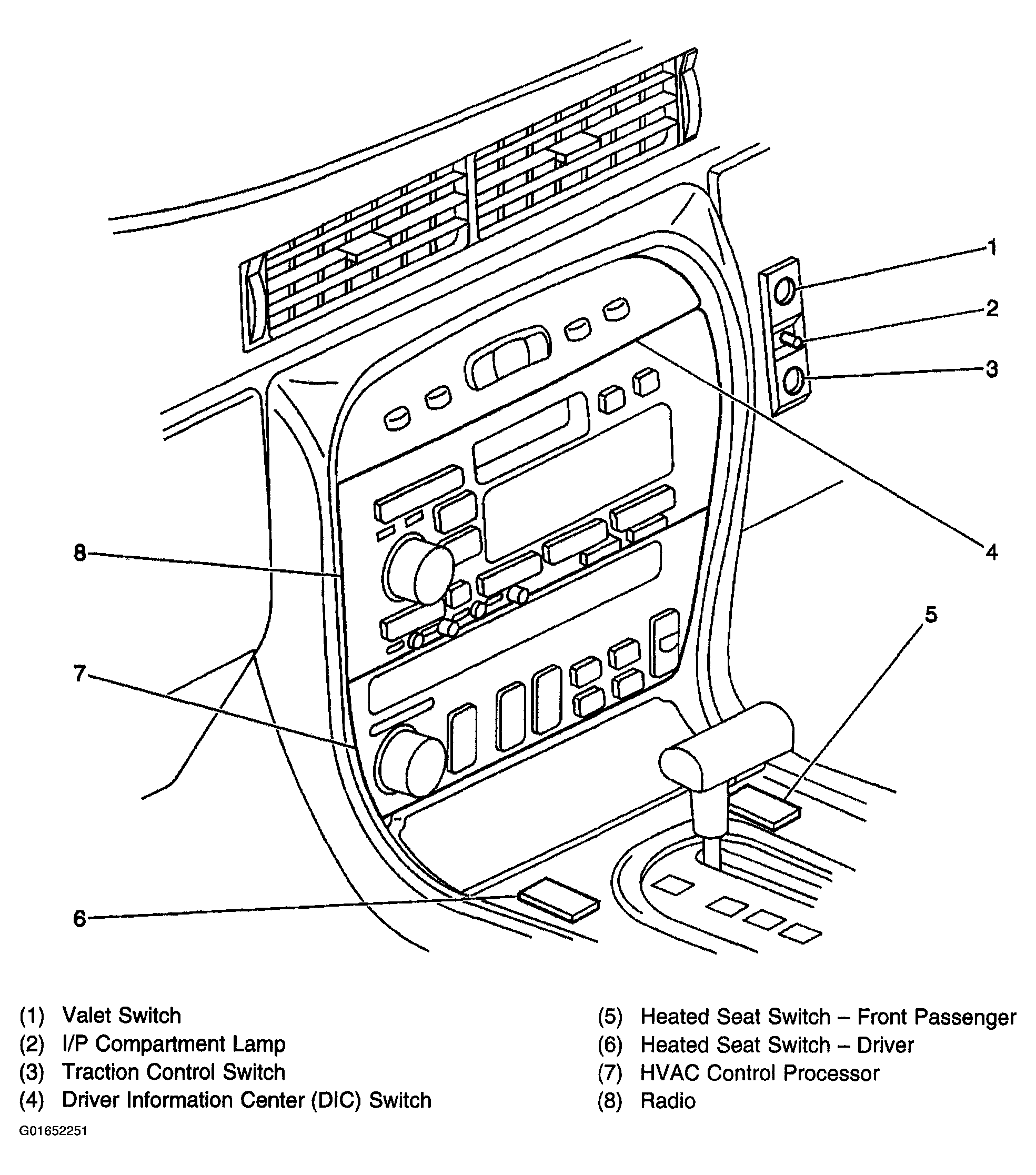

Fig 4: Passenger Compartment, in the Center of the IPC
Courtesy of GENERAL MOTORS CORP.

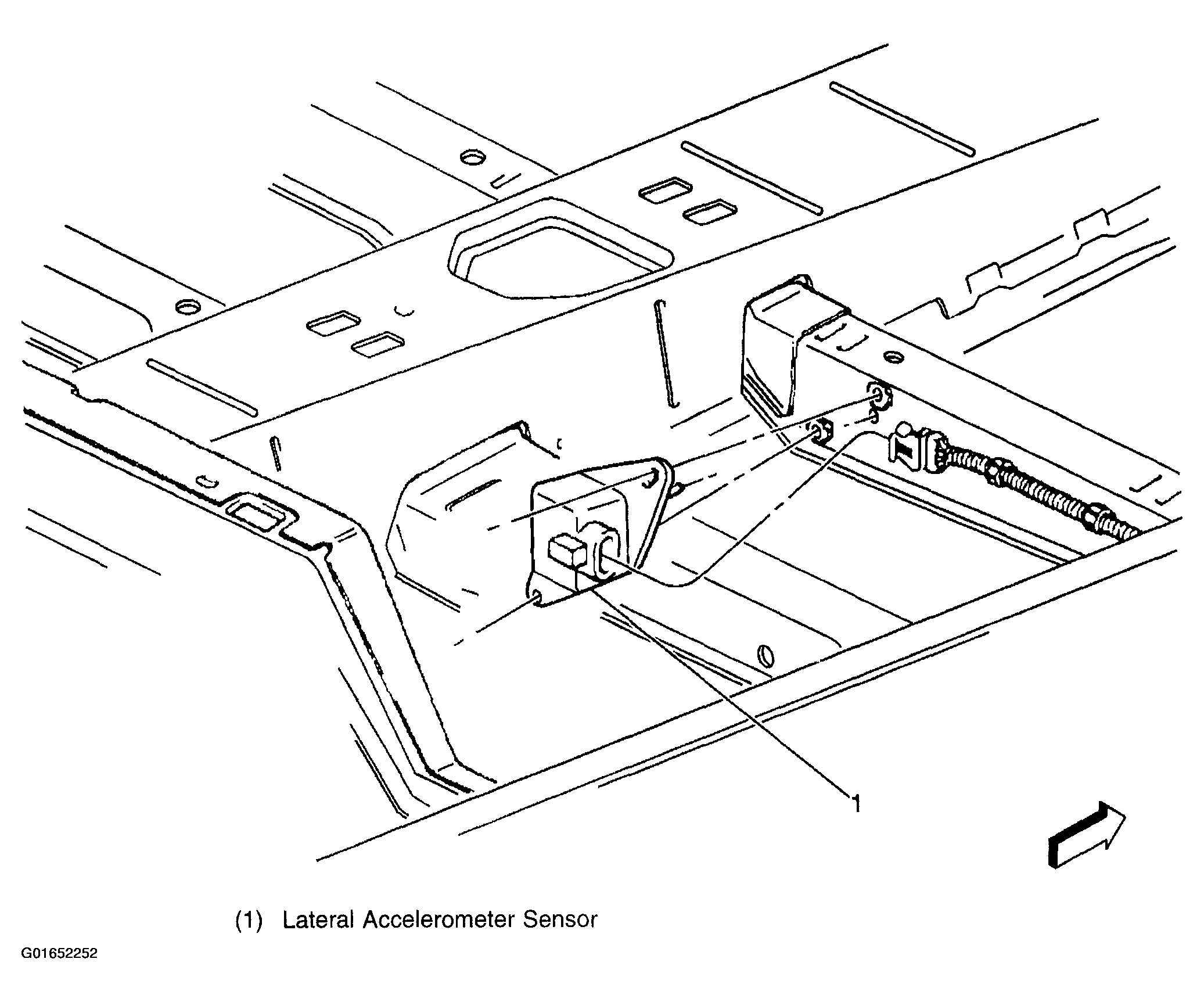

Fig 5: Passenger Compartment, Below the Front Passenger Seat
Courtesy of GENERAL MOTORS CORP.

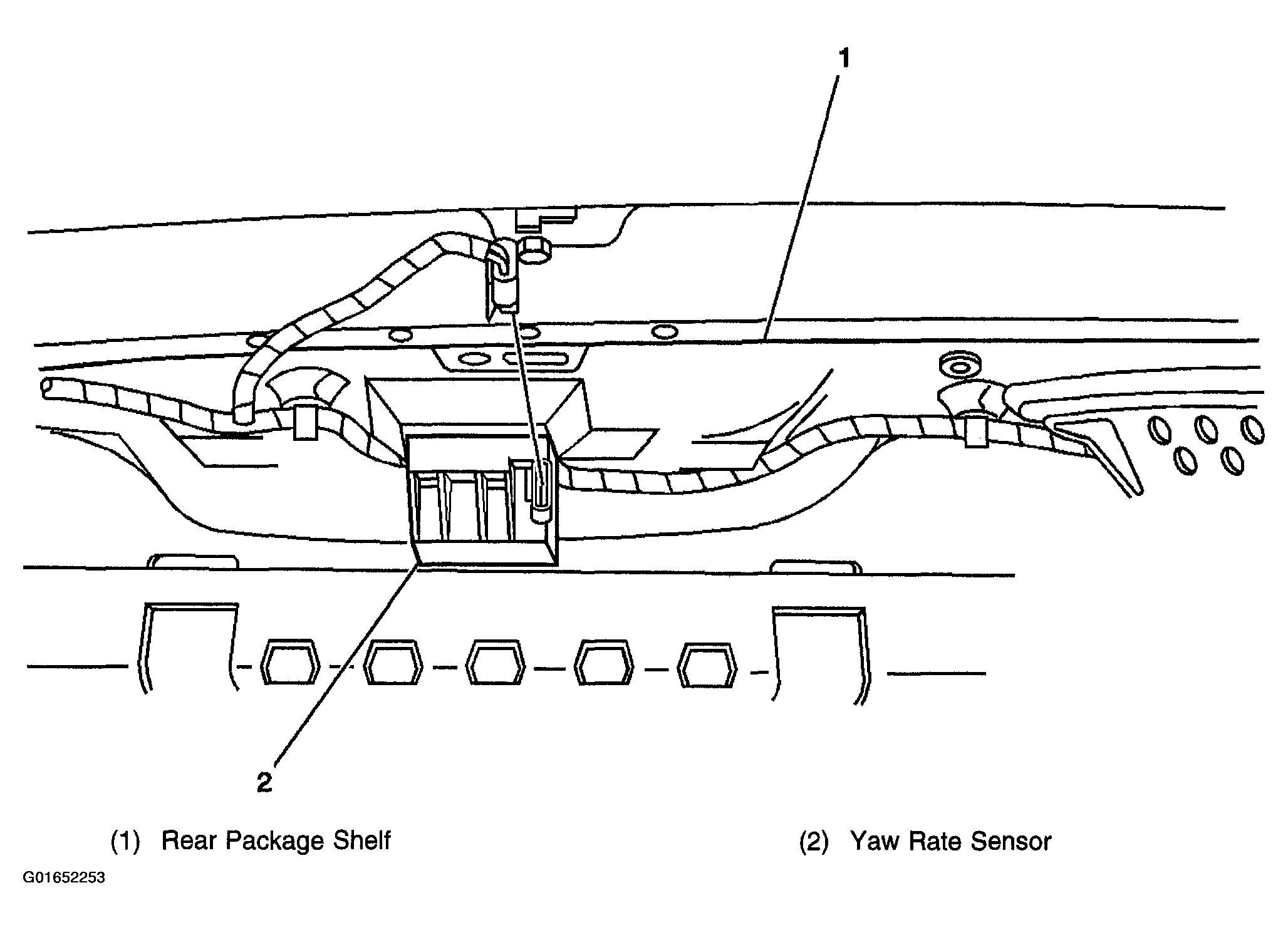

Fig 6: Rear Compartment, Below the Rear Package Shelf
