Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

Align the traction control switch to the instrument panel storage compartment switch hole opening.
Push the traction control switch inward to fasten.
Align the instrument panel storage compartment switch plate bezel to the instrument panel storage compartment.
Push inward to fasten the bezel.
Install the instrument panel storage compartment. Refer to STORAGE COMPARTMENT REPLACEMENT - IP in Instrument Panel, Gauges and Console.

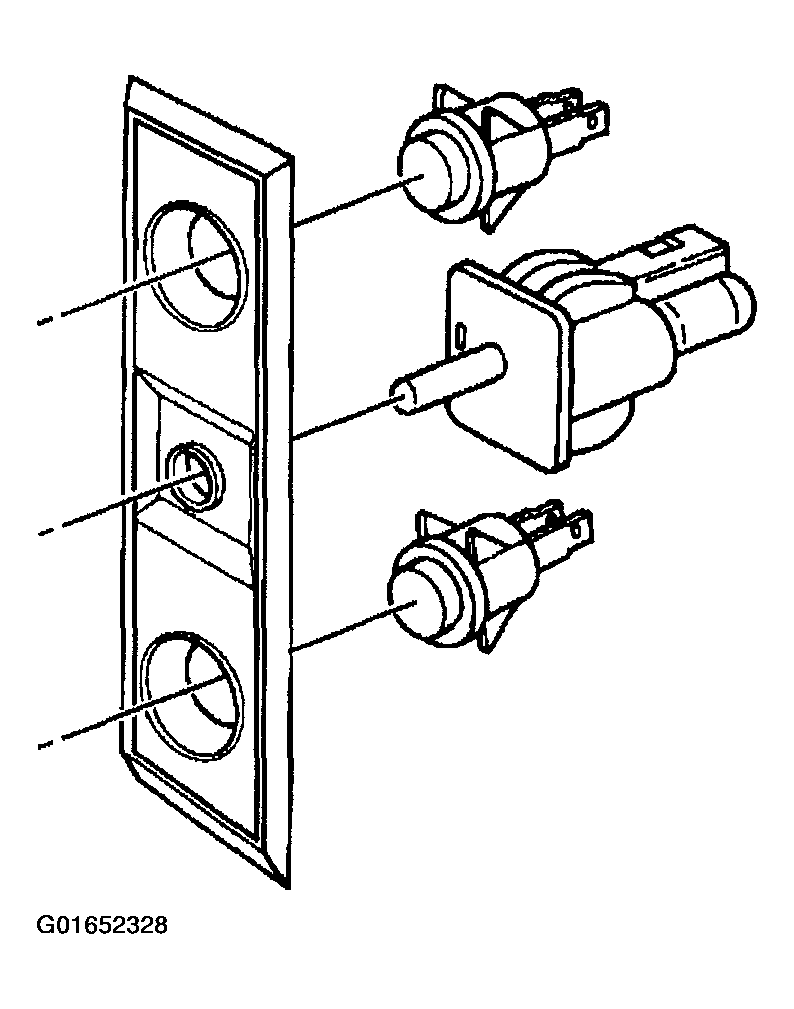

Fig 1: Traction Control Switch

Courtesy of GENERAL MOTORS CORP.
