WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

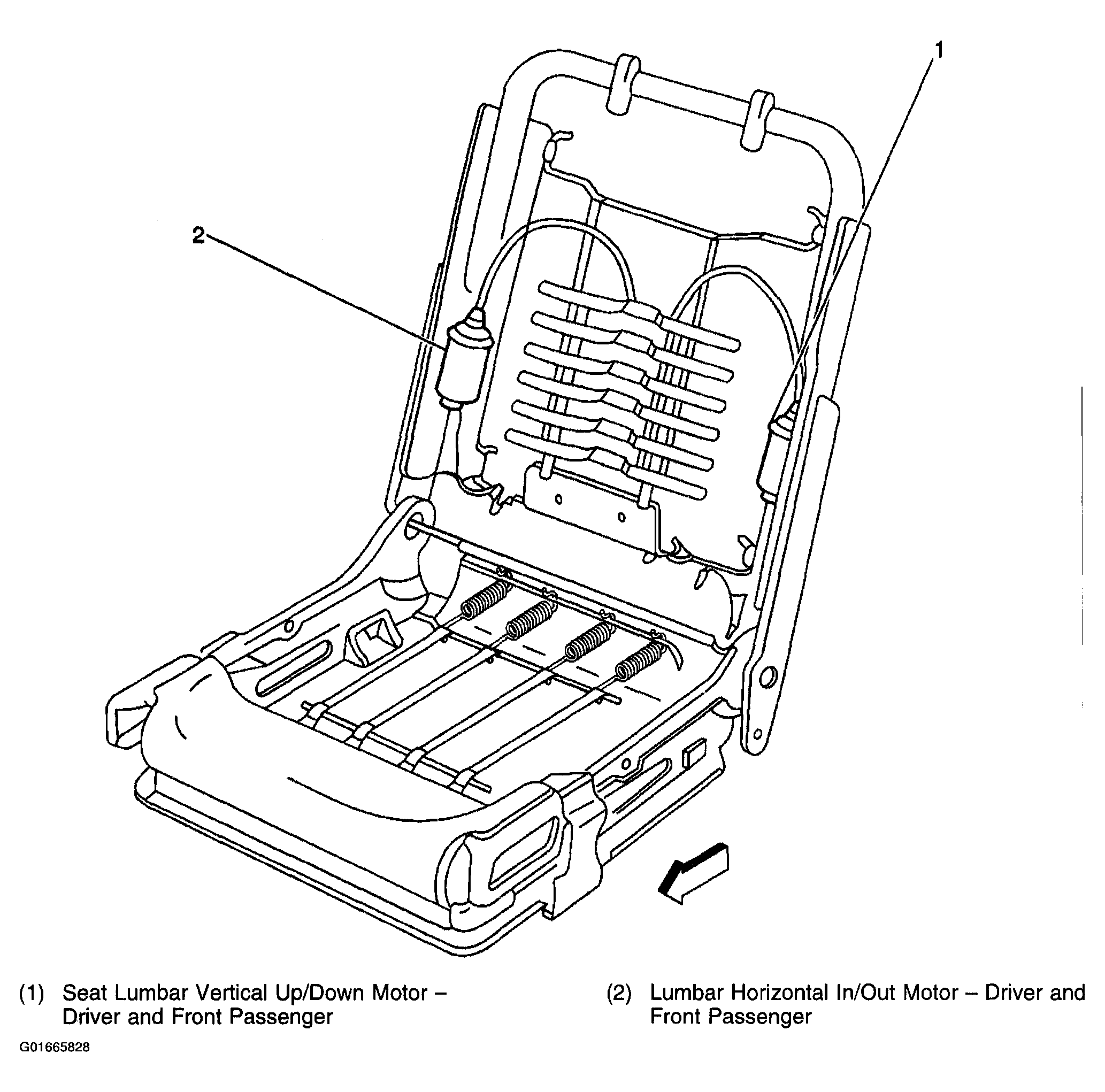

Fig 1: Front View Of Seat Component View
Courtesy of GENERAL MOTORS CORP.

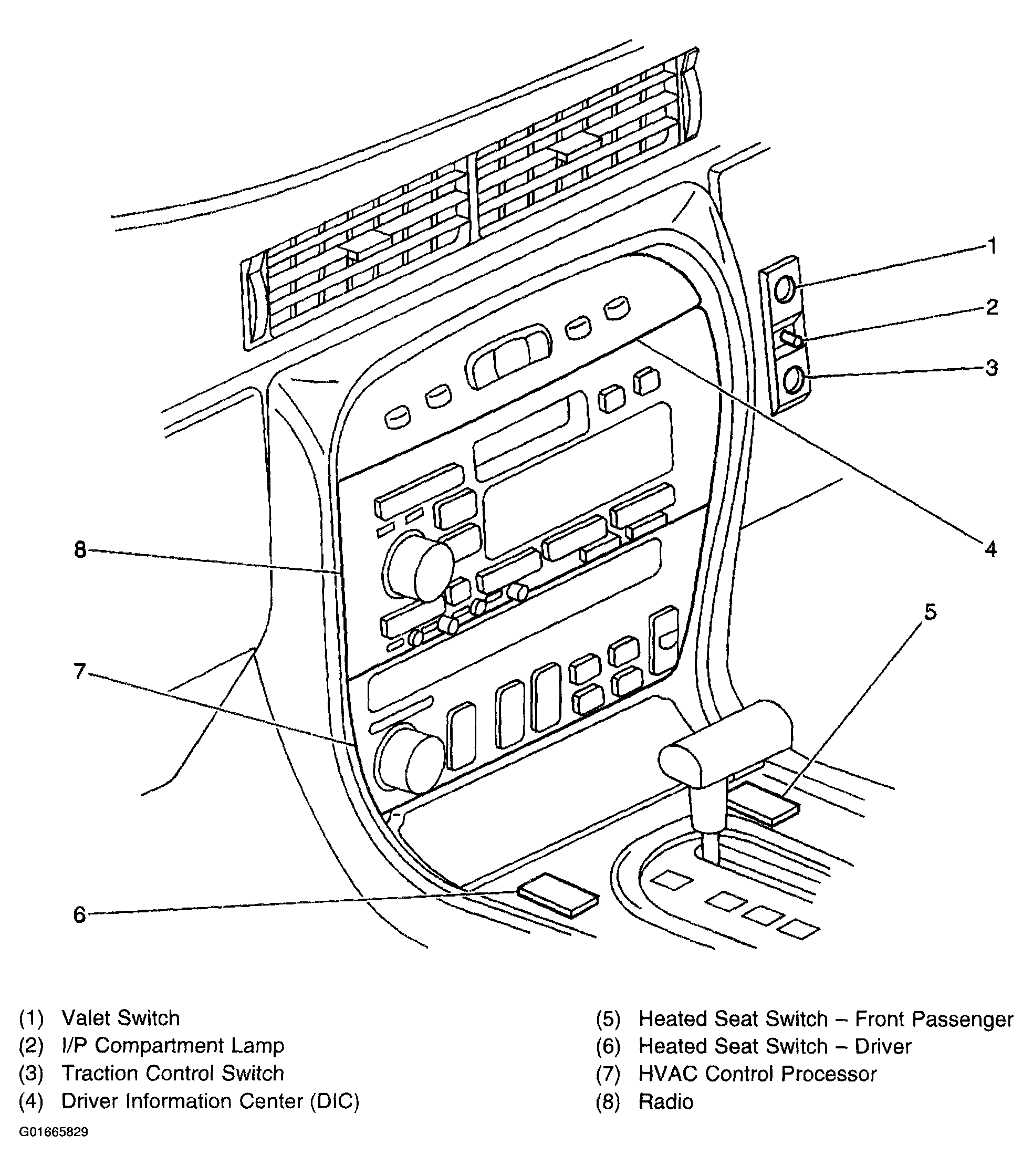

Fig 2: Passenger Compartment, In Center Of IPC Component View
Courtesy of GENERAL MOTORS CORP.

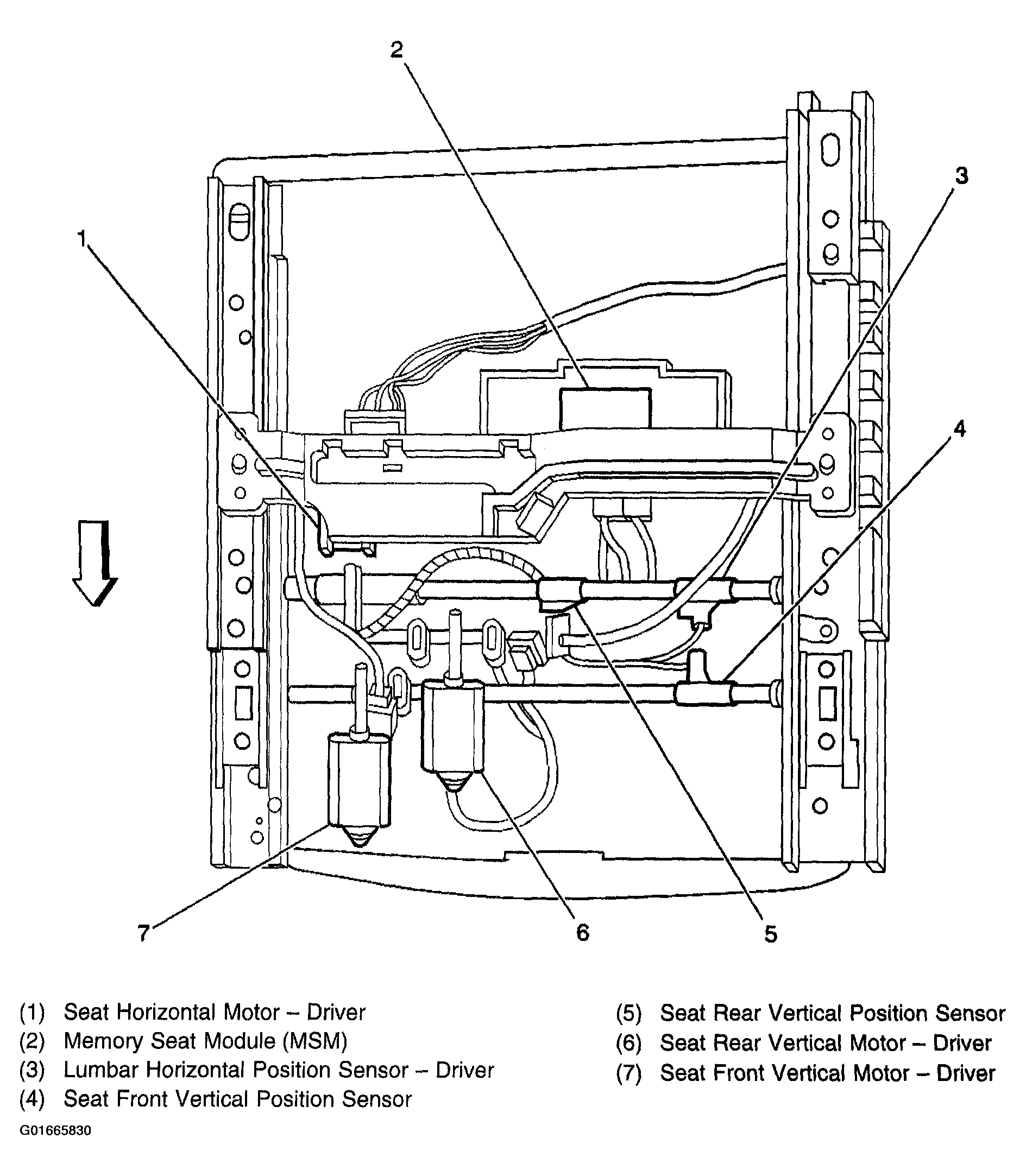

Fig 3: Driver Seat Underside Component View
Courtesy of GENERAL MOTORS CORP.

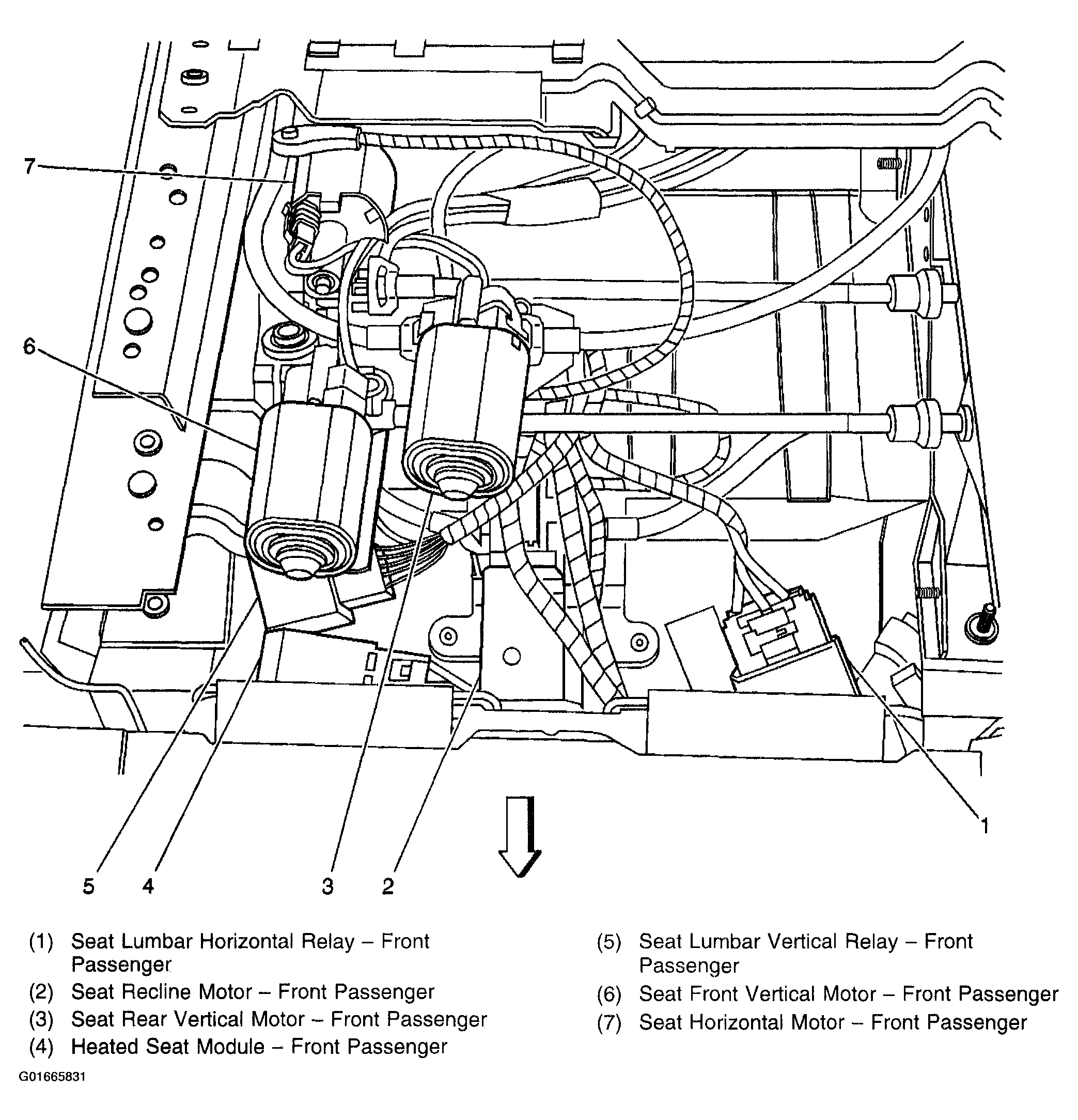

Fig 4: Front Passenger Seat Underside Component View
