Remote Control Door Lock Receiver: Installation

1. Install RCDLR (1) to rear shelf. See Fig 1 .
2. Reconnect all electrical connectors.
3. Install rear compartment trim panel.
4. Program new RCDLR to recognize remote transmitters for vehicle. See TRANSMITTER PROGRAMMING  under PROGRAMMING.

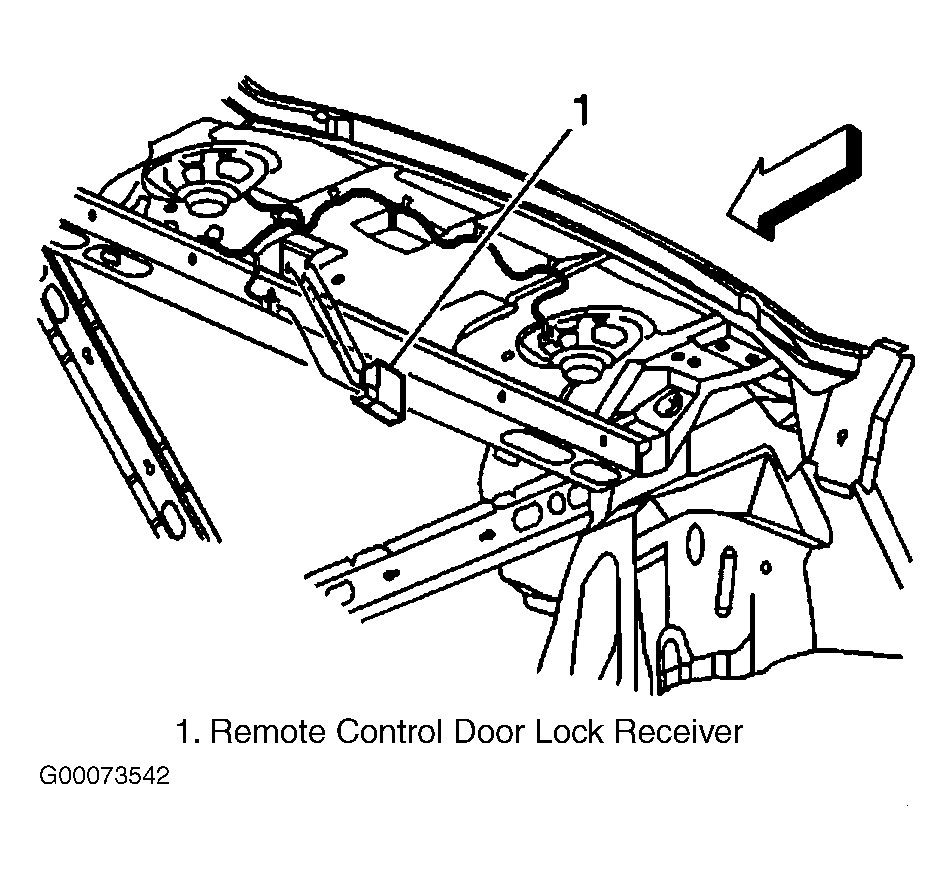

Fig 1: Locating Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.
