Memory Function Switch: Removal

  1. Remove door trim panel. See DOOR TRIM PANEL  .

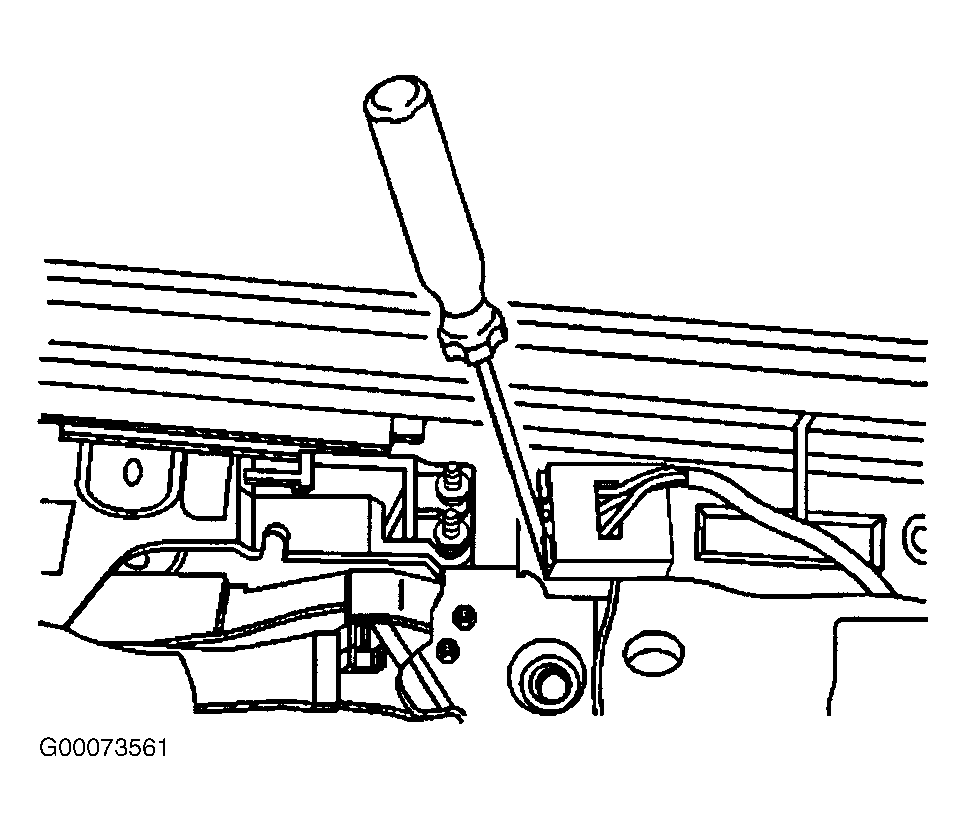

  2. Using a flat bladed tool, release tabs retaining memory function switch to door panel. See Figure .

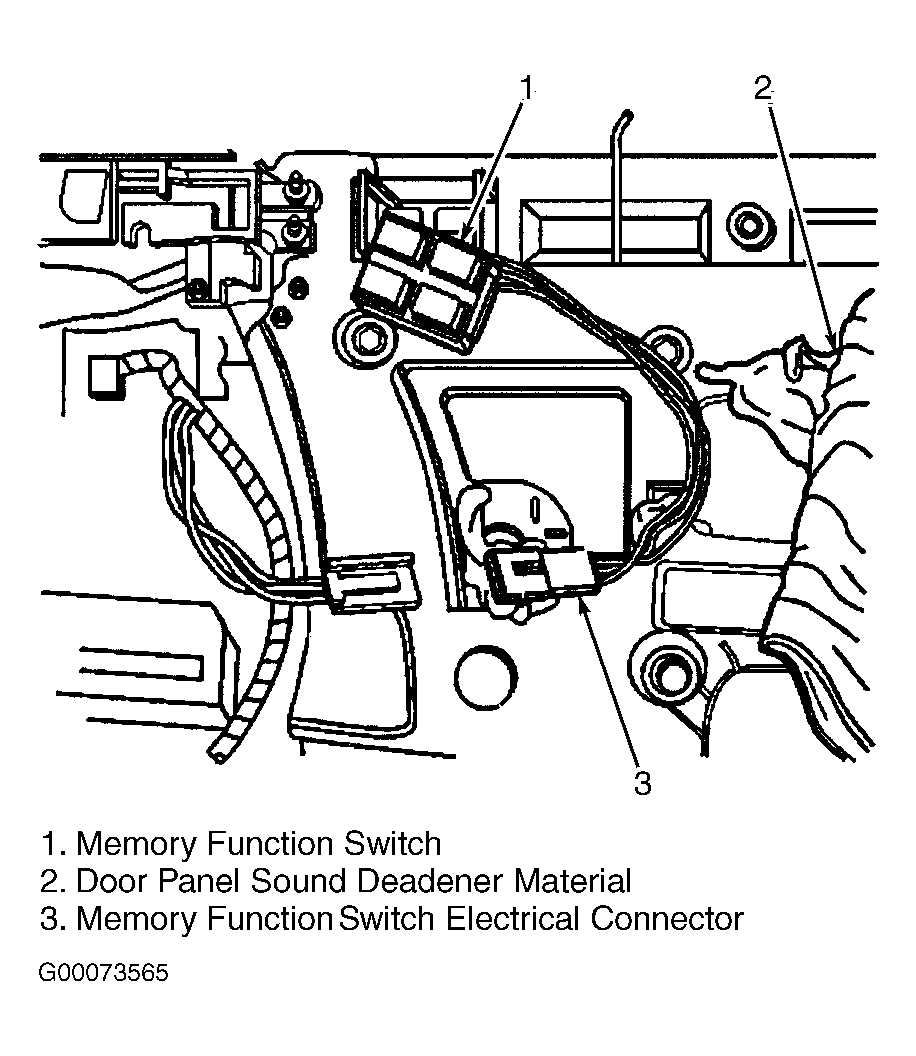

  3. Carefully peel sound deadener material (2) from door panel to access memory function switch electrical connector (3). See Figure .
  4. Disconnect electrical connector (3) for memory function switch (1).
  5. Remove memory function switch (1) from door panel.
