Memory Seat Module: Installation

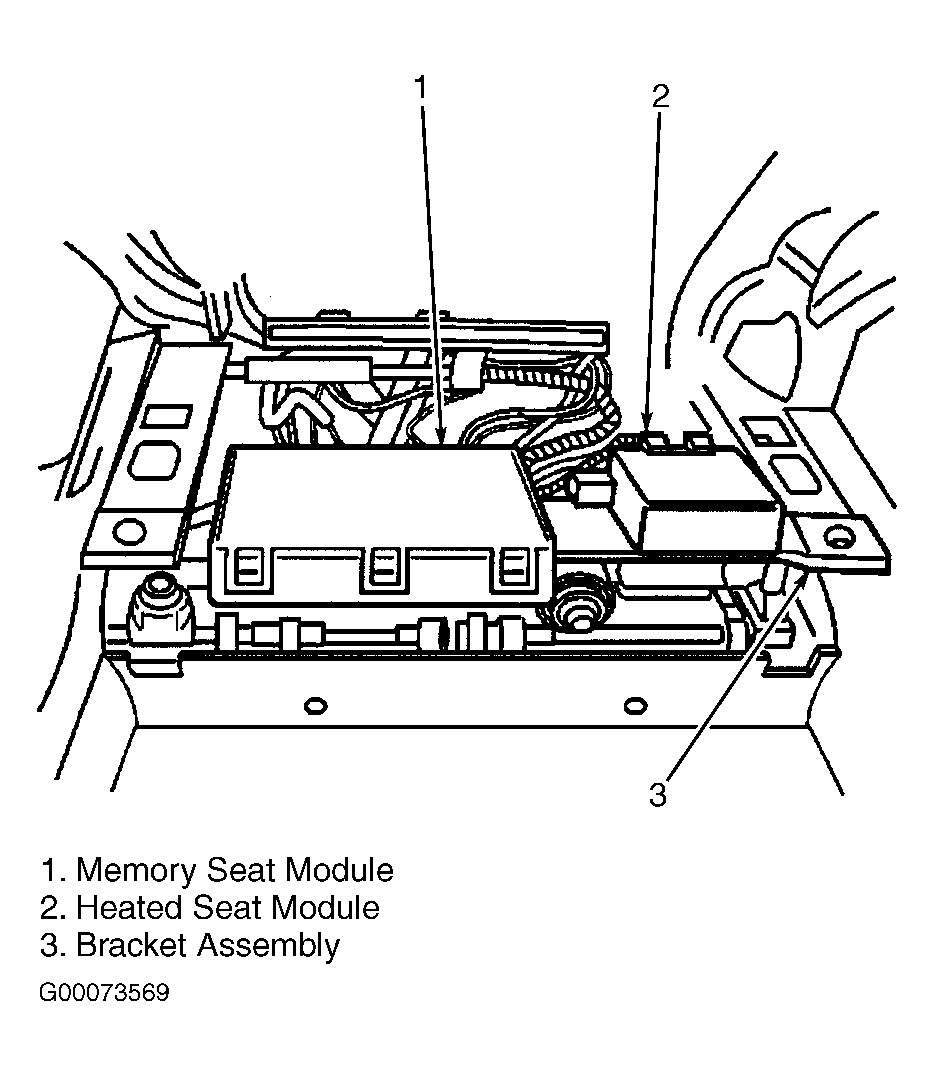

  1. Install memory seat module (1) to module bracket and install memory seat module fasteners. See Figure .
  2. Install module and bracket assembly (3) to seat riser, with electrical connections towards rear of vehicle.
  3. Connect electrical connectors to module or modules (1, 2).
  4. Align fastener holes on seat adjuster with fastener holes on seat bracket (3).
  5. Bend tabs on seat module bracket (3) to hold bracket and module assembly (3) in place on seat riser.
  6. Install front seat cushion.
