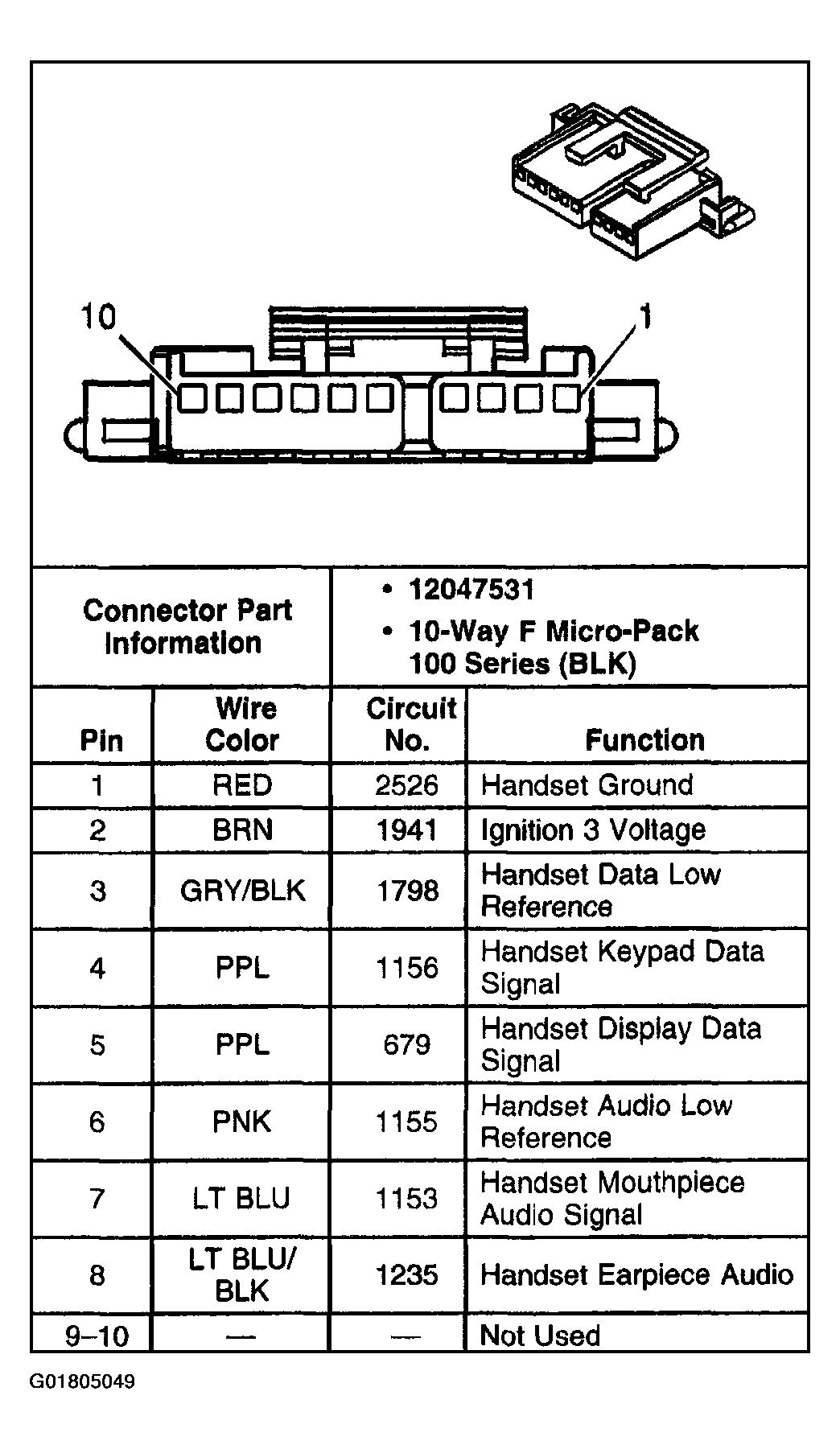

Fig 1: Cellular Telephone Interface Board Connector End View
Courtesy of GENERAL MOTORS CORP.

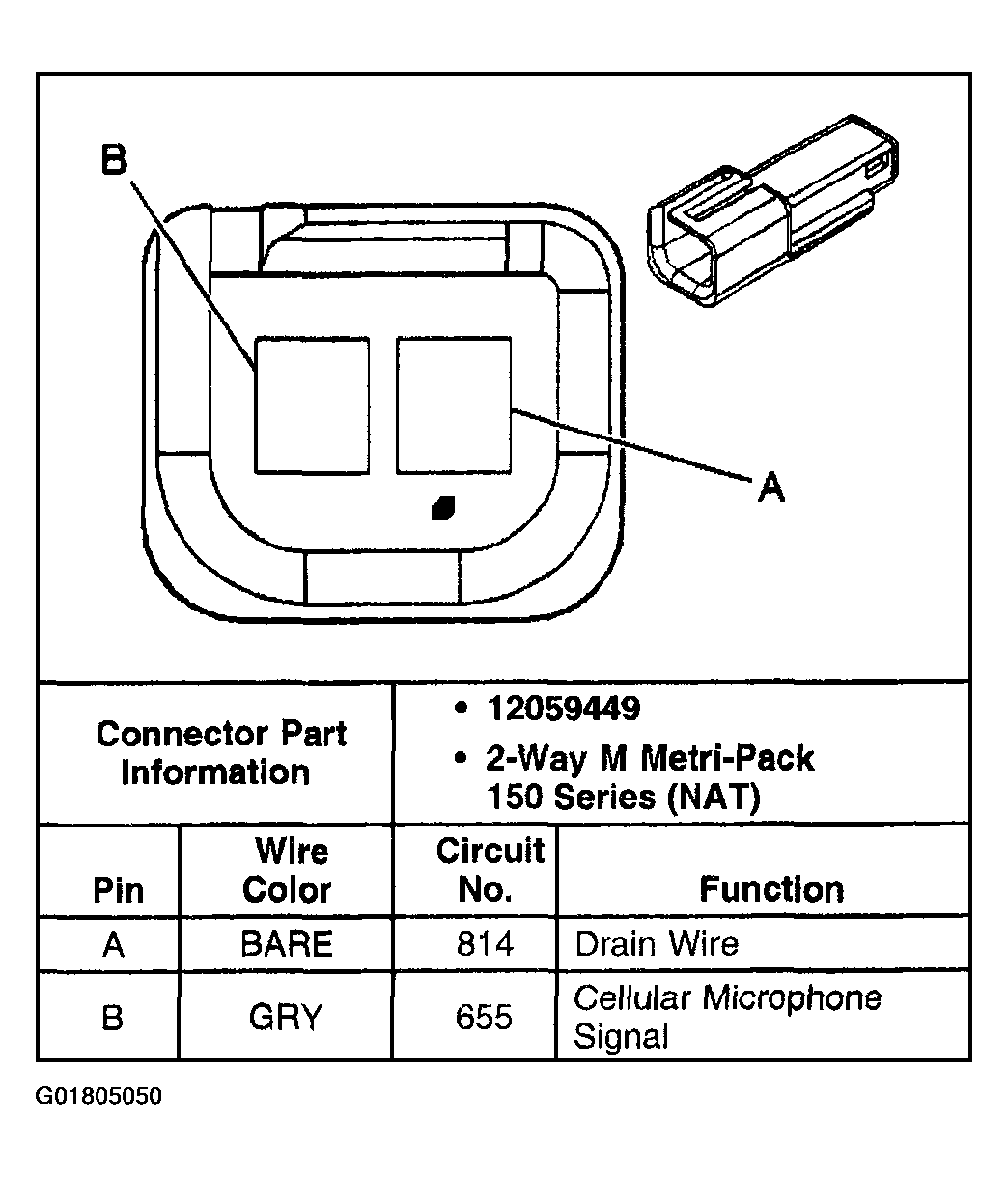

Fig 2: Cellular Telephone Microphone Connector End View (w/o UE1)
Courtesy of GENERAL MOTORS CORP.

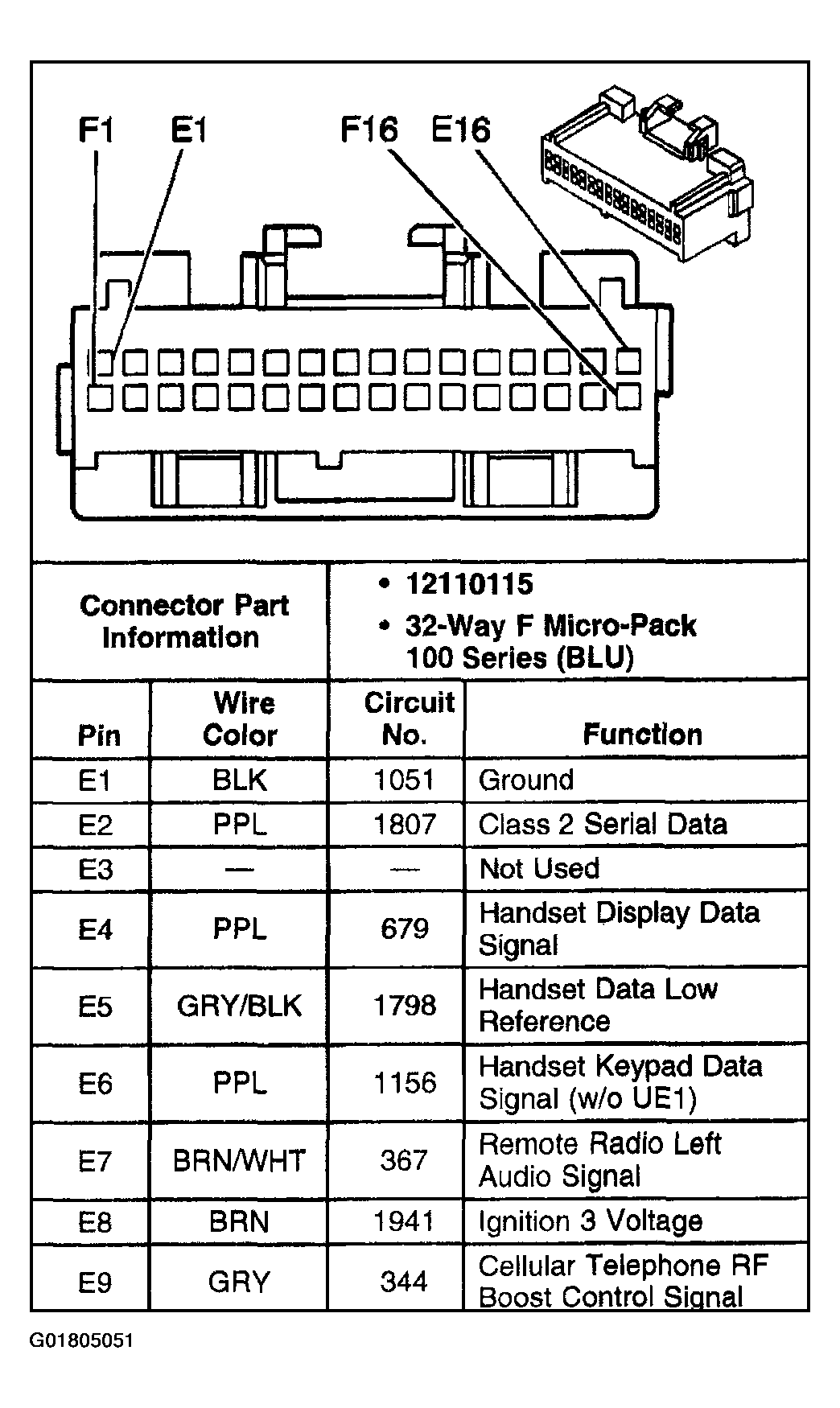

Fig 3: Cellular Telephone Module Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

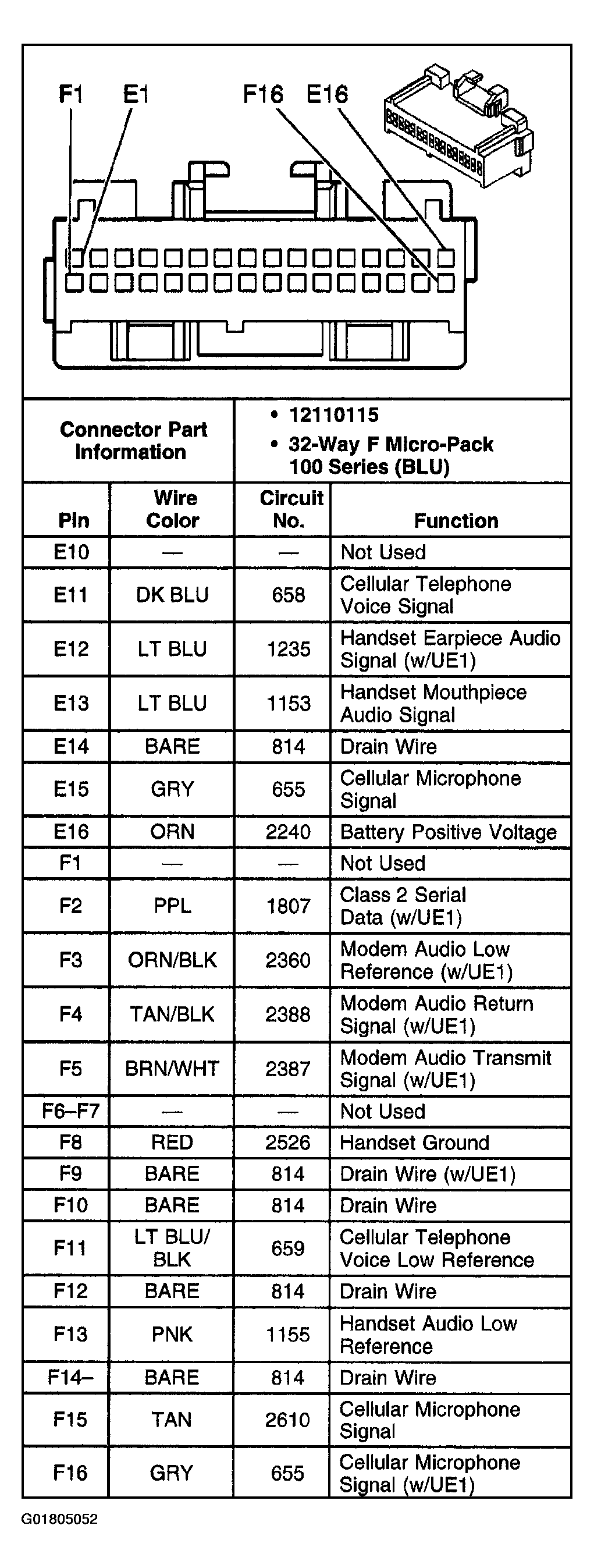

Fig 4: Cellular Telephone Module Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

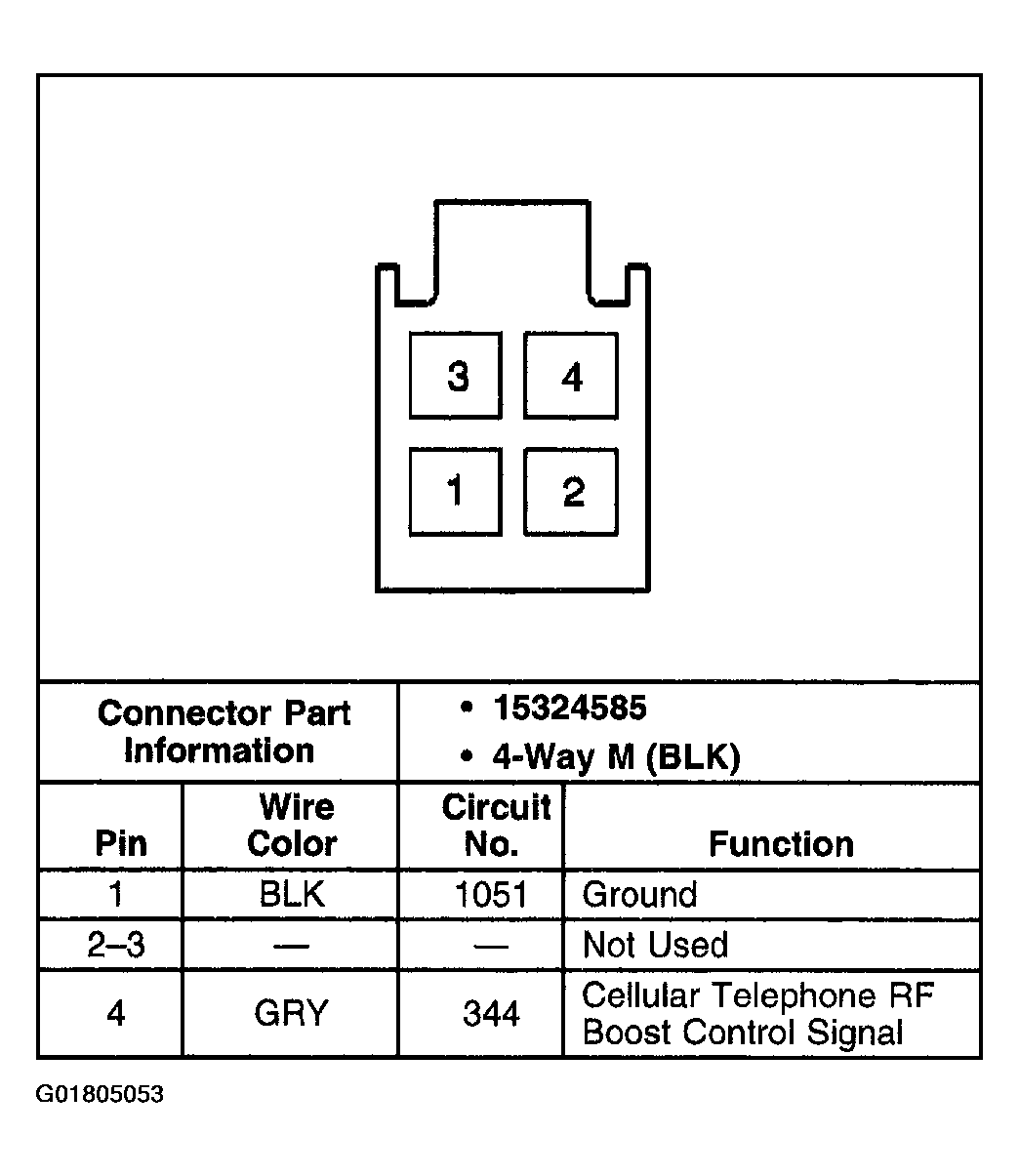

Fig 5: RF Signal Amplifier Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 6: Vehicle Communication Interface Module (VCIM) C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 7: Vehicle Communication Interface Module (VCIM) C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 8: Vehicle Communication Interface Module (VCIM) C3 Connector End View
