Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Remove the left rear sail panel. Refer to SAIL PANEL REPLACEMENT .
Remove the rear assist handles. Refer to ASSIST HANDLE REPLACEMENT .

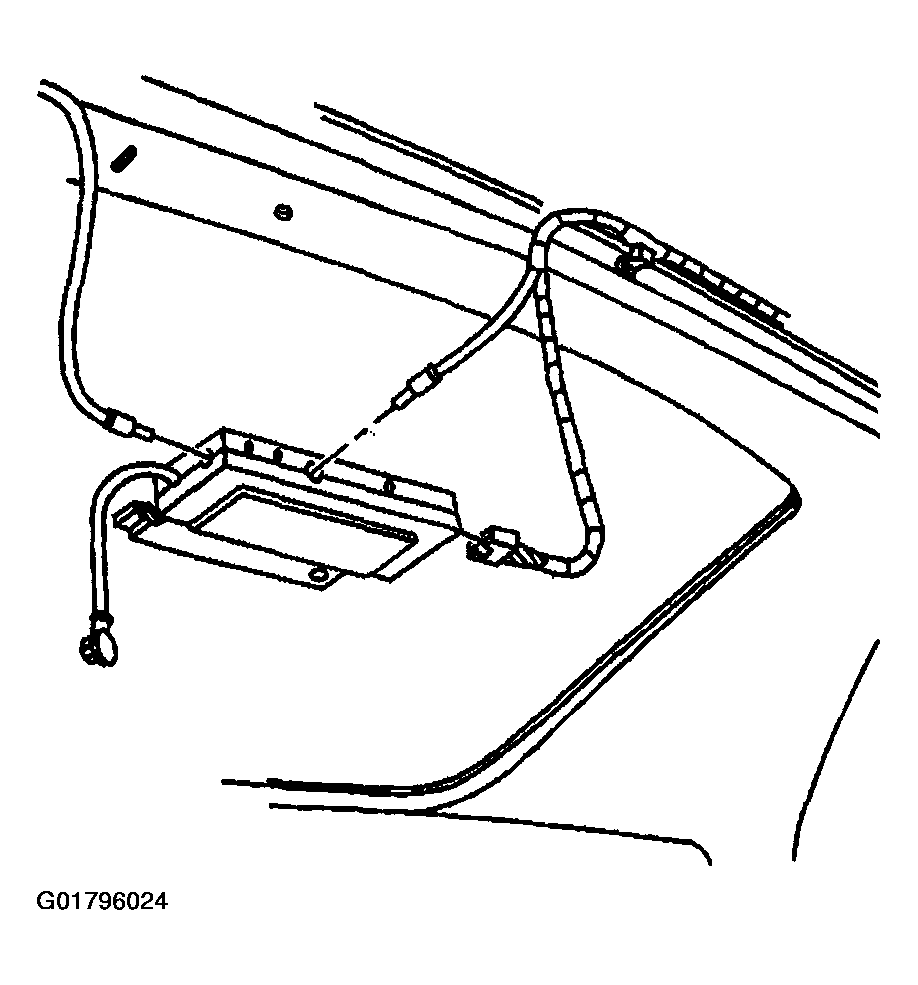

Fig 1: Removing Antenna Module

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connectors from the radio antenna module.
Remove the fastener retaining the radio antenna module to the roof beam.
Remove the radio antenna module.
