Instrument Panel Integration Module (IPM)

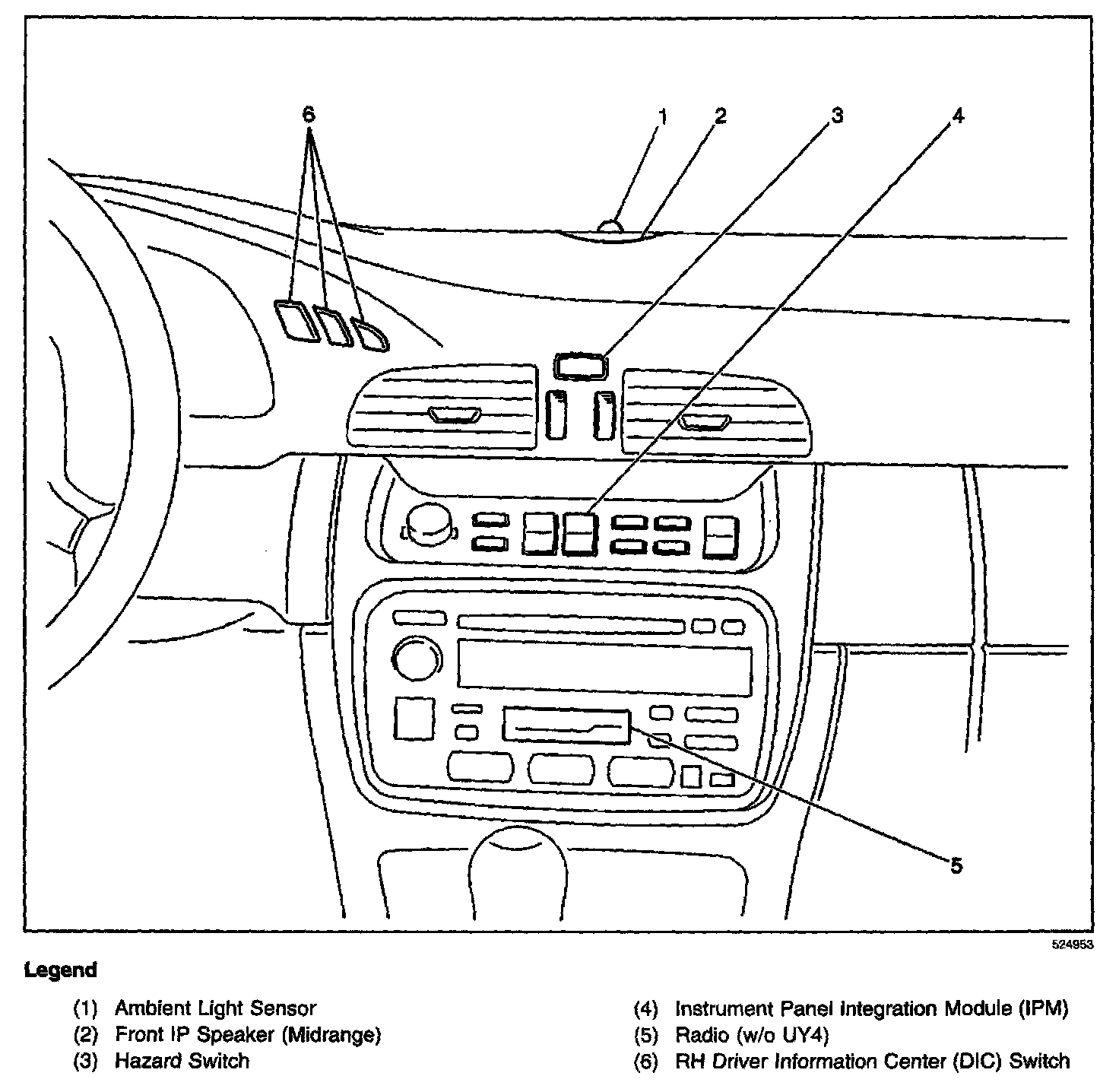

Locations View:

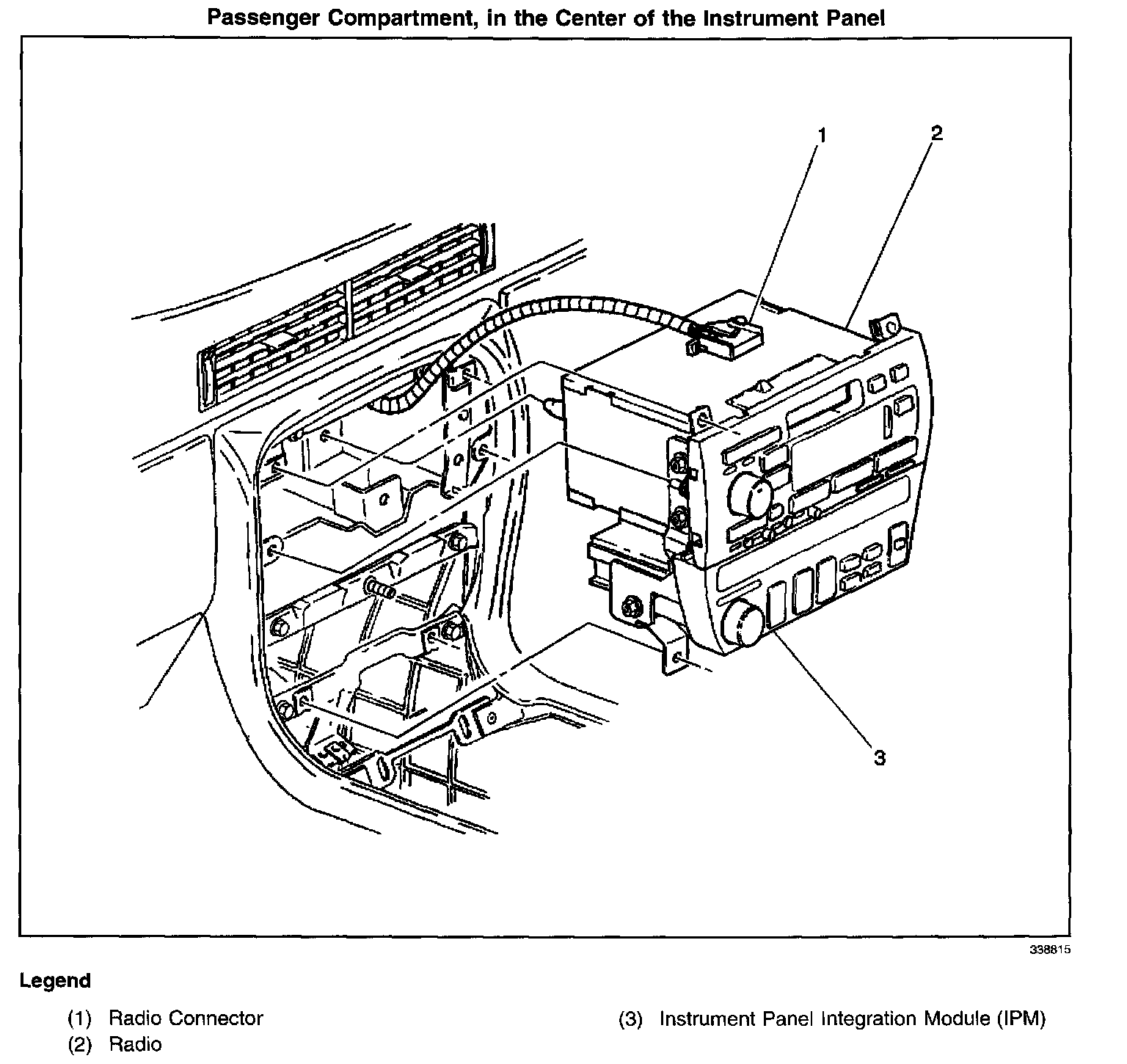

Locations View:
Center of the instrument panel, above the radio (part of the climate control panel)
