Navigation Display Head

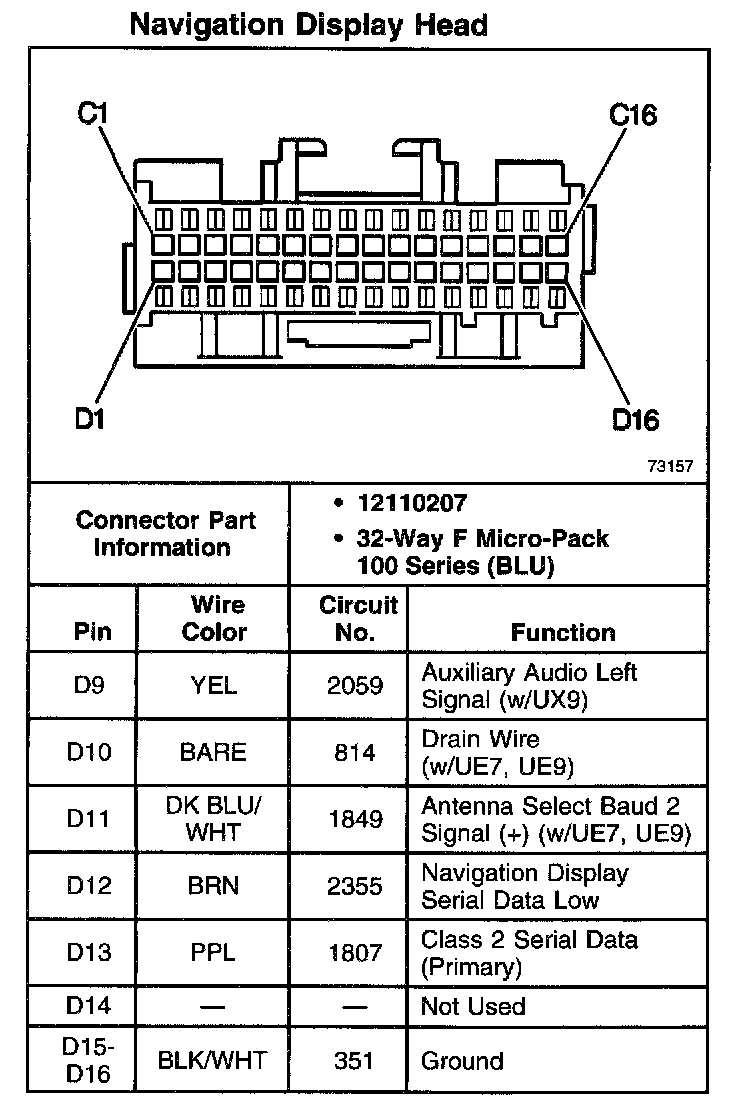

Navigation Display Head (Part 1 Of 2):

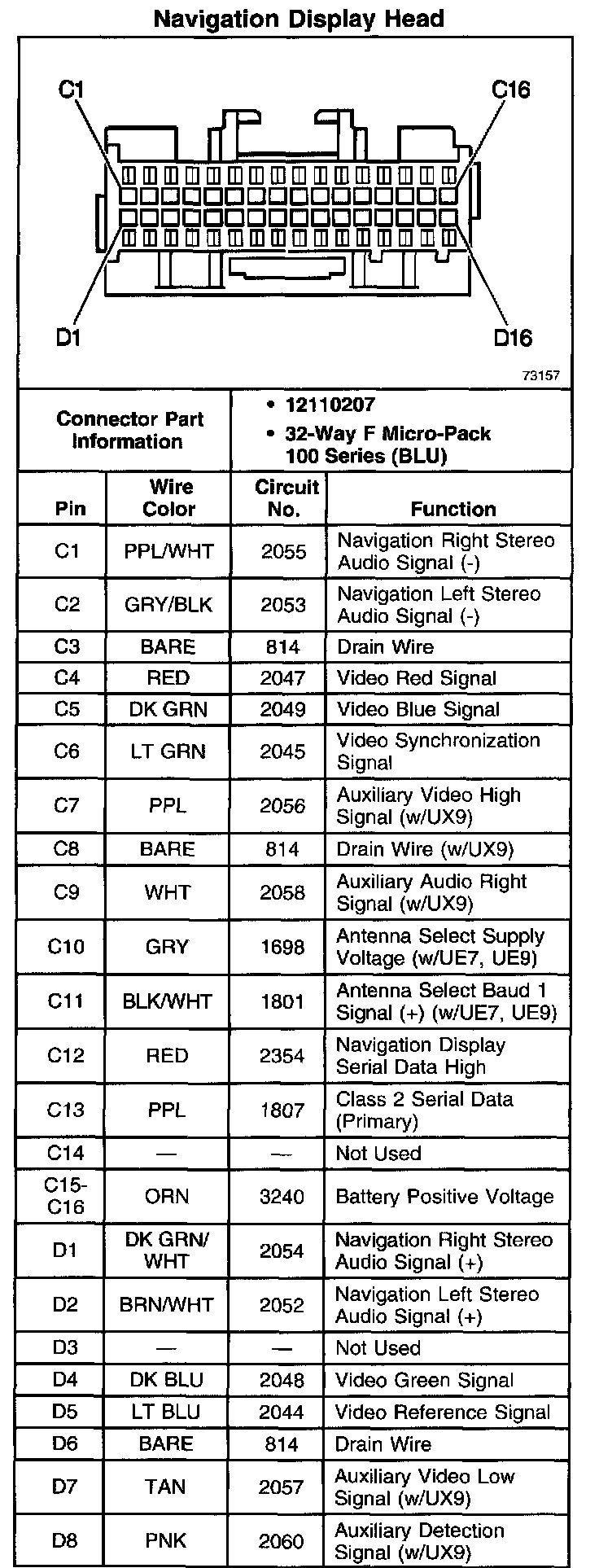

Navigation Display Head (Part 2 of 2):





"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
