Home >> Cadillac >> 2001 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Steering Column

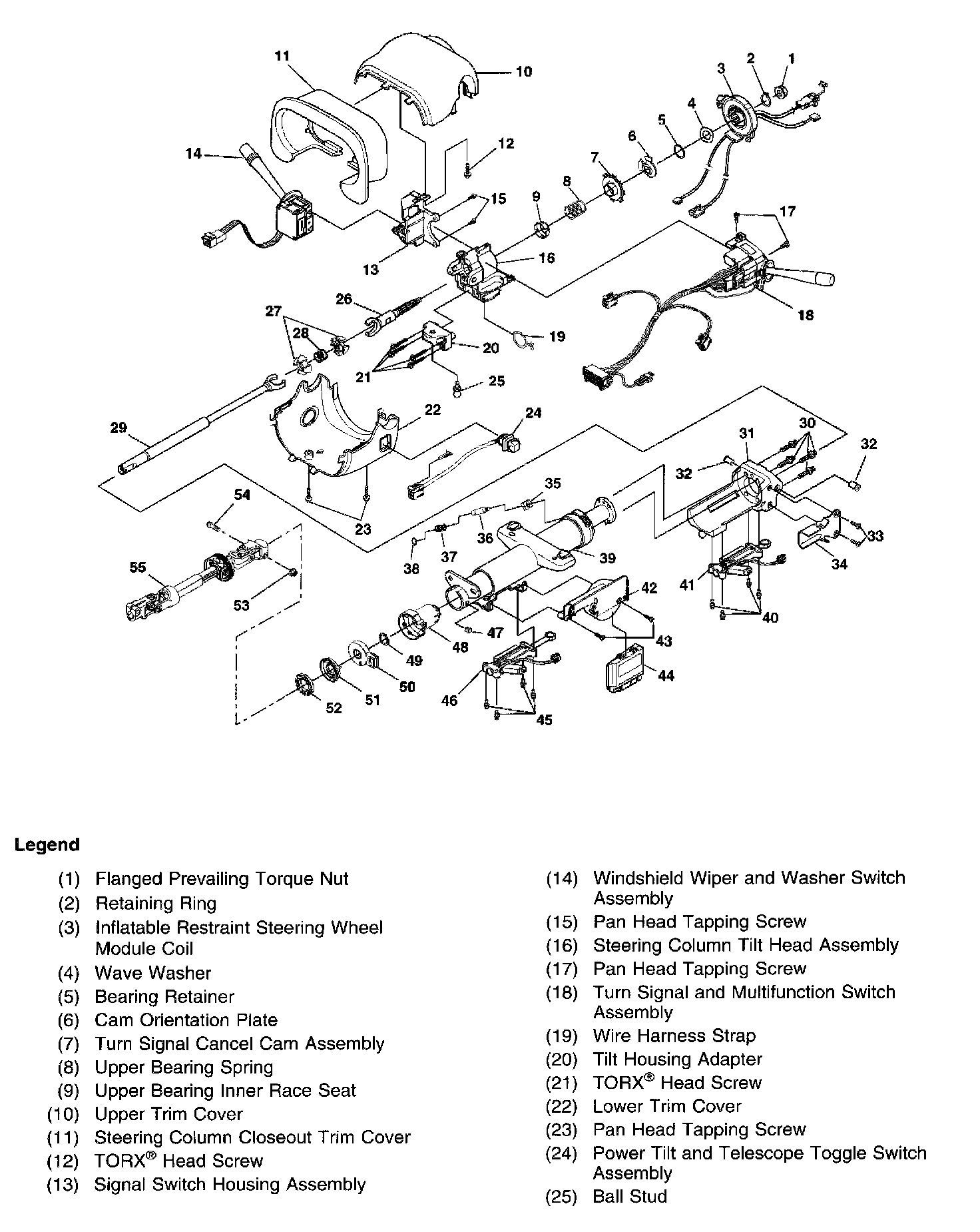

Steering Column Disassembled View (Right Hand)

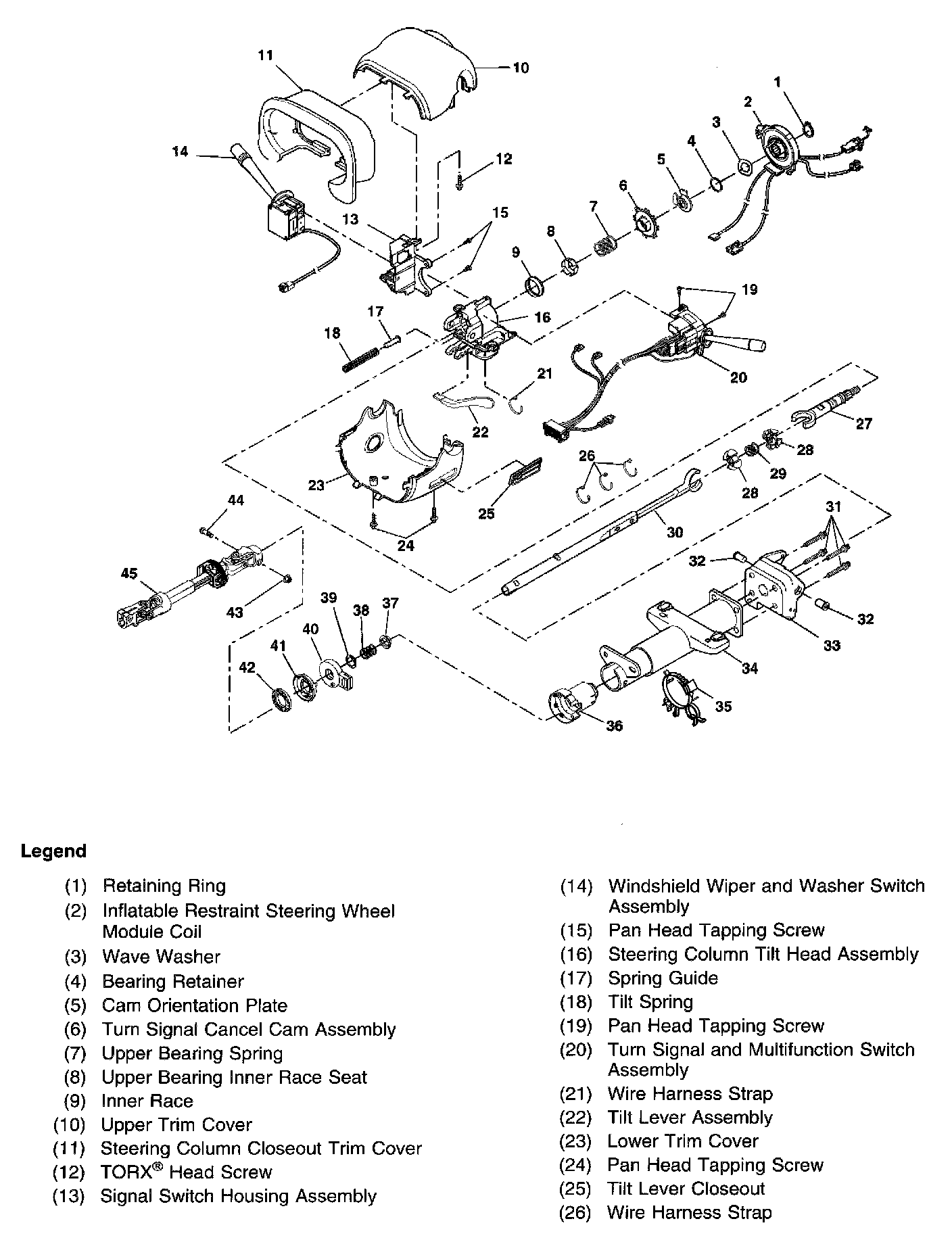

Steering Column Disassembled View (Power Tilt and Telescope)

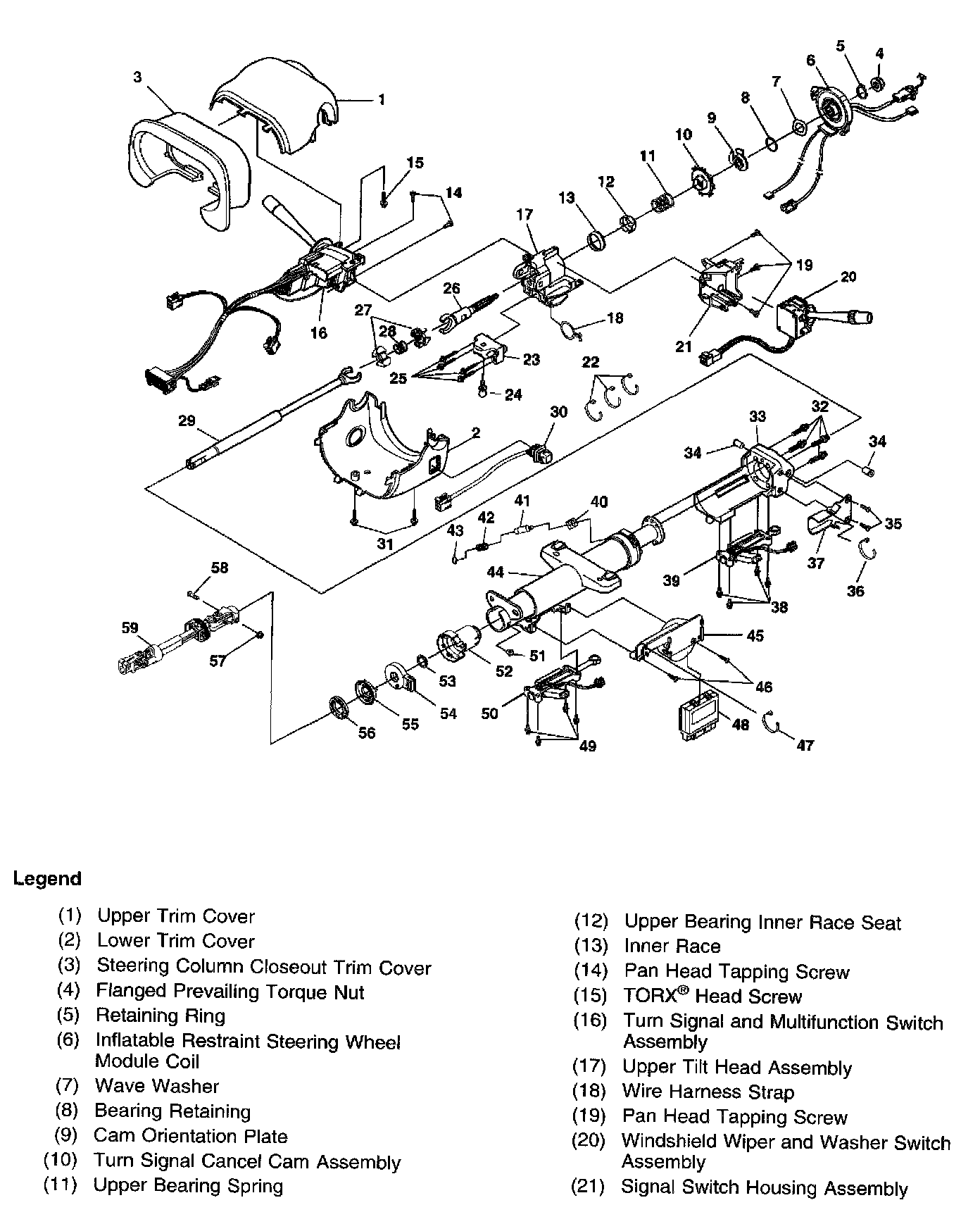

Steering Column Disassembled View (Manual Column)
