Ignition Control Module (ICM) Bank 1

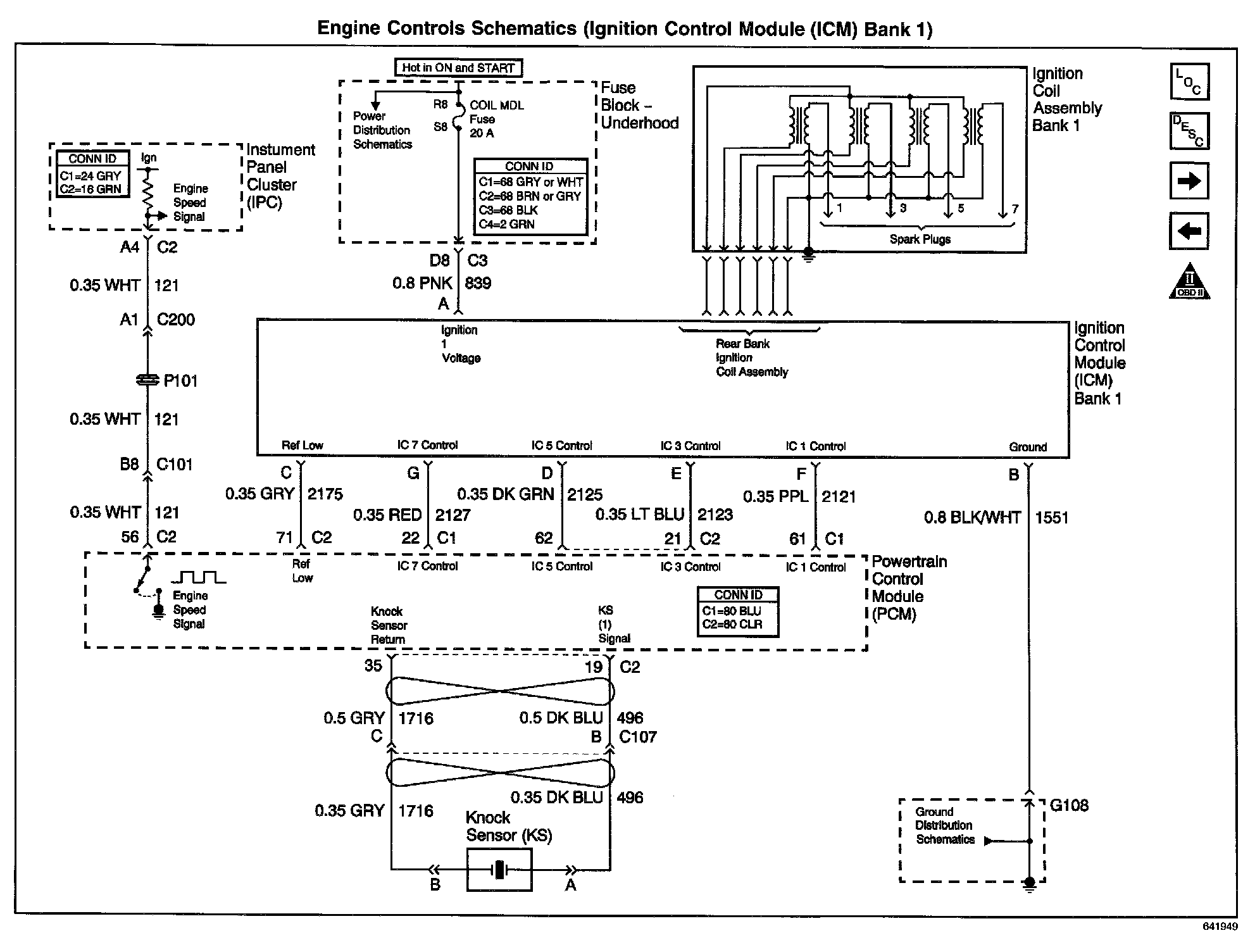

Engine Controls Schematics: Ignition Control Module (ICM) Bank 1:
