Dash Integration Module (DIM)

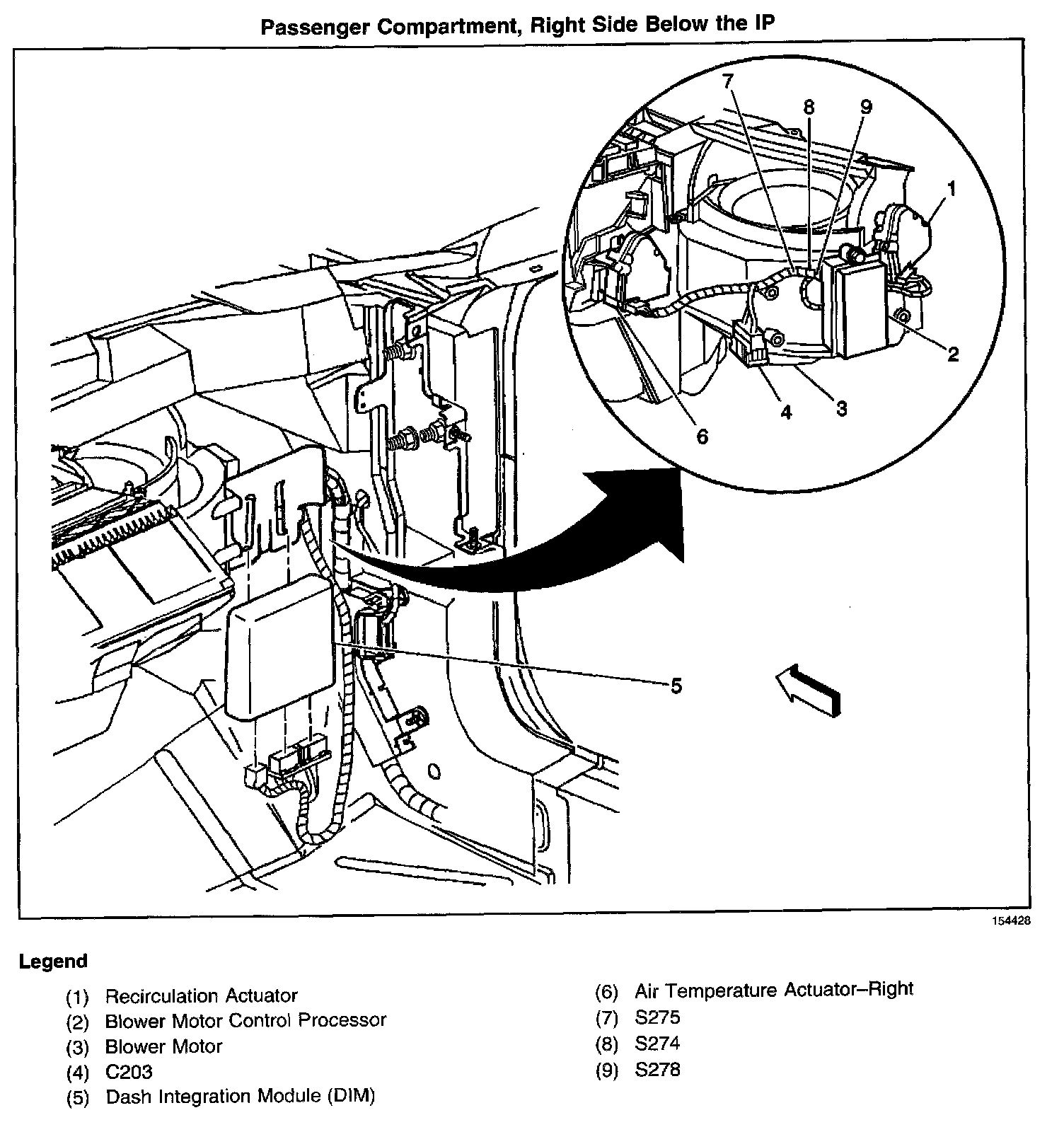

Locations View:

Right side of the instrument panel, near the blower motor
