Power Seat Systems Component Views

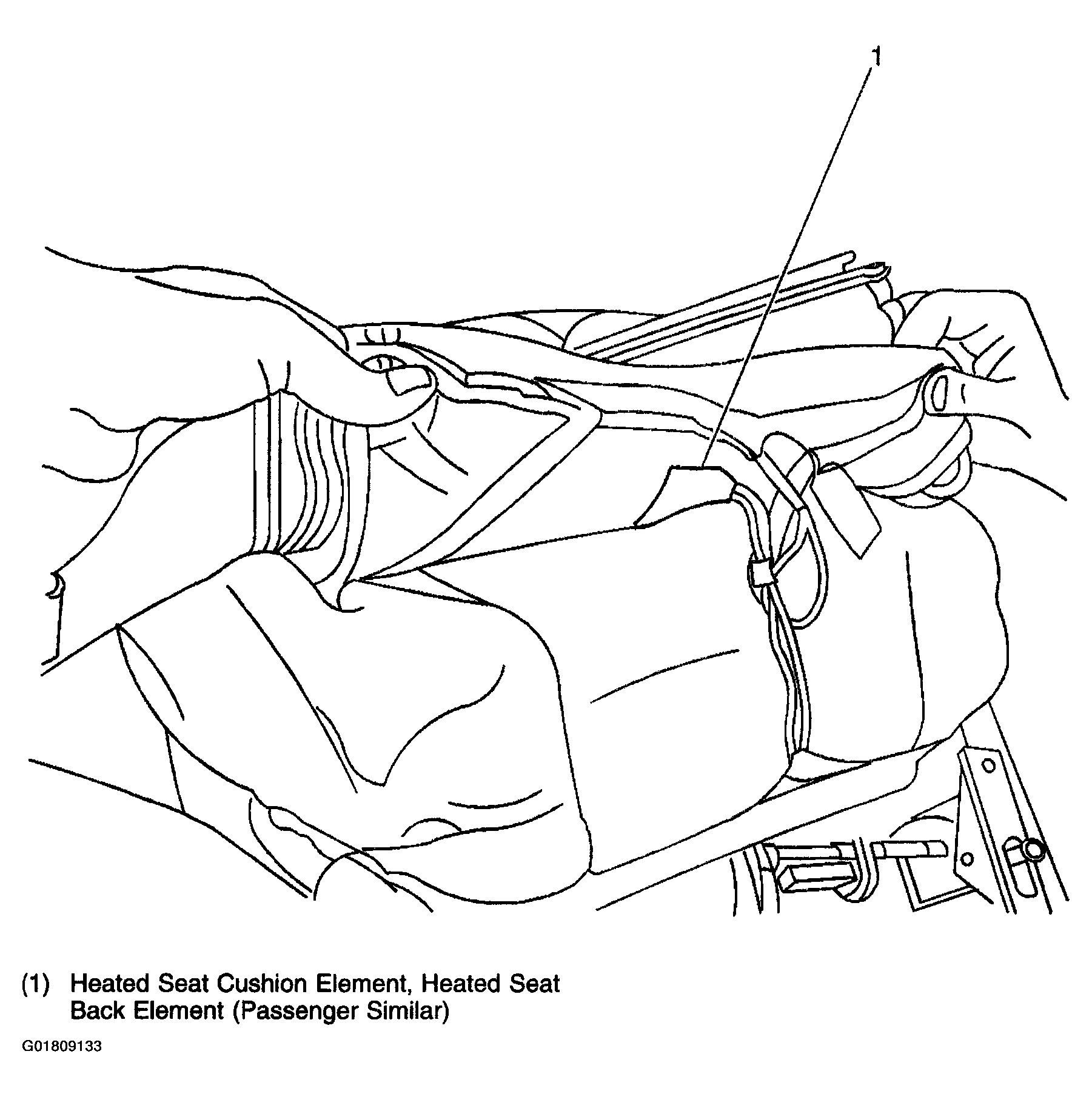

Fig 1: Left Front Seat Cushion
G01809133Courtesy of GENERAL MOTORS CORP.

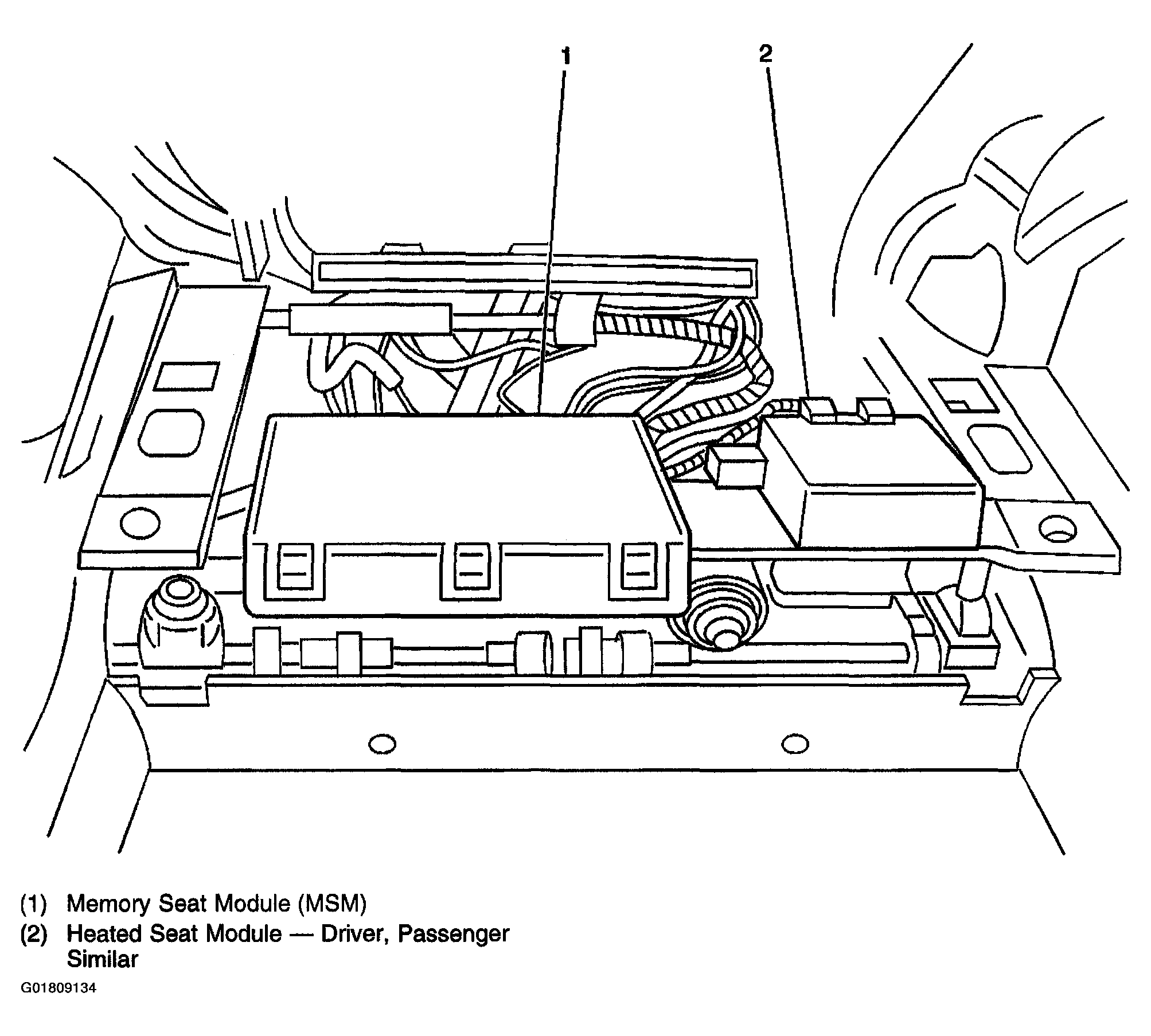

Fig 2: Left Front of the Passenger Compartment, Under the Left Front Seat
G01809134Courtesy of GENERAL MOTORS CORP.

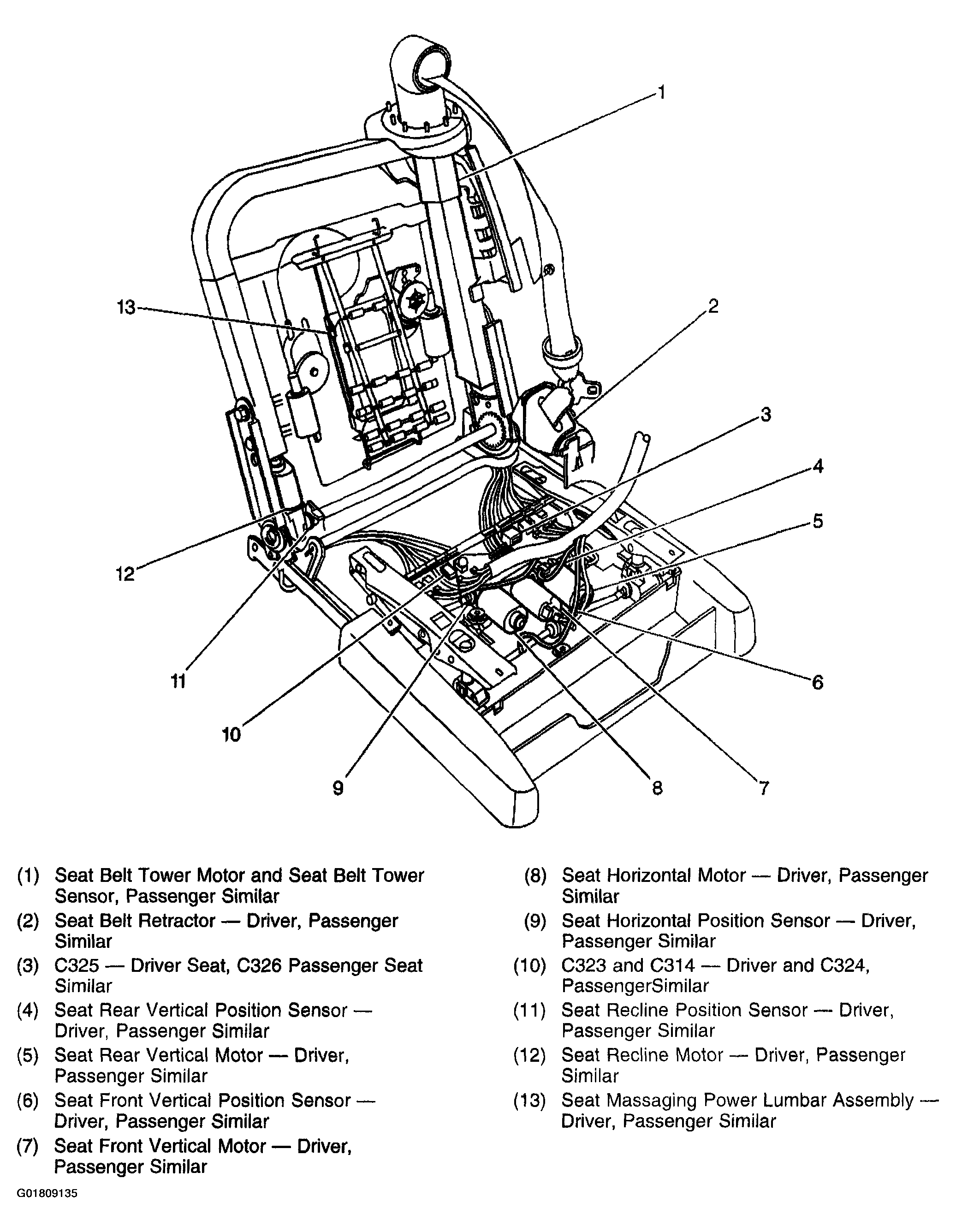

Fig 3: Passenger Compartment, in the Left Front Seat
G01809135Courtesy of GENERAL MOTORS CORP.

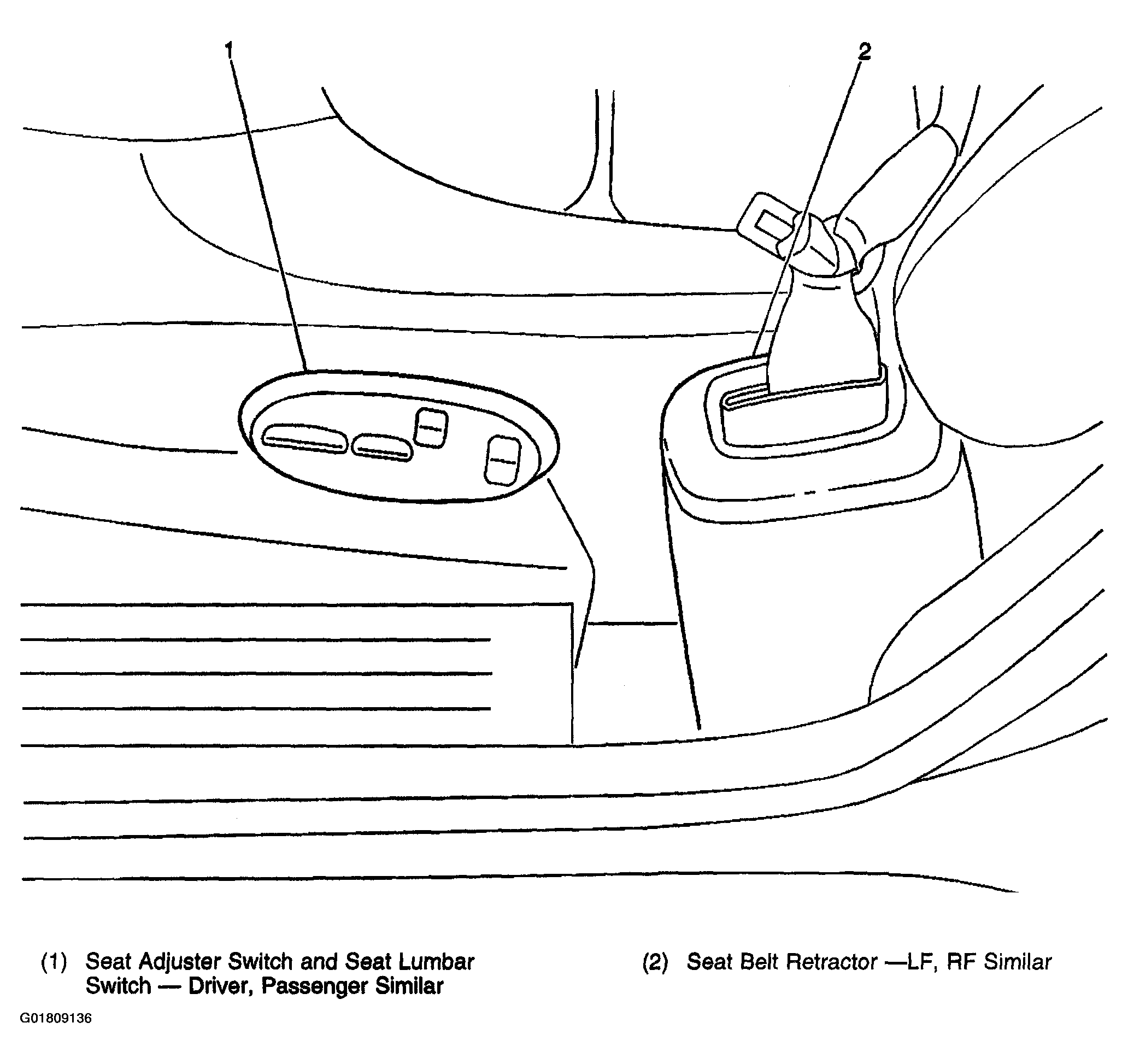

Fig 4: Left Front Seat, on the Left Side of the Seat Cushion
G01809136Courtesy of GENERAL MOTORS CORP.

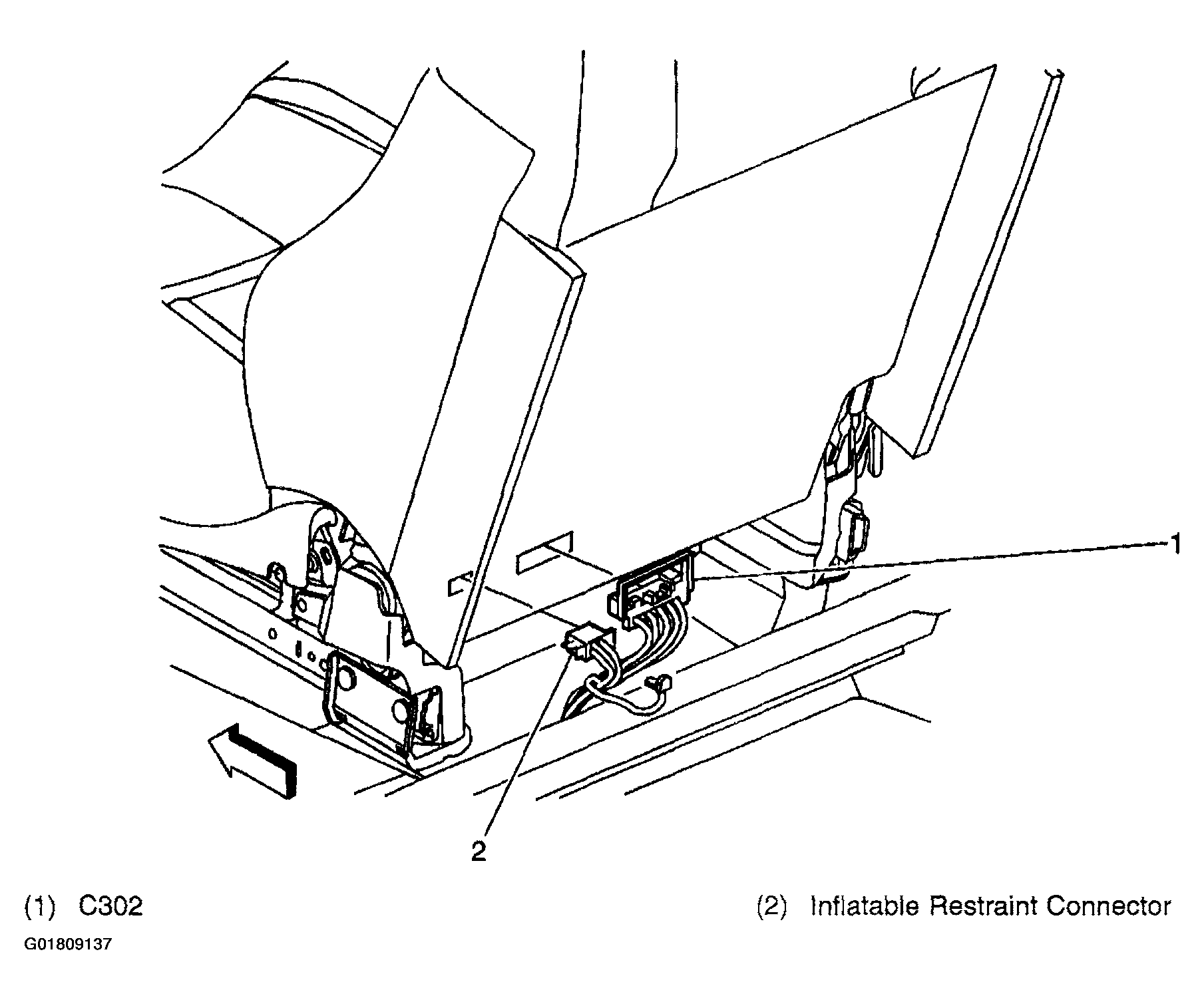

Fig 5: LH Seat Connectors
G01809137Courtesy of GENERAL MOTORS CORP.

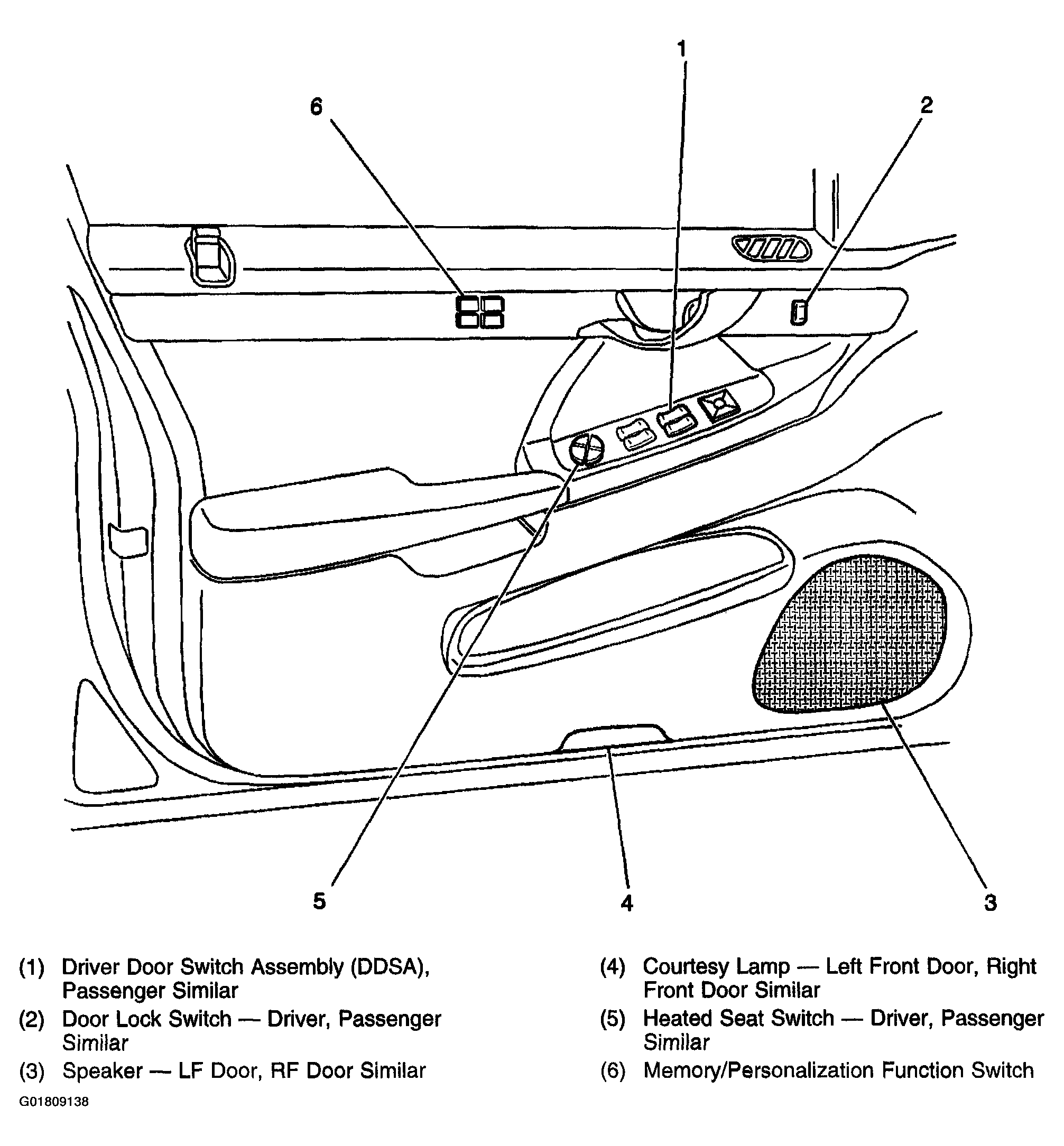

Fig 6: Left Front Door, on the Door Trim Panel
G01809138Courtesy of GENERAL MOTORS CORP.

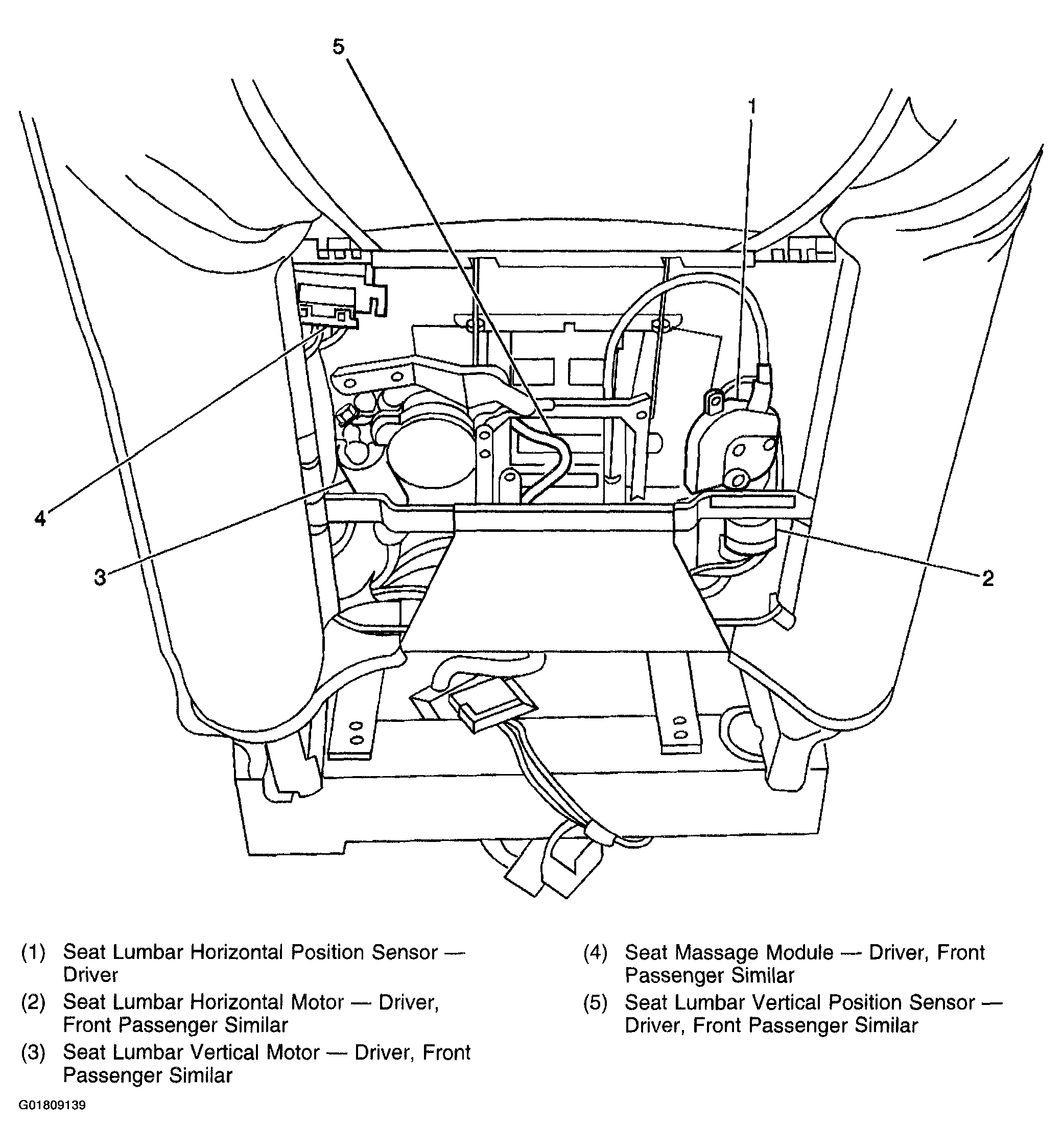

Fig 7: Left Front of the Passenger Compartment, Under the Left Front Seat
G01809139Courtesy of GENERAL MOTORS CORP.

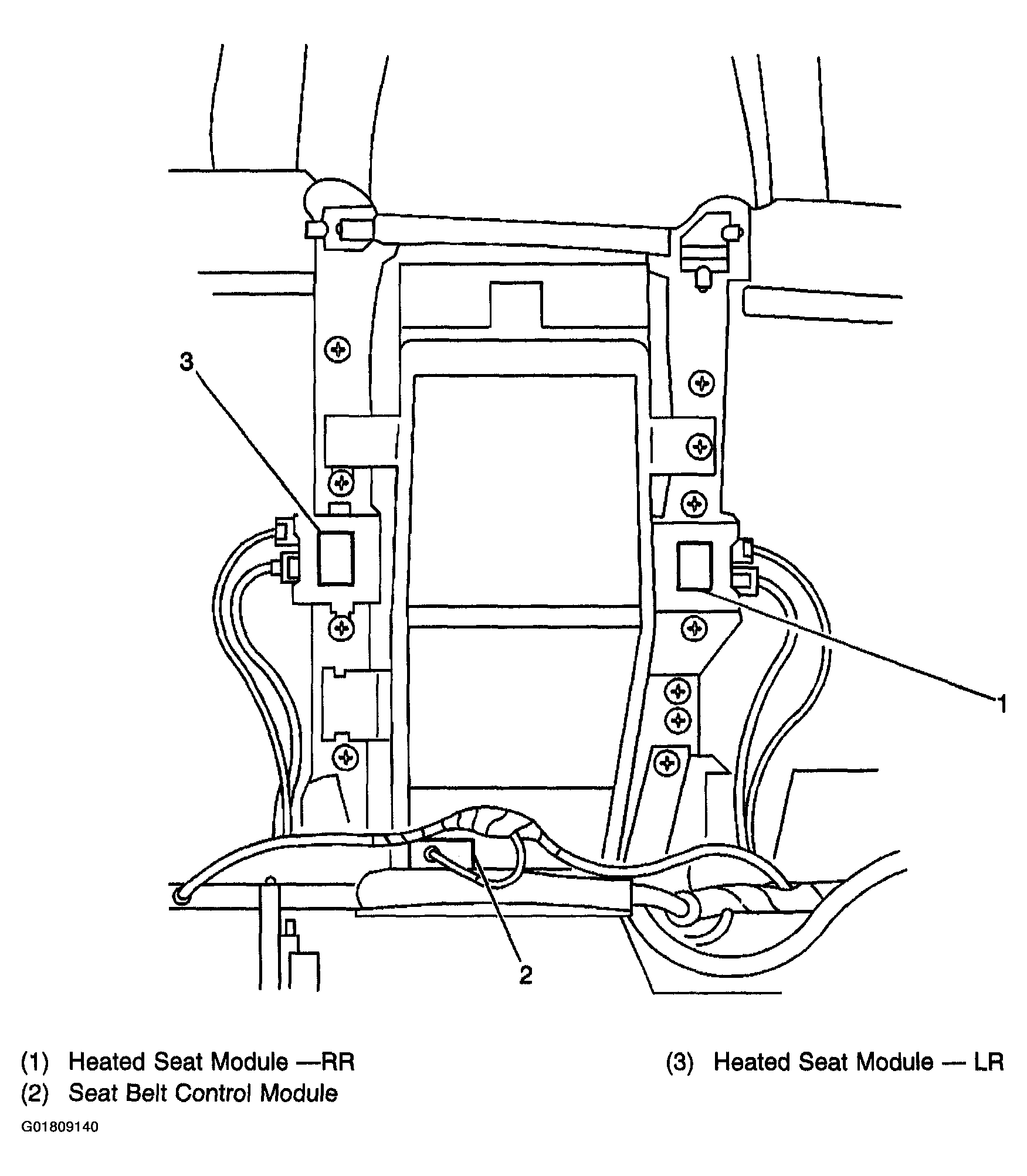

Fig 8: Center Rear of the Passenger Compartment, In the Rear Seat Back
G01809140Courtesy of GENERAL MOTORS CORP.

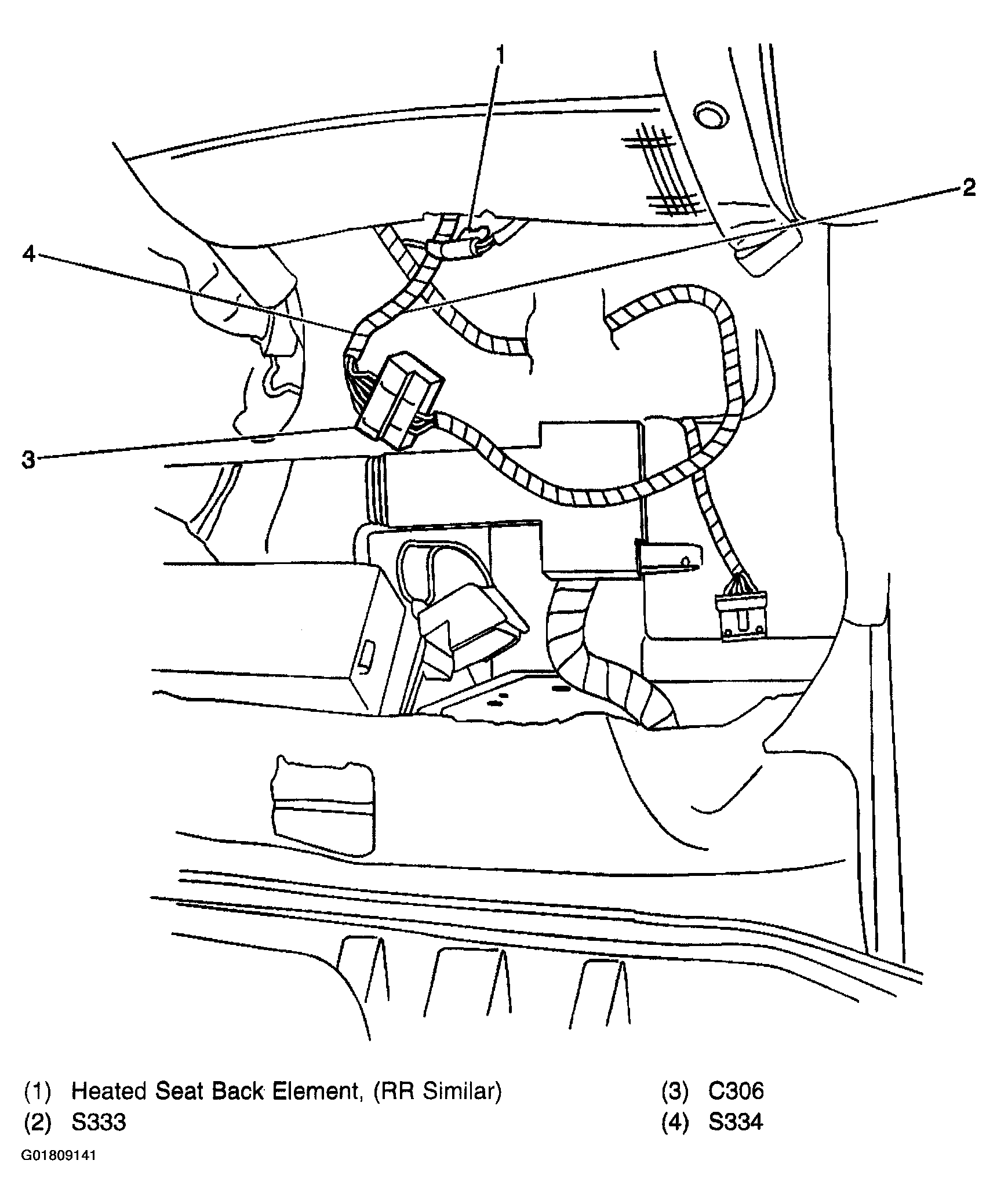

Fig 9: Left Side of the Rear Seat Back
G01809141Courtesy of GENERAL MOTORS CORP.

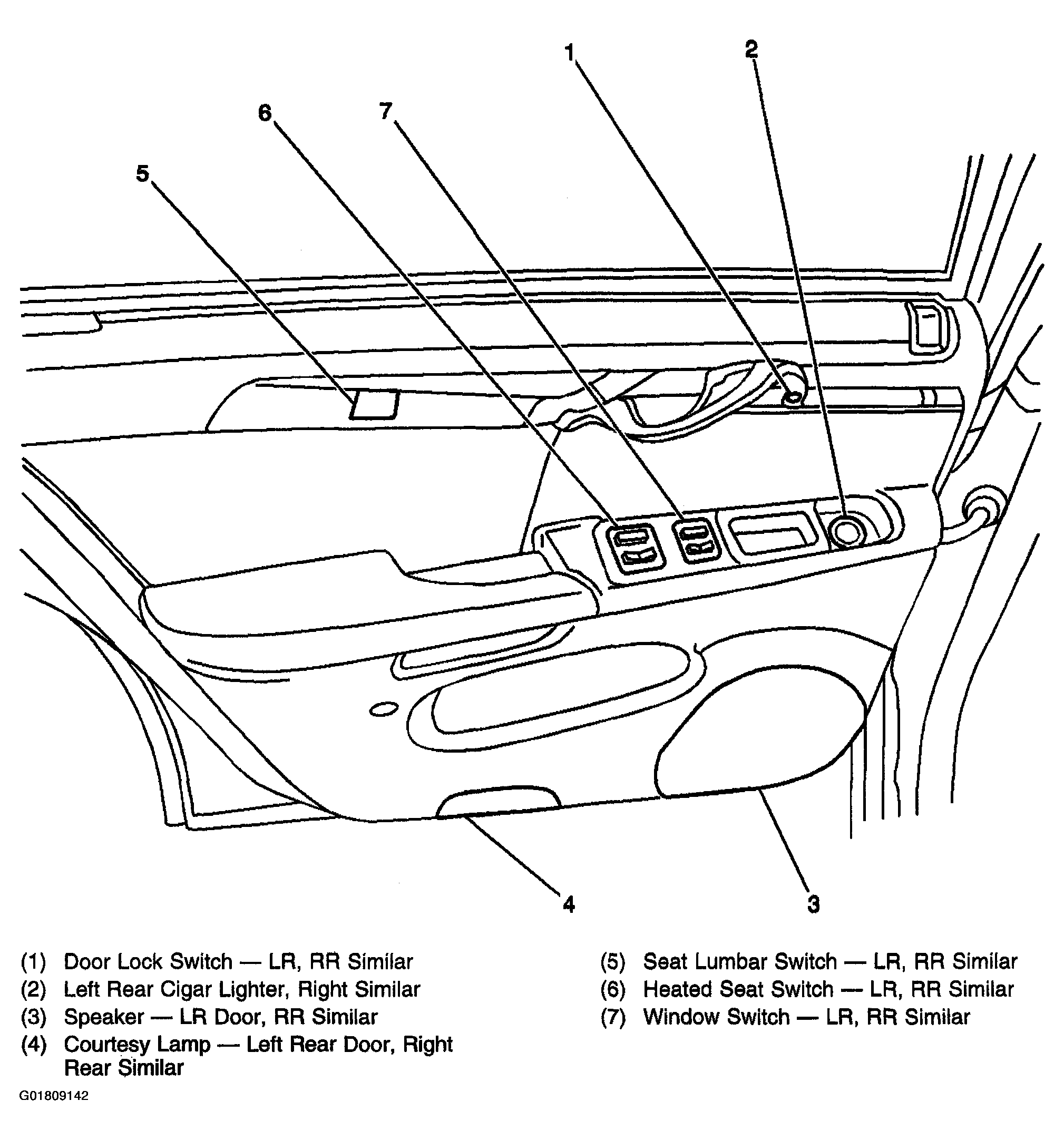

Fig 10: Front of the Left Rear Door
G01809142Courtesy of GENERAL MOTORS CORP.
