Removal Procedure

CAUTION: Refer to SIR CAUTION .
  1. Remove the front seat cushion assembly. Refer to Seat Cushion Replacement - Front .
  2. Disconnect the electrical connectors from the heated seat module (2) and the memory seat module (1).

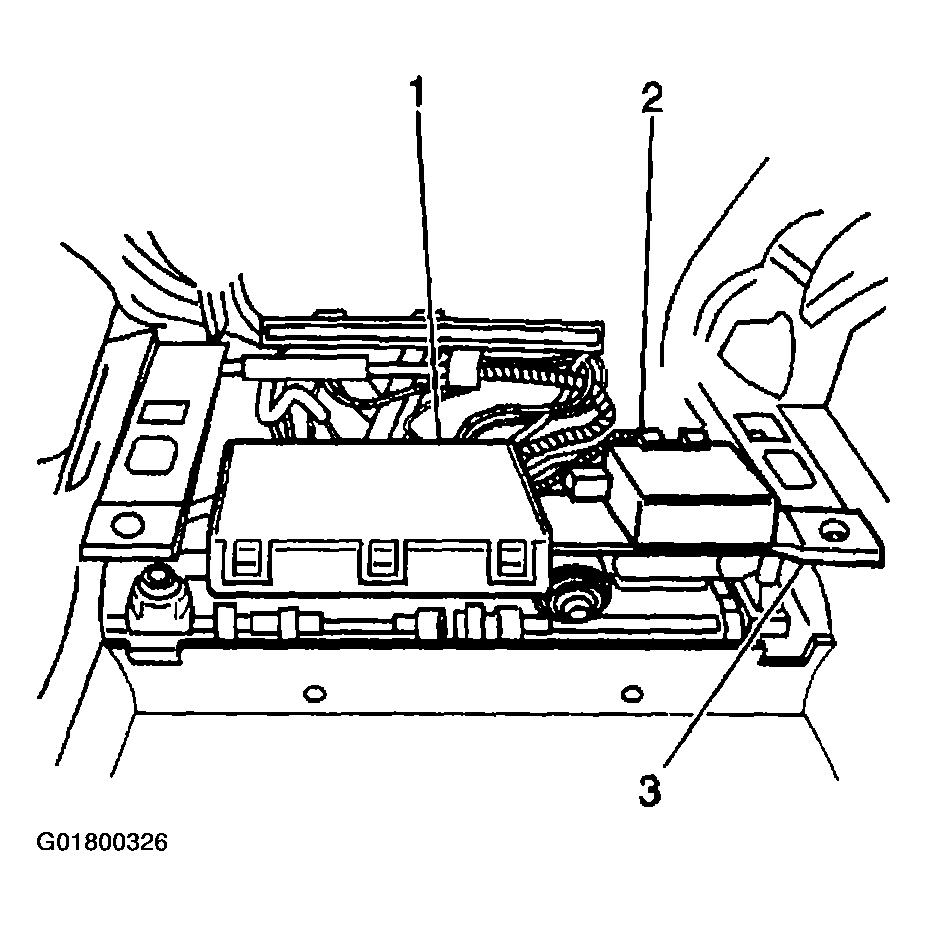

    Fig 1: Disconnecting Electrical Connectors From Heated Seat Module & Memory Seat Module
    G01800326Courtesy of GENERAL MOTORS CORP.
  3. Bend the tabs on the module and bracket assembly in order to remove the module or modules (1, 2) and bracket assembly from the seat adjuster.
  4. Remove the fasteners retaining the memory seat module (1) to the module bracket.
  5. Remove the memory seat module (1) from the bracket.
    Fig 2: Removing Memory Seat Modules
    G01800327Courtesy of GENERAL MOTORS CORP.
