Power Door Systems Connector End Views

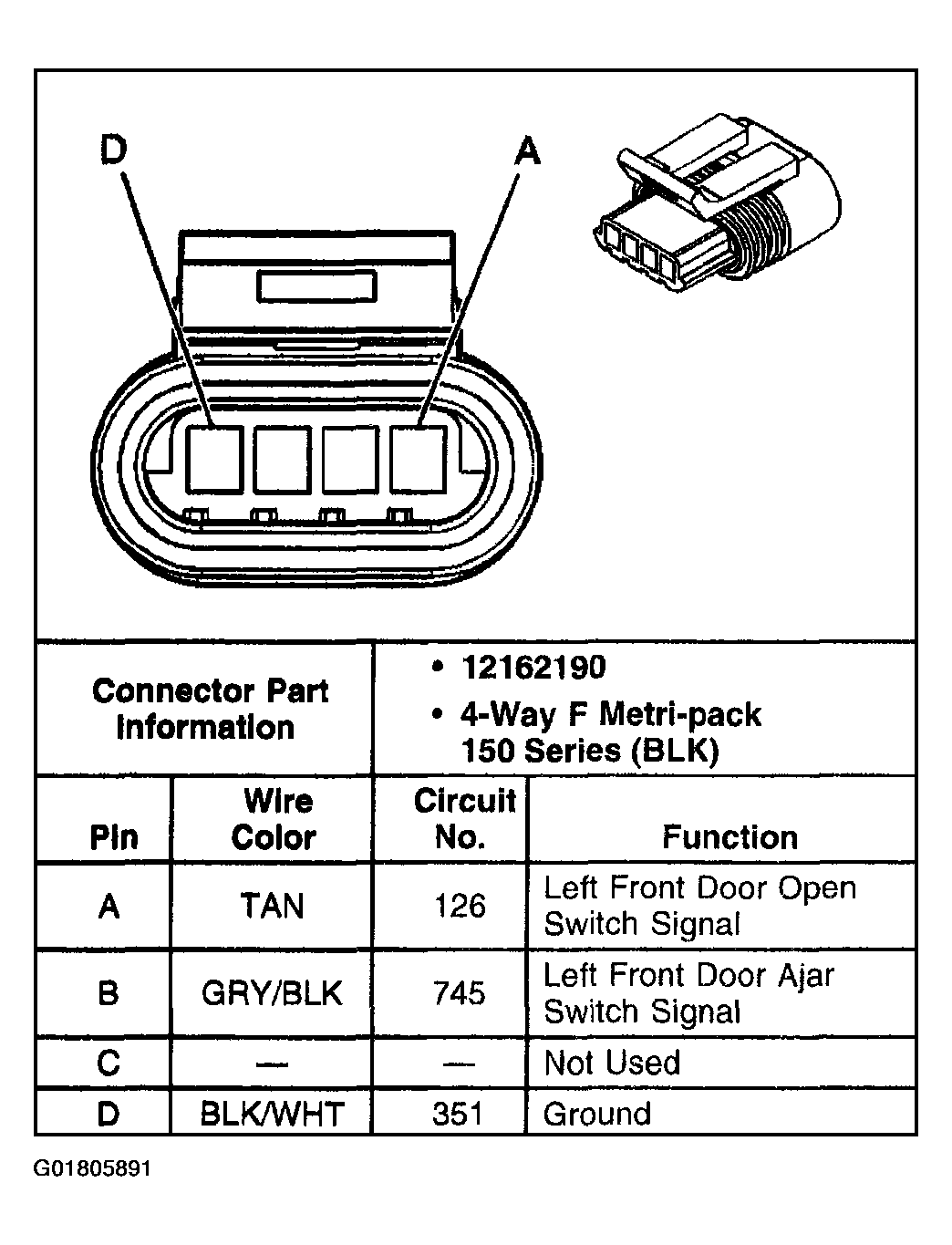

Fig 1: Door Lock Actuator - Driver C1

G01805891

Courtesy of GENERAL MOTORS CORP.

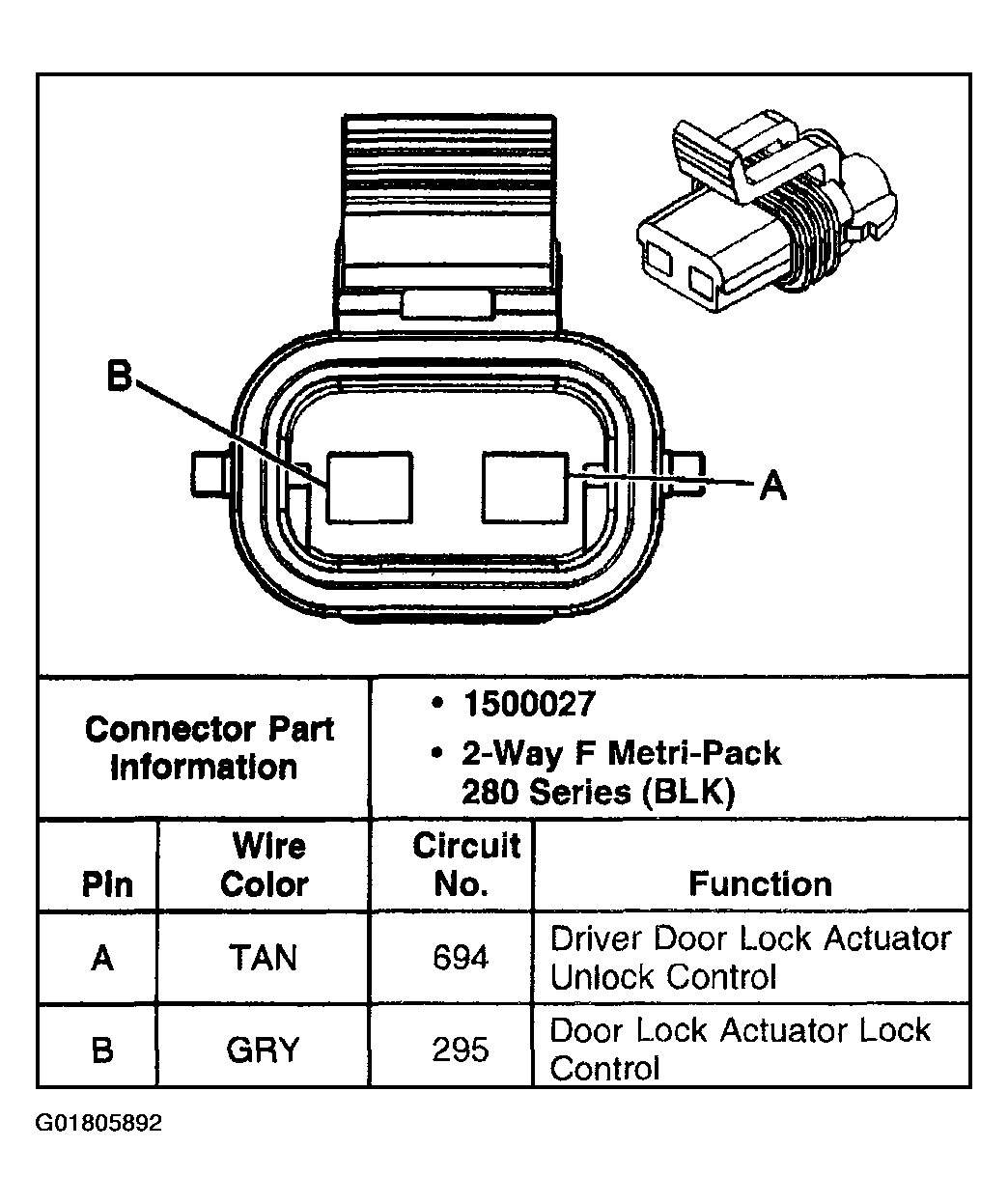

Fig 2: Door Lock Actuator - Driver C2

G01805892

Courtesy of GENERAL MOTORS CORP.

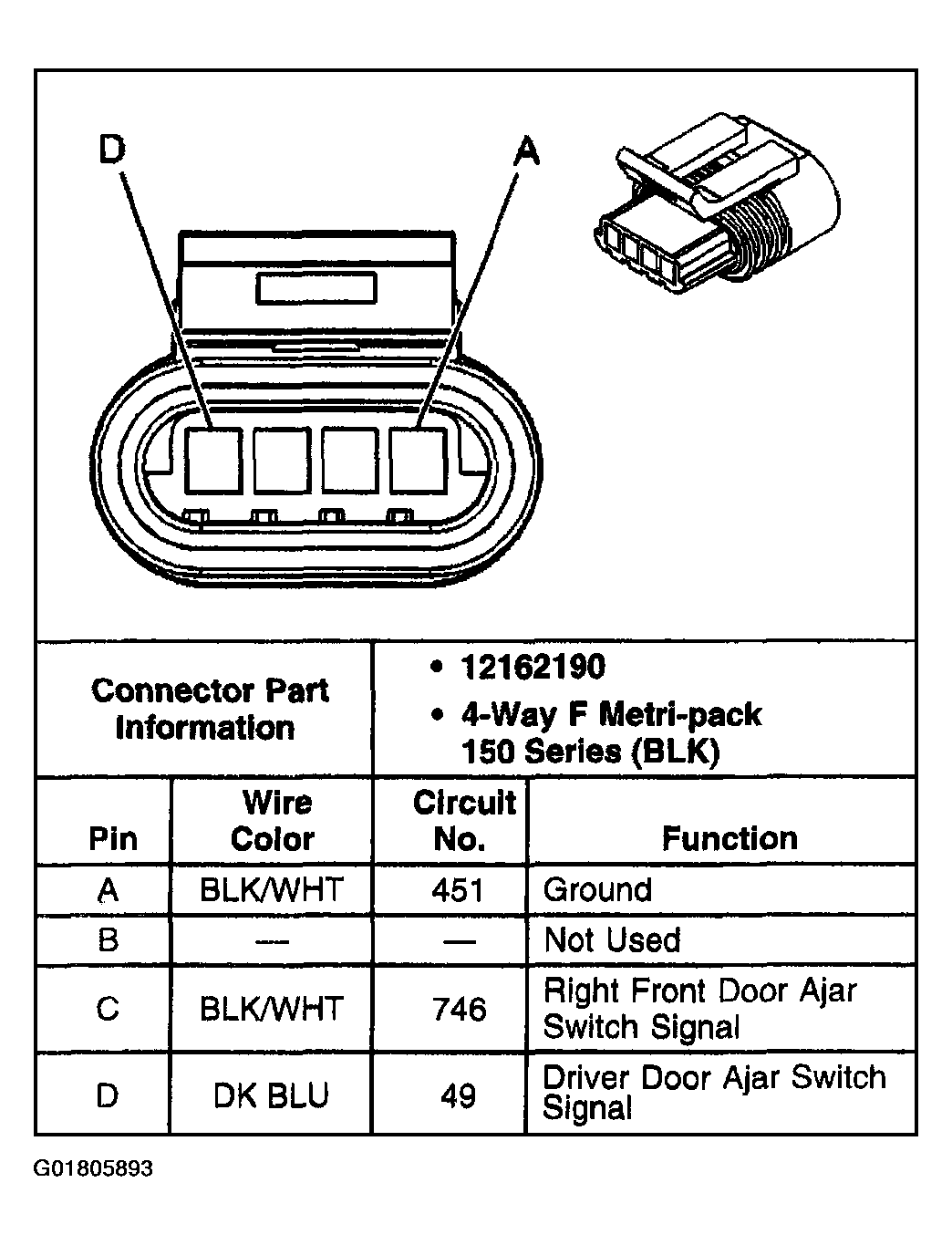

Fig 3: Door Lock Actuator - Front Passenger C1

G01805893

Courtesy of GENERAL MOTORS CORP.

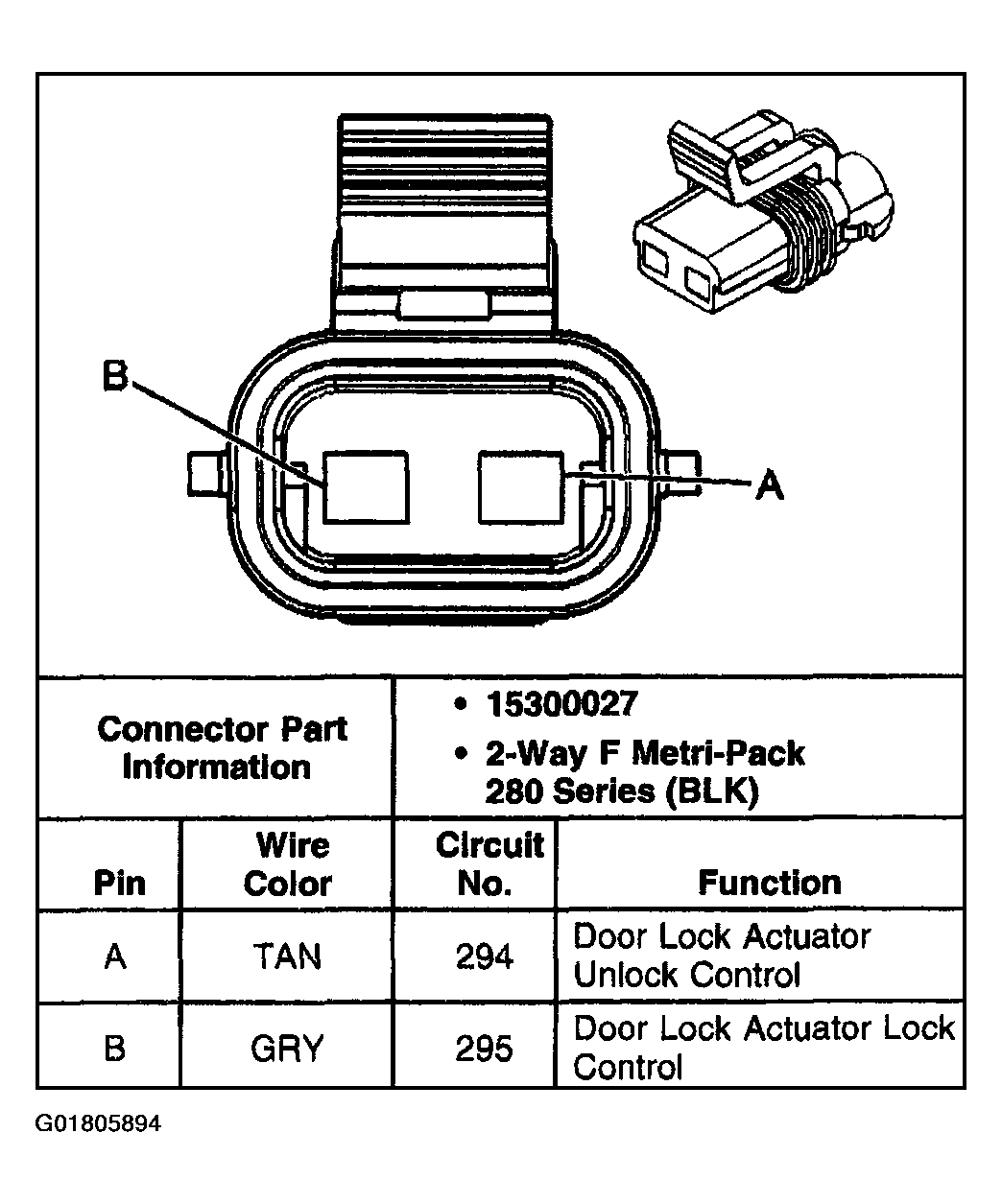

Fig 4: Door Lock Actuator - Front Passenger C2

G01805894

Courtesy of GENERAL MOTORS CORP.

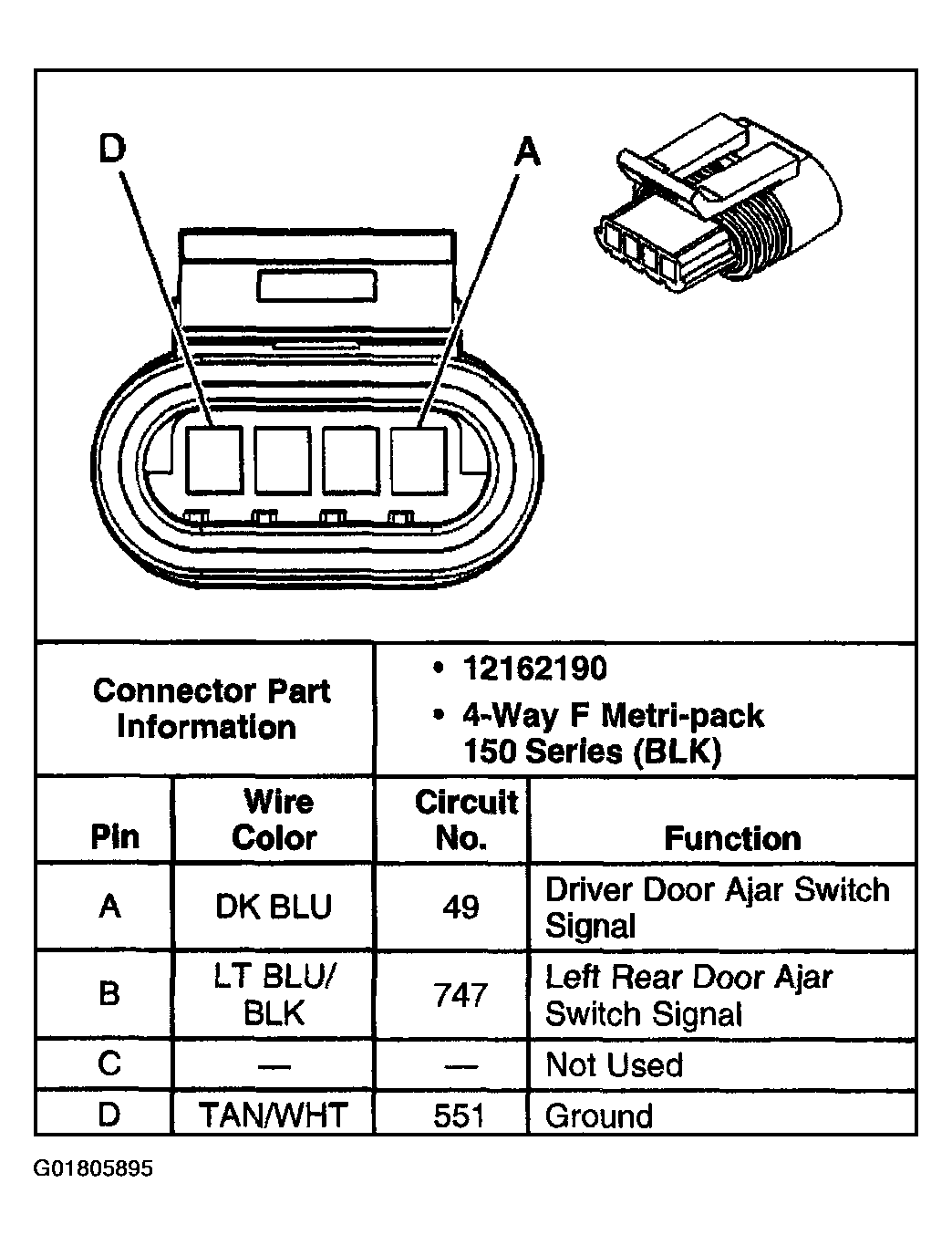

Fig 5: Door Lock Actuator - LR C1

G01805895

Courtesy of GENERAL MOTORS CORP.

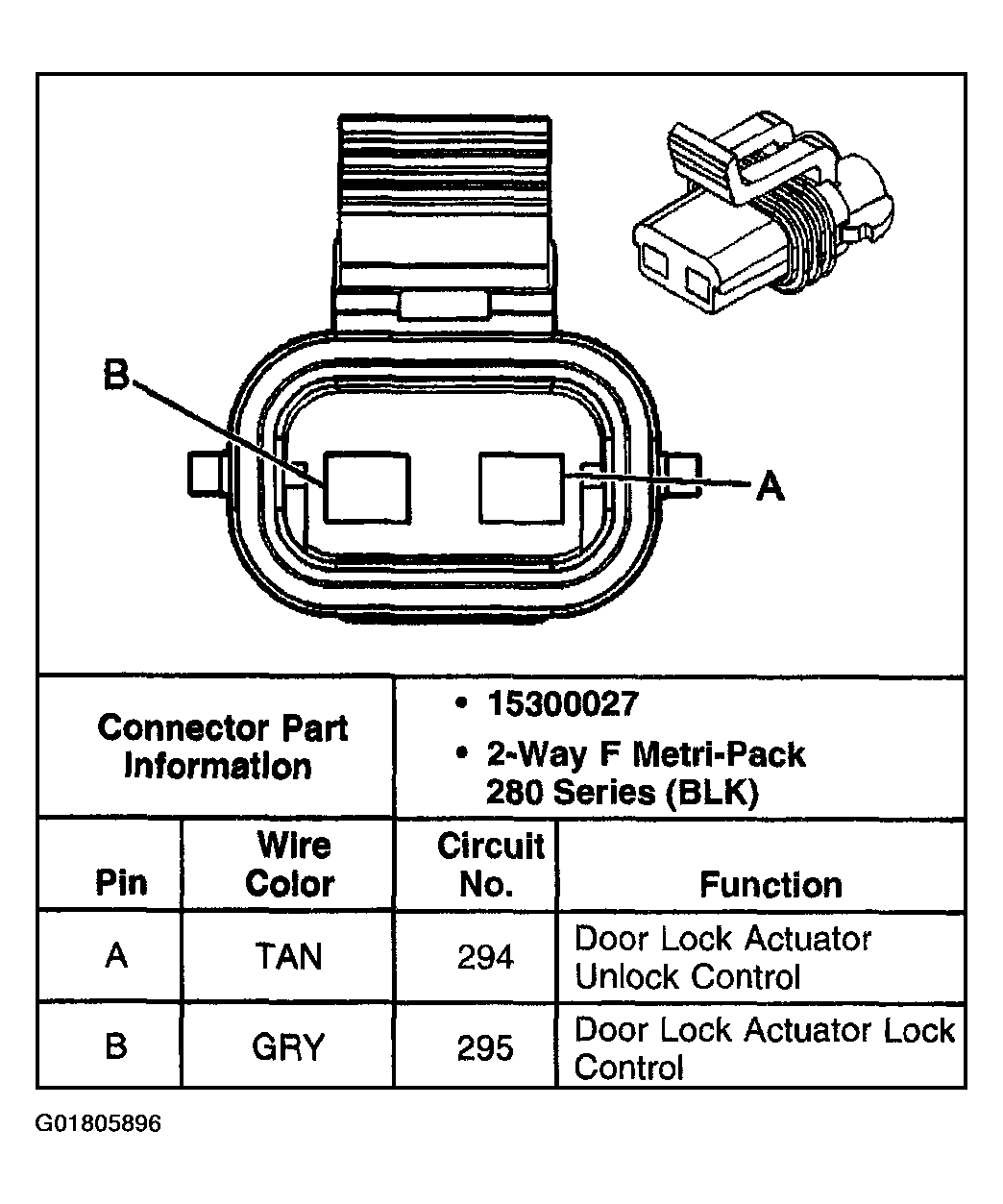

Fig 6: Door Lock Actuator - LR C2

G01805896

Courtesy of GENERAL MOTORS CORP.

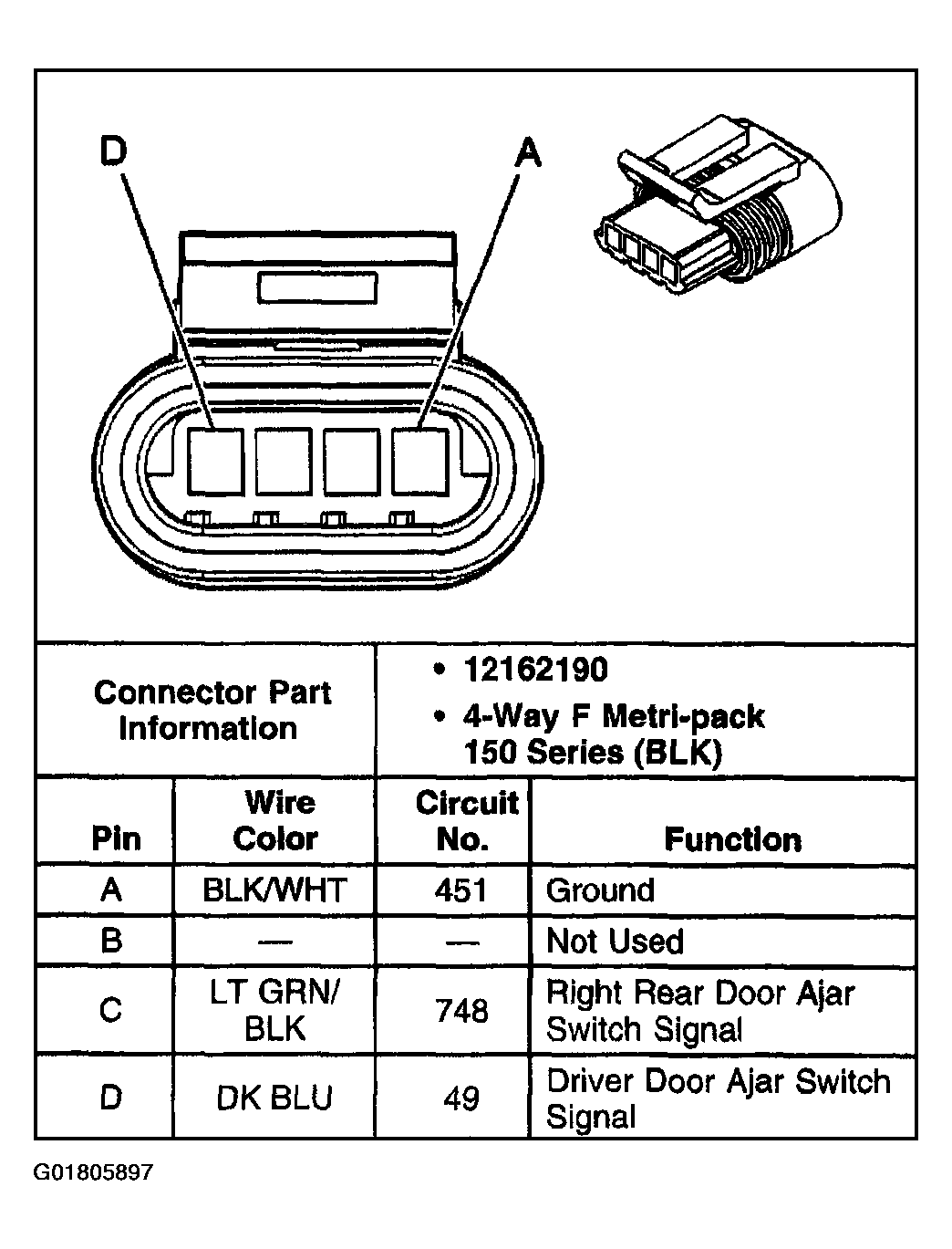

Fig 7: Door Lock Actuator - RR C1

G01805897

Courtesy of GENERAL MOTORS CORP.

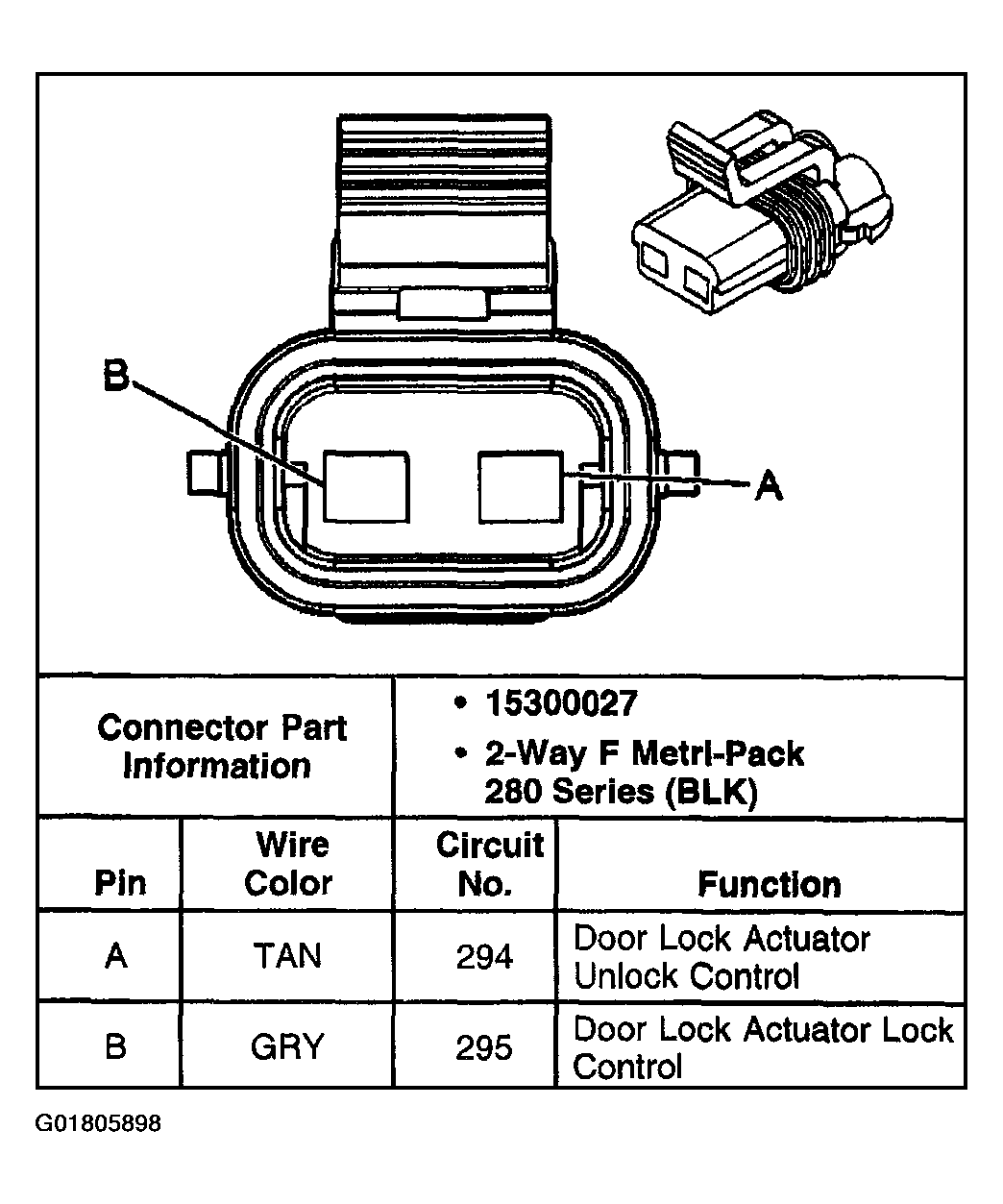

Fig 8: Door Lock Actuator RR C2

G01805898

Courtesy of GENERAL MOTORS CORP.

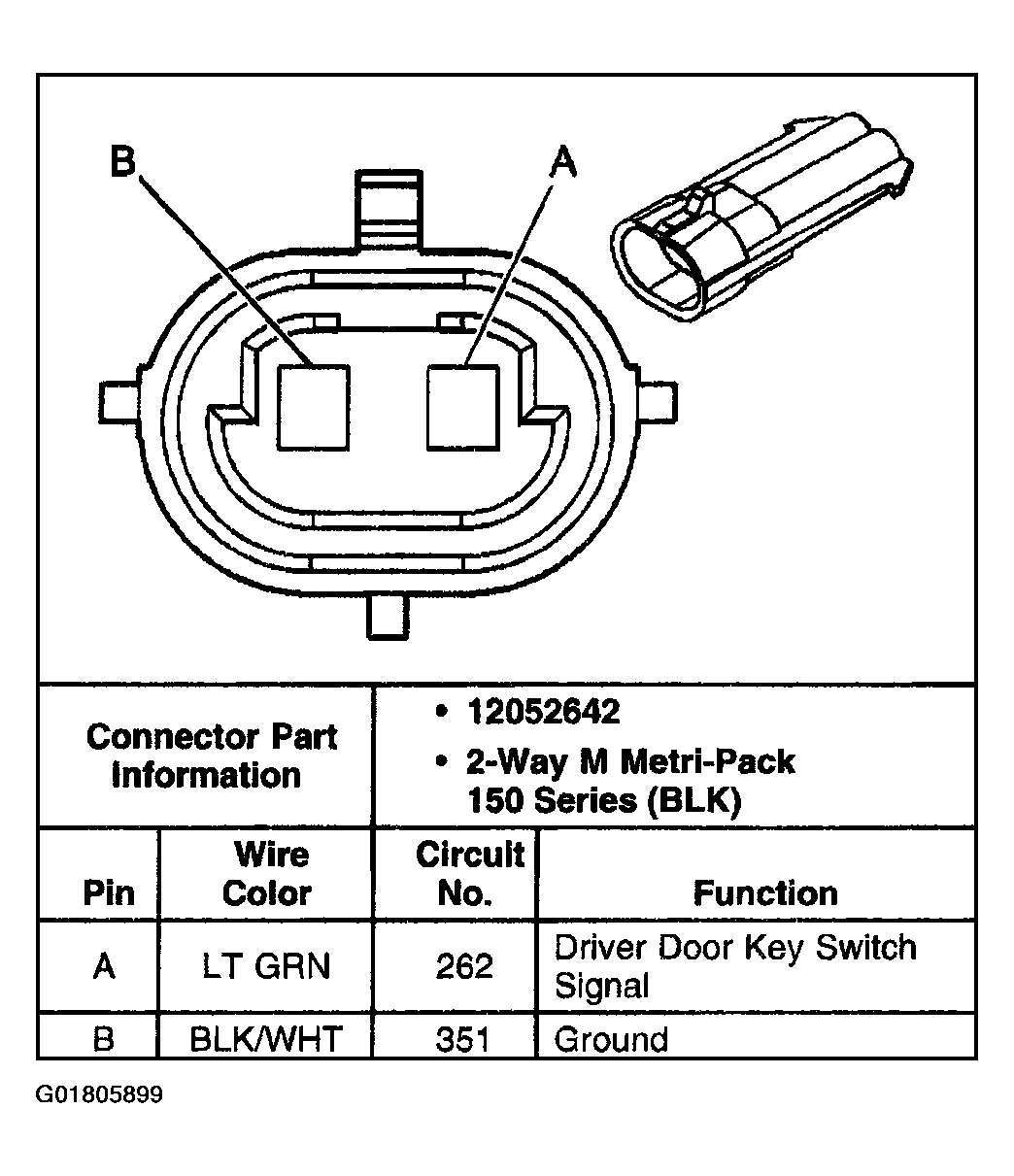

Fig 9: Door Lock Cylinder Switch - Driver

G01805899

Courtesy of GENERAL MOTORS CORP.

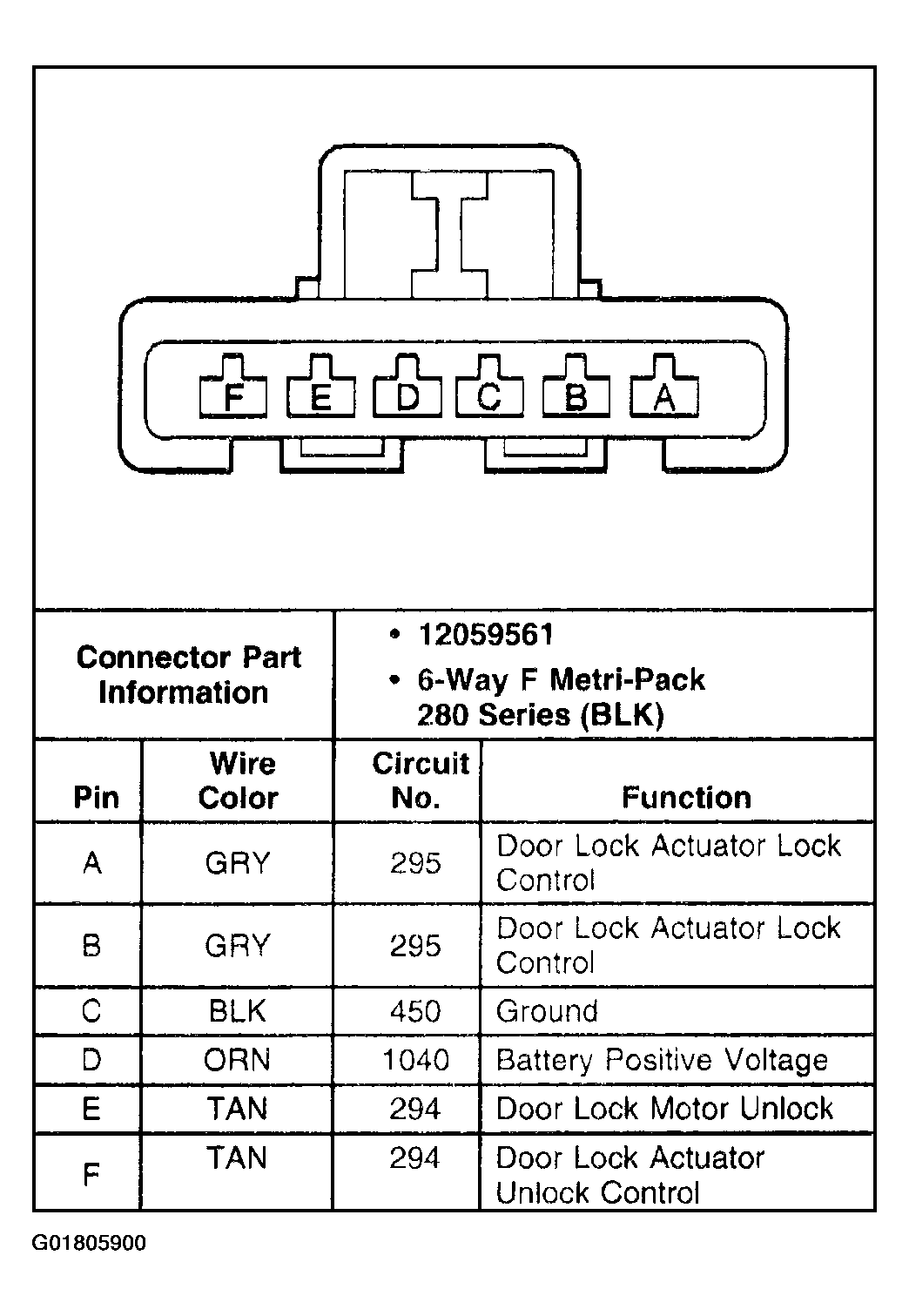

Fig 10: Door Lock Relay (w/B9Q)

G01805900

Courtesy of GENERAL MOTORS CORP.

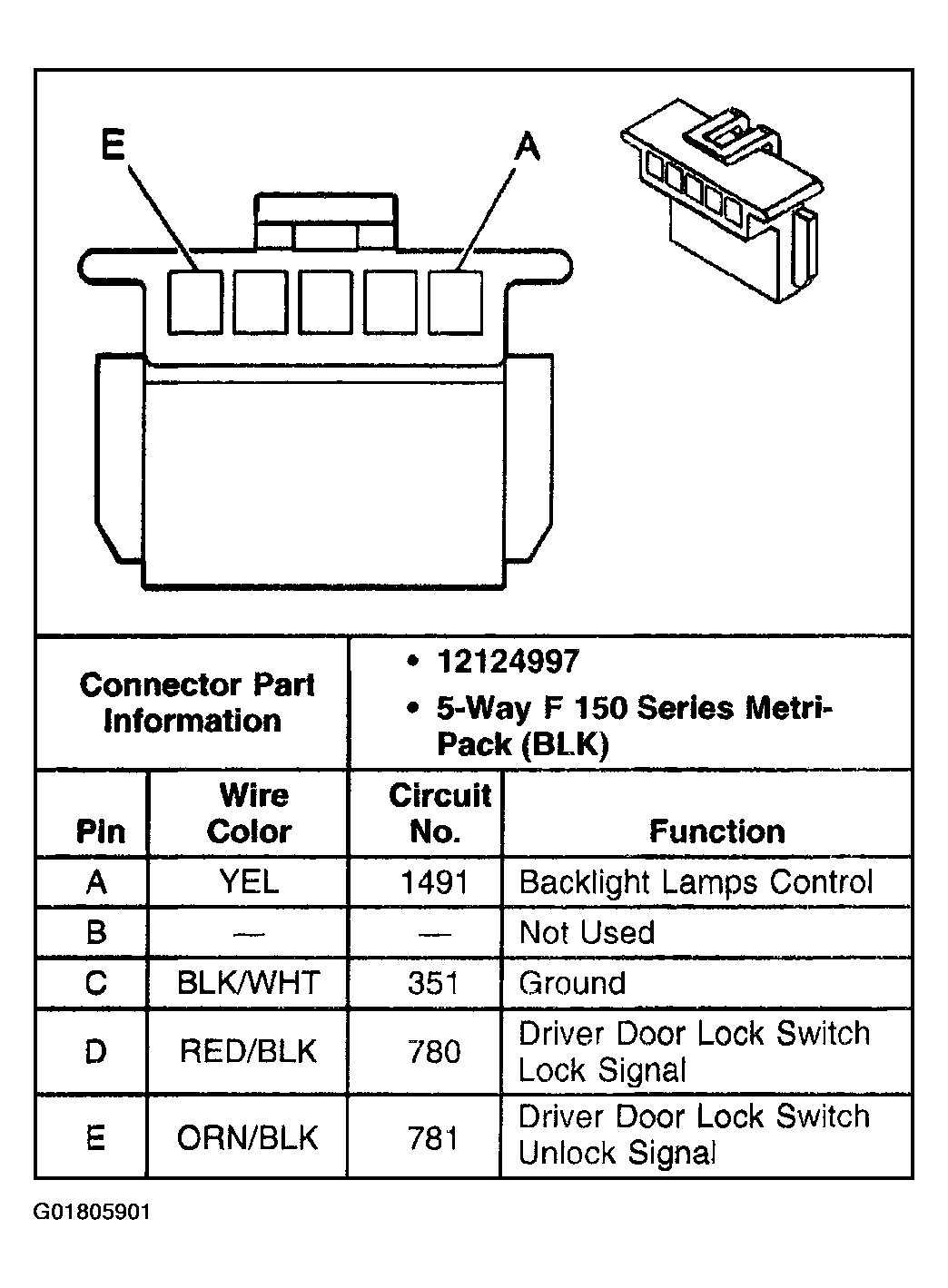

Fig 11: Door Lock Switch - Driver

G01805901

Courtesy of GENERAL MOTORS CORP.

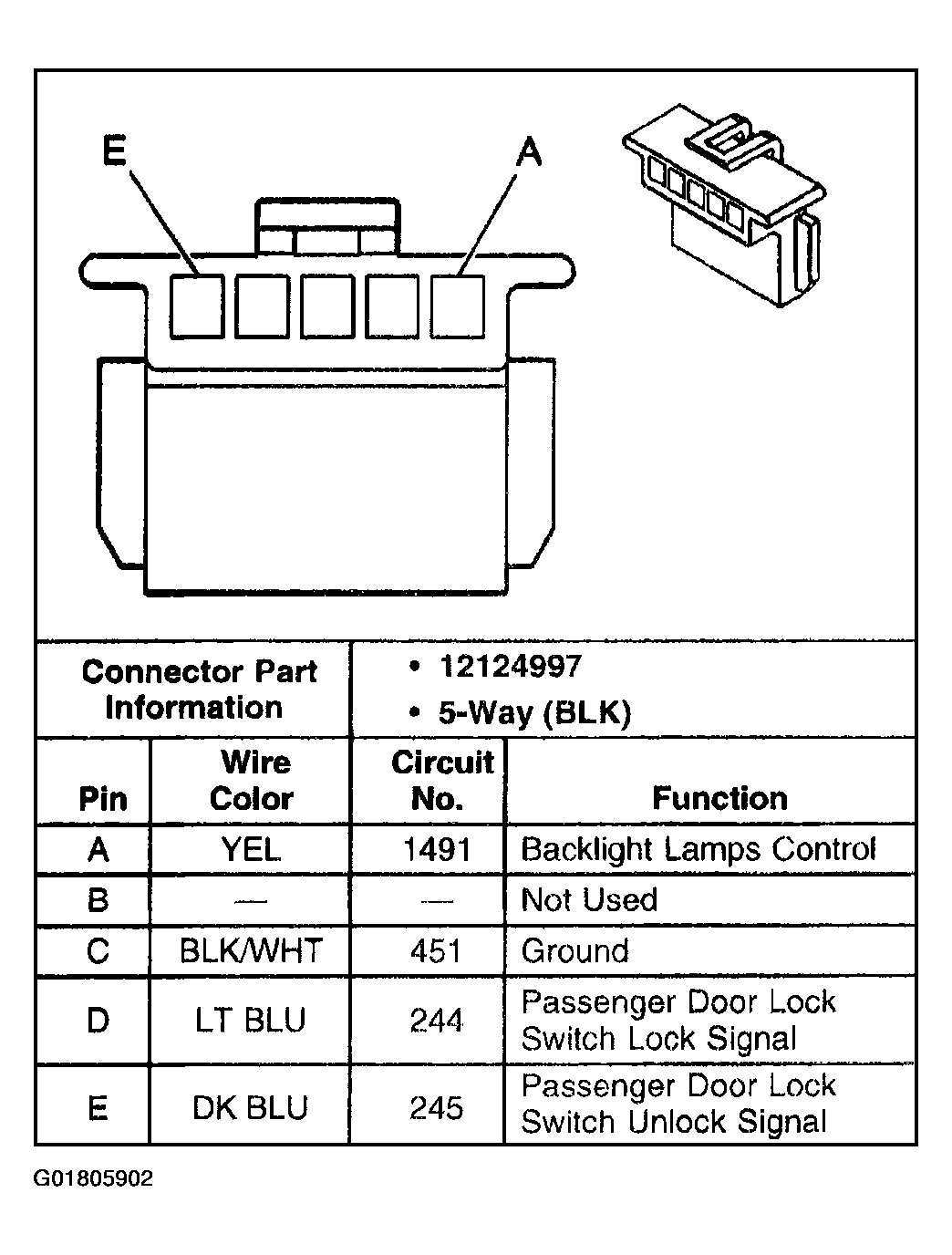

Fig 12: Door Lock Switch - Front Passenger

G01805902

Courtesy of GENERAL MOTORS CORP.

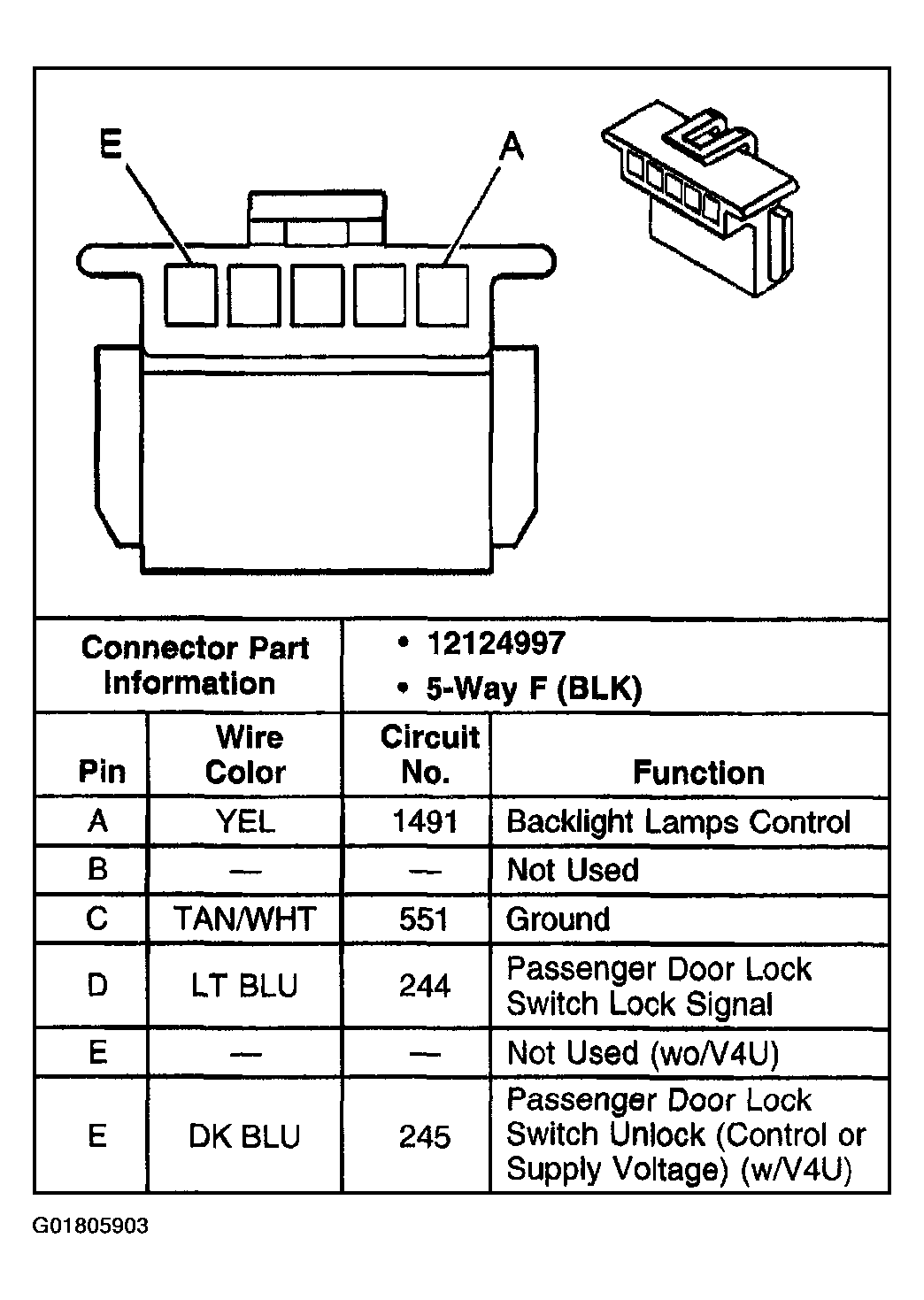

Fig 13: Door Lock Switch - LR

G01805903

Courtesy of GENERAL MOTORS CORP.

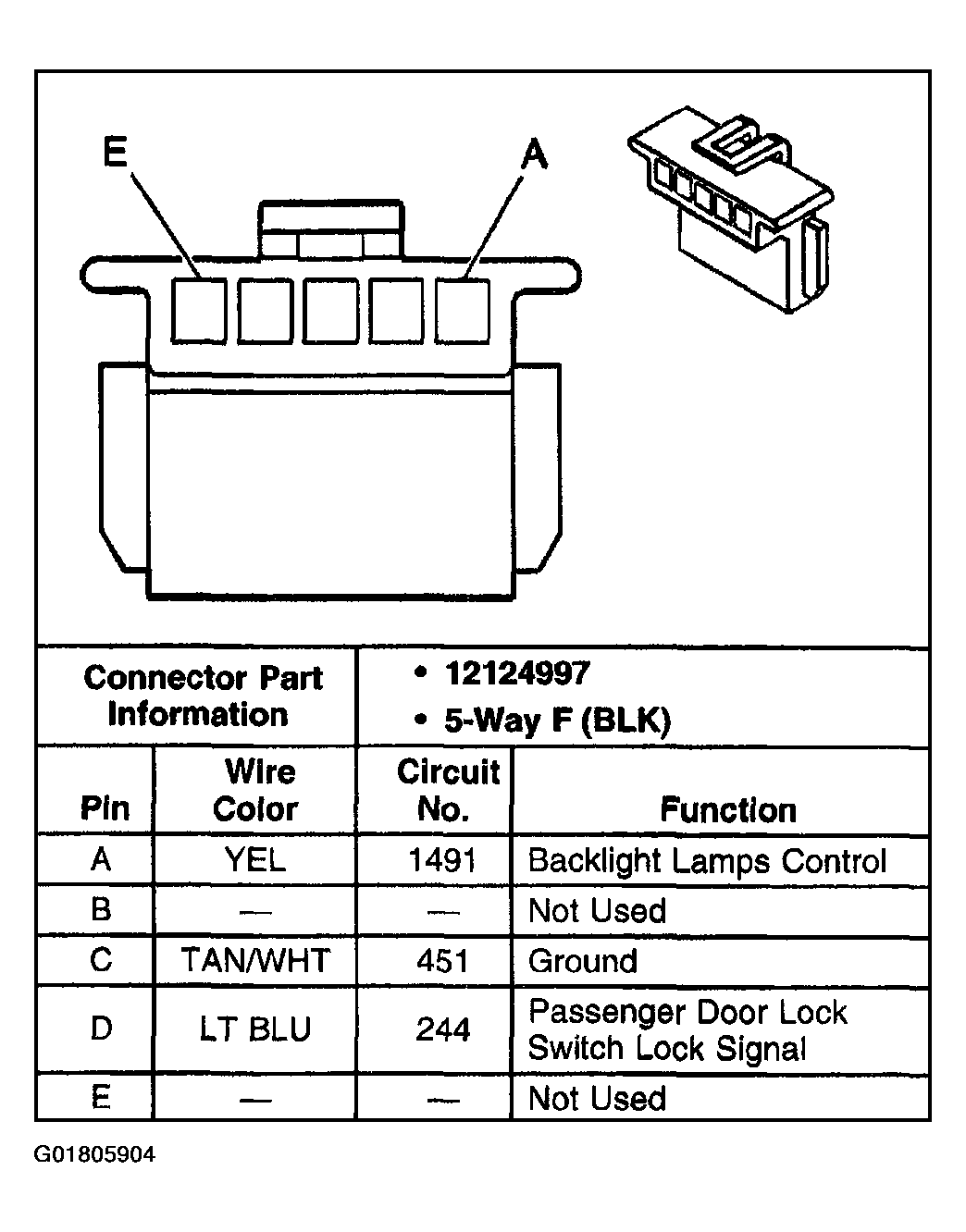

Fig 14: Door Lock Switch - RR

G01805904

Courtesy of GENERAL MOTORS CORP.

Fig 15: Driver Door Module (DDM) C1

G01805905

Courtesy of GENERAL MOTORS CORP.

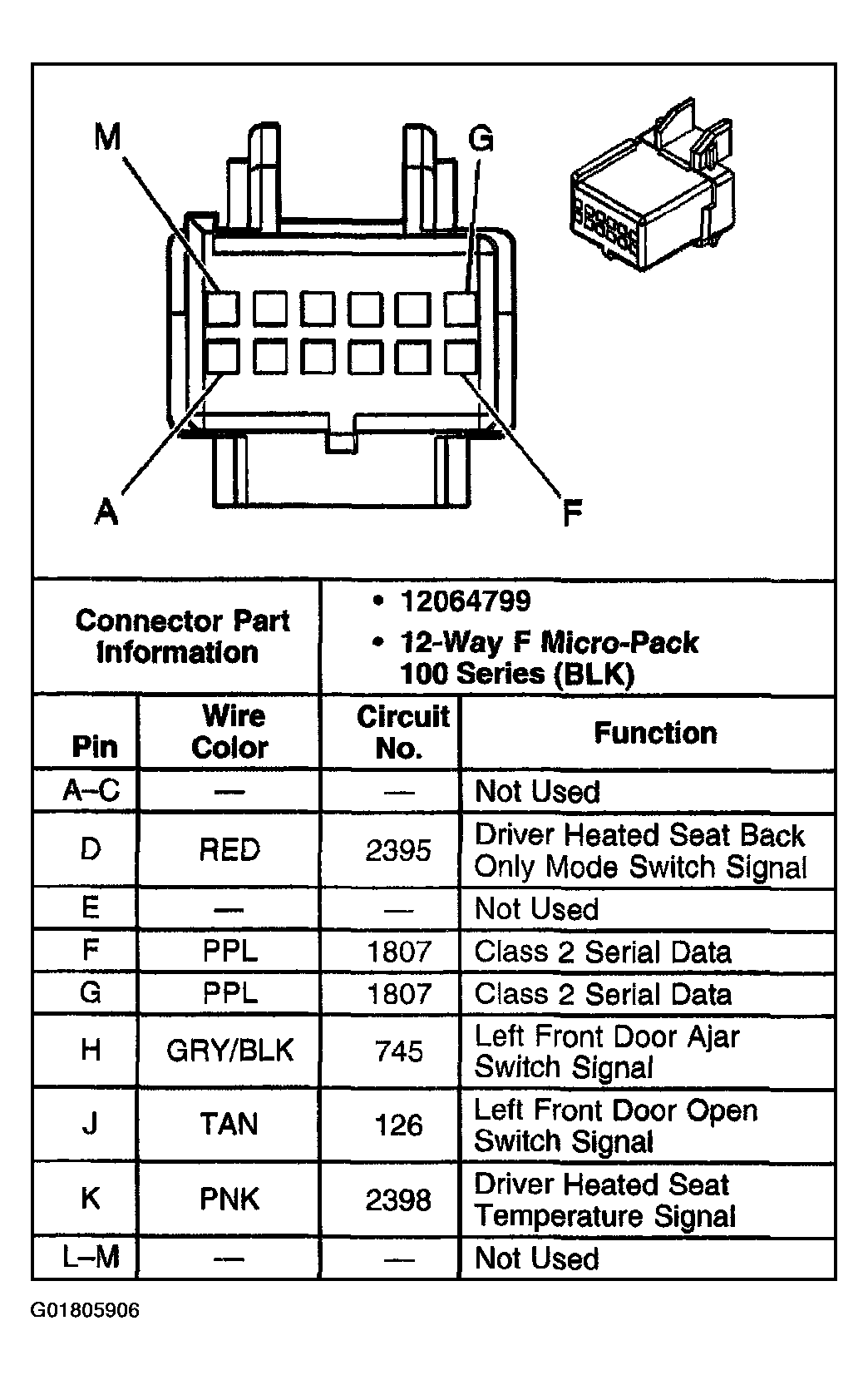

Fig 16: Driver Door Module (DDM) C2

G01805906

Courtesy of GENERAL MOTORS CORP.

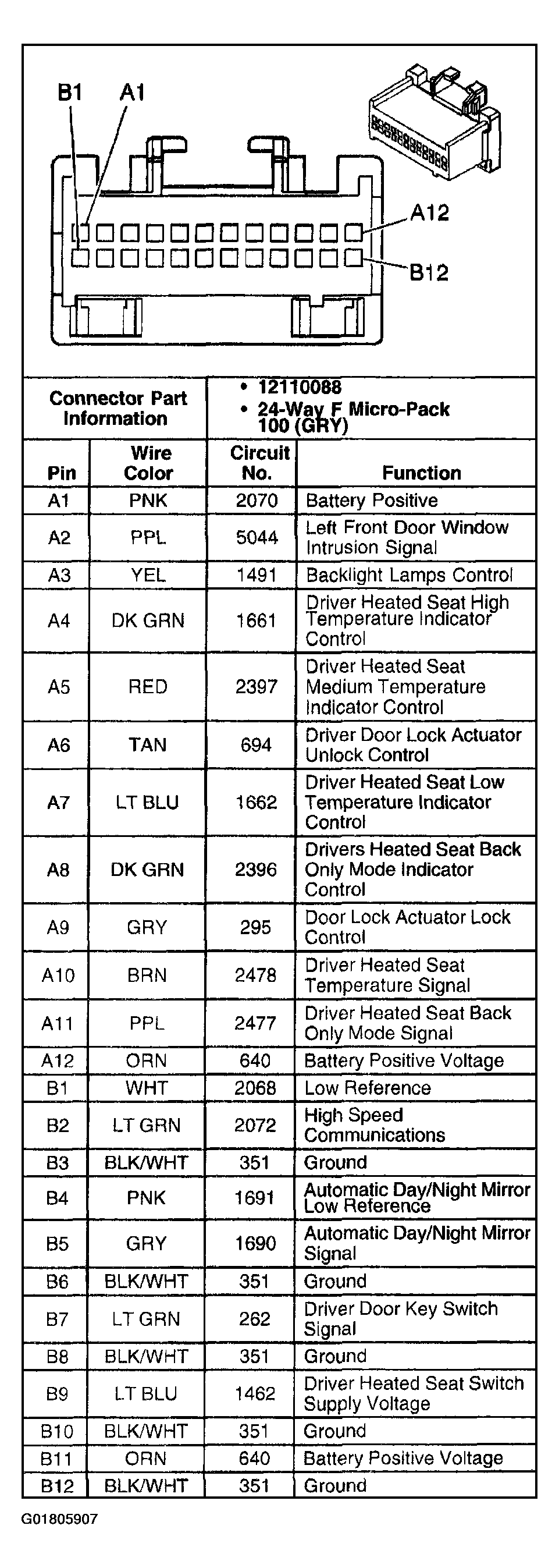

Fig 17: Driver Door Module (DDM) C3

G01805907

Courtesy of GENERAL MOTORS CORP.

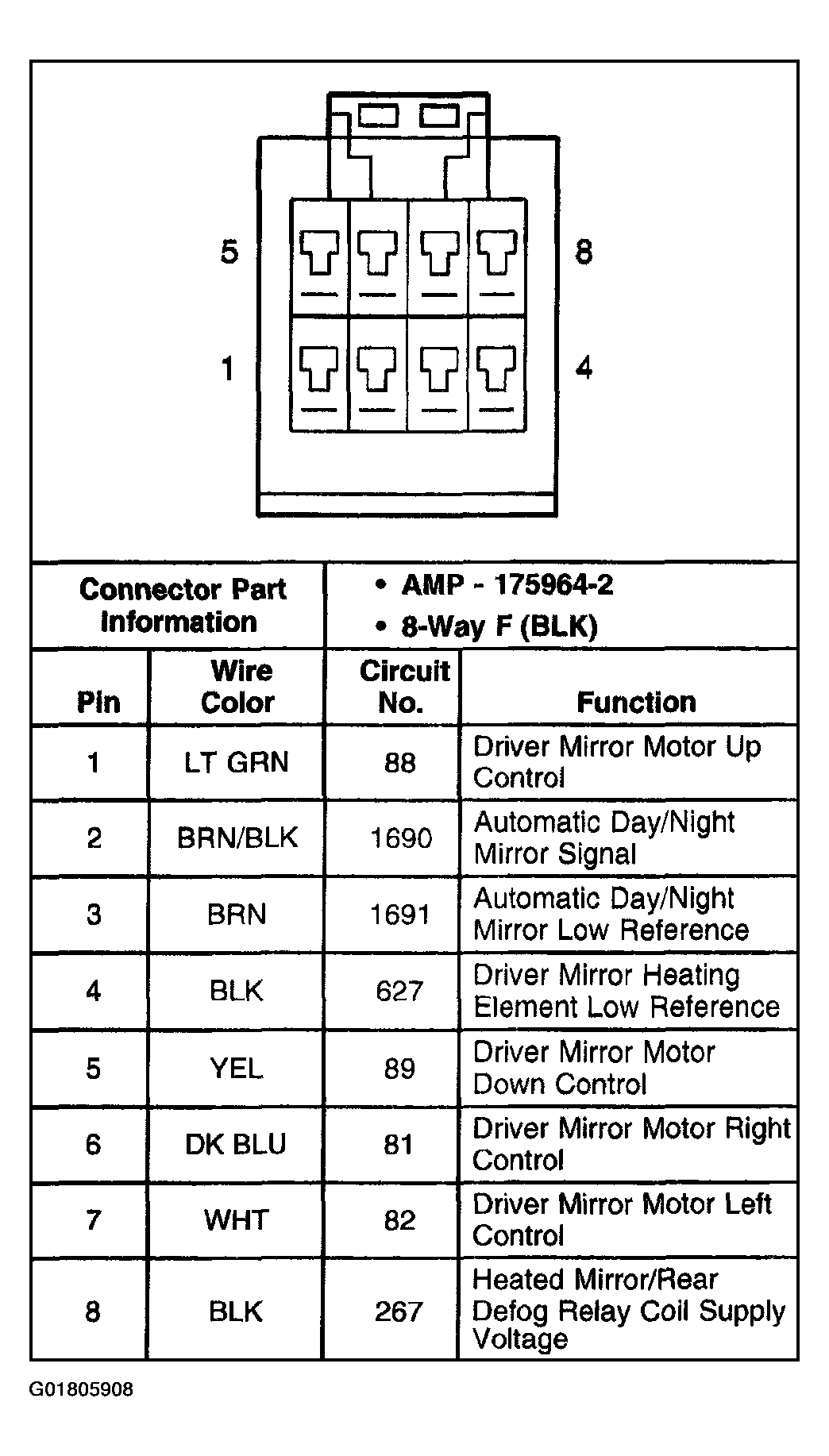

Fig 18: Driver Door Module (DDM) C4

G01805908

Courtesy of GENERAL MOTORS CORP.

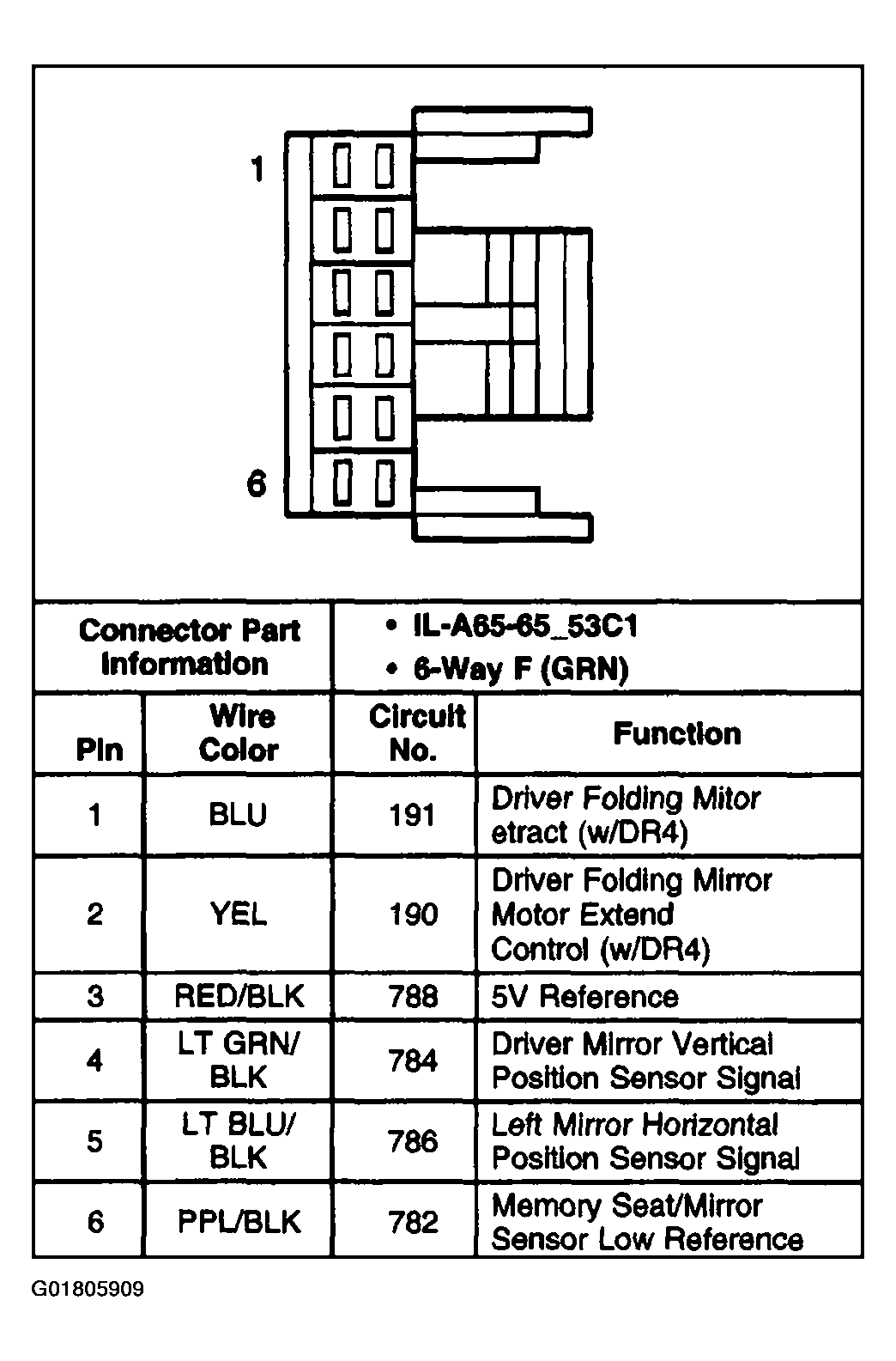

Fig 19: Driver Door Module (DDM) C5

G01805909

Courtesy of GENERAL MOTORS CORP.

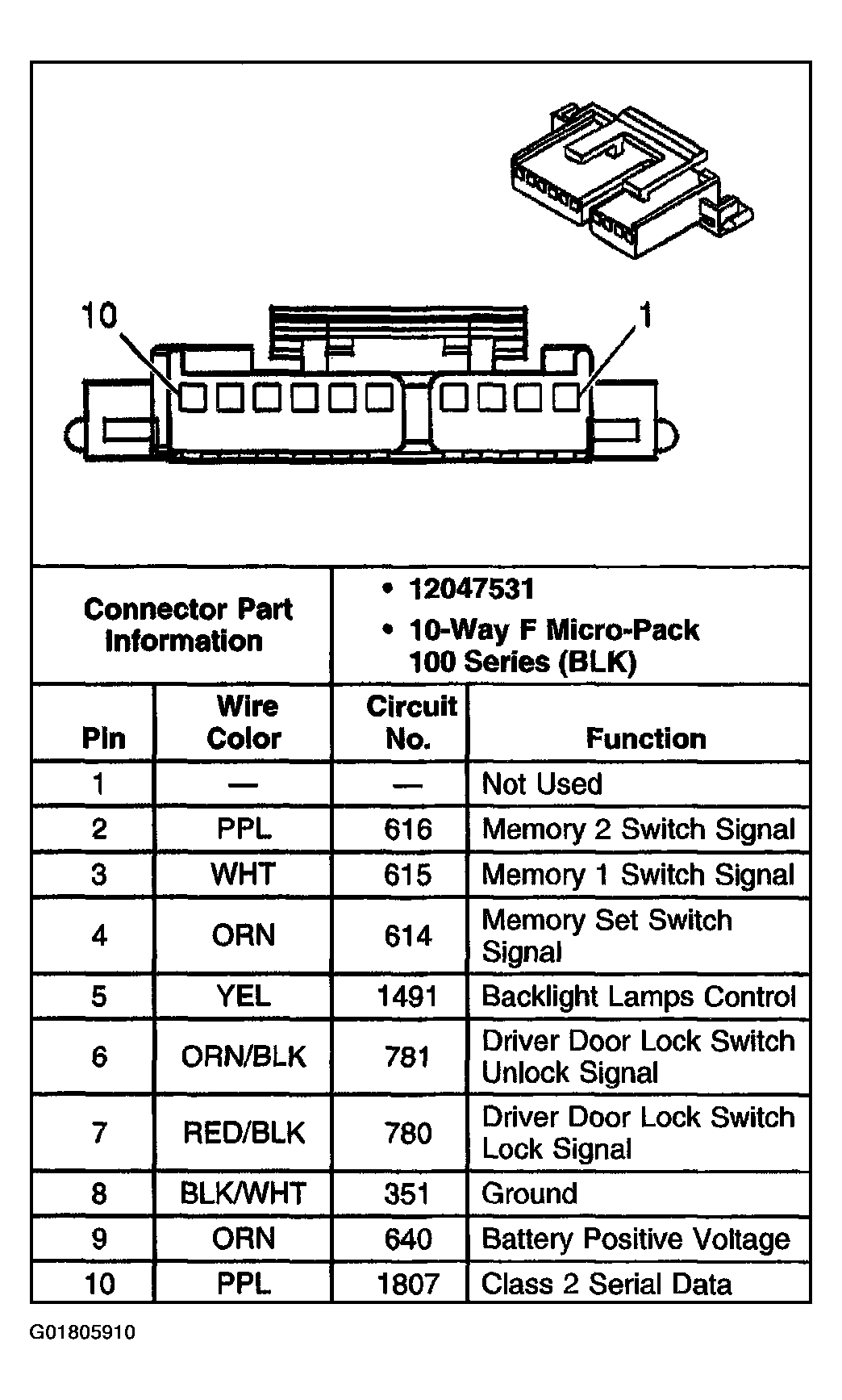

Fig 20: Driver Door Switch Assembly (DDSA)

G01805910

Courtesy of GENERAL MOTORS CORP.

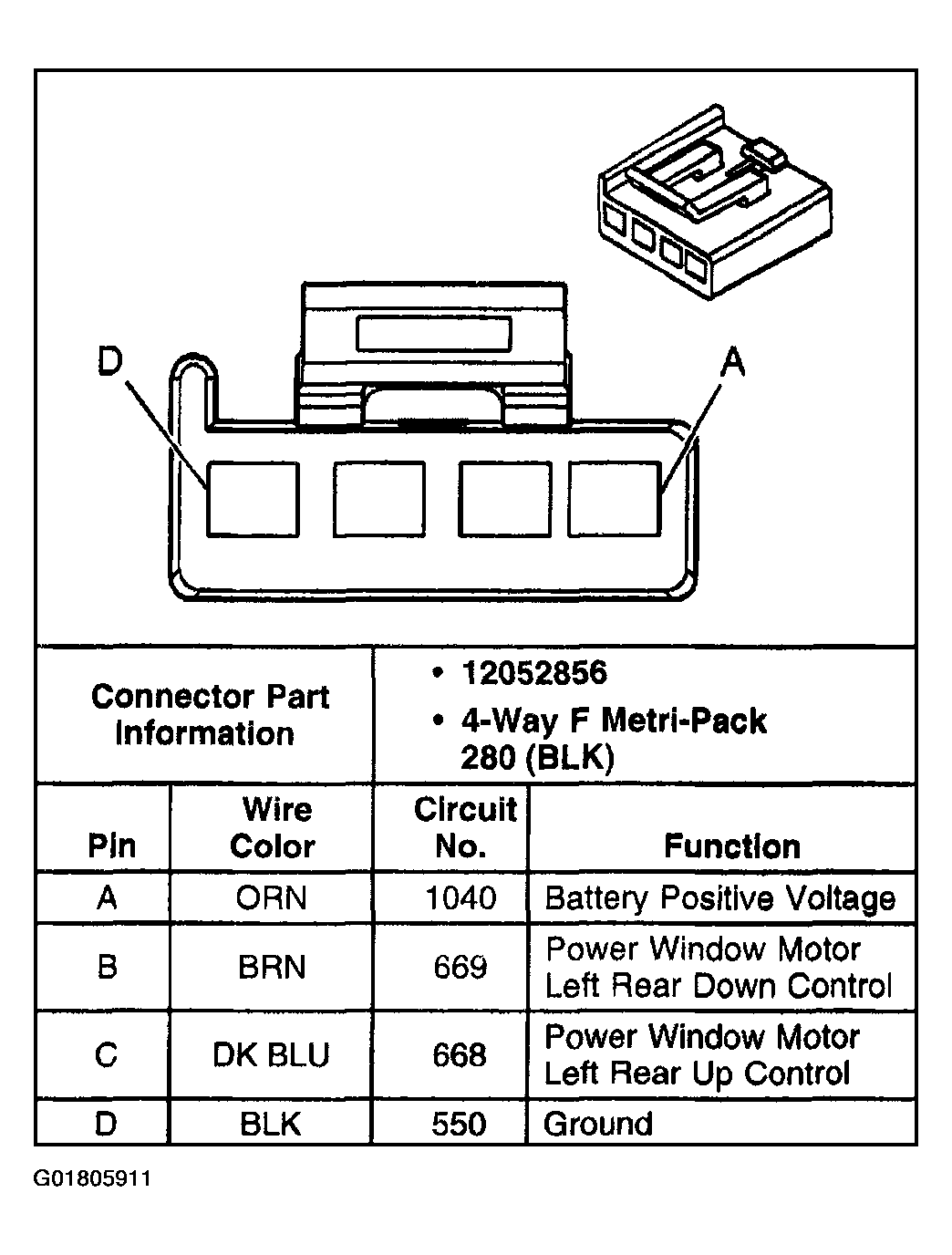

Fig 21: Left Rear Door Module (LRDM) C1

G01805911

Courtesy of GENERAL MOTORS CORP.

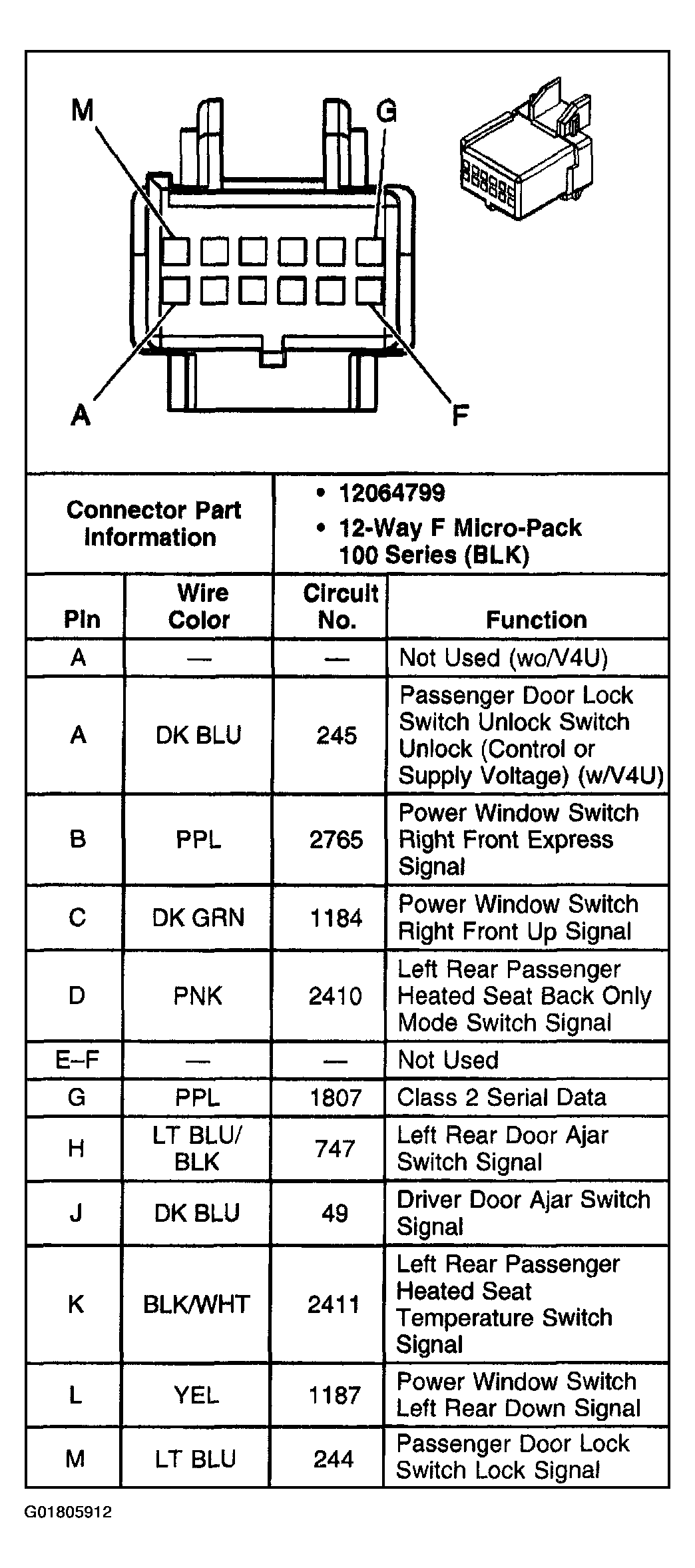

Fig 22: Left Rear Door Module (LRDM) C2

G01805912

Courtesy of GENERAL MOTORS CORP.

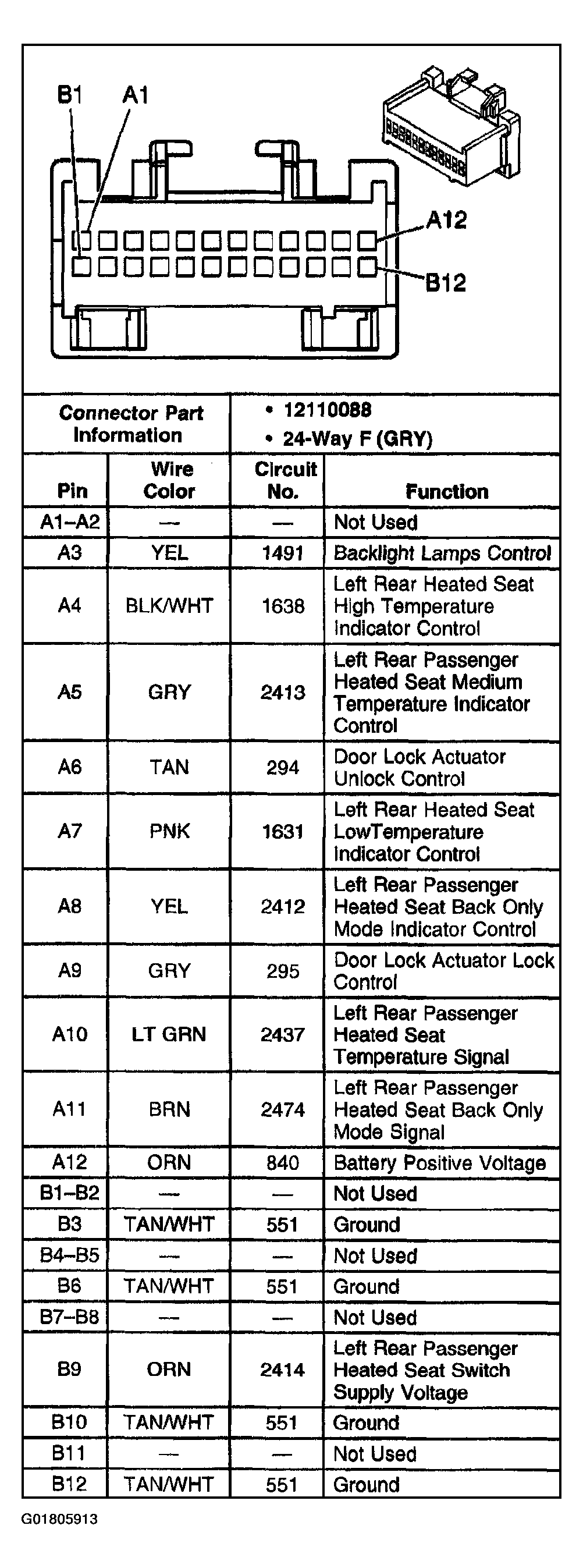

Fig 23: Left Rear Door Module (LRDM) C3

G01805913

Courtesy of GENERAL MOTORS CORP.

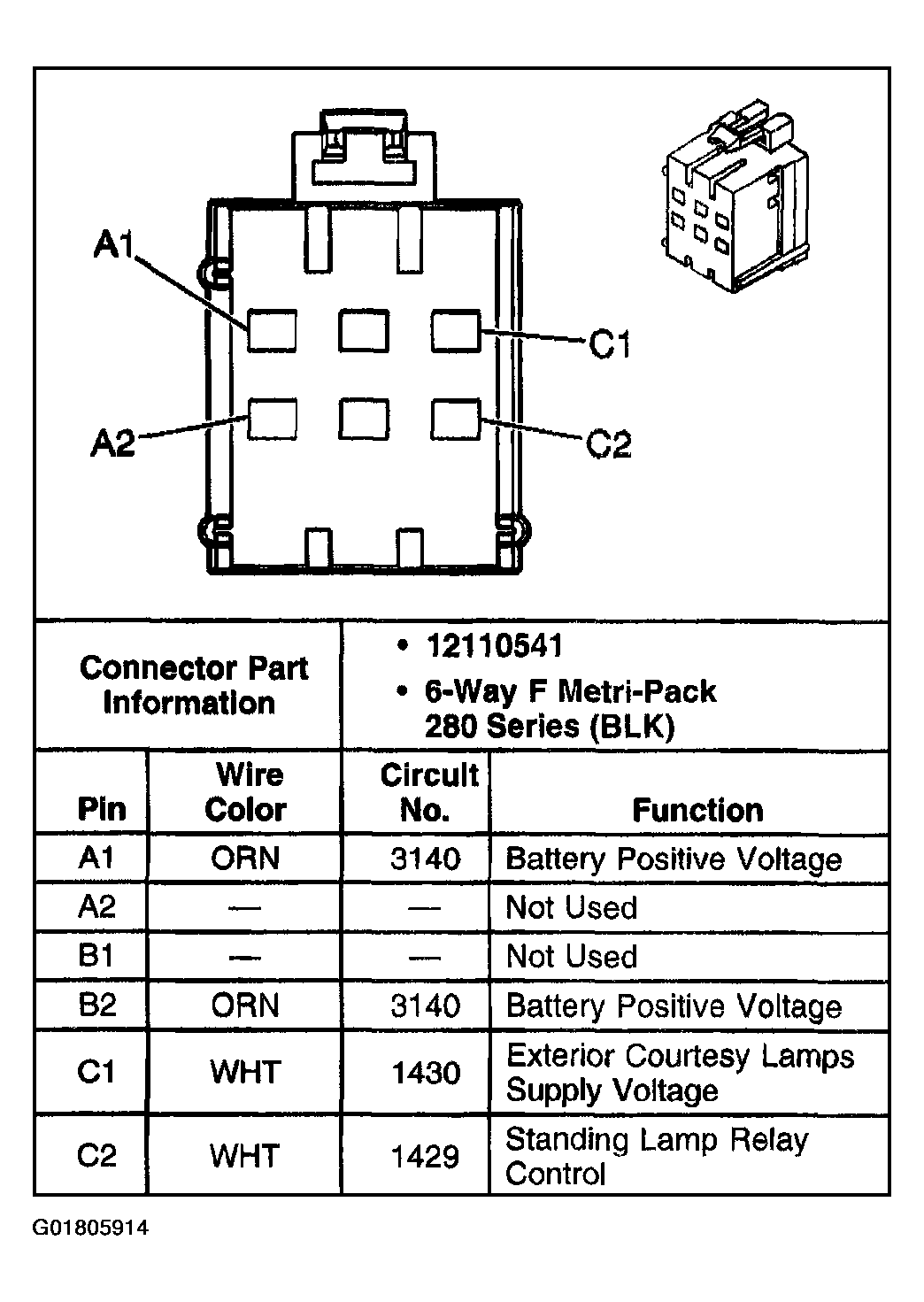

Fig 24: Park Position Door Relay (w/V4U)

G01805914

Courtesy of GENERAL MOTORS CORP.

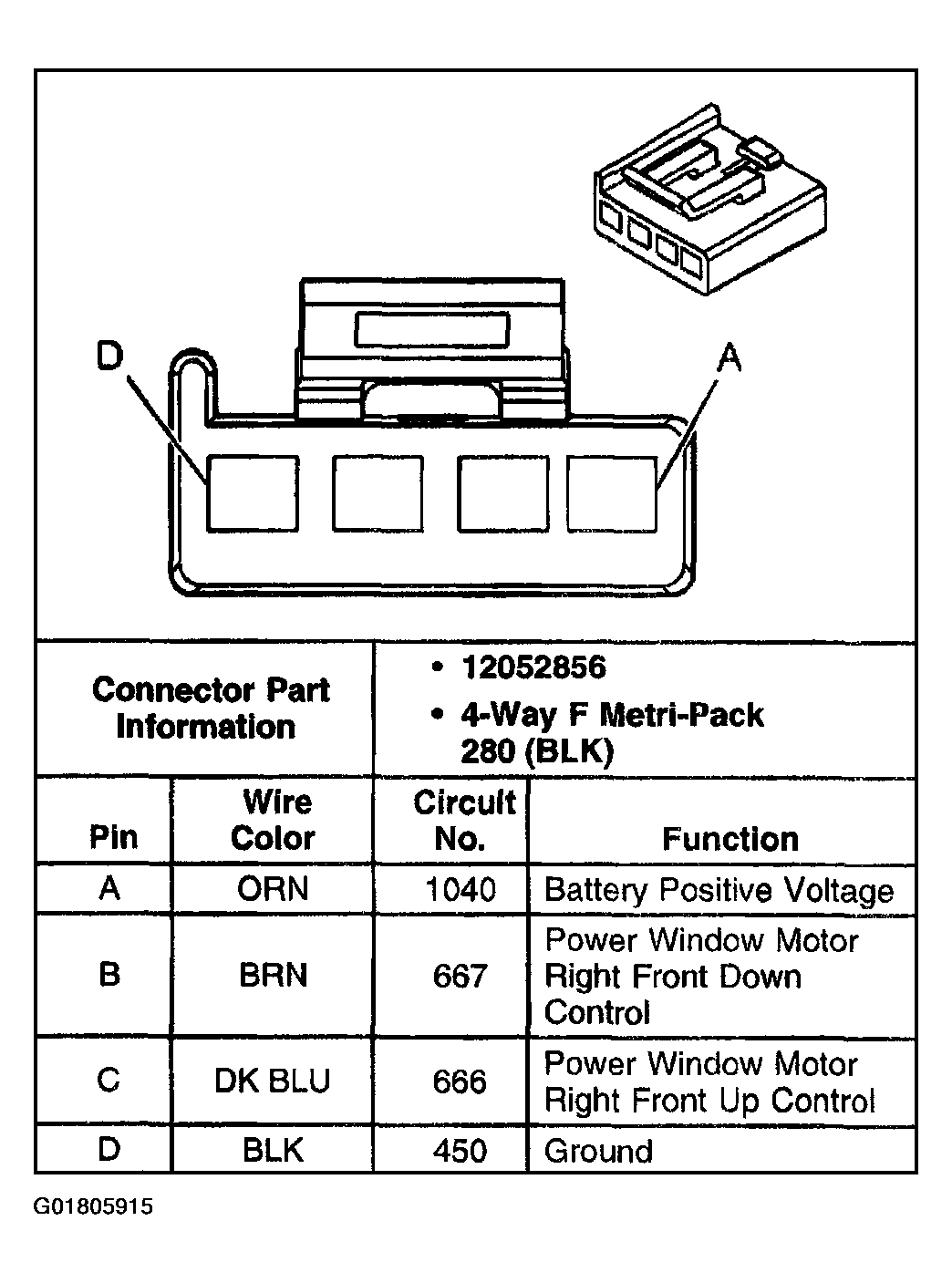

Fig 25: Passenger Front Door Module (PFDM) C1

G01805915

Courtesy of GENERAL MOTORS CORP.

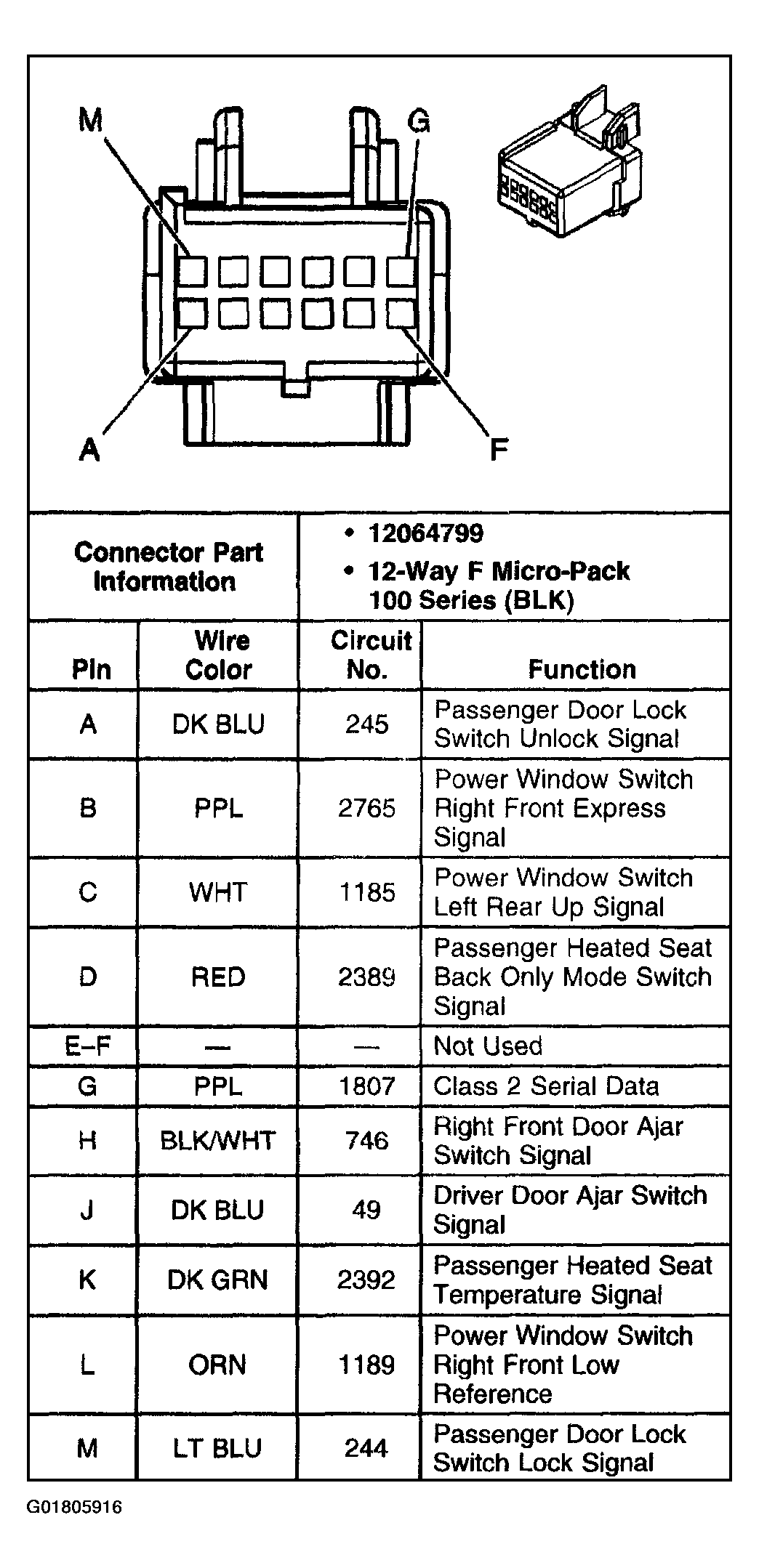

Fig 26: Passenger Front Door Module (PFDM) C2

G01805916

Courtesy of GENERAL MOTORS CORP.

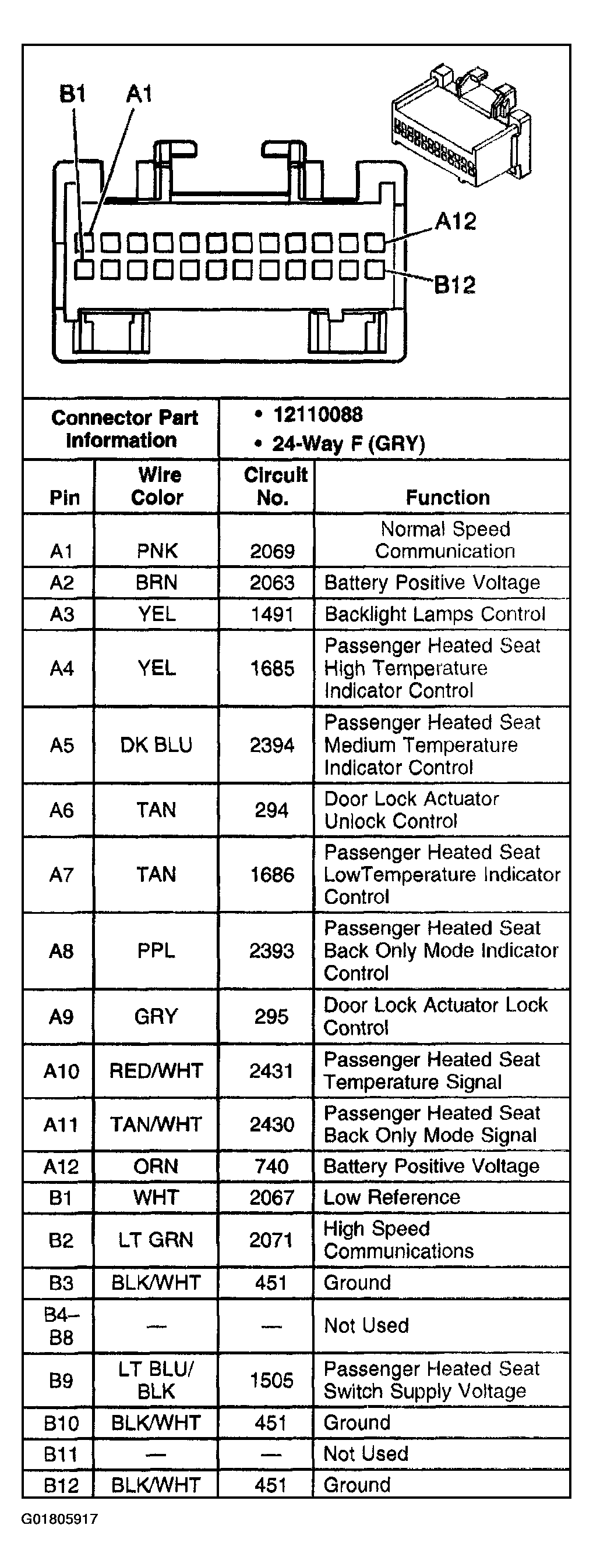

Fig 27: Passenger Front Door Module (PFDM) C3

G01805917

Courtesy of GENERAL MOTORS CORP.

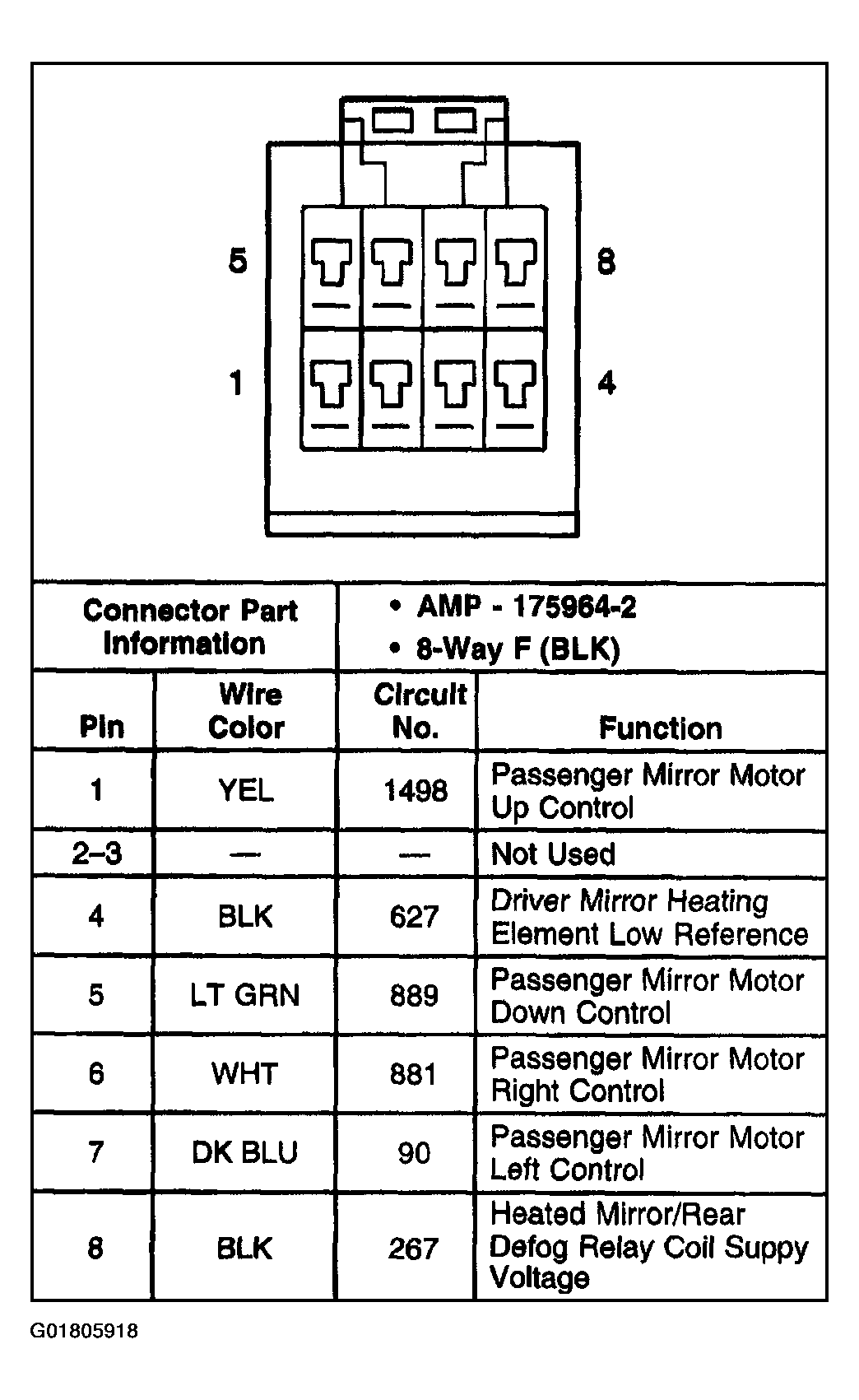

Fig 28: Passenger Front Door Module (PFDM) C4

G01805918

Courtesy of GENERAL MOTORS CORP.

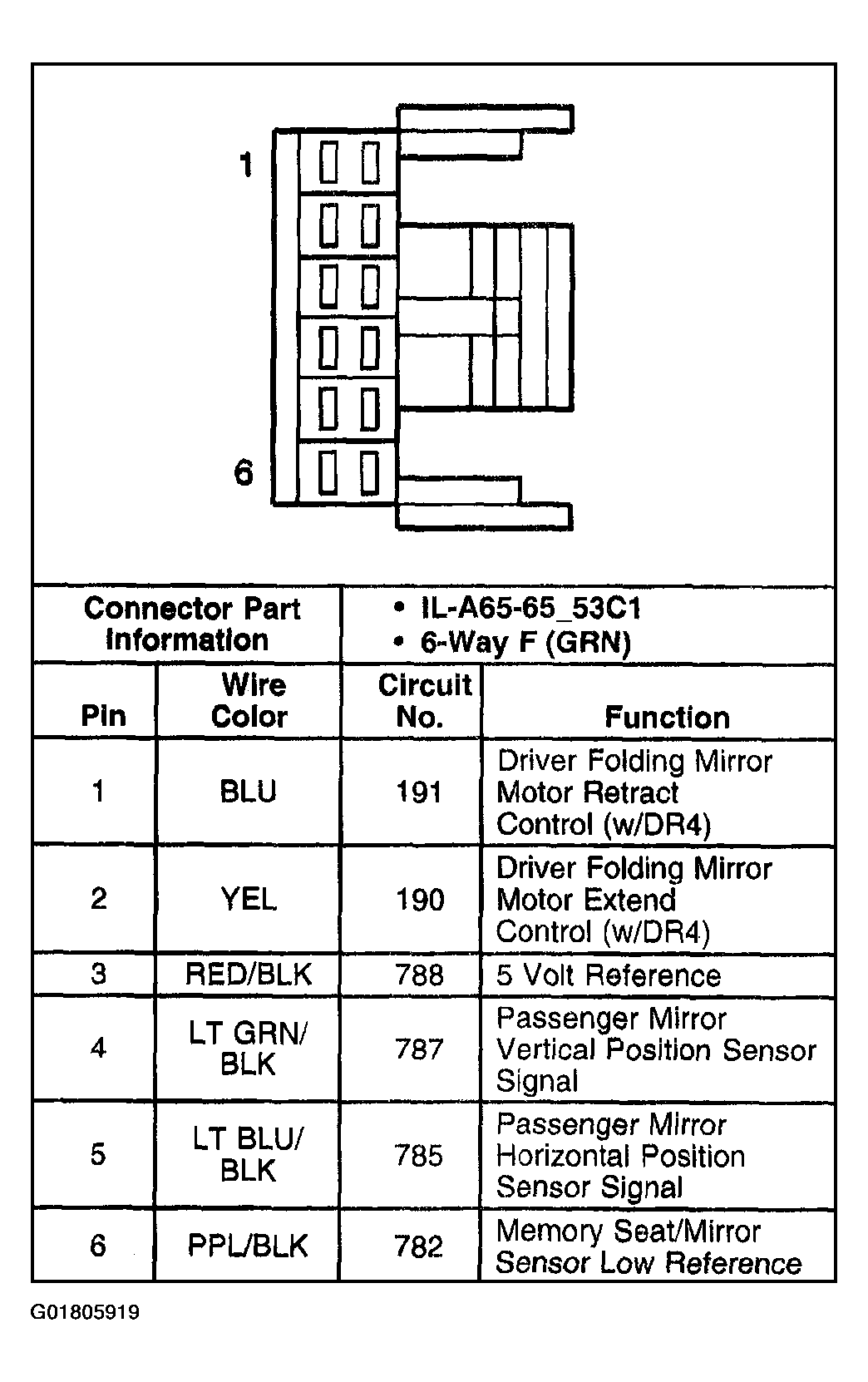

Fig 29: Passenger Front Door Module (PFDM) C5

G01805919

Courtesy of GENERAL MOTORS CORP.

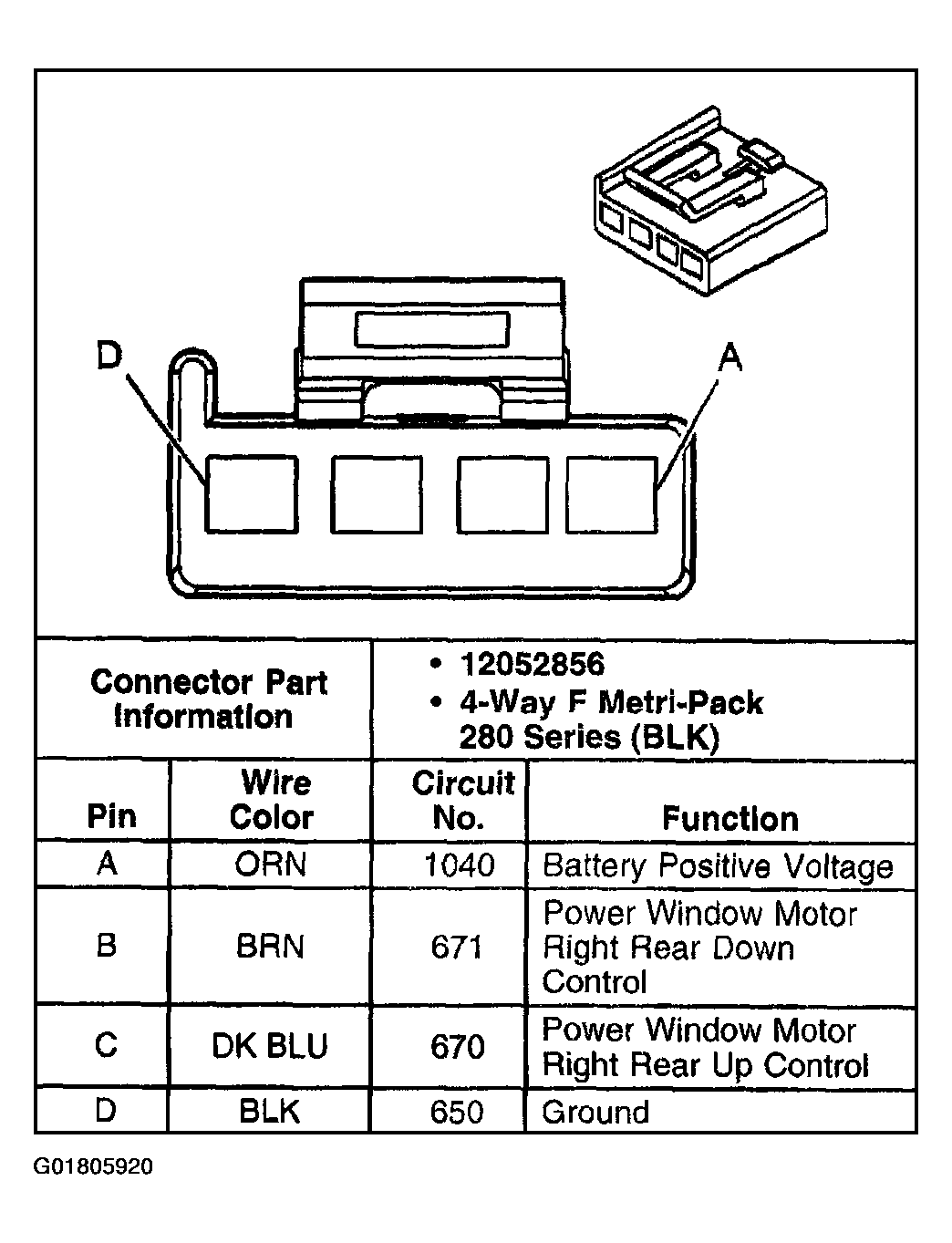

Fig 30: Right Rear Door Module (RRDM) C1

G01805920

Courtesy of GENERAL MOTORS CORP.

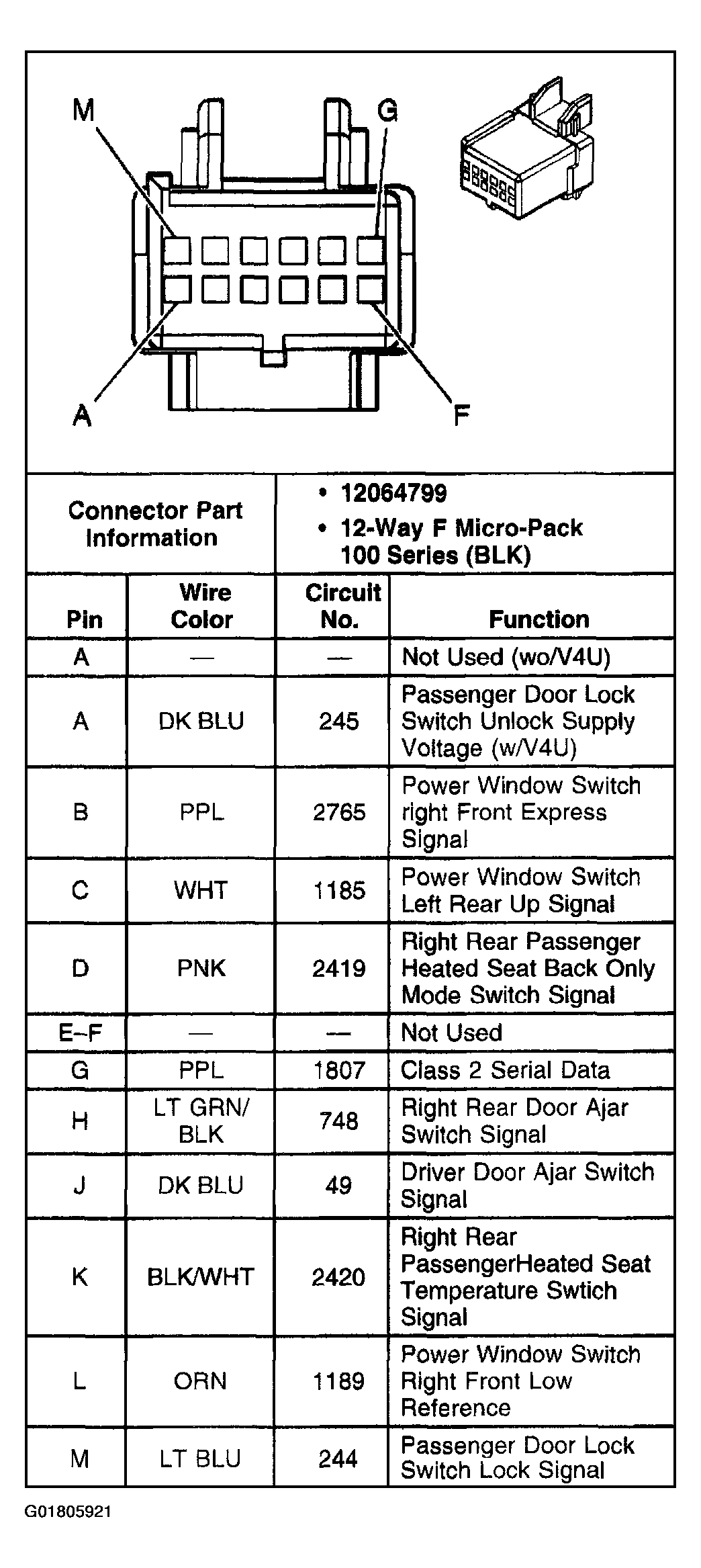

Fig 31: Right Rear Door Module (RRDM) C2

G01805921

Courtesy of GENERAL MOTORS CORP.

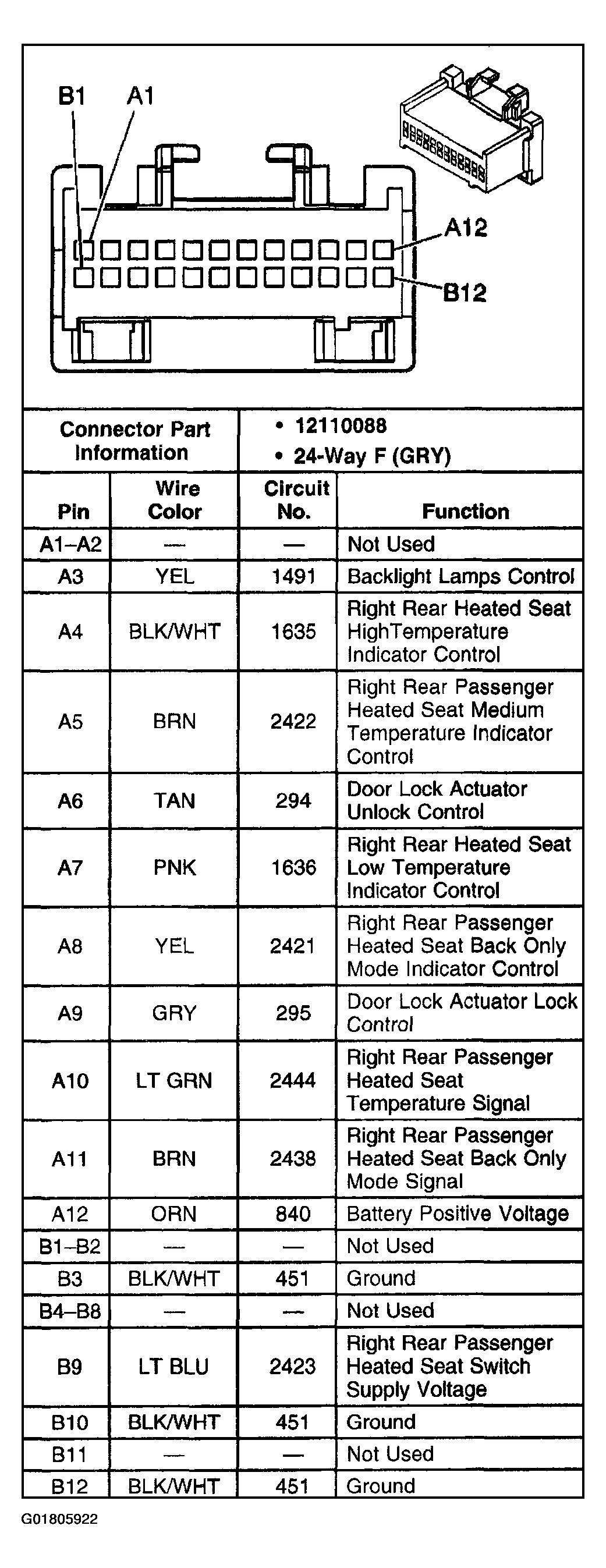

Fig 32: Right Rear Door Module (RRDM) C3

G01805922

Courtesy of GENERAL MOTORS CORP.

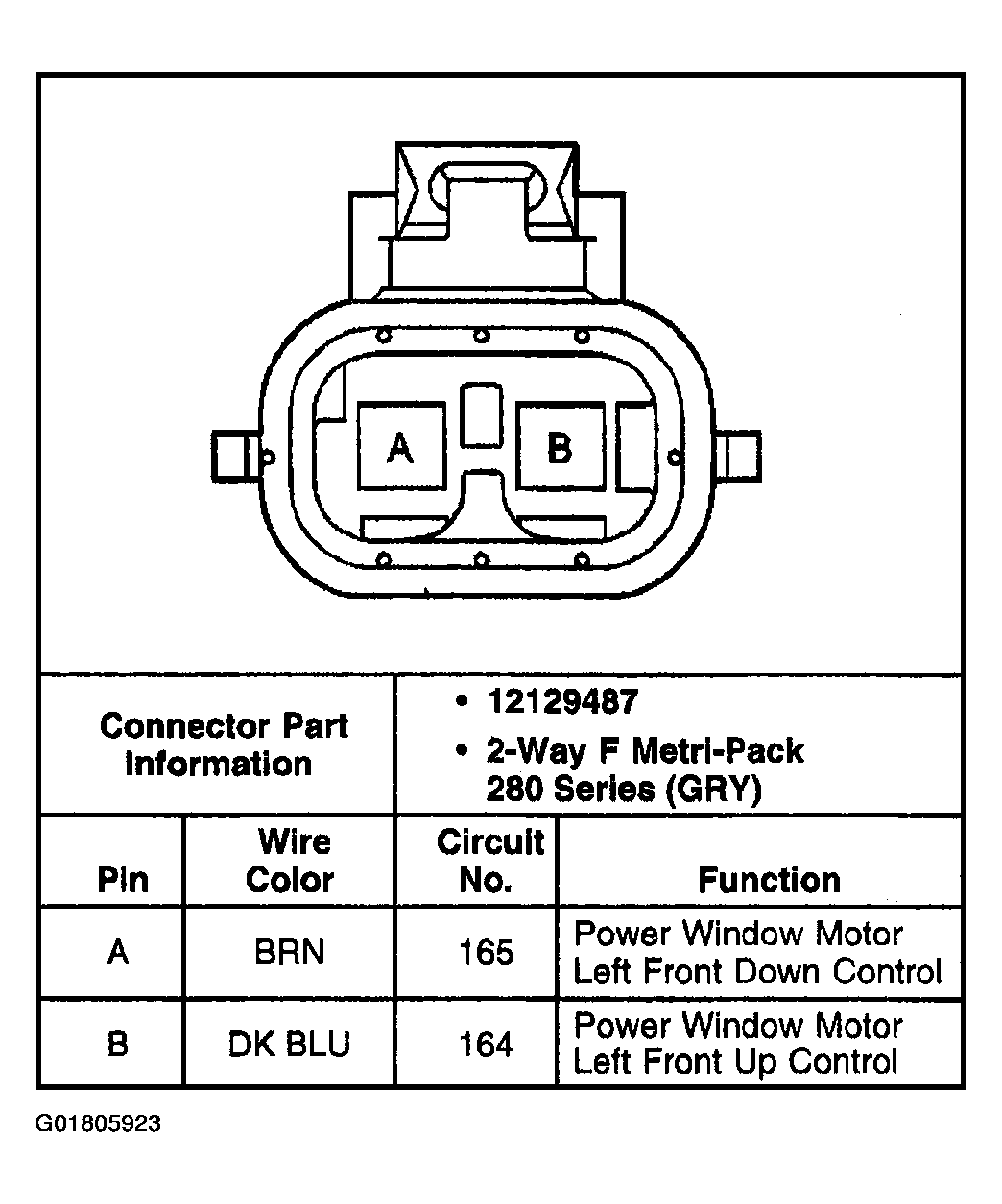

Fig 33: Window Motor - Driver

G01805923

Courtesy of GENERAL MOTORS CORP.

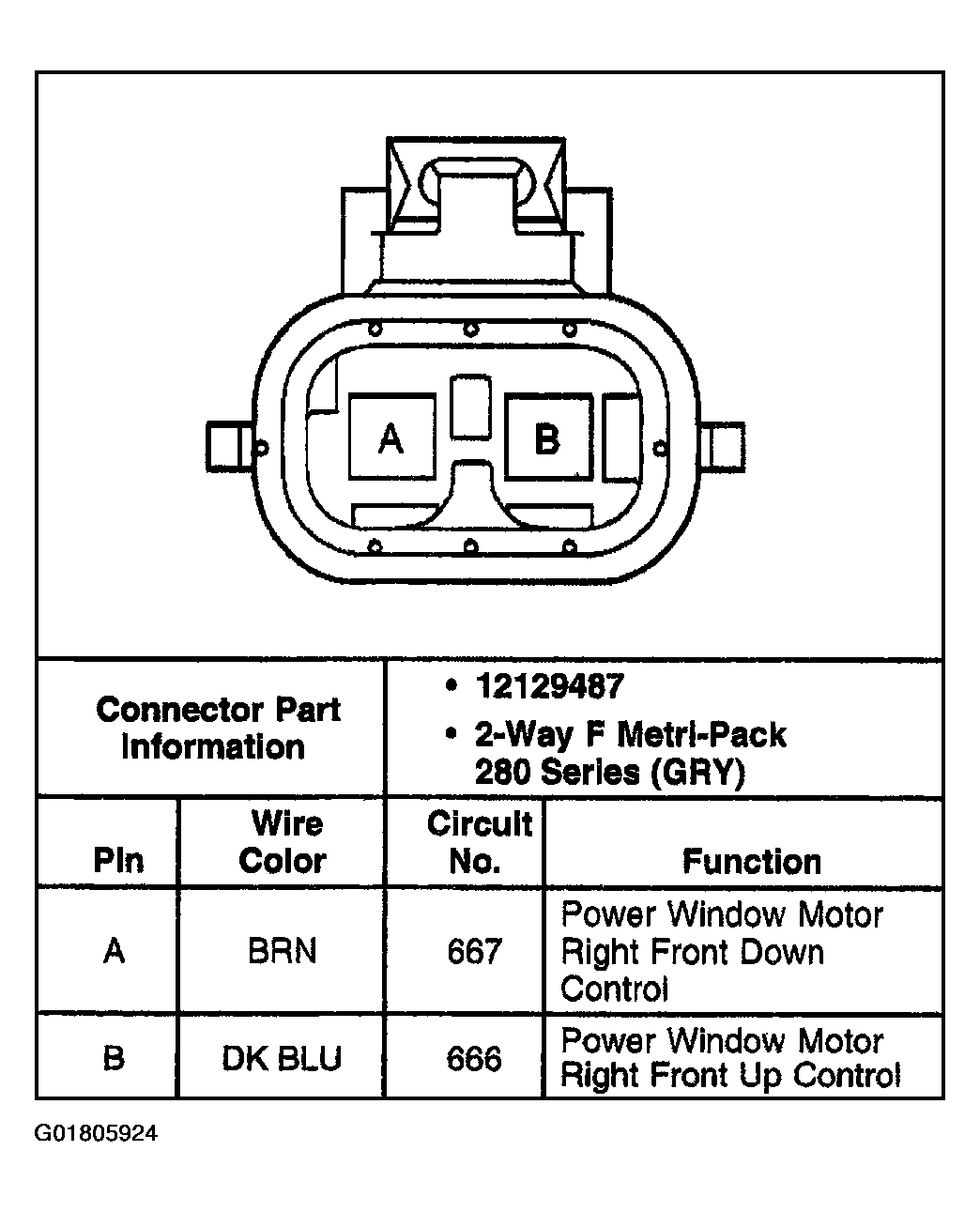

Fig 34: Window Motor - Front Passenger

G01805924

Courtesy of GENERAL MOTORS CORP.

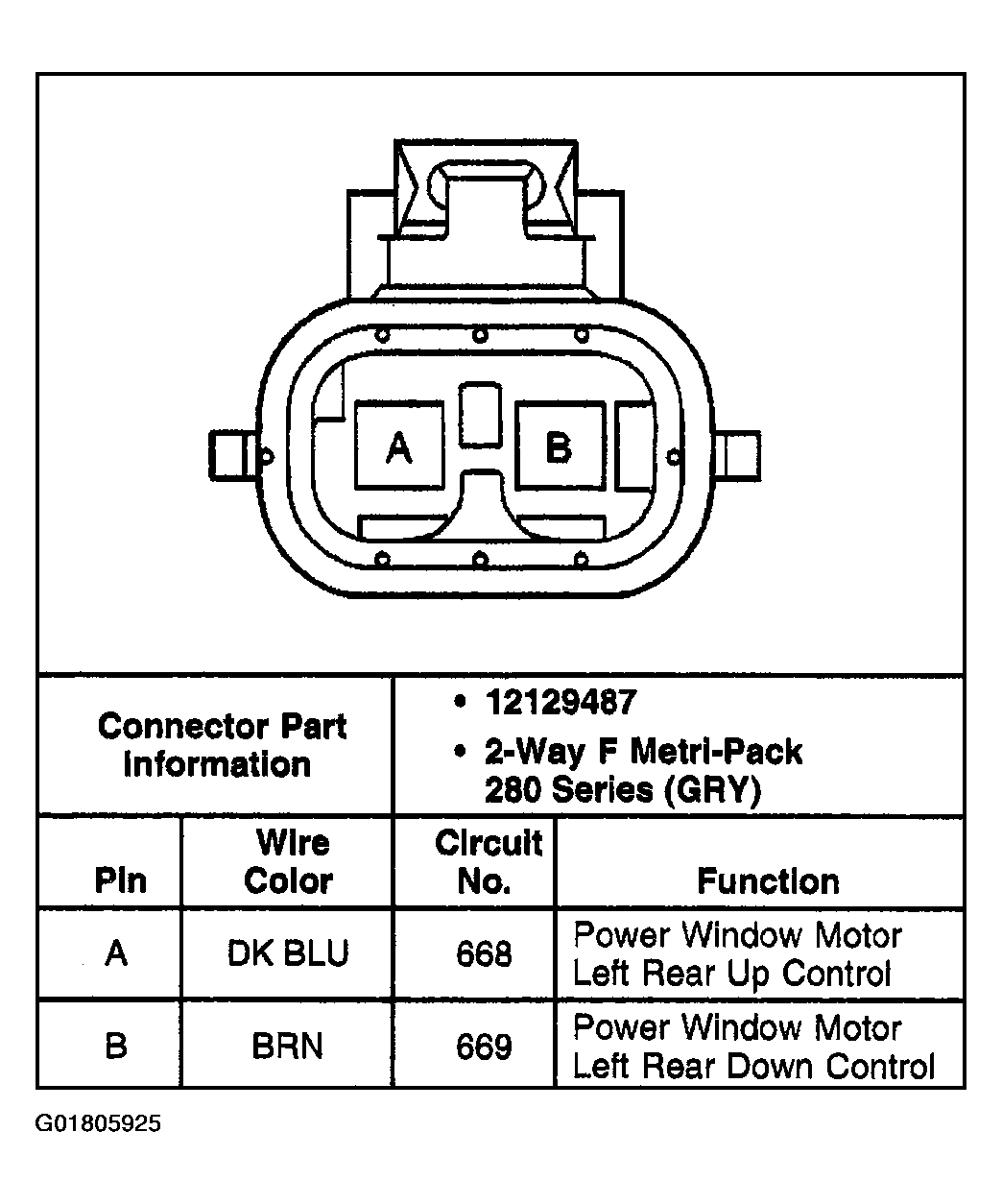

Fig 35: Window Motor - LR

G01805925

Courtesy of GENERAL MOTORS CORP.

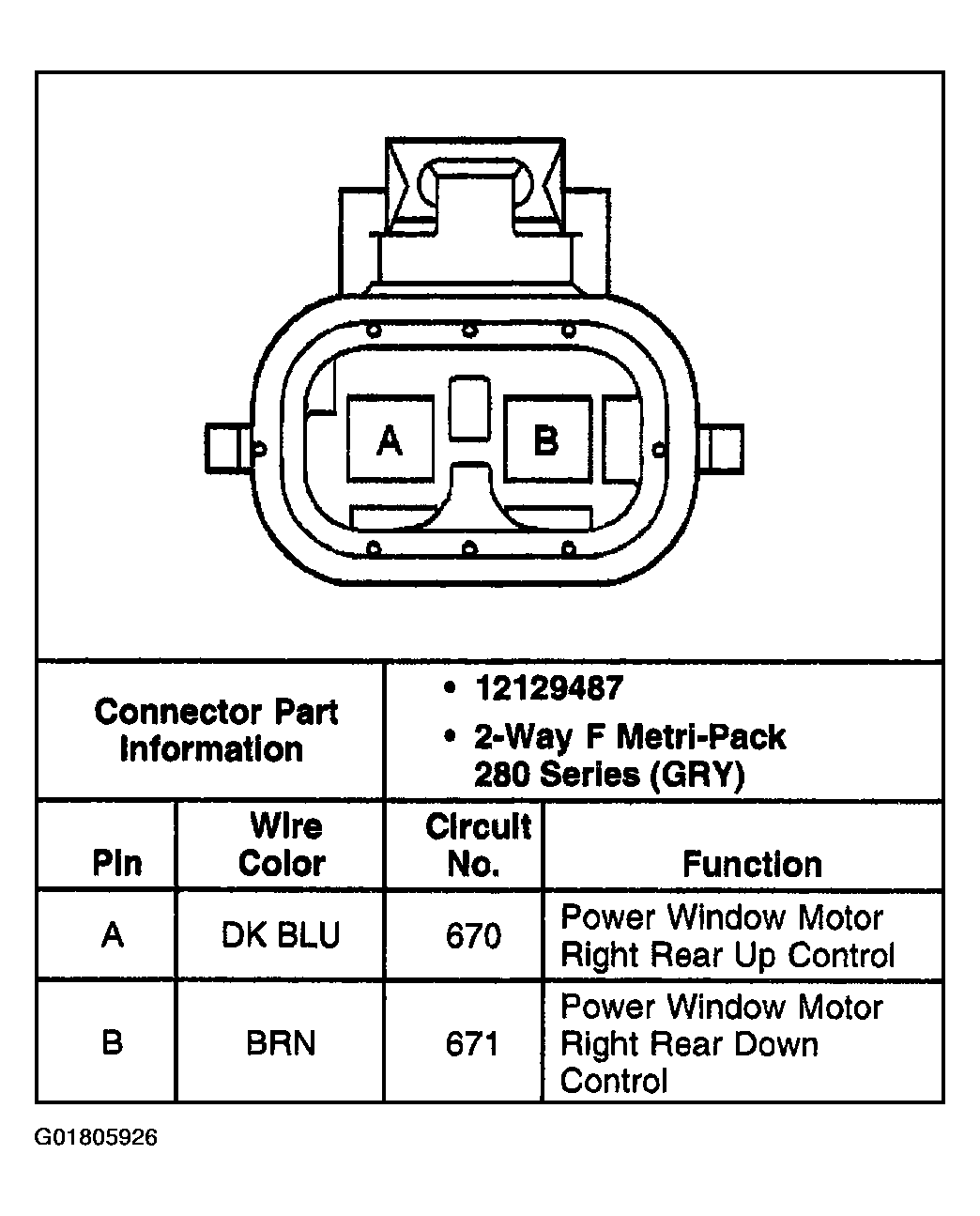

Fig 36: Window Motor - RR

G01805926

Courtesy of GENERAL MOTORS CORP.

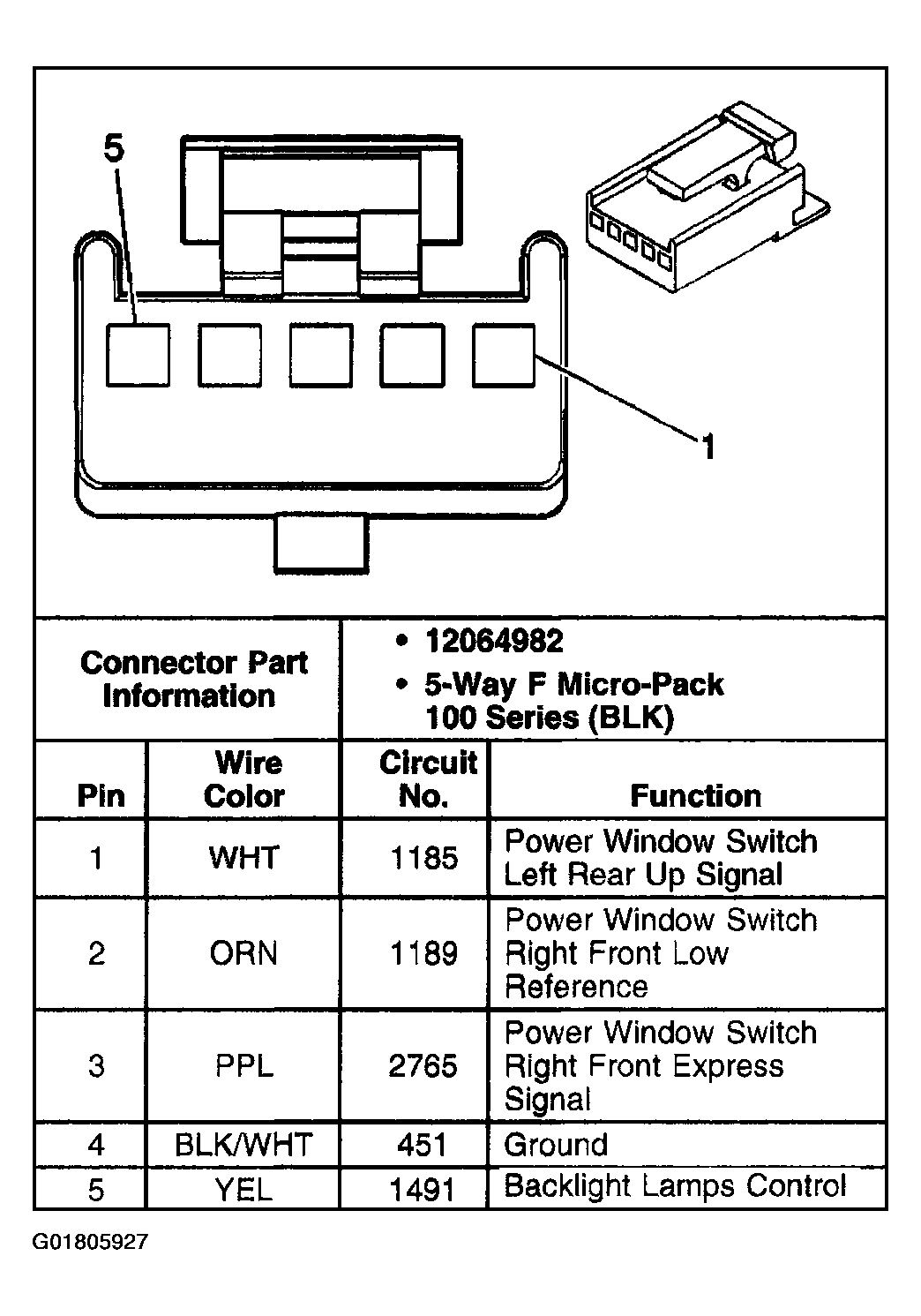

Fig 37: Window Switch - Front Passenger

G01805927

Courtesy of GENERAL MOTORS CORP.

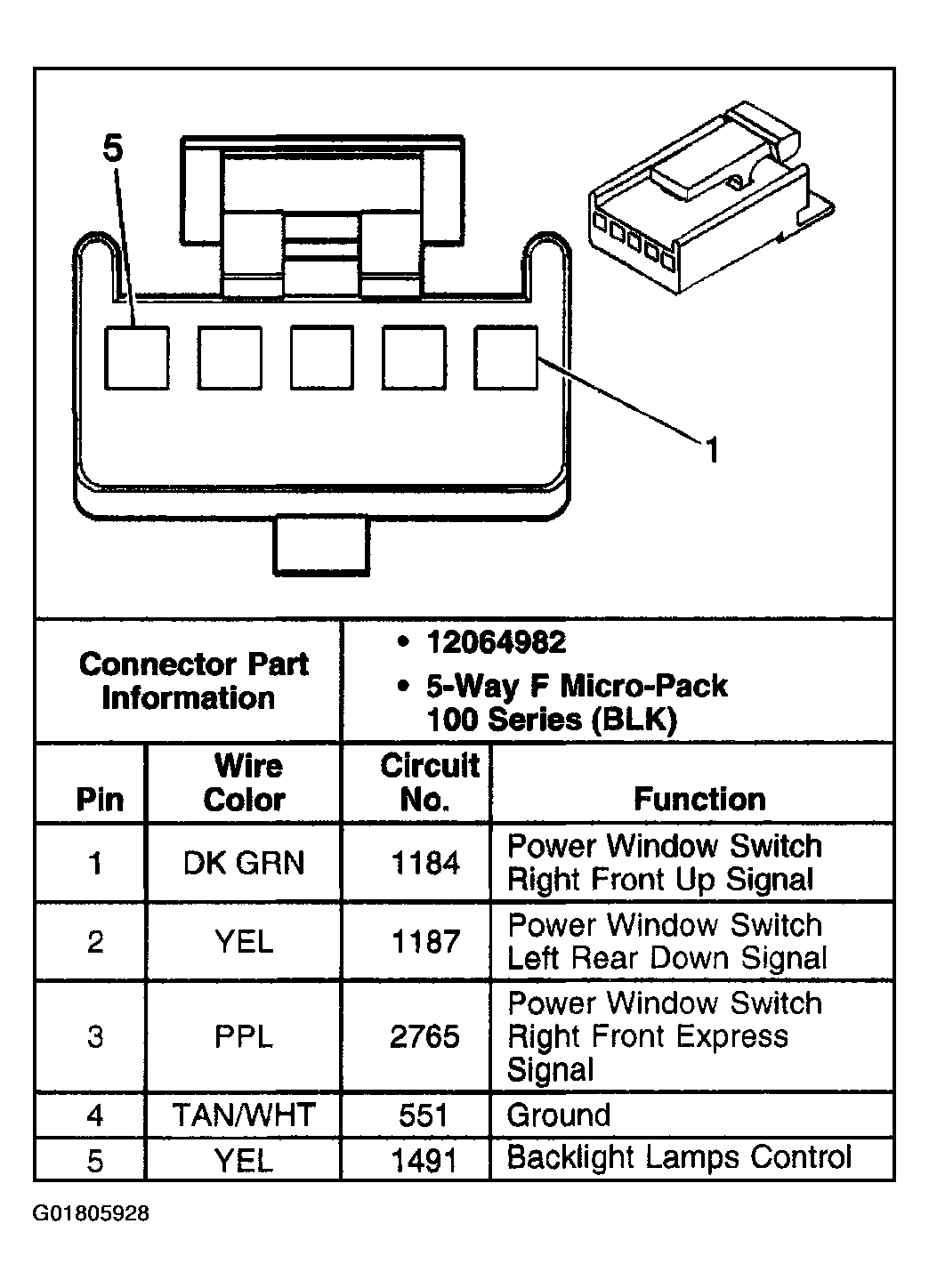

Fig 38: Window Switch - LR

G01805928

Courtesy of GENERAL MOTORS CORP.

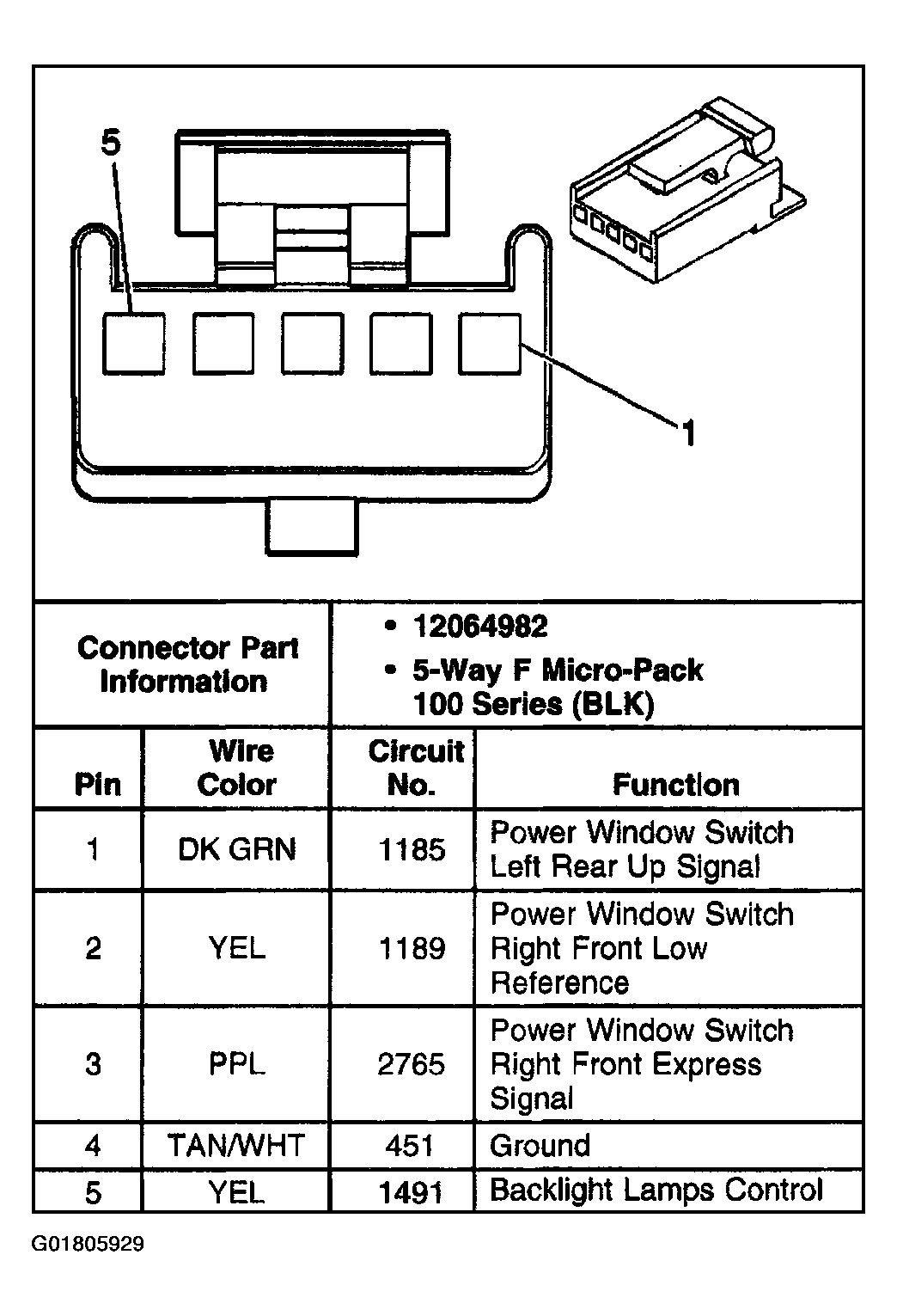

Fig 39: Window Switch - RR

G01805929

Courtesy of GENERAL MOTORS CORP.
