Removal Procedure

  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door  or Trim Panel Replacement - Side Front Door .
  2. Disconnect the electrical connector from the lock switch.
  3. Use a flat bladed tool to disengage the locking tabs (1) from both sides of the switch.
  4. Remove the lock switch.

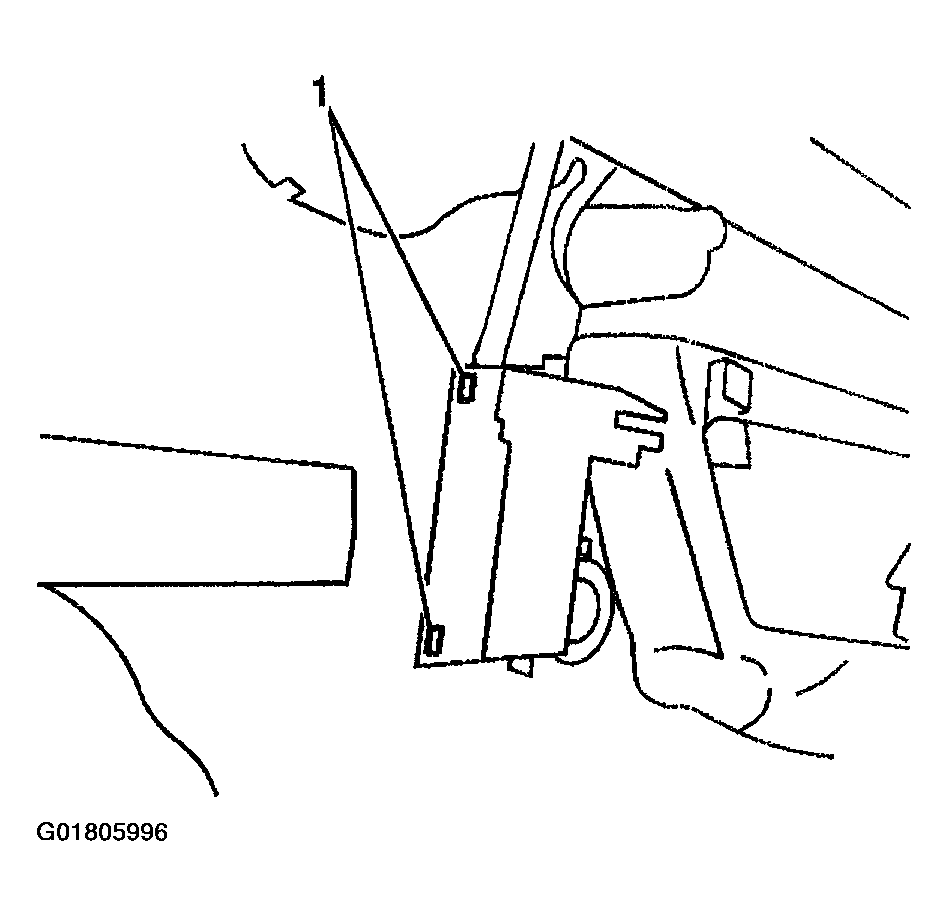

    Fig 1: Disengaging Locking Tabs
    G01805996Courtesy of GENERAL MOTORS CORP.
