Traction Control Switch (w/F45)

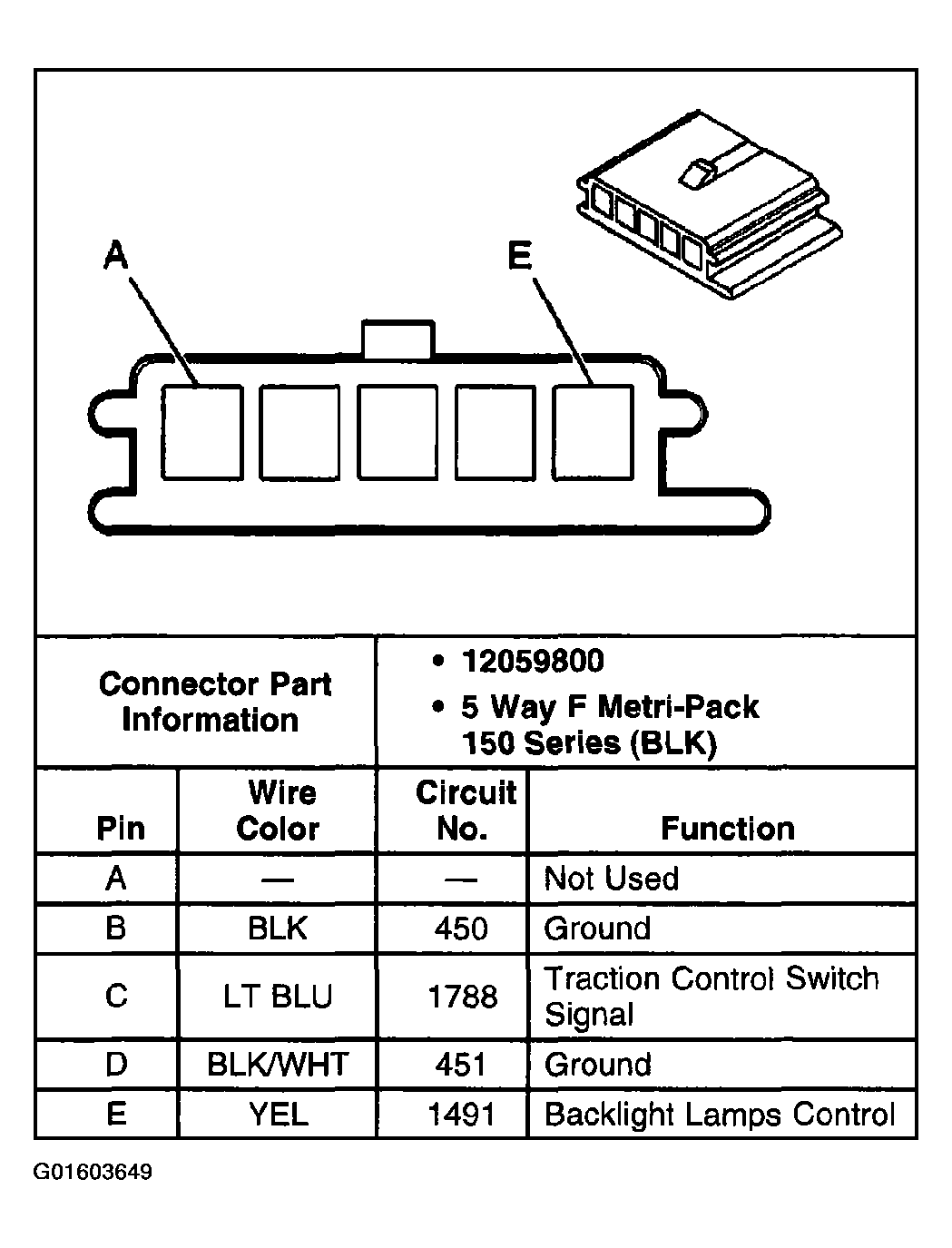

Fig 1: Traction Control Switch (w/F45) Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
