Removal Procedure

Important:

• Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.
• Always route the replacement cable the same way as the original cable.

1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
2. Disconnect the body harness from the battery negative cable.
3. Disconnect the battery negative cable from the floor pan.
4. Remove the battery negative cable from the vehicle.

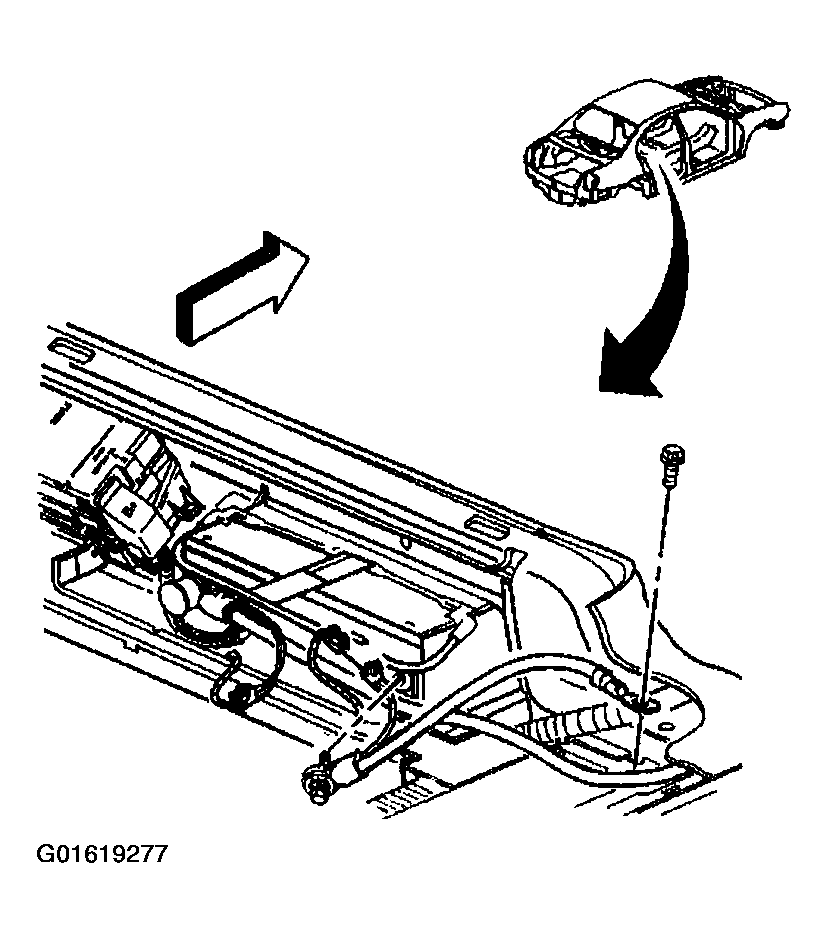

   Fig 1: Battery Negative Cable

   Courtesy of GENERAL MOTORS CORP.
