Power Door Systems Component Views

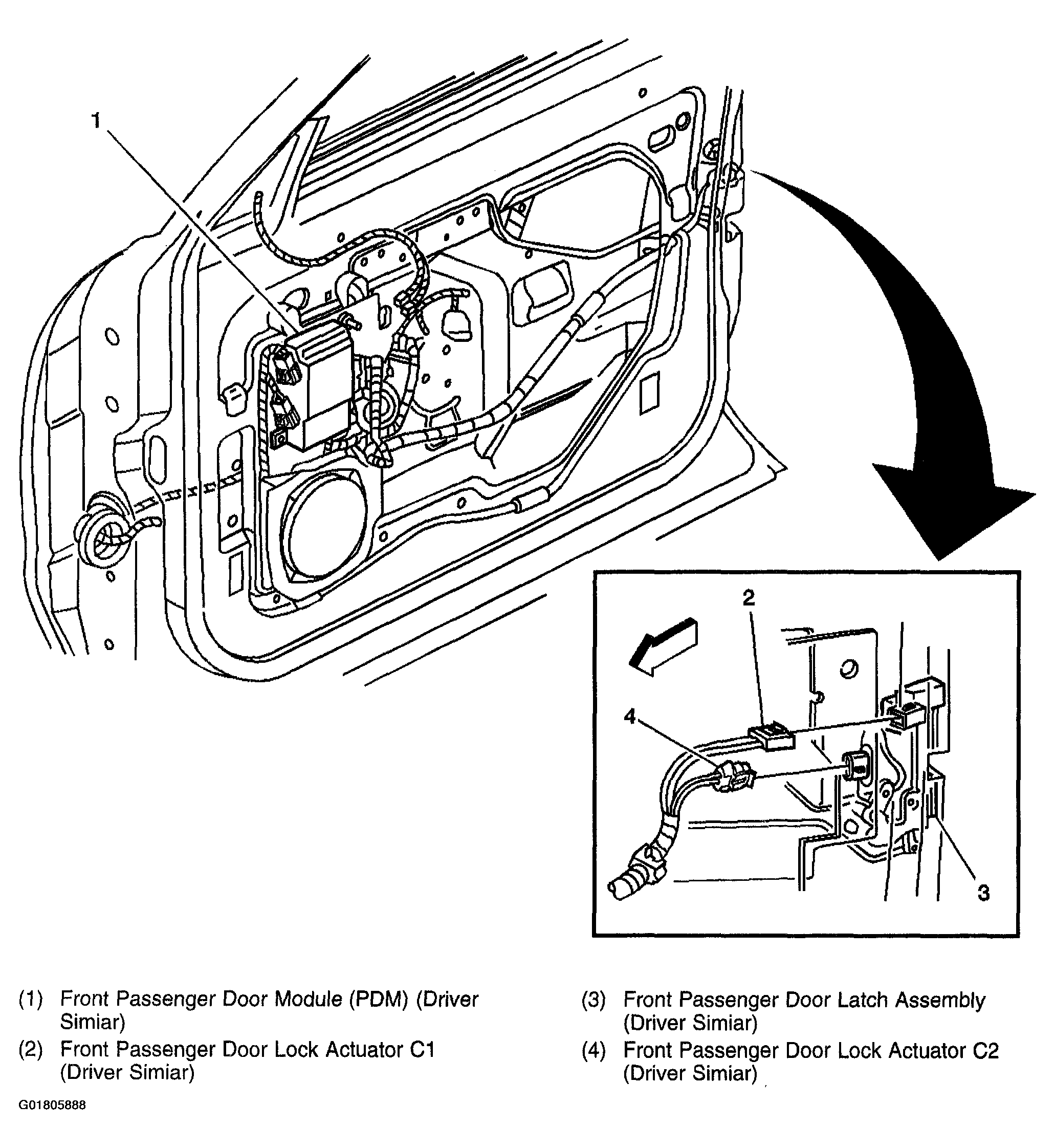

Fig 1: Front Door Lock Actuators
G01805888Courtesy of GENERAL MOTORS CORP.

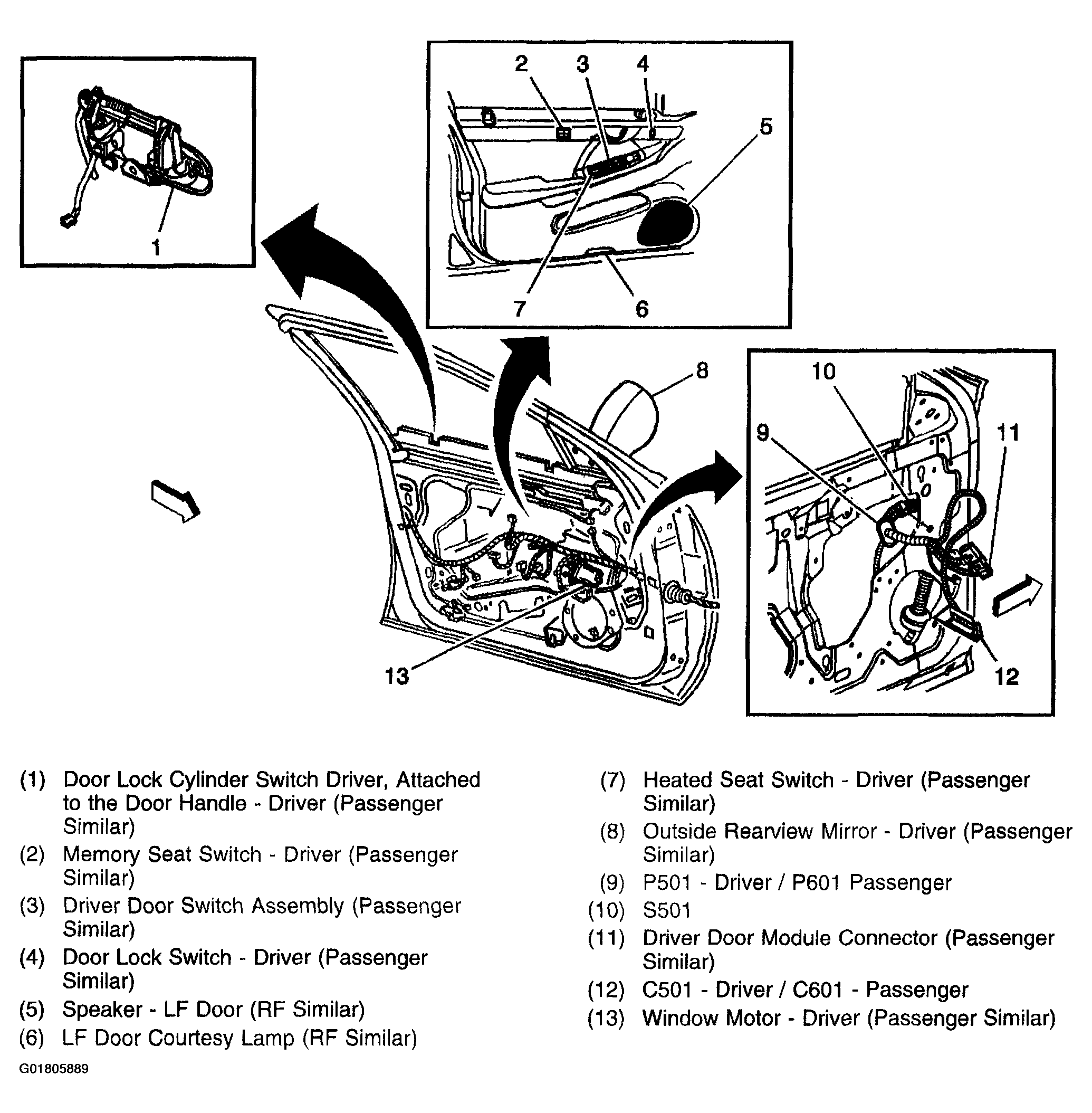

Fig 2: Front Door
G01805889Courtesy of GENERAL MOTORS CORP.

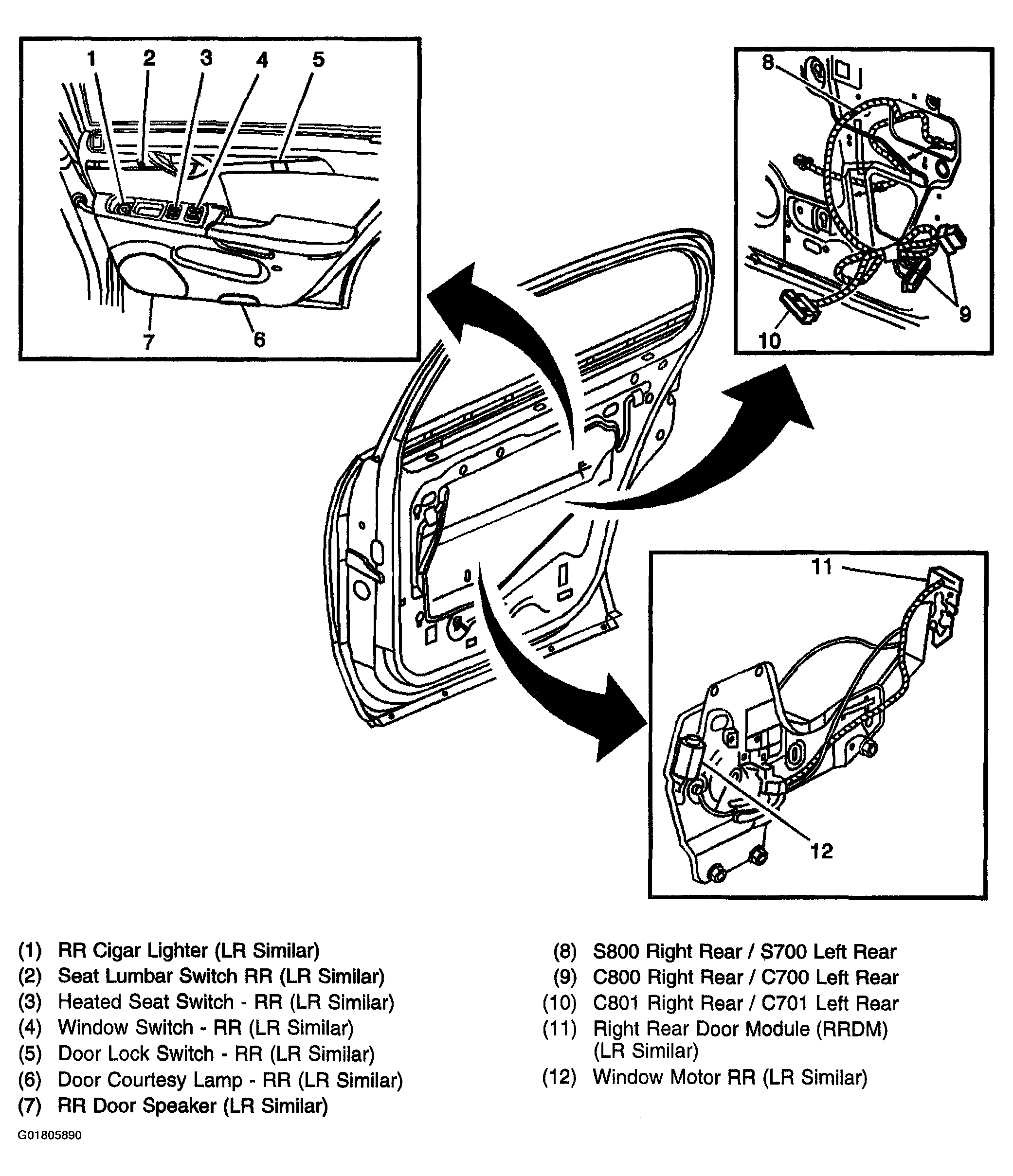

Fig 3: Rear Door
G01805890Courtesy of GENERAL MOTORS CORP.
