Removal Procedure

  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door  or Trim Panel Replacement - Side Front Door .
  2. Disconnect the electrical connectors (2) from the control module.
  3. Remove the door control module (1) by releasing the retainer tabs (3).

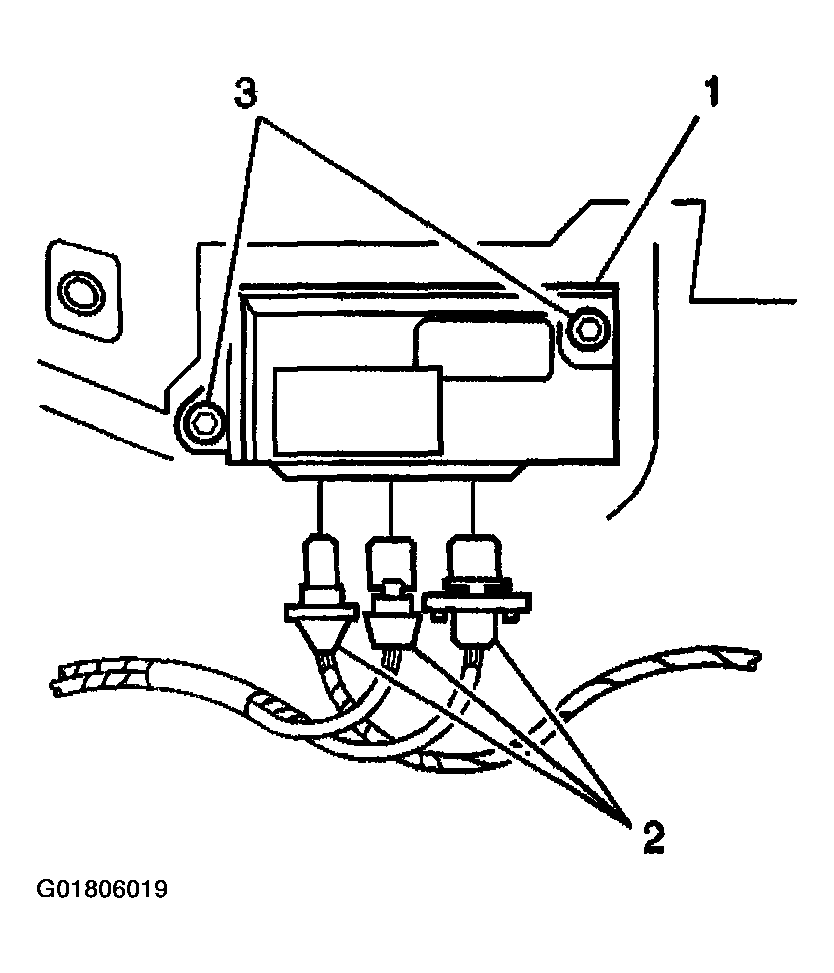

    Fig 1: Disconnecting Electrical Connectors & Removing Door Control Module By Releasing Retainer Tabs
    G01806019Courtesy of GENERAL MOTORS CORP.
