Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

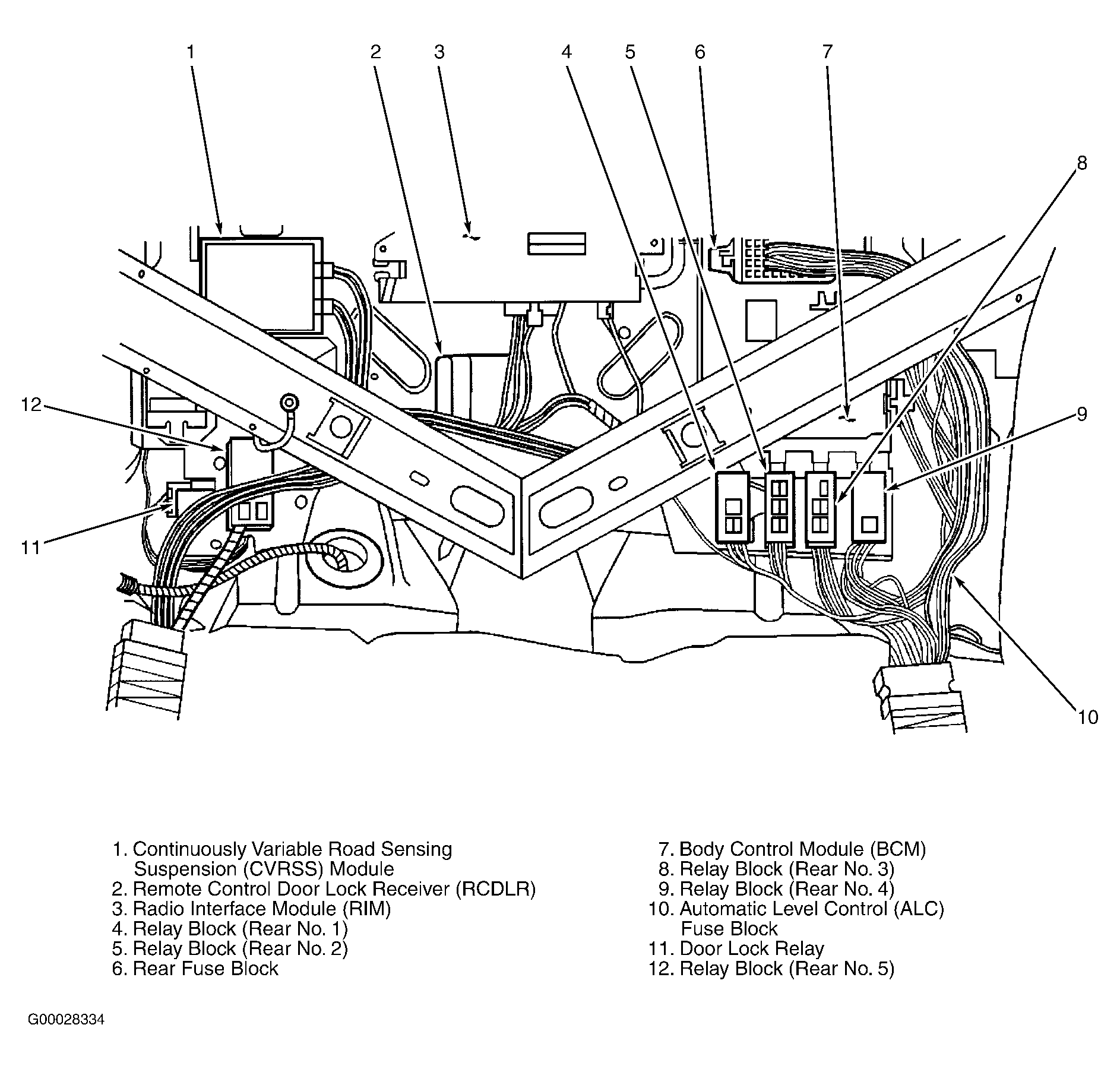

Automatic Level Control (ALC) Fuse Block Behind lower left side of rear seat back. See Figure .
Left Underhood Fuse Block Left side of engine compartment, forward of left front strut tower. See Figure .
Rear Fuse Block Behind upper left side of rear seat back. See Figure .
Relay Block (Rear No. 1) Behind left rear seat back. See Figure .
Relay Block (Rear No. 2) Behind left rear seat back. See Figure .
Relay Block (Rear No. 3) Behind left rear seat back. See Figure .
Relay Block (Rear No. 4) Behind left rear seat back. See Figure .
Relay Block (Rear No. 5) Behind left rear seat back See Figure .
Right Underhood Fuse Block Left side of engine compartment, forward of left front strut tower. See Figure .
Steering Column Fuse Holder Near base of steering column.
Underhood Fuse Block Left side of engine compartment, forward of left front strut tower. See Figure .
Underhood Relay Block Left side of engine compartment, forward of left front strut tower. See Figure .
