Installation Procedure

  1. Install the quarter window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
  2. Install the screws that retain the quarter window.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws to 1.5 N.m (13 lb in).

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

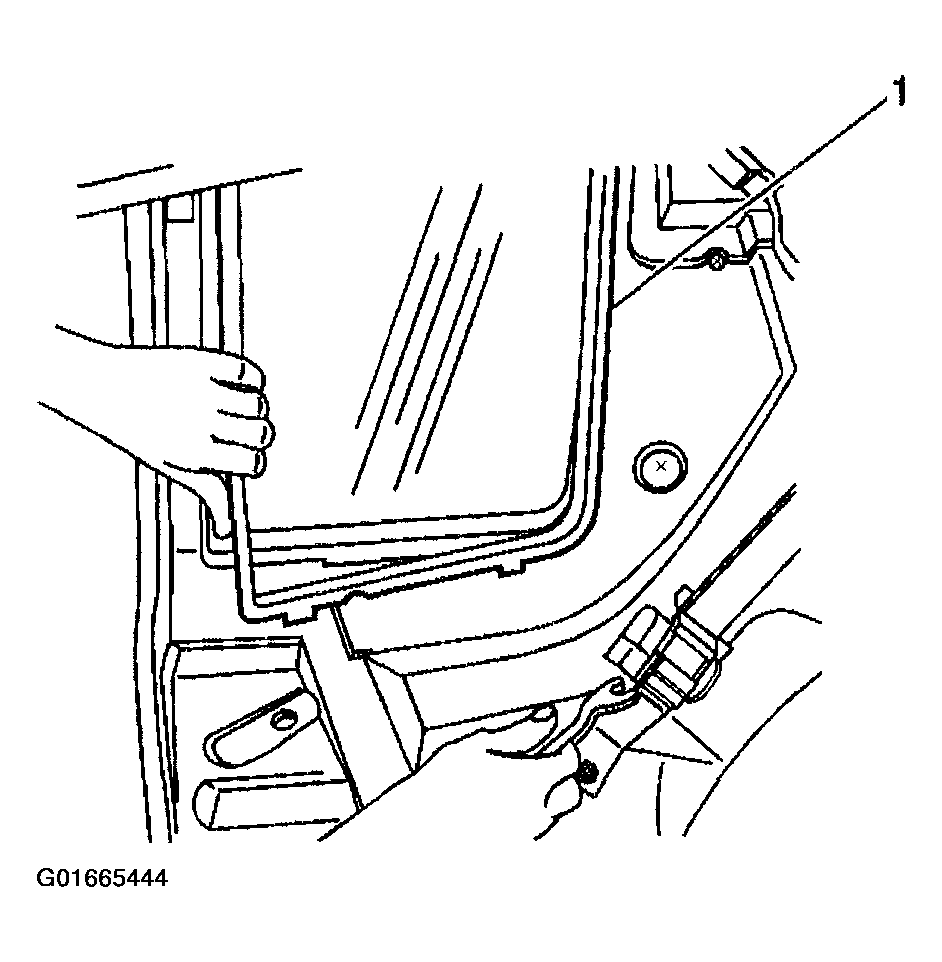

    Fig 1: Identifying Quarter Window Trim
    G01665444Courtesy of GENERAL MOTORS CORP.
  4. Install the quarter window trim (1).
  5. Install the rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER .
  6. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .
  7. Install the seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .
  8. Install the door opening weather-strip.
  9. Secure the lack molding.
  10. Remove the double layer of masking tape around the perimeter of the painted surfaces and from the interior trim.
  11. Close the door.
